1-2. Theft deterrent system

WARNING

■

Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly
Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

85

1-2. Theft deterrent system

1

For safet

y and s

ecurity

Alarm



The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:
● A locked door is unlocked or opened in any way other than using a

key or wireless remote control. (The doors will lock again automati-
cally.)

● The hood is opened.
● Vehicles  with  the  glass  breakage  sensor:  The  side  windows  are

tapped or broken.

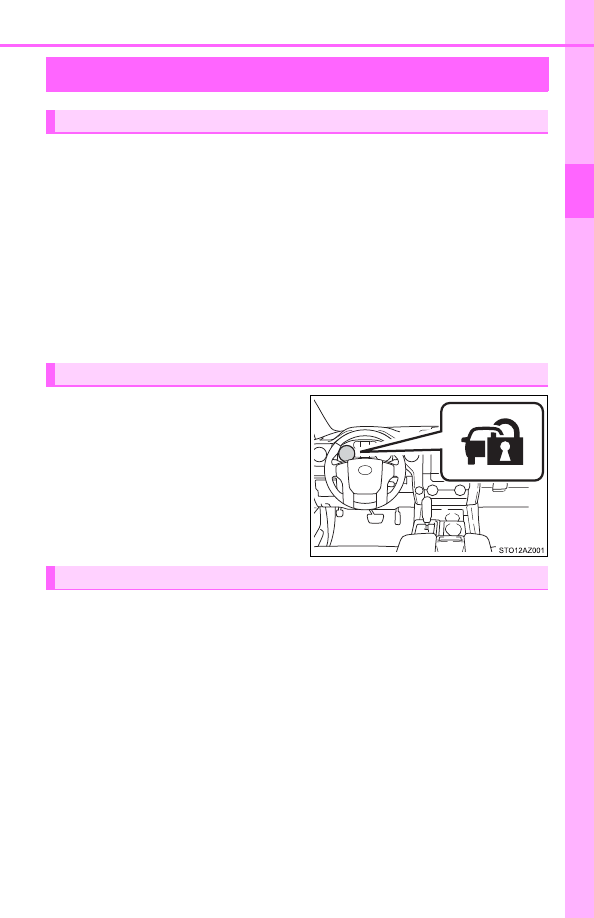

Close  the  doors  and  hood,  and
lock all the doors. The system will
be set automatically after 30 sec-
onds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarms:
● Unlock the doors.
● Turn the engine switch to the “ACC” or “ON” position, or start the

engine. (The alarm will be deactivated or stopped after a few sec-
onds.)



: If equipped

The alarm

Setting the alarm system

Deactivating or stopping the alarm

86

1-2. Theft deterrent system

■

System maintenance
The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

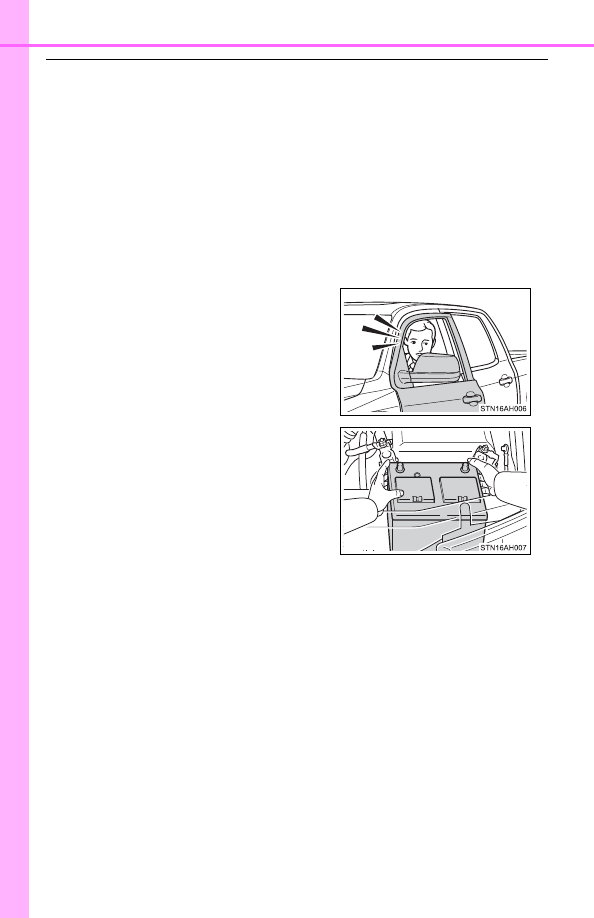

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

●

A person inside the vehicle opens a door
or hood.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked.

87

1-2. Theft deterrent system

1

For safet

y and s

ecurity

■

Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle locks the door and the alarm is acti-
vated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery.

NOTICE

■

To ensure the system operates correctly
Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

88

1-2. Theft deterrent system

89

Instrument cluster

2

2.

Instrument cluster
Warning lights and

indicators .......................... 90

Gauges and meters ............ 95
Multi-information display ... 100
Fuel consumption

information ...................... 107

90

2. Instrument cluster

 Warning lights and indicators

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

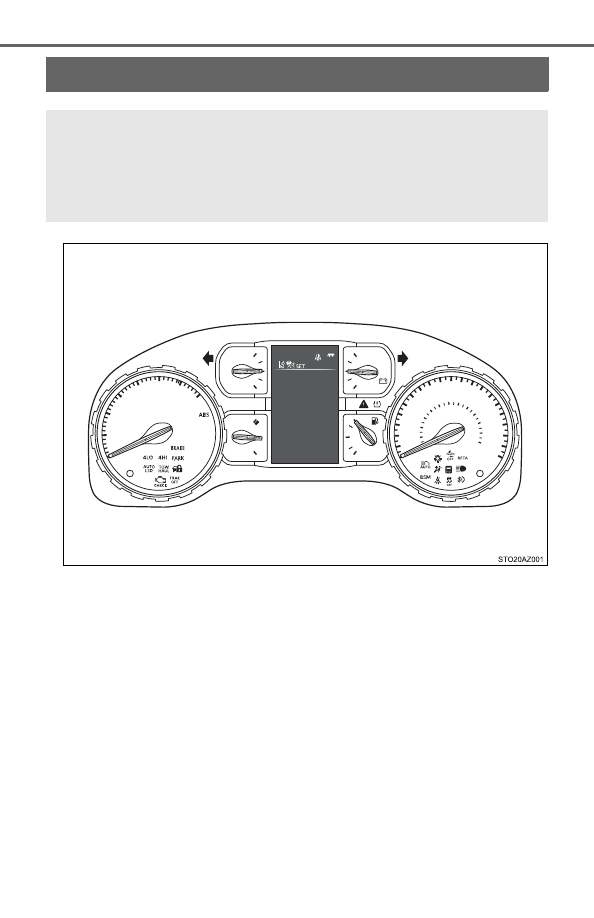

For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all warning lights and indicators illuminated.

91

2. Instrument cluster

2

Instrument cluster

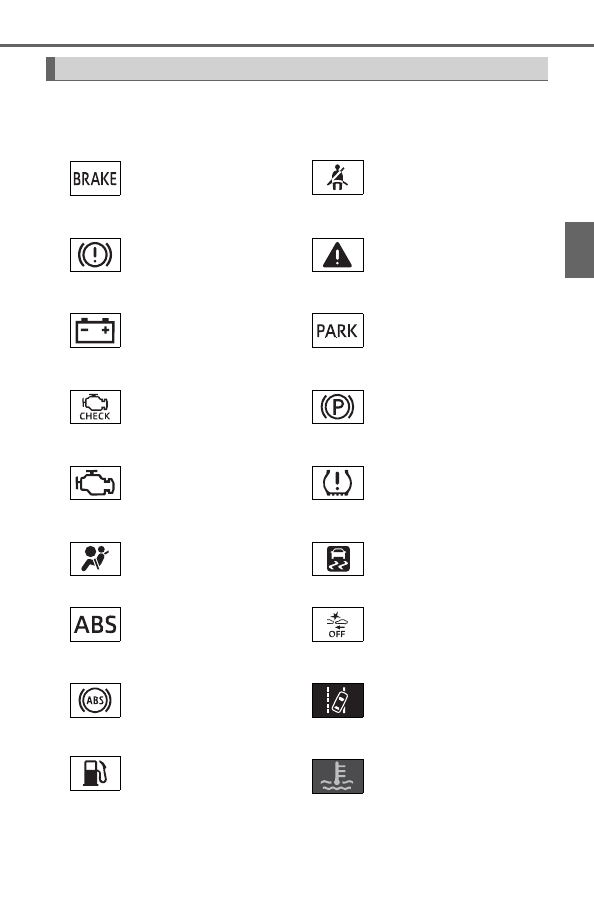

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake  system  warning
light (

P. 547)

Seat  belt  reminder  light
(

P. 548)

*

1

(Canada)

Brake  system  warning
light (

P. 547)

*

1

Master  warning  light
(

P. 548)

*

1

Charging  system  warn-
ing light (

P. 547)

*

1, 3

(U.S.A.)

Parking  brake  warning
light (

P. 548)

*

1

(U.S.A.)

Malfunction

indicator

lamp (

P. 547)

*

1, 3

(Canada)

Parking  brake  warning
light (

P. 548)

*

1

(Canada)

Malfunction

indicator

lamp (

P. 547)

*

1

Tire  pressure  warning
light (

P. 549)

*

1

SRS warning light
(

P. 547)

*

1, 2

Slip indicator (

P. 549)

*

1

(U.S.A.)

ABS warning light
(

P. 548)

*

1, 3, 5

PCS warning light
(

P. 550)

*

1

(Canada)

ABS warning light
(

P. 548)

*

2, 4, 5

(Yellow)

LDA indicator (

P. 550)

Low  fuel  level  warning
light (

P. 548)

*

4

High engine coolant tem-
perature warning light
(

P. 556)

92

2. Instrument cluster

*

1

: These lights turn on when the engine switch is turned to the “ON” position

to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if the lights do not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer for details.

*

2

: The light comes on to indicate a malfunction.

*

3

: The light flashes to indicate a malfunction.

*

4

: The light illuminates on the multi-information display.

*

5

: If equipped

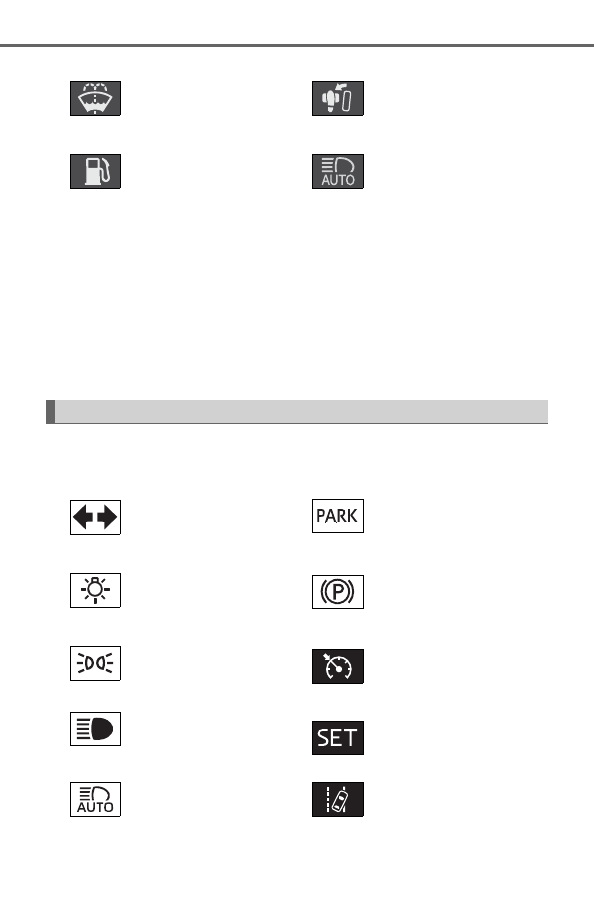

The indicators inform the driver of the operating state of the vehicle’s
various systems.

*

4

Low  windshield  washer
fluid warning light
(

P. 558)

*

4

Brake  Override  System/
Drive-Start Control warn-
ing light (

P. 559, 562)

*

4

Low  fuel  level  warning
light (

P. 558)

*

4, 5

Automatic  High  Beam
indicator (

P. 562)

Indicators

Turn signal indicator
(

P. 203)

*

1

(U.S.A.)

Parking  brake  indicator
(

P. 204)

(U.S.A.)

Headlight indicator
(

P. 205)

*

1

(Canada)

Parking  brake  indicator
(

P. 204)

(Canada)

Tail light indicator
(

P. 205)

*

6, 9

Cruise control indicator
(

P. 260, 265)

Headlight  high  beam
indicator (

P. 207)

*

6

Cruise  control  “SET”
indicator (

P. 260, 265)

*

9

Automatic  High  Beam
indicator (

P. 210)

*

6, 9

(Green)

LDA indicator (

P. 246)

93

2. Instrument cluster

2

Instrument cluster

*

1

: These lights turn on when the engine switch is turned to the “ON” position

to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if the lights do not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer for details.

*

2

: The light flashes to indicate that the system is operating.

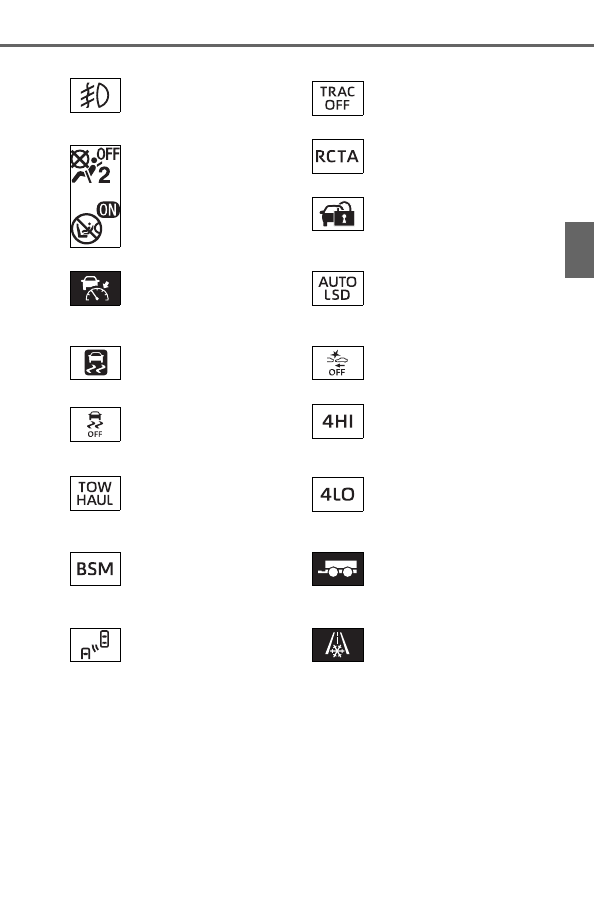

Front  fog  light  indicator
(

P. 215)

*

1

“TRAC OFF” indicator
(

P. 301)

*

1, 5

“AIR BAG ON” and
“AIR BAG OFF”
indicators (

P. 50)

*

9

“RCTA” indicator
(

P. 285)

Security indicator
(

P. 76, 85)

*

6, 9

Dynamic  radar  cruise
control indicator
(

P. 251)

*

1

“AUTO  LSD”  indicator
(

P. 298, 301)

*

1, 2

Slip indicator
(

P. 301)

*

1, 8, 9

PCS warning light
(

P. 234)

*

1

VSC off indicator
(

P. 298, 301)

(4WD models)

“4HI” indicator (

P. 295)

“TOW HAUL” indicator
(

P. 199)

(4WD models)

“4LO” indicator (

P. 295)

*

9

“BSM” indicator
(

P. 285)

*

6

(Green)

Trailer connection
indicator (

P. 307)

*

3, 4, 9

BSM  outside  rear  view
mirror indicator
(

P. 285)

*

6, 7

Low outside temperature
indicator

94

2. Instrument cluster

*

3

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to the “ON” position, the BSM function

is enabled on the

 screen of the multi-information display.

• When the BSM function is enabled on the

 screen of the multi-infor-

mation display, the engine switch is turned to the “ON” position.

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

*

4

: The light illuminates on the outside rear view mirrors.

*

5

: The light illuminates on the center panel.

*

6

: The light illuminates on the multi-information display.

*

7

: When  the  outside  temperature  is  approximately  37°F  (3°C)  or  lower,  the

indicator will flash for 10 times, then comes on.

*

8

: The light comes on when the system is turned off.

*

9

: If equipped

WARNING

■

If a safety system warning light does not come on
Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

95

2. Instrument cluster

2

Instrument cluster

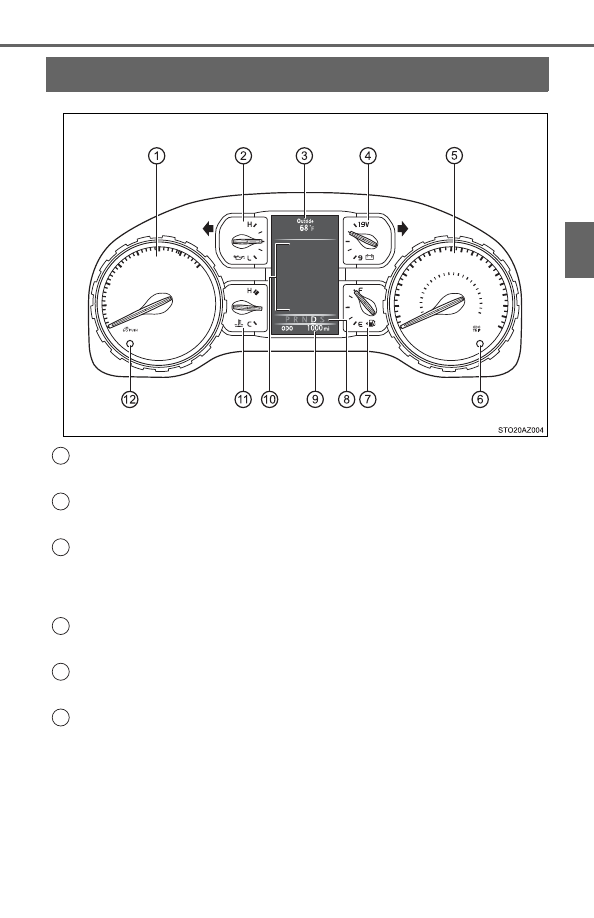

Gauges and meters

Tachometer

Displays the engine speed in revolutions per minute

Engine oil pressure gauge

Displays the engine oil pressure

Outside temperature display

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Voltmeter

Displays the charge state

Speedometer

Displays the vehicle speed

Odometer/Trip meter switching and trip meter resetting button

Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.

1

2

3

4

5

6

96

2. Instrument cluster

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Shift position and shift range display

Displays the selected shift position or selected shift range. (

P. 196)

Odometer and trip meter display

Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

Multi-information display

Presents the driver with a variety of driving-related data. (

P. 101)

Displays warning messages in case of a malfunction. (

P. 555)

Engine coolant temperature gauge

Displays the engine coolant temperature.

Instrument panel light control button

7

8

9

10

11

12
