1-4. Theft deterrent system

1

Fo
r safety and securi

ty

CAMRY_U



For vehicles sold in Canada

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

82

1-4. Theft deterrent system

CAMRY_U

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:



Vehicles without a smart key system

● A locked door is unlocked or opened in any way other than using

the wireless remote control or key. (The doors will lock again auto-
matically.)

● The trunk is opened in any way other than using the wireless

remote control.

● The hood is opened.



Vehicles with a smart key system

● A locked door is unlocked or opened in any way other than using

the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

● The trunk is opened in any way other than using the entry function

or wireless remote control.

● The hood is opened.

Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

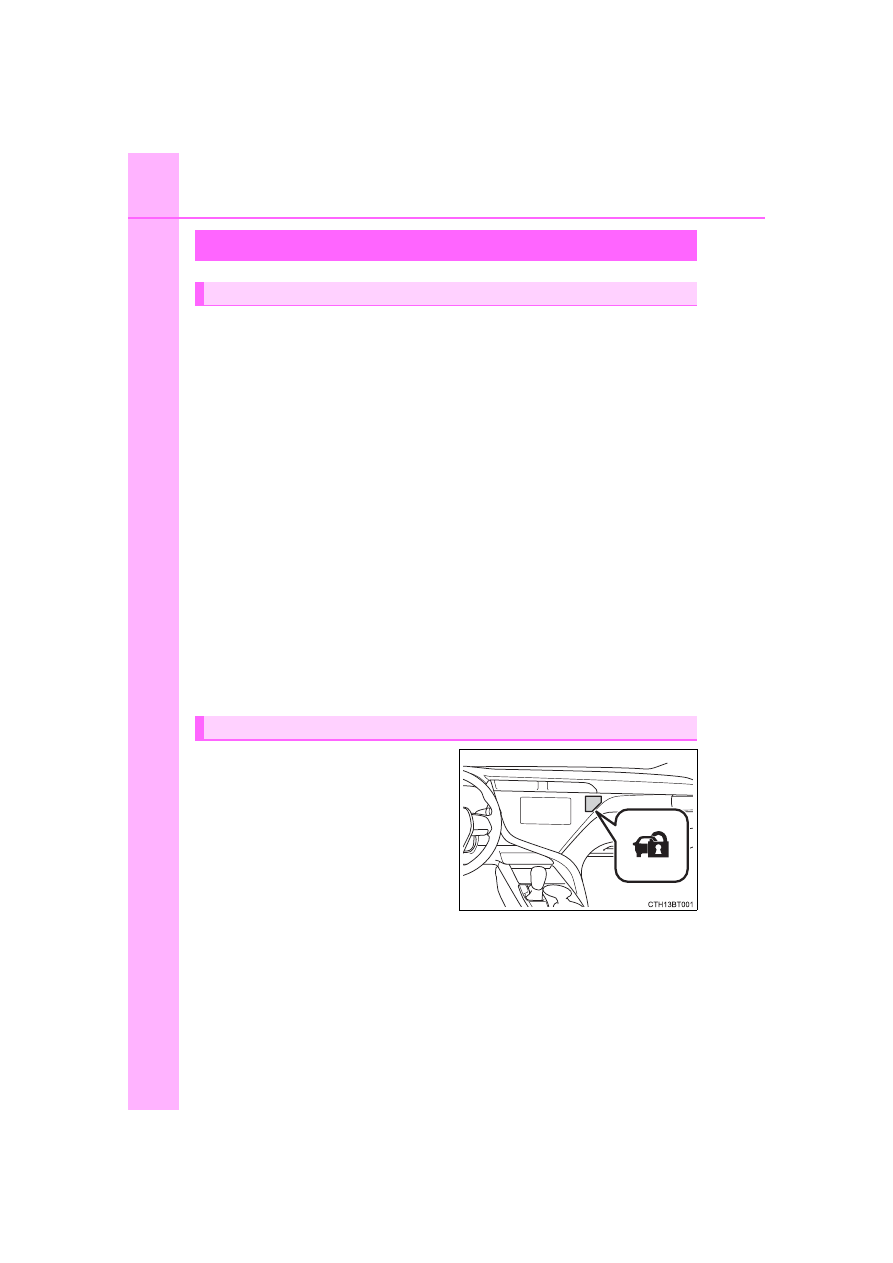

Alarm





: If equipped

The alarm

Setting the alarm system

83

1-4. Theft deterrent system

1

Fo
r safety and securi

ty

CAMRY_U

Do one of the following to deactivate or stop the alarm:



Vehicles without a smart key system

● Unlock the doors.
● Open the trunk using the wireless remote control.
● Turn the engine switch to the “ACC” or “ON” position, or start the

engine. (The alarm will be deactivated or stopped after a few sec-
onds.)



Vehicles with a smart key system

● Unlock the doors.
● Open the trunk using the entry function or wireless remote control.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or

start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

■

System maintenance
The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof or panoramic moon roof are closed before the
alarm is set.

●

No valuables or other personal items are left in the vehicle.

Deactivating or stopping the alarm

84

1-4. Theft deterrent system

CAMRY_U

■

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

■

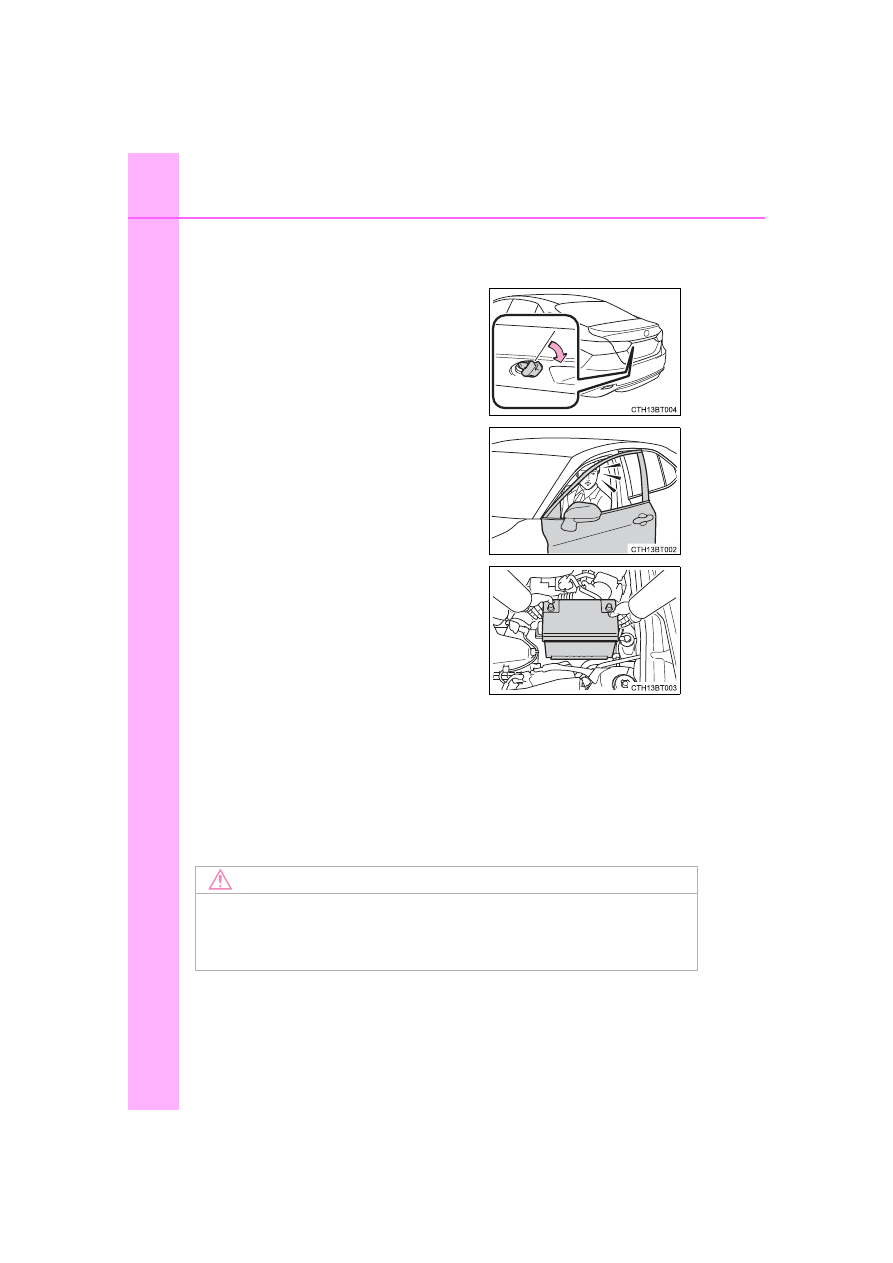

Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery

●

Vehicles without a smart key system:
The trunk is opened using the key.

●

Vehicles with a smart key system: The
trunk is opened using the mechanical
key.

●

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

●

The battery is recharged or replaced
when the vehicle is locked. (

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

85

Instrument cluster

2

CAMRY_U

Instrument cluster
Warning lights

and indicators ................... 86

Gauges and meters ............ 92
Multi-information display

(4.2-inch display) .............. 95

Multi-information display

(7-inch display) ............... 107

Head-up display ................ 121
Fuel consumption

information ...................... 128

86

CAMRY_U

2. Instrument cluster



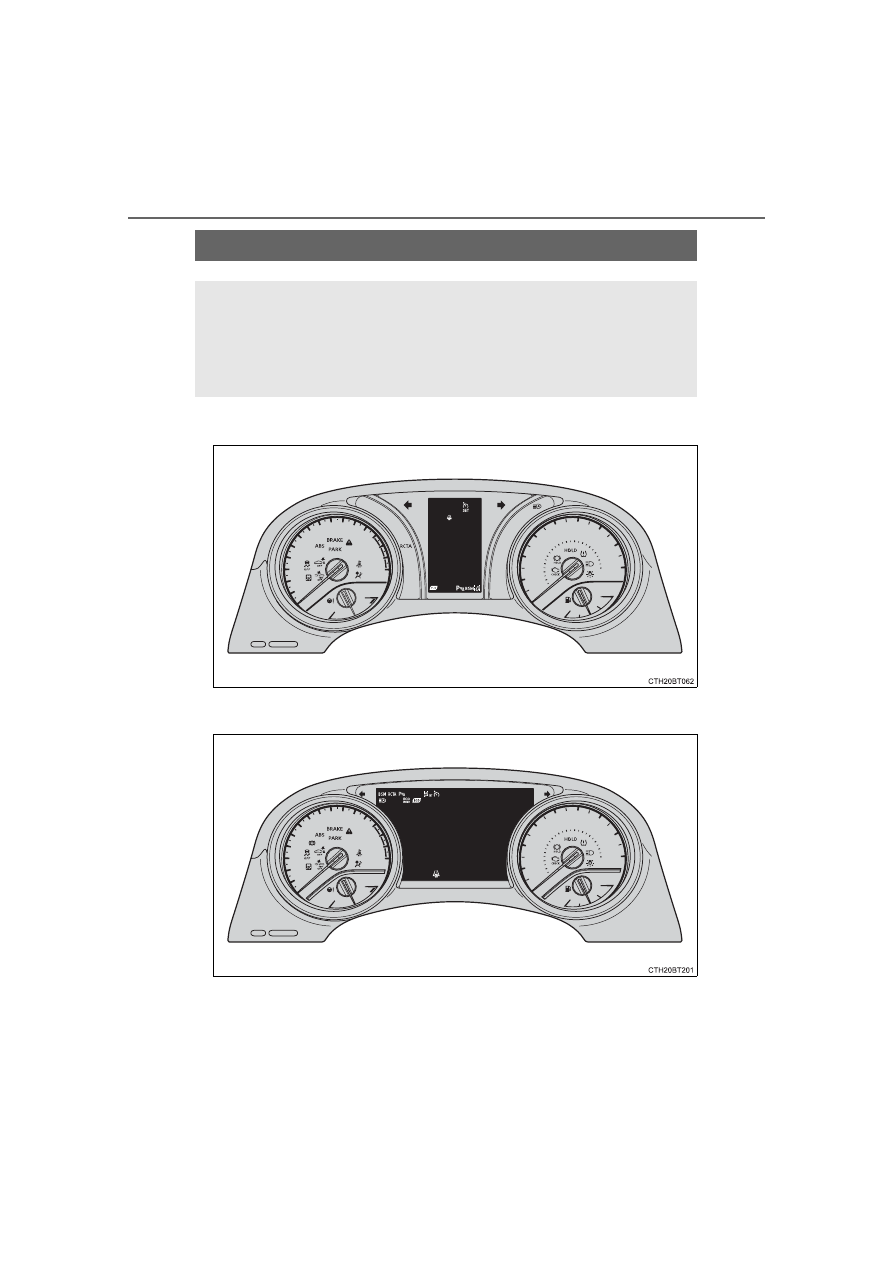

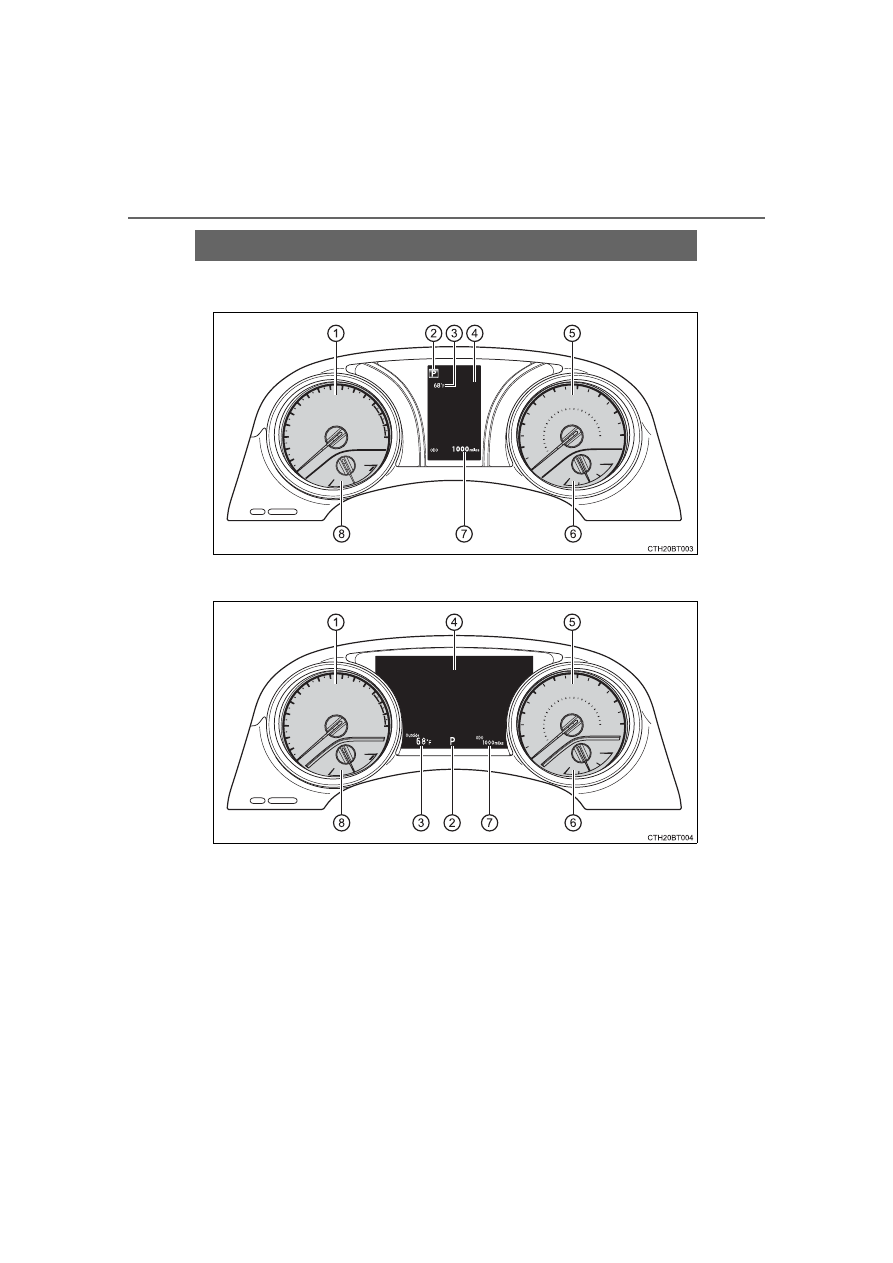

4.2-inch display



7-inch display

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

87

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

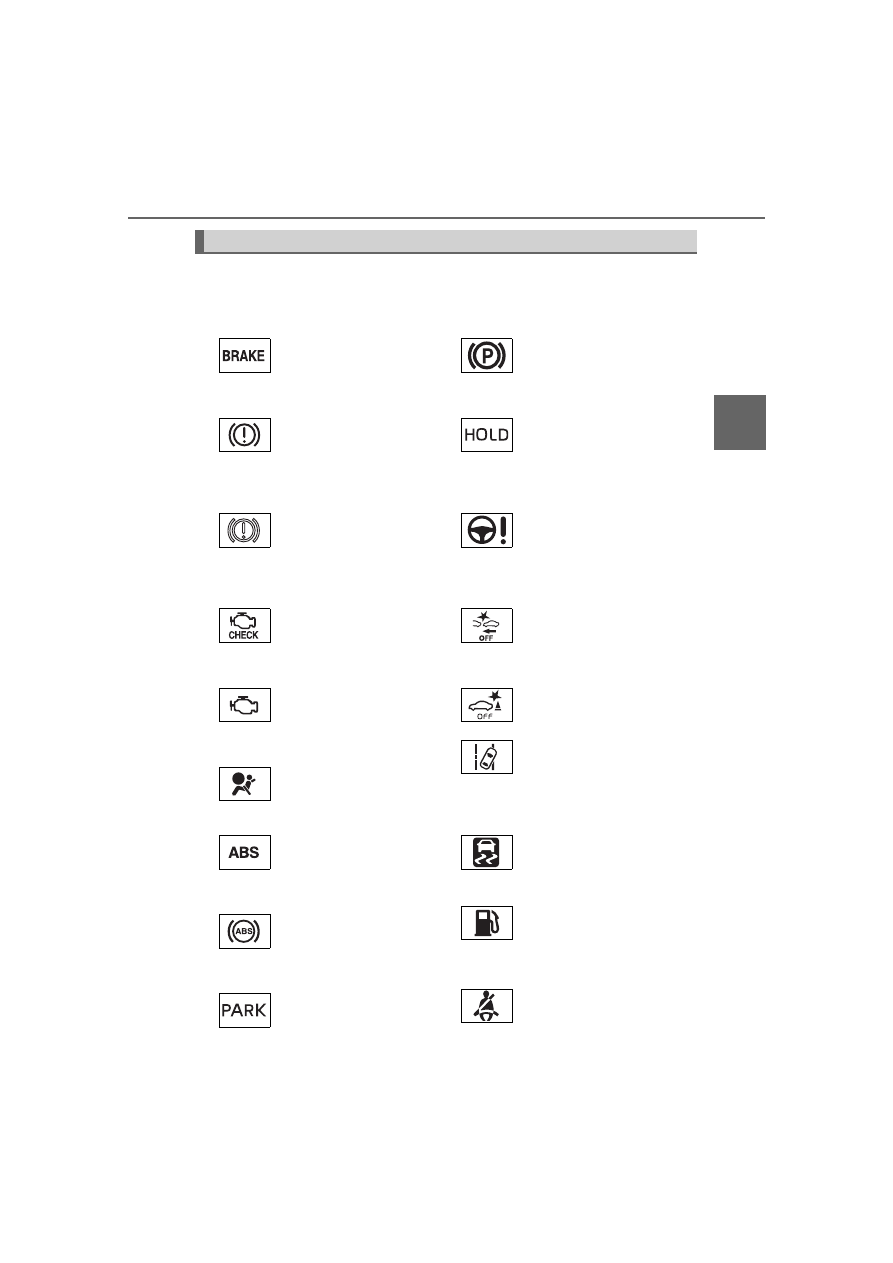

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake system warning
light (

*

2

(Canada)

Parking brake indicator
(

*

1

(Canada)

(Red)

Brake system warning
light (

*

1, 2

(if equipped)

Brake hold operated
indicator (

*

1

(if equipped)

(Yellow)

Brake system warning
light (

*

1

(Red/yellow)

Electric power steering
system warning light
(

*

1

(U.S.A.)

Malfunction indicator
lamp (

*

1, 2

(if equipped)

PCS warning light
(

*

1

(Canada)

Malfunction indicator
lamp (

*

1, 2

(if equipped)

ICS OFF indicator
(

*

1

SRS warning light
(

(if equipped)

(Yellow)

LDA (Lane Departure
Alert) indicator
(

*

1

(U.S.A.)

ABS warning light
(

*

1

Slip indicator (

*

1

(Canada)

ABS warning light
(

Low fuel level warning
light (

*

2

(U.S.A.)

Parking brake indicator
(

Driver’s and front
passenger’s seat belt
reminder light (

88

2. Instrument cluster

CAMRY_U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.

*

2

: This light flashes to indicate a malfunction.

*

3

: This light illuminates on the center panel.

*

3

(Type A)

Rear passengers’ seat
belt reminder lights
(

*

1

Master warning light
(

*

3

(Type B)

Rear passengers’ seat
belt reminder lights
(

*

1

Tire pressure warning
light (

89

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

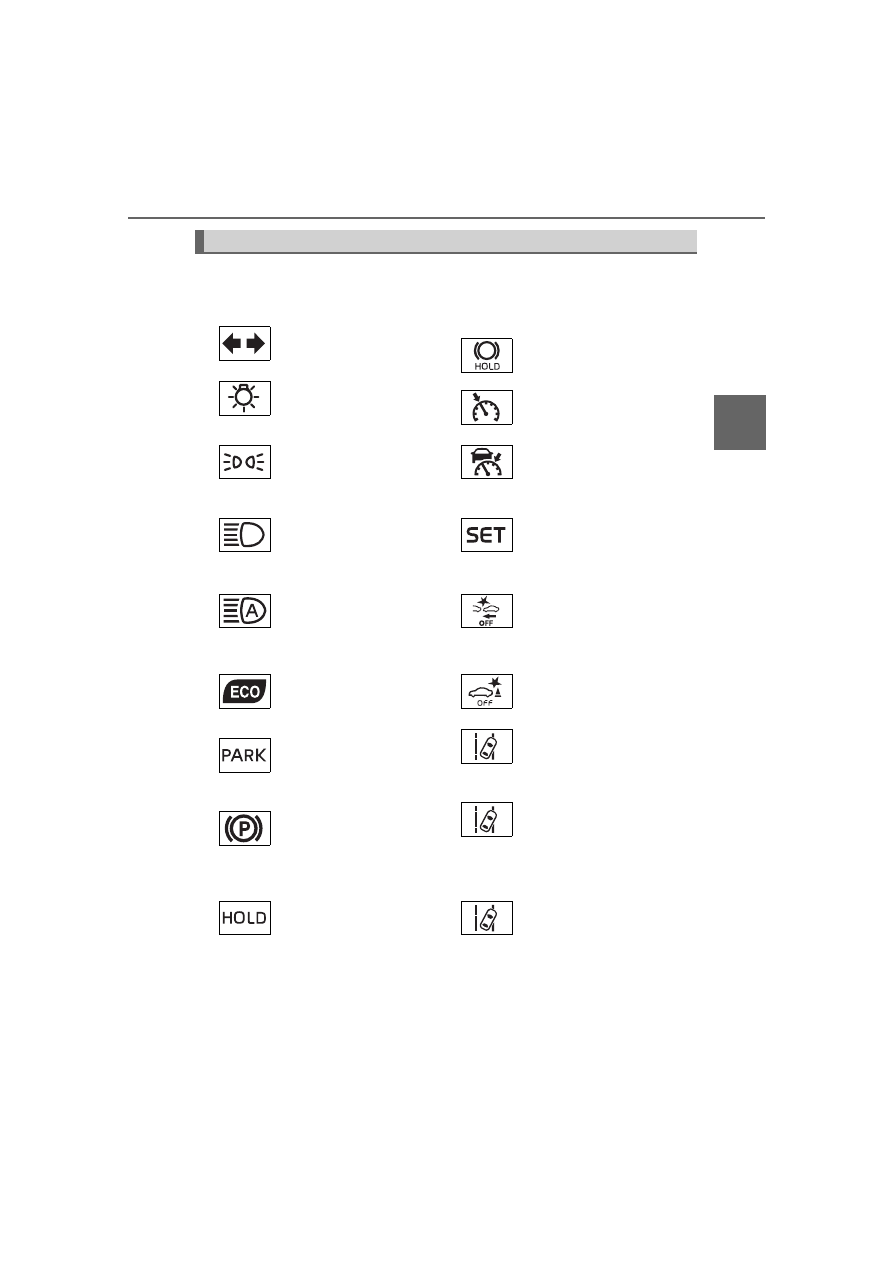

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(

*

1

Brake hold standby
indicator (

(U.S.A.)

Headlight indicator
(

Cruise control indicator
(

P. 271, 28 5, 299)

(Canada)

Tail light indicator
(

(if equipped)

Radar cruise control
indicator (

P. 271 , 285)

Headlight high beam
indicator (

Cruise control “SET”
indicator
(

P. 271, 28 5, 299)

*

1

(if equipped)

Automatic High Beam
indicator (

*

1, 3

(if equipped)

PCS warning light
(

*

1, 2

Eco driving indicator
(

P. 105, 1 19)

*

1, 3

(if equipped)

ICS OFF indicator
(

(U.S.A.)

Parking brake indicator
(

P . 220, 221)

(if equipped)

(White)

LDA (Lane Departure
Alert) indicator
(

(Canada)

Parking brake indicator
(

P . 220, 221)

(if equipped)

(Green)

LDA (Lane Departure
Alert) indicator
(

*

1

(if equipped)

Brake hold operated
indicator (

*

4

(if equipped)

(Yellow)

LDA (Lane Departure
Alert) indicator
(

90

2. Instrument cluster

CAMRY_U

*

1, 4

Slip indicator (

*

1, 7

(Type A for

Canada)

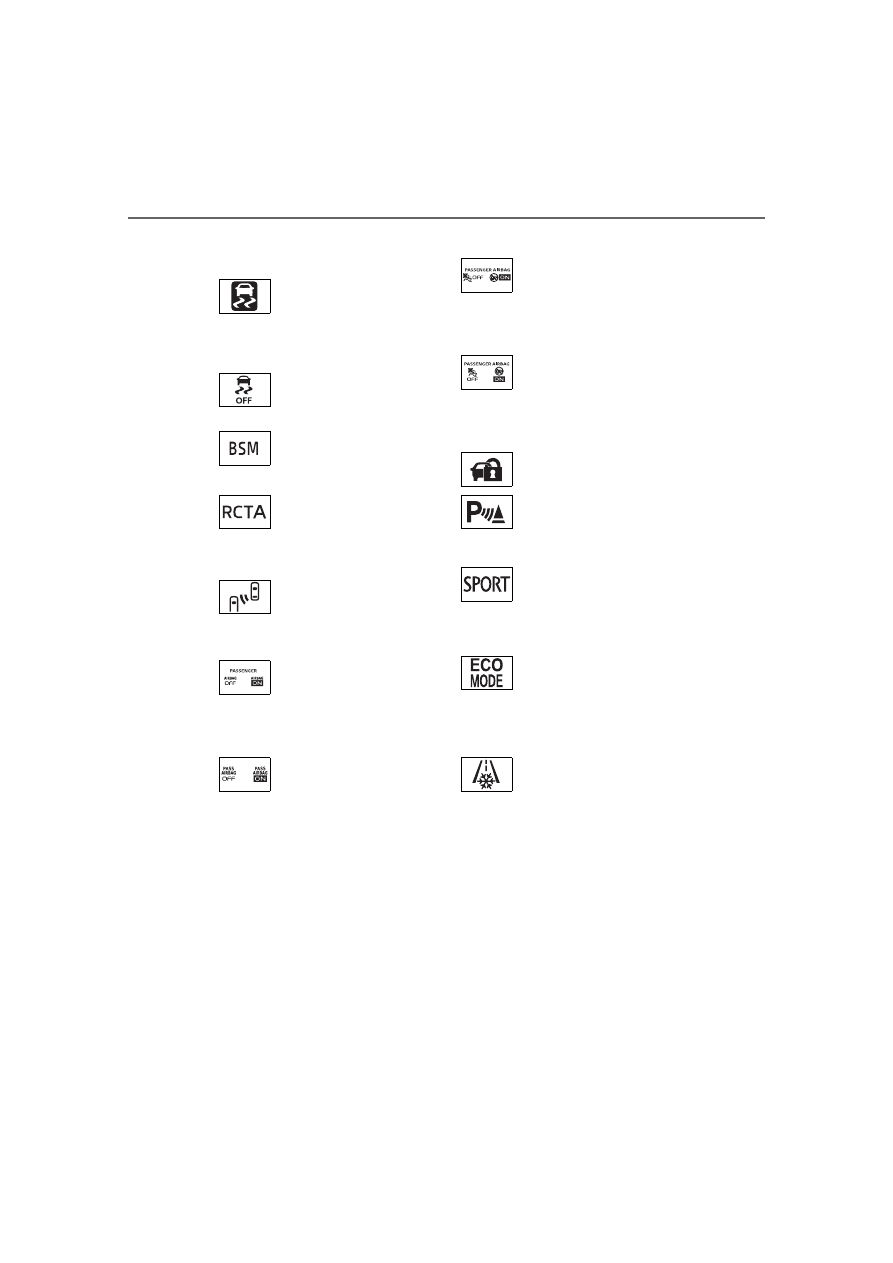

“AIRBAG ON/OFF”
indicator (

*

1, 3

VSC OFF indicator
(

*

1, 7

(Type B for

Canada)

“AIRBAG ON/OFF”
indicator (

(if equipped)

“BSM” indicator
(

*

7

Security indicator
(

(if equipped)

“RCTA” indicator
(

(if equipped)

Intuitive parking assist
indicator (

*

5, 6

(if equipped)

BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(

(if equipped)

“SPORT” indicator
(

*

1, 7

(Type A for

U.S.A.)

“AIRBAG ON/OFF”
indicator (

(if equipped)

“ECO MODE” indicator
(

*

1, 7

(Type B for

U.S.A.)

“AIRBAG ON/OFF”
indicator (

*

8

Low outside tempera-
ture indicator (

91

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.

*

2

: This light does not turn on when the system is disabled.

*

3

: This light turns on when the system is off.

*

4

: This light flashes to indicate that the system is operating.

*

5

: These indicators will illuminate in the following situations to indicate that

the system initial check is being performed:

• When the BSM function or RCTA function is enabled and the engine

switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).

• When the engine switch is in the “ON” position (vehicles without a smart

key system) or IGNITION ON mode (vehicles with a smart key system)
and the BSM function is enabled.

• When the engine switch is in the “ON” position (vehicles without a smart

key system) or IGNITION ON mode (vehicles with a smart key system)
and the RCTA function is enabled. (At this time, a buzzer will also
sound.)
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.

*

6

: This light illuminates on the outside rear view mirrors.

*

7

: This light illuminates on the center panel.

*

8

: When the outside temperature is approximately 37°F (3°C) or lower, this

indicator will flash for approximately 10 seconds, then stay on.

WARNING

■

If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

92

2. Instrument cluster

CAMRY_U



4.2-inch display



7-inch display

Gauges and meters

93

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

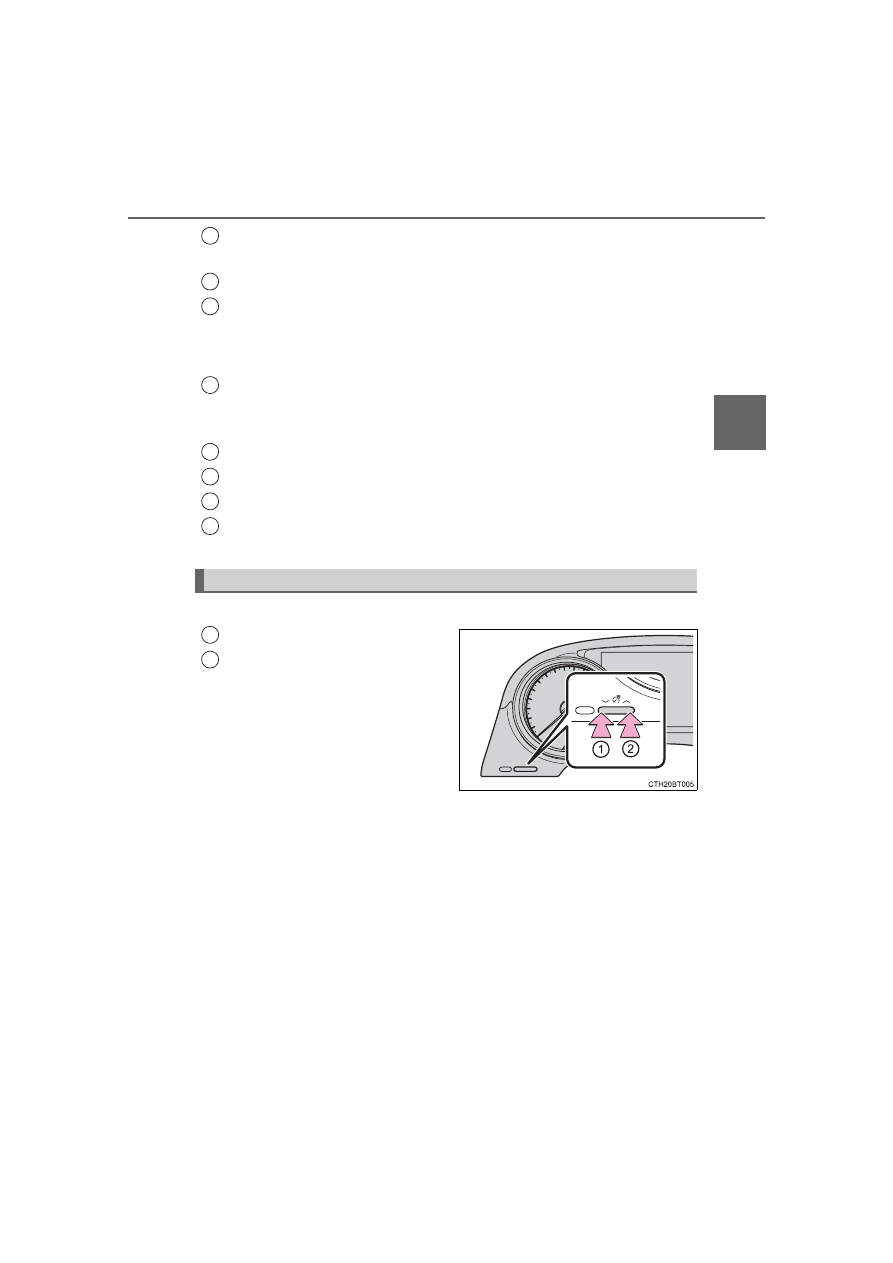

Tachometer

Displays the engine speed in revolutions per minute

Shift position (

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (

Displays warning messages in case of a malfunction (

Speedometer
Fuel gauge
Odometer and trip meter (

P. 104, 1 18)

Engine coolant temperature gauge

Displays the engine coolant temperature

The brightness of the instrument panel lights can be adjusted.

Darker
Brighter

• The brightness of the instrument

panel lights can be adjusted
individually for day mode and
night mode

*

.

• If the brightness is adjusted

when  the  surroundings  are
bright  and  the  tail  lights  are  on
(day  mode  brightness  adjust-
ment),  the  brightness  level  of
night  mode  will  be  adjusted  at
the same time.

*

: Day mode and night mode:

Instrument panel light control

1

2

3

4

5

6

7

8

1

2

94

2. Instrument cluster

CAMRY_U

■

The meters and display illuminate when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

Brightness of the meters (day mode and night mode)

●

The brightness of the meters is changed between day mode and night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

●

When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.

■

Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:

●

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

●

When “

” or “E” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (

95

2. Instrument cluster

2

Instru

me
nt clu

ster

CAMRY_U

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.

Shift position (

Menu icon display area

Displays the following items.
When a menu icon is not selected, the outside temperature and clock are
displayed.

• Menu icons (

• Outside temperature (

• Clock

*

*

: For clock settings, refer to “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (

• Suggestion function (

• Warning message (

Odometer/trip meter (

Indicators (

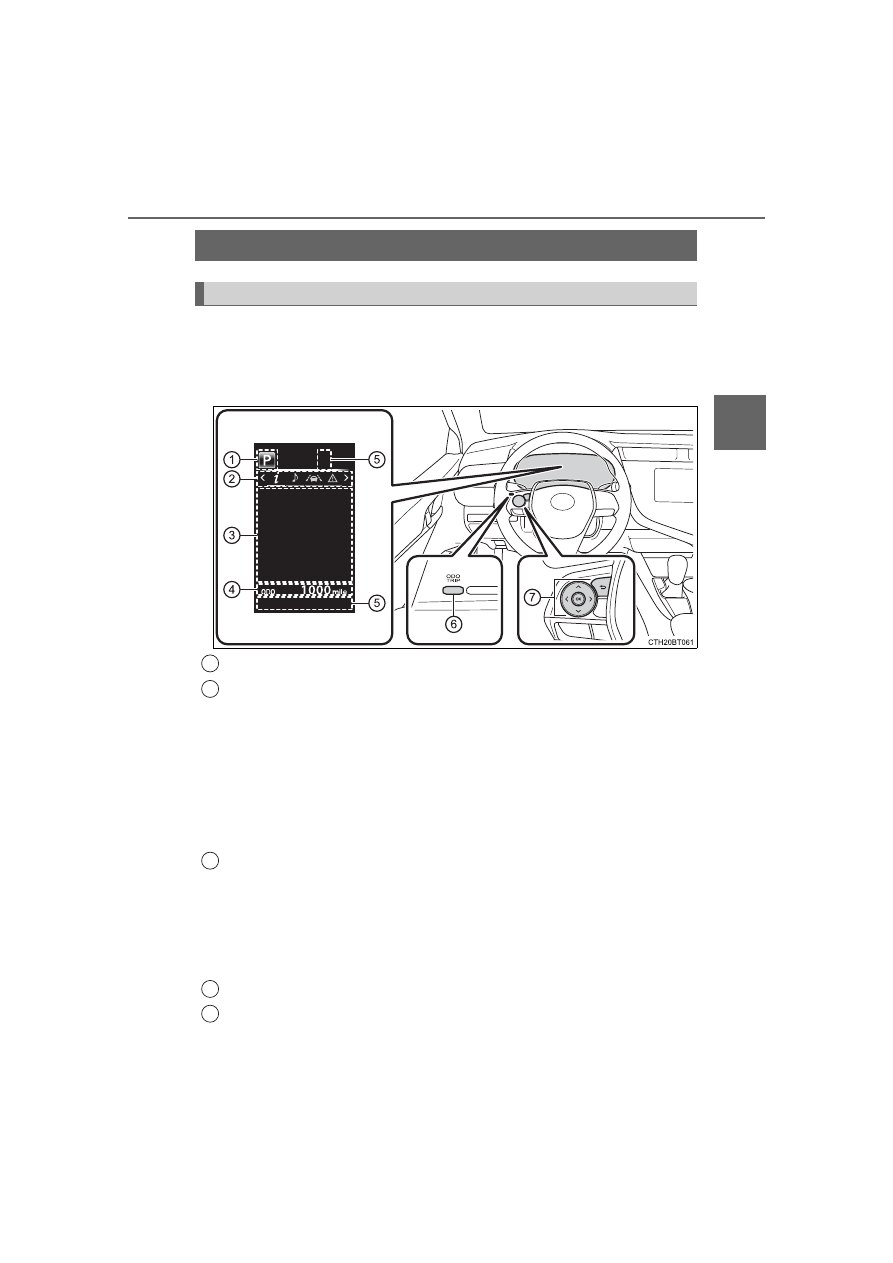

Multi-information display (4.2-inch display)

Summary of functions

1

2

3

4

5

96

2. Instrument cluster

CAMRY_U

“ODO/TRIP” switch (

Meter control switches (

◆

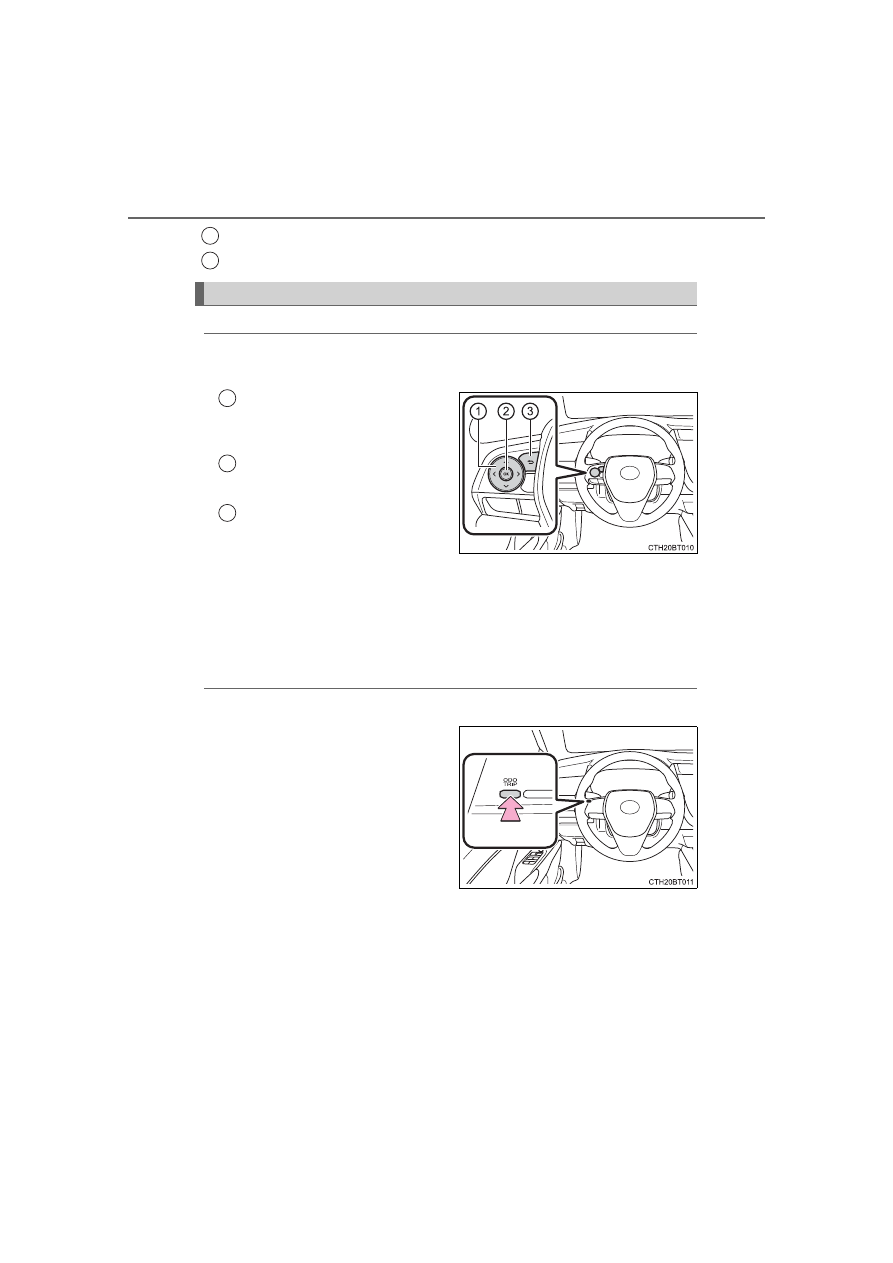

Using the content display area

The content display area is operated using the meter control
switches.

Scroll screens

*

, change the

displayed content

*

and move

the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous
screen

Pressing and holding the switch
will display the first screen of the
selected menu icon.

*

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

◆

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the displayed item will be
changed.

Press and hold: Reset

Display the desired trip meter
and press and hold the switch to
reset the trip meter.

Using the multi-information display

6

7

1

2

3

Content .. 4 5 6 7 ..
