4-5. Using the driving support systems

ivi

■

Warning message
If the following warning message is displayed on the multi-information display
and the LDA indicator illuminates in amber, follow the appropriate trouble-
shooting procedure.

If a different warning message is displayed, follow the instructions displayed
on the screen. (

P. 466)

■

Customization
Some functions can be customized. (

P. 105)

Warning message

Details/Actions

“LDA Malfunction

Visit Your Dealer”

The system may not be operating
properly.

 Have the vehicle inspected at your

Toyota dealer.

“Front Camera Unavailable”

The operation conditions of the cam-
era sensor (temperature, etc.) are not
met.

 When the operation conditions of

the  camera  sensor  (temperature,
etc.)  are  met,  the  LDA  system  will
become  available.  Turn  the  LDA
system  off,  wait  for  a  little  while,
and then turn the LDA system back
on.

“LDA Unavailable”

The LDA system is temporarily can-
celed due to a malfunction in a sensor
other than the camera sensor.

 Turn the LDA system off and follow

the  appropriate  troubleshooting
procedures  for  the  warning  mes-
sage.  Afterward,  drive  the  vehicle
for  a  short  time,  and  then  turn  the
LDA system back on.

“LDA Unavailable Below

Approx. 32MPH”

The LDA system cannot be used as
the vehicle speed is less than approxi-
mately 32 mph (50 km/h).

 Drive the vehicle at approximately

32 mph (50 km/h) or more.

258

4-5. Using the driving support systems

In vehicle-to-vehicle distance control mode, the vehicle automatically
accelerates, decelerates and stops to match the speed changes of the
preceding vehicle even if the accelerator pedal is not depressed. In
constant speed control mode, the vehicle runs at a fixed speed.
Use the dynamic radar cruise control with full-speed range on free-
ways and highways.
● Vehicle-to-vehicle distance control mode (P. 261)
● Constant speed control mode (P. 267)

■

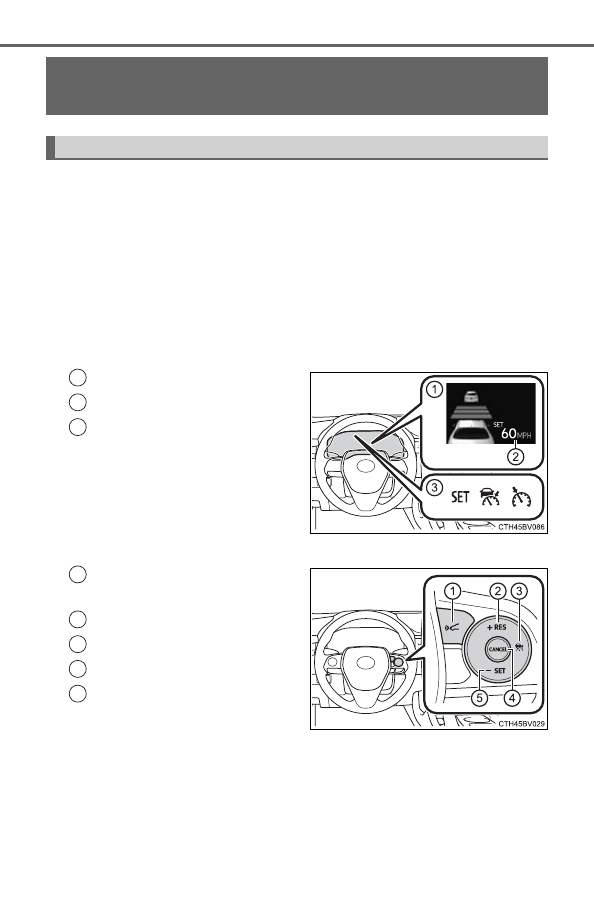

Meter display

Display
Set speed
Indicators

■

Operation switches

Vehicle-to-vehicle

distance

switch
“+ RES” switch
Cruise control main switch
Cancel switch
“- SET” switch

Dynamic radar cruise control with full-

speed range

Summary of functions

1
2
3

2
3
4
5

259

4-5. Using the driving support systems

ivi

WARNING

■

Before using dynamic radar cruise control with full-speed range
Driving safely is the sole responsibility of the driver. Do not rely solely on the
system,  and  drive  safely  by  always  paying  careful  attention  to  your  sur-
roundings.
The  dynamic  radar  cruise  control  with  full-speed  range  provides  driving
assistance to reduce the driver's burden. However, there are limitations to
the assistance provided.
Set the speed appropriately depending on the speed limit, traffic flow, road
conditions, weather conditions, etc. The driver is responsible for checking
the set speed.
Even when the system is functioning normally, the condition of the preced-
ing  vehicle  as  detected  by  the  system  may  differ  from  the  condition
observed  by  the  driver.  Therefore,  the  driver  must  always  remain  alert,
assess the danger of each situation and drive safely. Relying on this system
or assuming the system ensures safety while driving can lead to an acci-
dent, resulting in death or serious injury.

■

Cautions regarding the driving assist systems
Observe the following precautions, as there are limitations to the assistance
provided by the system.
Failure to do so may cause an accident resulting in death or serious injury.

●

Assisting the driver to measure following distance
The dynamic radar cruise control with full-speed range is only intended to
help the driver in determining the following distance between the driver’s
own vehicle and a designated vehicle traveling ahead. It is not a mecha-
nism that allows careless or inattentive driving, and it is not a system that
can assist the driver in low-visibility conditions. It is still necessary for
driver to pay close attention to the vehicle’s surroundings.

●

Assisting the driver to judge proper following distance
The dynamic radar cruise control with full-speed range determines
whether the following distance between the driver’s own vehicle and a
designated vehicle traveling ahead is within a set range. It is not capable
of making any other type of judgement. Therefore, it is absolutely neces-
sary for the driver to remain vigilant and to determine whether or not there
is a possibility of danger in any given situation.

●

Assisting the driver to operate the vehicle
The dynamic radar cruise control with full-speed range has limited capabil-
ity to prevent or avoid a collision with a vehicle traveling ahead. Therefore,
if there is ever any danger, the driver must take immediate and direct con-
trol of the vehicle and act appropriately in order to ensure the safety of all
involved.

260

4-5. Using the driving support systems

WARNING

■

To avoid inadvertent dynamic radar cruise control with full-speed
range activation
Switch the dynamic radar cruise control with full-speed range off using the
cruise control main switch when not in use.

■

Situations unsuitable for dynamic radar cruise control with full-speed
range
Do not use dynamic radar cruise control with full-speed range in any of the
following situations.
Doing so may result in inappropriate speed control and could cause an acci-
dent resulting in death or serious injury.

●

Roads where there are pedestrians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those covered with rain, ice or snow

●

On steep downhills, or where there are sudden changes between sharp up
and down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.

●

At entrances to freeways and highways

●

When weather conditions are bad enough that they may prevent the sen-
sors from detecting correctly (fog, snow, sandstorm, heavy rain, etc.)

●

When there is rain, snow, etc. on the front surface of the radar sensor or
camera sensor

●

In traffic conditions that require frequent repeated acceleration and decel-
eration

●

When an approach warning buzzer is heard often

261

4-5. Using the driving support systems

ivi

This mode employs a radar sensor to detect the presence of vehicles
up to approximately 328 ft. (100 m) ahead, determines the current
vehicle-to-vehicle following distance, and operates to maintain a suit-
able following distance from the vehicle ahead.

Note that vehicle-to-vehicle distance will close in when traveling on down-
hill slopes.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle dis-
tance switch.

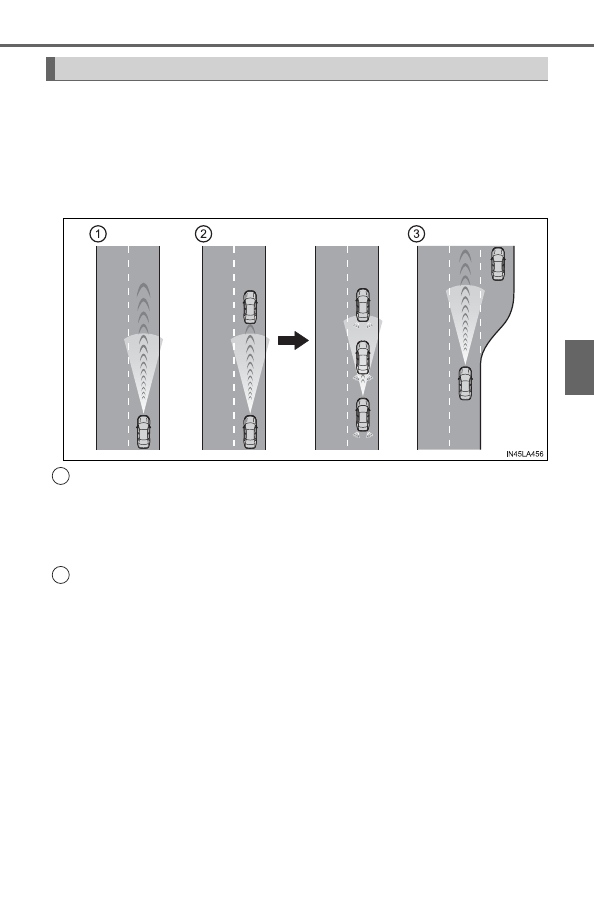

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the stop lights will come on at
this time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pressing the
“+ RES” switch or depressing the accelerator pedal will resume follow-up
cruising.

Driving in vehicle-to-vehicle distance control mode

262

4-5. Using the driving support systems

Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

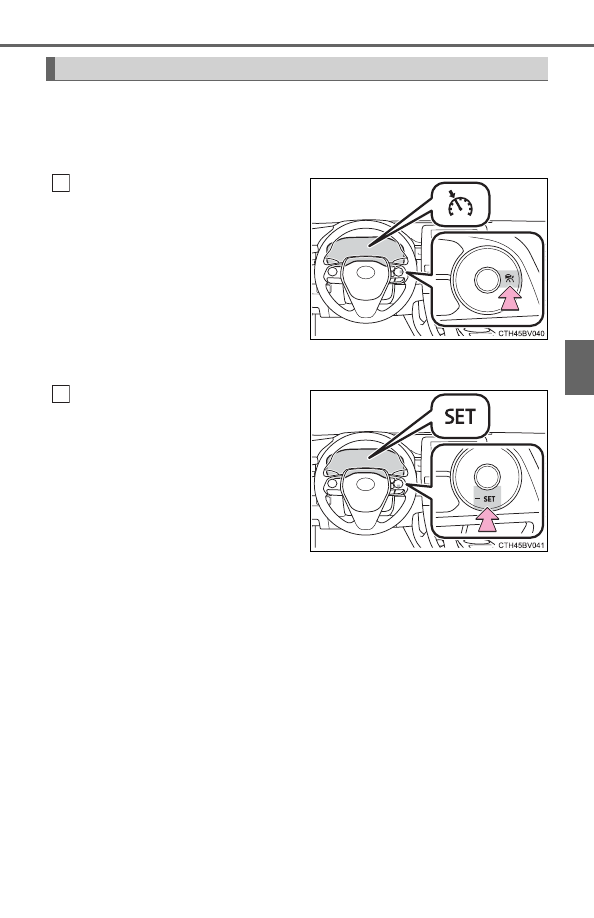

Press the cruise control main
switch to activate the cruise
control.

Radar  cruise  control  indicator  will
come  on  and  a  message  will  be
displayed  on  the  multi-information
display.
Press  the  switch  again  to  deacti-
vate the cruise control.
If  the  cruise  control  main  switch  is  pressed  and  held  for  1.5  seconds  or
more, the system turns on in constant speed control mode. (

P. 267)

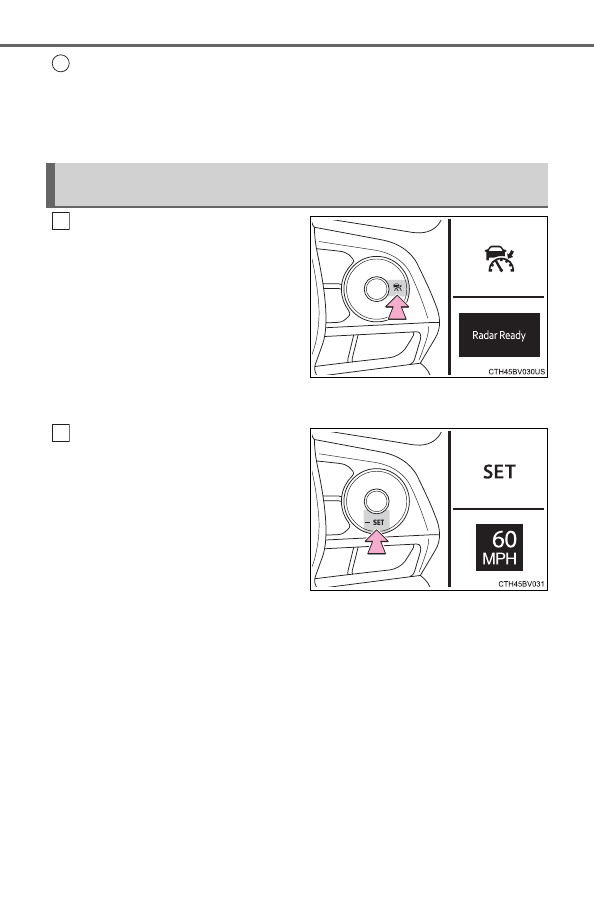

Accelerate  or  decelerate,  with
accelerator  pedal  operation,  to
the desired vehicle speed (at or
above  approximately  30  mph
[50 km/h]) and press the “- SET”
switch to set the speed.

Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the switch is released becomes the
set speed.
If the switch is operated while the vehicle speed is below approximately 30
mph (50 km/h) and a preceding vehicle is present, the set speed will be
adjusted to approximately 30 mph (50 km/h).

Setting the vehicle speed (vehicle-to-vehicle distance control
mode)

263

4-5. Using the driving support systems

ivi

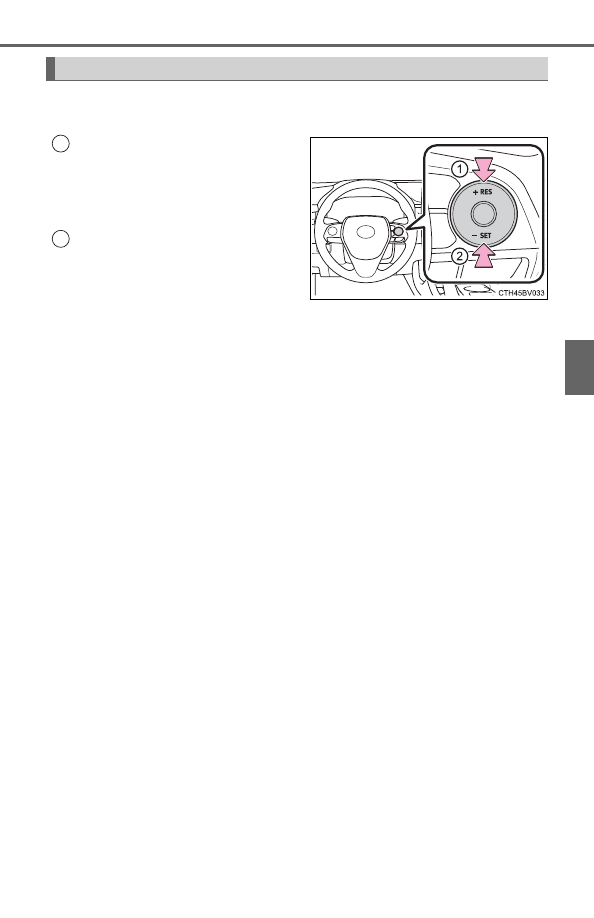

To change the set speed, operate the “+ RES” or “- SET” switch until
the desired set speed is displayed.

Increases the speed

(Except when the vehicle has been
stopped by system control in vehi-
cle-to-vehicle

distance

control

mode)

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will be
increased or decreased as follows:



For U.S. mainland and Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

or 1 km/h (0.6 mph)

each time

the switch is pressed
Large adjustment: Increases or decreases in 1 mph (1.6 km/h)

or 1 km/h

(0.6 mph)

increments for as long as the switch is held



For Puerto Rico

Fine adjustment: By 1 mph (1.6 km/h)

or 1 km/h (0.6mph)

each time

the switch is pressed
Large adjustment: Increases or decreases in 5 mph (8 km/h)

or 5 km/h

(3.1 mph)

increments for as long as the switch is held

In the constant speed control mode (

P. 267), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

or 1 km/h (0.6 mph)

each time

the switch is pressed
Large adjustment: The speed will continue to change while the switch is
held.

: When the set speed is shown in “MPH”

: When the set speed is shown in “km/h”

Adjusting the set speed

264

4-5. Using the driving support systems

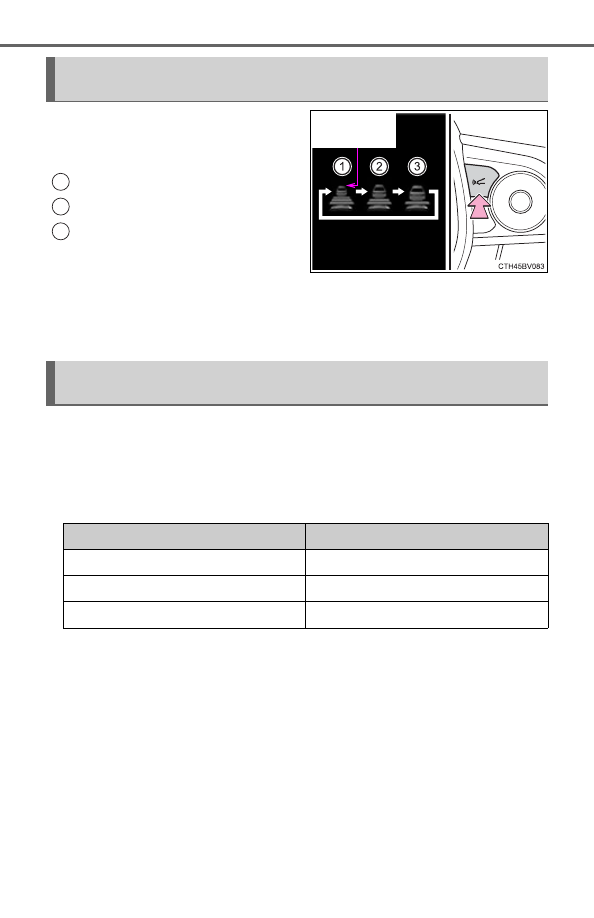

Pressing the switch changes the
vehicle-to-vehicle distance as fol-
lows:

Long
Medium
Short

The vehicle-to-vehicle distance is
set automatically to long mode
when the power switch is turned to
ON mode.

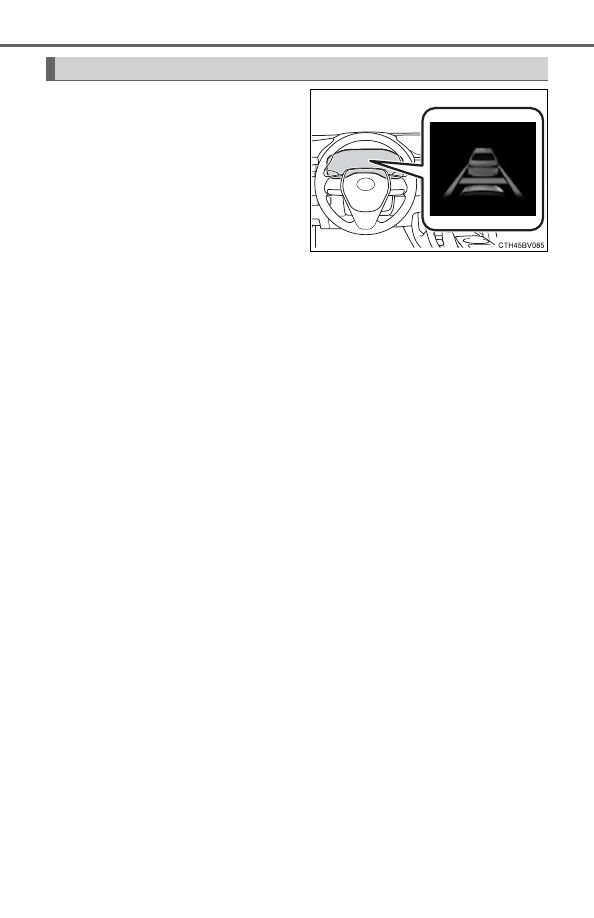

If a vehicle is running ahead of you, the preceding vehicle mark will also be
displayed.

Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle
distance increases/decreases in accordance with vehicle speed.
When the vehicle is stopped by system control, the vehicle stops at a
certain vehicle-to-vehicle distance depending on the situation.

Changing the vehicle-to-vehicle distance (vehicle-to-vehicle dis-
tance control mode)

Preceding
vehicle mark

1
2
3

Vehicle-to-vehicle distance settings (vehicle-to-vehicle distance
control mode)

Distance options

Vehicle-to-vehicle distance

Long

Approximately 160 ft. (50 m)

Medium

Approximately 130 ft. (40 m)

Short

Approximately 100 ft. (30 m)

265

4-5. Using the driving support systems

ivi

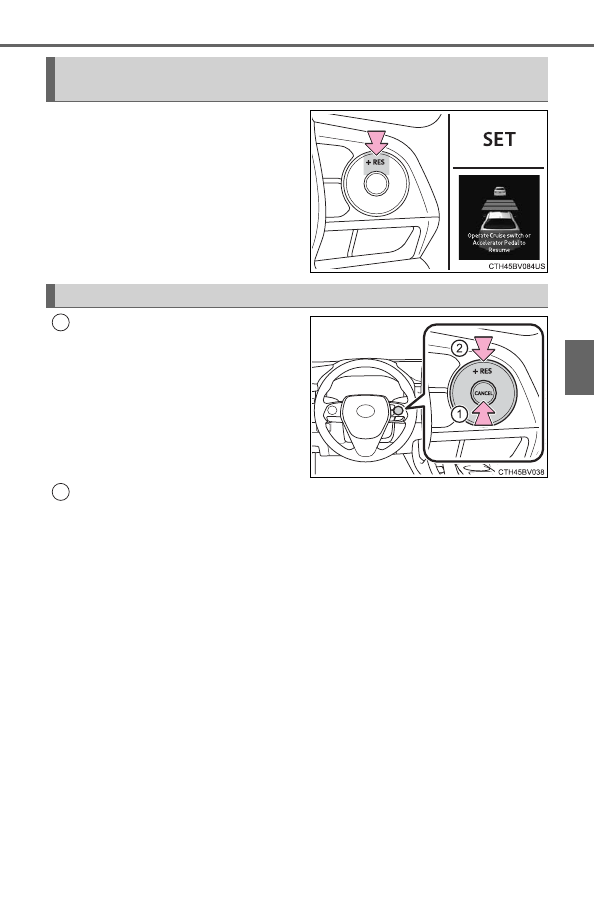

After  the  vehicle  ahead  of  you
starts  off,  press  the  “+  RES”
switch.
Your  vehicle  will  also  resume  fol-
low-up  cruising  if  the  accelerator
pedal is depressed after the vehi-
cle ahead of you starts off.

Pressing the cancel switch can-
cels the speed control.

The speed control is also canceled
when

the

brake

pedal

depressed.
(When the vehicle has been
stopped

system

control,

depressing the brake pedal does
not cancel the setting.)

Pressing the “+ RES” switch resumes the cruise control and returns
vehicle speed to the set speed.

However, when a vehicle ahead is not detected, cruise control does not
resume when the vehicle speed is approximately 25 mph (40 km/h) or less.

Resuming follow-up cruising when the vehicle has been stopped
by system control (vehicle-to-vehicle distance control mode)

Canceling and resuming the speed control

266

4-5. Using the driving support systems

When your vehicle is too close to
a  vehicle  ahead,  and  sufficient
automatic  deceleration  via  the
cruise  control  is  not  possible,  the
display  will  flash  and  the  buzzer
will  sound  to  alert  the  driver.  An
example  of  this  would  be  if
another driver cuts in front of you
while you are following a vehicle.
Depress  the  brake  pedal  to
ensure  an  appropriate  vehicle-to-
vehicle distance.

■

Warnings may not occur when
In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.
● When the speed of the preceding vehicle matches or exceeds

your vehicle speed

● When the preceding vehicle is traveling at an extremely slow

speed

● Immediately after the cruise control speed was set
● When depressing the accelerator pedal

Approach warning (vehicle-to-vehicle distance control mode)

267

4-5. Using the driving support systems

ivi

When constant speed control mode is selected, your vehicle will main-
tain a set speed without controlling the vehicle-to-vehicle distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar sensor, etc.

With the cruise control off,
press and hold the cruise con-
trol main switch for 1.5 seconds
or more.

Immediately  after  the  switch  is
pressed,  the  radar  cruise  control
indicator will come on. Afterwards,
it  switches  to  the  cruise  control
indicator.
Switching to constant speed control mode is only possible when operating
the switch with the cruise control off.

Accelerate  or  decelerate,  with
accelerator  pedal  operation,  to
the desired vehicle speed (at or
above  approximately  25  mph
[40 km/h]) and press the “- SET”
switch to set the speed.

Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the switch is released becomes the
set speed.
Adjusting the speed setting:

P. 263

Canceling and resuming the speed setting:

P. 265

Selecting constant speed control mode

268

4-5. Using the driving support systems

■

Dynamic radar cruise control with full-speed range can be set when

●

The shift lever is in D or range 4 or higher of S has been selected.

●

Range 4 or higher of D has been selected by using the paddle shift switch.
(vehicles with paddle shift switches)

●

Vehicle speed is at or above approximately 30 mph (50 km/h). However,
when a preceding vehicle is detected, the dynamic radar cruise control with
full-speed range can be set even if the vehicle speed is below approximately
30 mph (50 km/h).

■

Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.

■

When the vehicle stops while follow-up cruising

●

Pressing the “+ RES” switch while the vehicle ahead stops will resume fol-
low-up cruising if the vehicle ahead starts off within approximately 3 sec-
onds after the switch is pressed.

●

If the vehicle ahead starts off within 3 seconds after your vehicle stops, fol-
low-up cruising will be resumed.

■

Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations.

●

Actual vehicle speed falls at or below approximately 25 mph (40 km/h) when
there are no vehicles ahead.

●

The preceding vehicle leaves the lane when your vehicle is following at a
vehicle speed at or below approximately 25 mph (40 km/h). Otherwise, the
sensor can not properly detect the vehicle. (“Radar Cruise Control Unavail-
able” is displayed on the multi-information display)

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off.

●

The sensor cannot detect correctly because it is covered in some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system control on a steep incline.

●

The following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes

If vehicle-to-vehicle distance control mode is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.

269

4-5. Using the driving support systems

ivi

■

Automatic cancelation of constant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:

●

Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.

●

Actual vehicle speed falls below approximately 25 mph (40 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off.

●

Pre-collision braking is activated.

If constant speed control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact your Toyota dealer.

■

Brake system operation sound
If the brakes are applied automatically while the vehicle is in vehicle-to-vehi-
cle distance control mode, a brake system operation sound may be heard.
This does not indicate a malfunction.

■

Warning messages and buzzers for dynamic radar cruise control with
full-speed range
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions.

■

When the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, operate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.

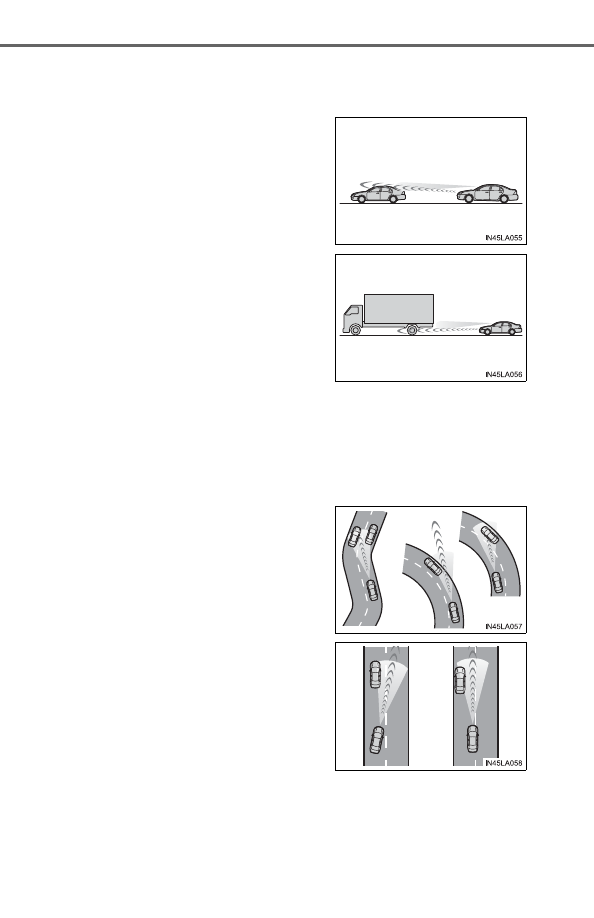

As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (

P. 266) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same lane

●

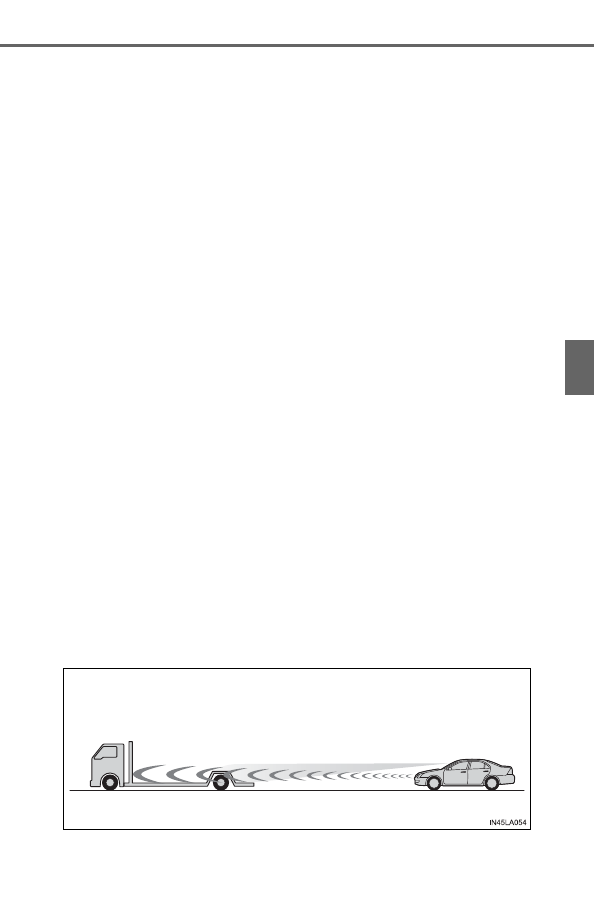

Vehicles with small rear ends (trailers with no load on board, etc.)

270

4-5. Using the driving support systems

●

Motorcycles traveling in the same lane

●

When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor

■

Conditions under which the vehicle-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.

●

When the vehicle ahead of you decelerates suddenly

●

When driving on a road surrounded by a structure, such as in a tunnel or on
a bridge

●

While the vehicle speed is decreasing to the set speed after the vehicle
accelerates by depressing the accelerator pedal

●

When your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)

●

Preceding vehicle has an extremely
high ground clearance

●

When the road curves or when the
lanes are narrow

●

When steering wheel operation or your
position in the lane is unstable

271

4-5. Using the driving support systems

ivi

The Blind Spot Monitor is a system that has 2 functions;
● The BSM (Blind Spot Monitor) function

Assists the driver in making a decision when changing lanes

● The RCTA (Rear Cross Traffic Alert) function

Assists the driver when backing up

These functions use same sensors.

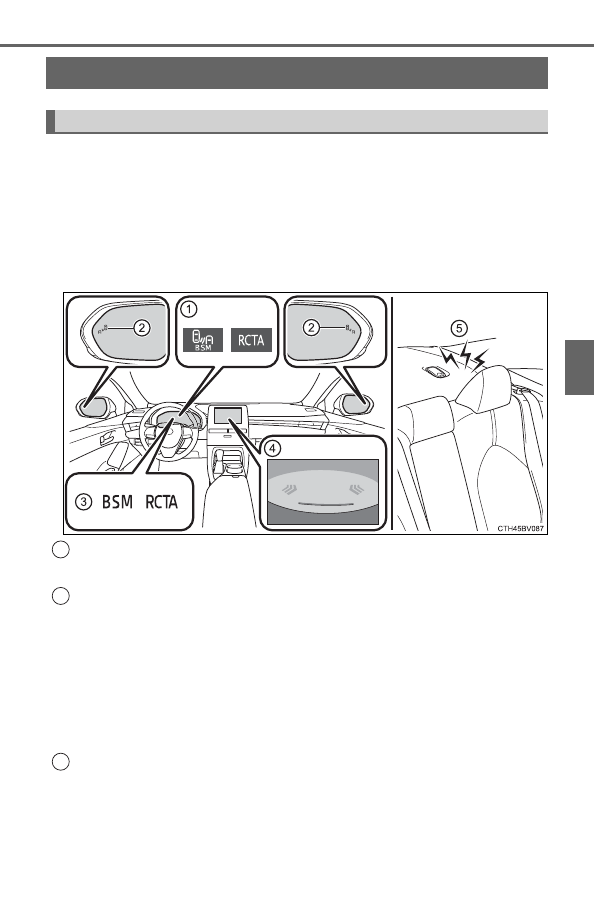

Multi-information display

Turning the BSM function/RCTA function on/off. (

P. 272)

Outside rear view mirror indicators

BSM function:
When a vehicle is detected in the blind spot, the outside rear view mirror
indicator comes on while the turn signal lever is not operated and the out-
side rear view mirror indicator flashes while the turn signal lever is oper-
ated.
RCTA function:
When a vehicle approaching from the right or left rear of the vehicle is
detected, the outside rear view mirror indicators flash.

“BSM” indicator/“RCTA” indicator

When the BSM function/RCTA function is turned on, the indicator illumi-
nates.

BSM (Blind Spot Monitor)

Summary of the Blind Spot Monitor

272

4-5. Using the driving support systems

Audio system screen (RCTA function only)

If a vehicle approaching from the right or left at the rear of the vehicle is
detected, the RCTA icon (

P. 278) for the detected side will be displayed.

RCTA

buzzer (

RCTA

function only)

When a vehicle approaching from the right or left rear of the vehicle is
detected, a buzzer sounds from behind the rear seat.

Press

of the meter control switches, select

Press

of the meter control switched, select

Press

of the meter control switch.

Each time

is pressed, the function changes on/off.

■

The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.

■

RCTA buzzer hearing
RCTA function may be difficult to hear over loud noises such as high audio
volume.

■

When “Blind Spot Monitor Unavailable” or “Rear Cross Traffic Alert
Unavailable” are shown on the multi-information display
Ice, snow, mud, etc., may be attached to the rear bumper around the sensors.
(

P. 274)

The system should return to normal operation after removing the ice, snow,
mud, etc., from the rear bumper. Additionally, the sensors may not operate
normally when driving in extremely hot or cold environments.

■

When there is a malfunction in the Blind Spot Monitor
If a system malfunction is detected due to any of the following reasons, a
warning message will be displayed:

●

There is a malfunction with the sensors

●

The sensors have become dirty

●

The outside temperature is extremely high or low

●

The sensor voltage has become abnormal

Turning the BSM function/RCTA function on/off

1
2
3

Toyota Avalon Hybrid (2019 year). Manual - part 17
