Operational conditions
The pre-collision system is enabled and the system determines that the pos-
sibility of a frontal collision with a vehicle or pedestrian is high.

Each function is operational at the following speeds:

●

Pre-collision warning:

• Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h).

(For detecting a pedestrian, vehicle speed is between approximately 7 and
50 mph [10 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 7 mph (10 km/h) or more.

●

Pre-collision brake assist:

• Vehicle speed is between approximately 20 and 110 mph (30 and 180 km/h).

(For detecting a pedestrian, vehicle speed is between approximately 20 and
50 mph [30 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 20 mph (30 km/h) or more.

●

Pre-collision braking:

• Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h).

(For detecting a pedestrian, vehicle speed is between approximately 7 and
50 mph [10 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 7 mph (10 km/h) or more.

The system may not operate in the following situations:

●

If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time

●

If the shift lever is in R

●

If VSC is disabled (only the pre-collision warning function will be opera-
tional)

●

If the low speed four-wheel drive indicator is illuminated (only the pre-colli-
sion warning function will be operational)

242

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

■

Pedestrian detection function

■

Cancelation of the pre-collision braking
If either of the following occur while the pre-collision braking function is oper-
ating, it will be canceled:

●

The accelerator pedal is depressed strongly.

●

The steering wheel is turned sharply or abruptly.

The pre-collision system detects pedestri-
ans based on the size, profile, and motion
of a detected object. However, a pedes-
trian may not be detected depending on
the surrounding brightness and the
motion, posture, and angle of the
detected object, preventing the system
from operating properly. (

→P. 247)

243

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

■

Conditions under which the system may operate even if there is no pos-
sibility of a collision

●

In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.

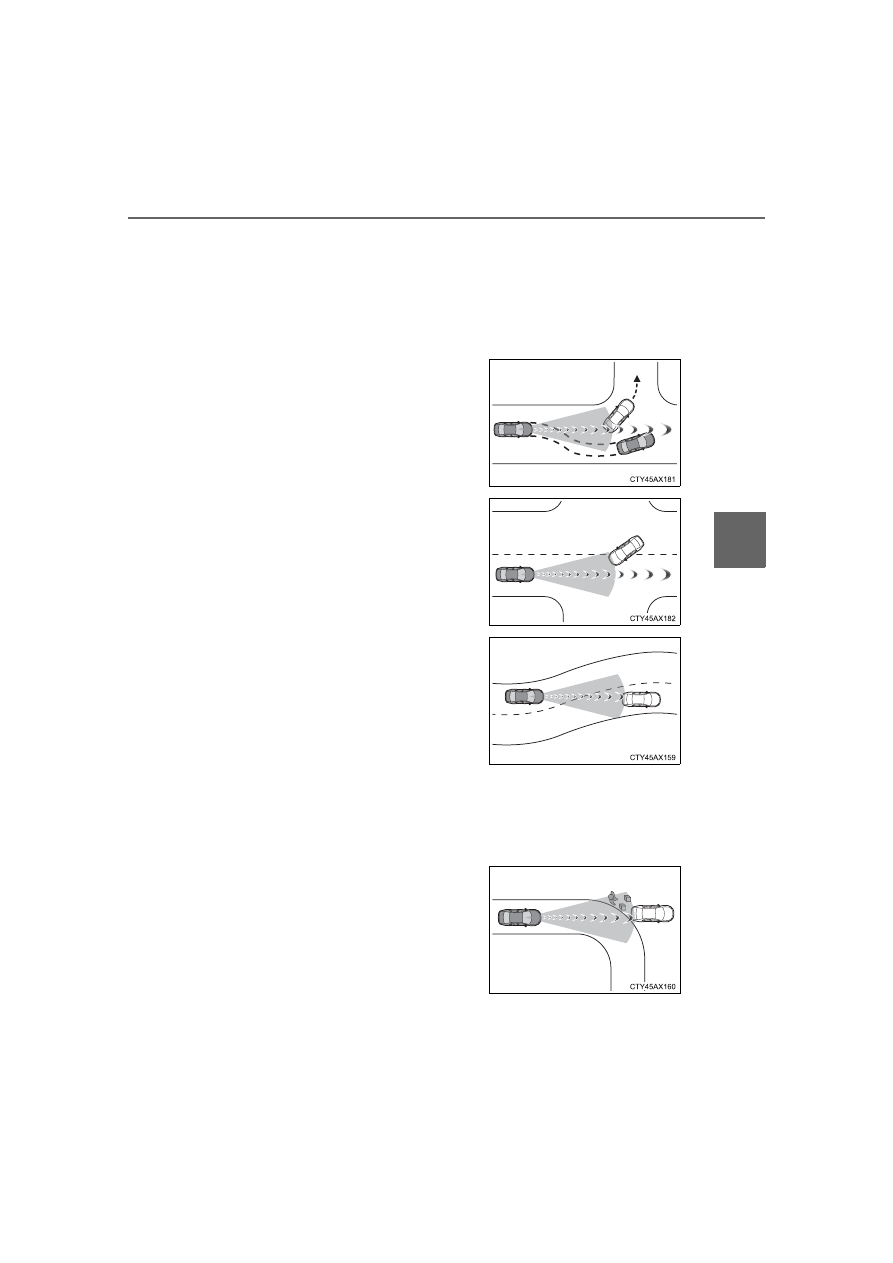

• When passing a vehicle or pedestrian
• When changing lanes while overtaking a preceding vehicle
• When overtaking a preceding vehicle that is changing lanes

• When rapidly closing on a vehicle ahead
• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

• When approaching objects on the roadside, such as guardrails, utility

poles, trees, or walls

• When overtaking a preceding vehicle

that is making a left/right turn

• When passing a vehicle in an oncom-

ing lane that is stopped to make a
right/left turn

• When driving on a road where relative

location to vehicle ahead in an adja-
cent lane may change, such as on a
winding road

• When there is a vehicle, pedestrian,

or object by the roadside at the
entrance of a curve

244

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

• When there is a metal object (manhole cover, steel plate, etc.), steps, or a

protrusion on the road surface or roadside

• When rapidly closing on an electric toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

• When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead
• When driving through steam or smoke

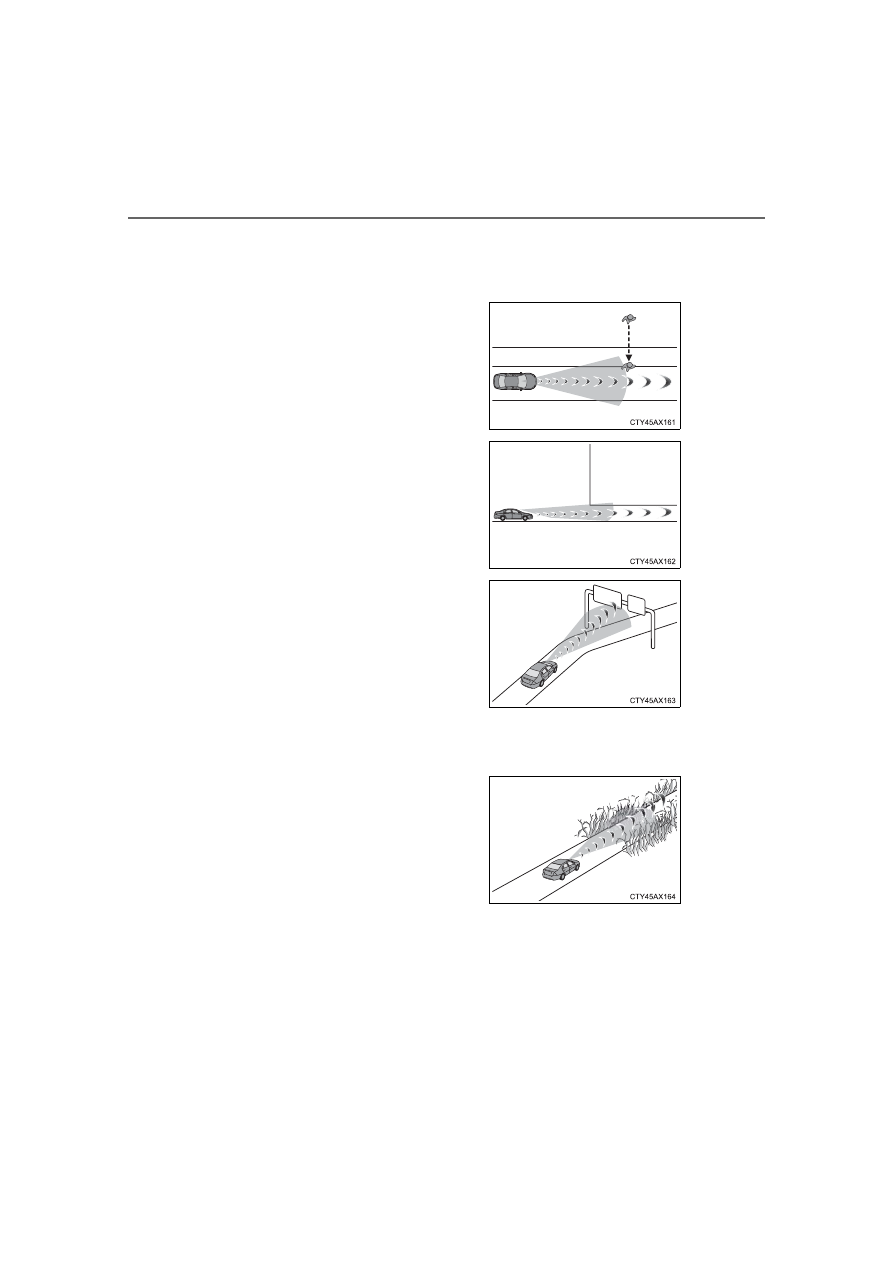

• When a crossing pedestrian

approaches very close to the vehicle

• When passing through a place with a

low structure above the road (low ceil-
ing, traffic sign, etc.)

• When passing under an object (bill-

board, etc.) at the top of an uphill road

• When driving through or under

objects that may contact the vehicle,
such as thick grass, tree branches, or
a banner

245

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle or pedestrian

• When driving near an object that reflects radio waves, such as a large

truck or guardrail

• When driving near a TV tower, broadcasting station, electric power plant,

or other location where strong radio waves or electrical noise may be
present

■

Situations in which the system may not operate properly

●

In some situations such as the following, a vehicle may not be detected by
the radar sensor and camera sensor, preventing the system from operating
properly:

• If an oncoming vehicle is approaching your vehicle
• If a vehicle ahead is a motorcycle or bicycle
• When approaching the side or front of a vehicle

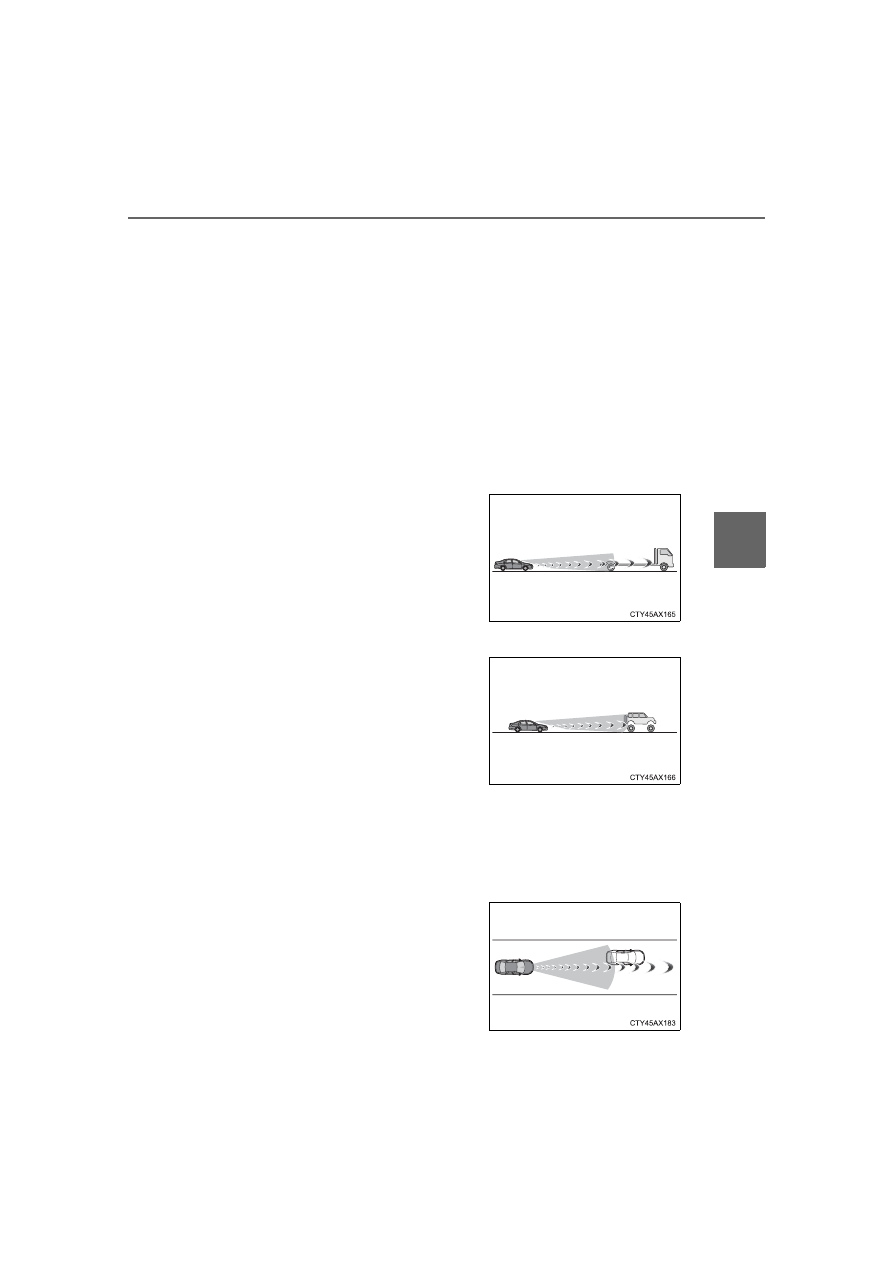

• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle
• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preceding vehicle

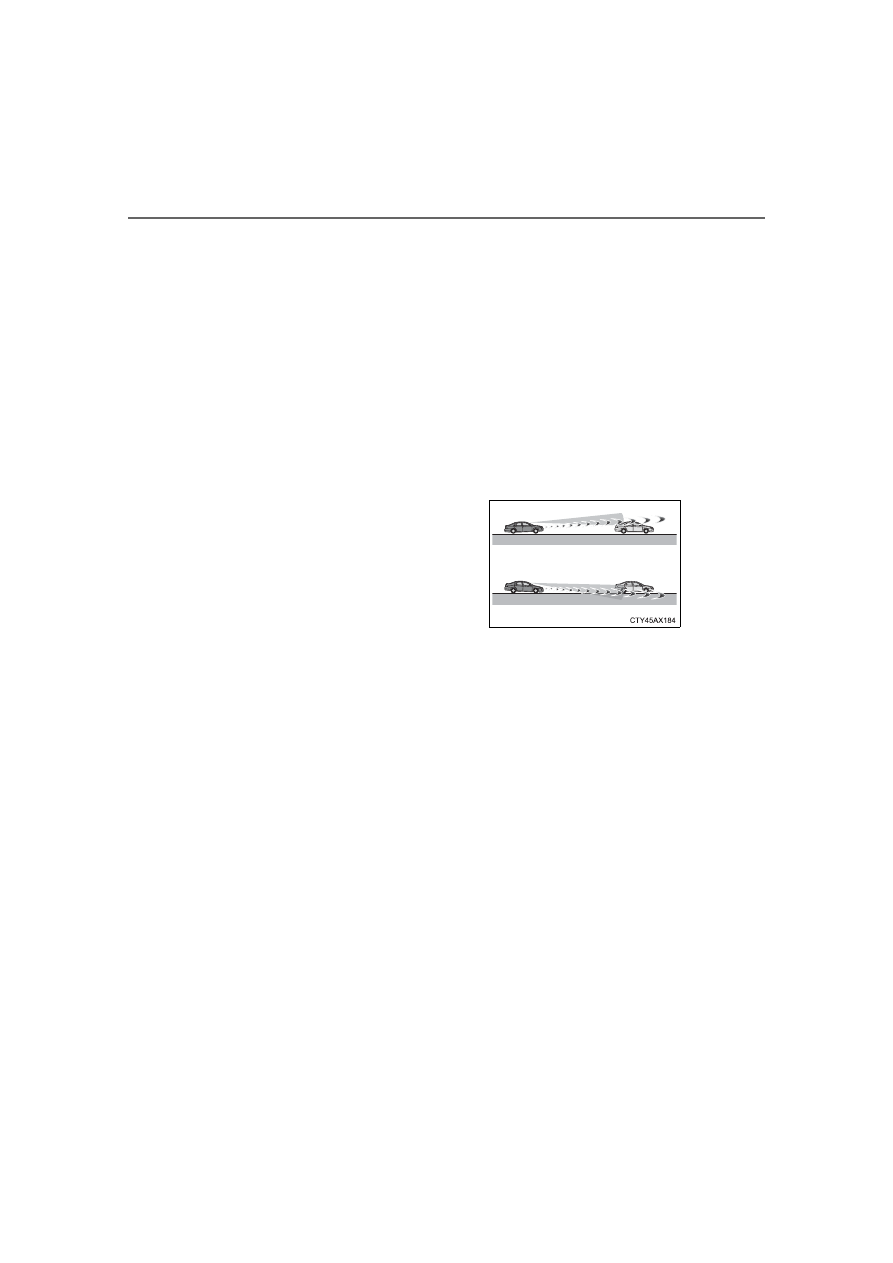

• If a preceding vehicle has a low rear

end, such as a low bed trailer

• If a vehicle ahead has extremely high

ground clearance

• When a vehicle ahead is not directly

in front of your vehicle

246

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

• When driving in inclement weather such as heavy rain, fog, snow or a

sandstorm

• When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead
• When driving through steam or smoke
• When driving in a place where the surrounding brightness changes sud-

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun or the headlights of oncoming

traffic, shines directly into the camera sensor

• When the surrounding area is dim, such as at dawn or dusk, or while at

night or in a tunnel

• After the engine has started the vehicle has not been driven for a certain

amount of time

• While making a left/right turn and for a few seconds after making a left/

right turn

• While driving on a curve and for a few seconds after driving on a curve
• If your vehicle is skidding

• If the wheels are misaligned
• If a wiper blade is blocking the camera sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on a hill
• If the radar sensor or camera sensor is misaligned

• If the front of the vehicle is raised or

lowered

247

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

●

In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:

• If the braking functions cannot operate to their full extent, such as when

the brake parts are extremely cold, extremely hot, or wet

• If the vehicle is not properly maintained (brakes or tires are excessively

worn, improper tire inflation pressure, etc.)

• When the vehicle is being driven on a gravel road or other slippery sur-

face

●

Some pedestrians such as the following may not be detected by the radar
sensor and camera sensor, preventing the system from operating properly:

• Pedestrians shorter than approximately 3.2 ft. (1 m) or taller than approx-

imately 6.5 ft. (2 m)

• Pedestrians wearing oversized clothing (a rain coat, long skirt, etc.), mak-

ing their silhouette obscure

• Pedestrians who are carrying large baggage, holding an umbrella, etc.,

hiding part of their body

• Pedestrians who are bending forward or squatting
• Pedestrians who are pushing a stroller, wheelchair, bicycle or other vehi-

cle

• Groups of pedestrians which are close together
• Pedestrians who are wearing white and look extremely bright
• Pedestrians in the dark, such as at night or while in a tunnel
• Pedestrians whose clothing appears to be nearly the same color or

brightness as their surroundings

• Pedestrians near walls, fences, guardrails, or large objects
• Pedestrians who are on a metal object (manhole cover, steel plate, etc.)

on the road

• Pedestrians who are walking fast
• Pedestrians who are changing speed abruptly
• Pedestrians running out from behind a vehicle or a large object
• Pedestrians who are extremely close to the side of the vehicle (outside

rear view mirror, etc.)

248

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

■

If the PCS warning light flashes or illuminates, and a warning message is
displayed on the multi-information display
The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.

●

In the following situations, the warning light will turn off, the message will
disappear and the system will become operational when normal operating
conditions return:

• When the radar sensor or camera sensor or the area around either sen-

sor is hot, such as in the sun

• When the radar sensor or camera sensor or the area around either sen-

sor is cold, such as in an extremely cold environment

• When the radar sensor is dirty or covered with snow, etc.
• When the part of the windshield in front of the camera sensor is fogged

up or covered with condensation or ice
(Defogging the windshield:

→P. 323)

• If the camera sensor is obstructed, such as when the hood is open or a

sticker is attached to the windshield near the camera sensor

●

If the PCS warning light continues to flash or illuminate, or the warning mes-
sage does not disappear, the system may be malfunctioning. Have the vehi-
cle inspected by your Toyota dealer immediately.

■

If VSC is disabled

●

If VSC is disabled (

→P. 305), the pre-collision brake assist and pre-collision

braking functions are also disabled.

●

The PCS warning light will turn on and “VSC Turned Off Pre-Collision Brake
System Unavailable” will be displayed on the multi-information display.

249

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

LDA (Lane Departure Alert)

When driving on roads with white (yellow) lines, this function alerts the
driver when the vehicle might depart from its lane.

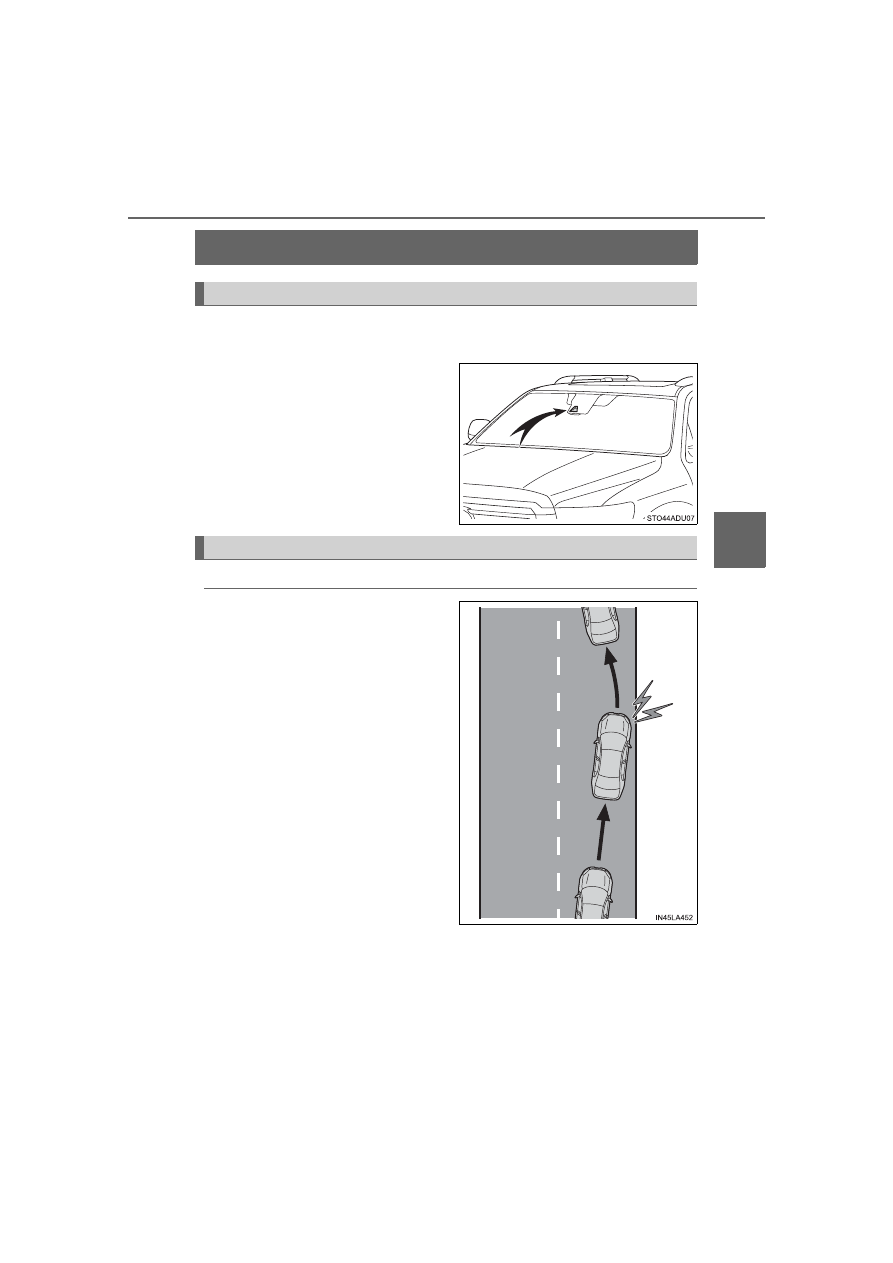

The LDA system recognizes visi-
ble white (yellow) lines with the
camera sensor on the upper por-
tion of the front windshield.

◆

Lane departure alert function

When the system determines
that the vehicle might depart
from its lane, a warning is dis-
played on the multi-information
display and the warning buzzer
sounds to alert the driver.

When the warning buzzer
sounds, check the surrounding
road situation and carefully
operate the steering wheel to
move the vehicle back to the
center of the lane.

Summary of functions

Functions included in LDA system

250

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

◆

Vehicle sway warning

When the vehicle is swaying or

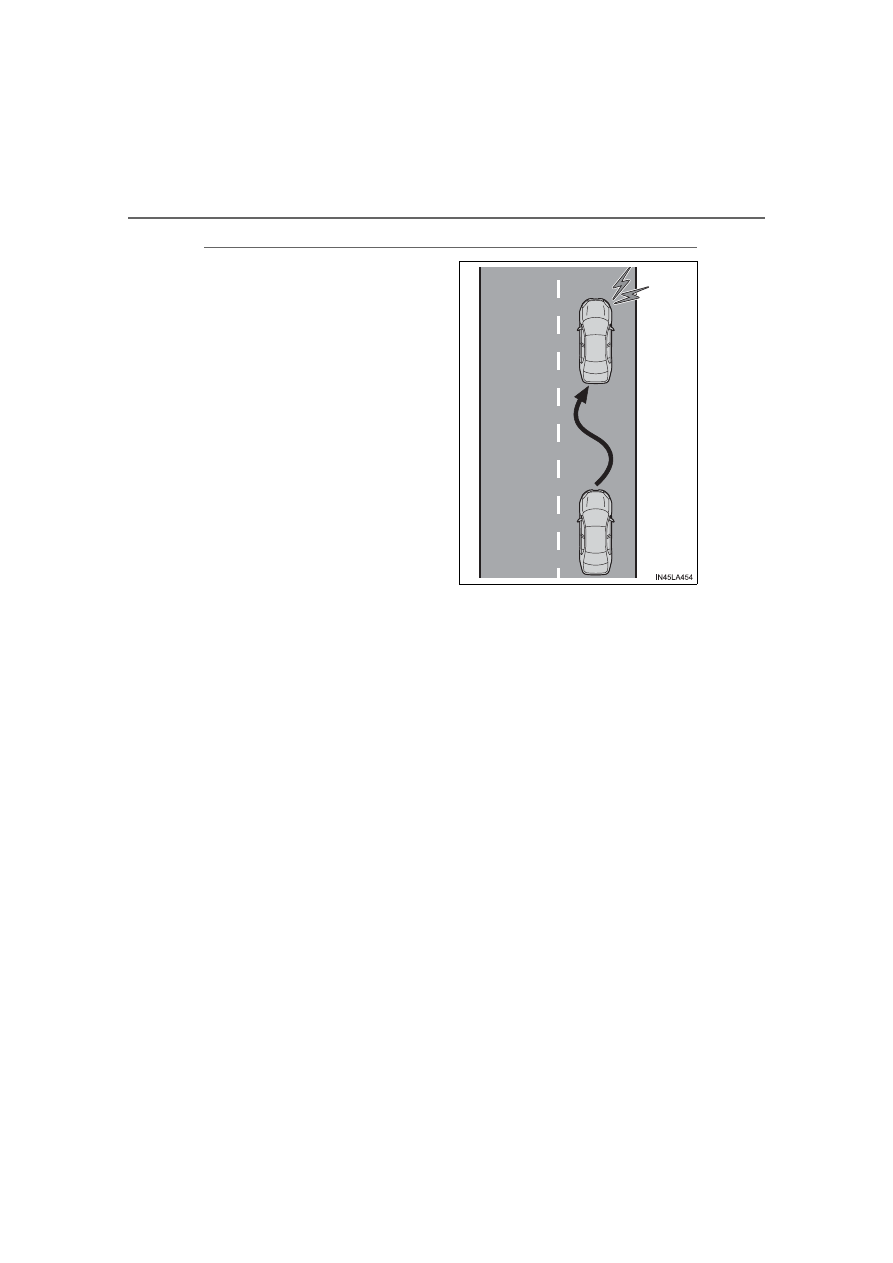

appears as if it may depart from
its lane multiple times, the
warning buzzer sounds and a
message is displayed on the
multi-information display to alert
the driver.

251

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

WARNING

■

Before using LDA system
Do not rely solely upon the LDA system. The LDA system does not auto-
matically drive the vehicle or reduce the amount of attention that must be
paid to the area in front of the vehicle. The driver must always assume full
responsibility for driving safely by always paying careful attention to the sur-
rounding conditions and operating the steering wheel to correct the path of
the vehicle. Also, the driver must take adequate breaks when fatigued, such
as from driving for a long period of time.
Failure to perform appropriate driving operations and pay careful attention
may lead to an accident, resulting in death or serious injury.

■

To avoid operating LDA system by mistake
When not using the LDA system, use the LDA switch to turn the system off.

■

Situations unsuitable for LDA system
Do not use the LDA system in the following situations.
The system may not operate properly and lead to an accident, resulting in
death or serious injury.

●

A compact spare tire, tire chains, etc., are equipped.

●

Objects or patterns that could be mistaken for white (yellow) lines are
present on the side of the road (guardrails, curbs, reflective poles, etc.).

●

Vehicle is driven on a snow-covered road.

●

White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.

●

Asphalt repair marks, white (yellow) line marks, etc., are present due to
road repair.

●

Vehicle is driven in a temporary lane or restricted lane due to construction
work.

●

Vehicle is driven in a construction zone.

252

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

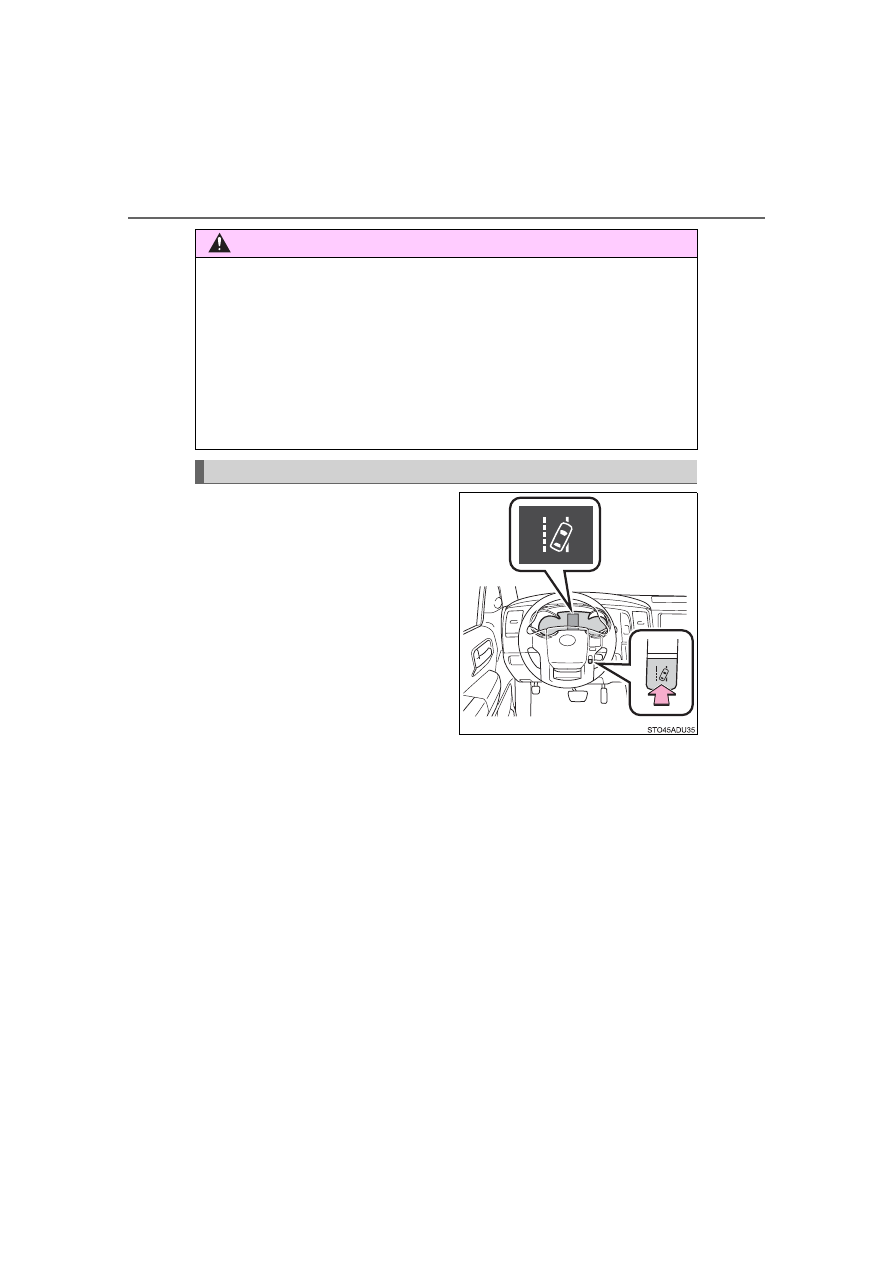

Press the LDA switch to turn the
LDA system on.

The LDA indicator illuminates and
a message is displayed on the
multi-information display.

Press the LDA switch again to turn
the LDA system off.

When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition
the next time the engine is started.

WARNING

■

Preventing LDA system malfunctions and operations performed by
mistake

●

Do not modify the headlights or place stickers, etc., on the surface of the
lights.

●

Do not modify the suspension, etc. If the suspension, etc., needs to be
replaced, contact your Toyota dealer.

●

Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).

●

If your windshield needs repairs, contact your Toyota dealer.

Turning LDA system on

253

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

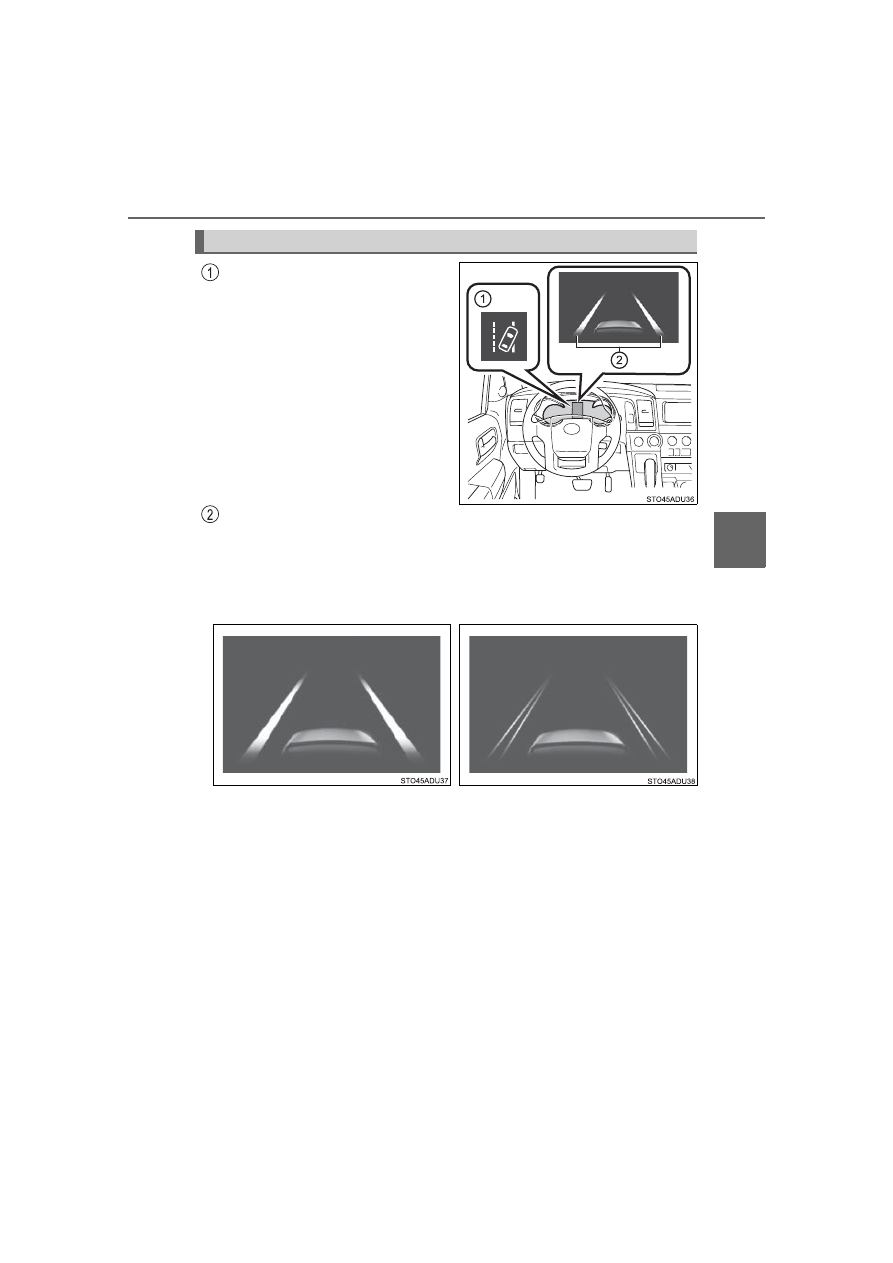

LDA indicator

The illumination condition of the
indicator informs the driver of the
system operation status.

Illuminated in green:
LDA system is operating.

Flashing in yellow:
Lane departure alert function is
operating.

Lane departure alert function display

Displayed when the multi-information display is switched to the driving
assist system information screen.

Indications on multi-information display



Inside of displayed white lines
is white



Inside of displayed white lines
is black

Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes orange.

Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.

254

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

■

Operation conditions of each function

●

Lane departure alert function

This function operates when all of the following conditions are met.

• LDA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated.
• Vehicle is driven on a straight road or around a gentle curve with a radius

of more than approximately 492 ft. (150 m).

• No system malfunctions are detected. (

→P. 256)

●

Vehicle sway warning function

This function operates when all of the following conditions are met.

• Setting for “

　Warning” in

 screen of the multi-information dis-

play is set to on. (

→P. 523)

• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected. (

→P. 256)

■

Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored. (

→P. 254)

■

Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.

■

White (yellow) lines are only on one side of road
The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.

255

4-5. Using the driving support systems

4

Drivin

g

SEQUOIA_OM_USA_OM0C011U

■

Conditions in which functions may not operate properly
In the following situations, the camera sensor may not detect white (yellow)
lines and various functions may not operate normally.

●

There are shadows on the road that run parallel with, or cover, the white
(yellow) lines.

●

The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.

●

The white (yellow) lines are cracked, “Botts’ dots”, “Raised pavement
marker” or stones are present.

●

The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.

●

The vehicle is driven on a road surface that is wet due to rain, puddles, etc.

●

The traffic lines are yellow (which may be more difficult to recognize than
lines that are white).

●

The white (yellow) lines cross over a curb, etc.

●

The vehicle is driven on a bright surface, such as concrete.

●

The vehicle is driven on a surface that is bright due to reflected light, etc.

●

The vehicle is driven in an area where the brightness changes suddenly,
such as at the entrances and exits of tunnels, etc.

●

Light from the headlights of an oncoming vehicle, the sun, etc., enters the
camera.

●

The vehicle is driven where the road diverges, merges, etc.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road which tilts left or right, or a winding road.

●

The vehicle is driven on an unpaved or rough road.

●

The vehicle is driven around a sharp curve.

●

The traffic lane is excessively narrow or wide.

●

The vehicle is extremely tilted due to carrying heavy luggage or having
improper tire pressure.

●

The distance to the preceding vehicle is extremely short.

●

The vehicle is moving up and down a large amount due to road conditions
during driving (poor roads or road seams).

●

The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.

●

The vehicle has just changed lanes or crossed an intersection.

256

4-5. Using the driving support systems

SEQUOIA_OM_USA_OM0C011U

■

Warning message

Warning messages are used to indicate a system malfunction or to inform the
driver of the need for caution while driving. (

→P. 457)

■

Customization
The following settings can be changed.

For how to change settings, refer to P. 520

Function

Setting details

Lane departure alert function

Adjust alert sensitivity

Vehicle sway warning function

Turn function on and off

Adjust alert sensitivity
