(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to the “ON” position (vehicles without

a smart key system) or IGNITION ON mode (vehicles with a smart key

system), the BSM function is enabled on the

screen of the multi-

information display.

• When the BSM function is enabled on the

screen of the multi-

information display, the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system).

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

: The light flashes to indicate that the system is operating.

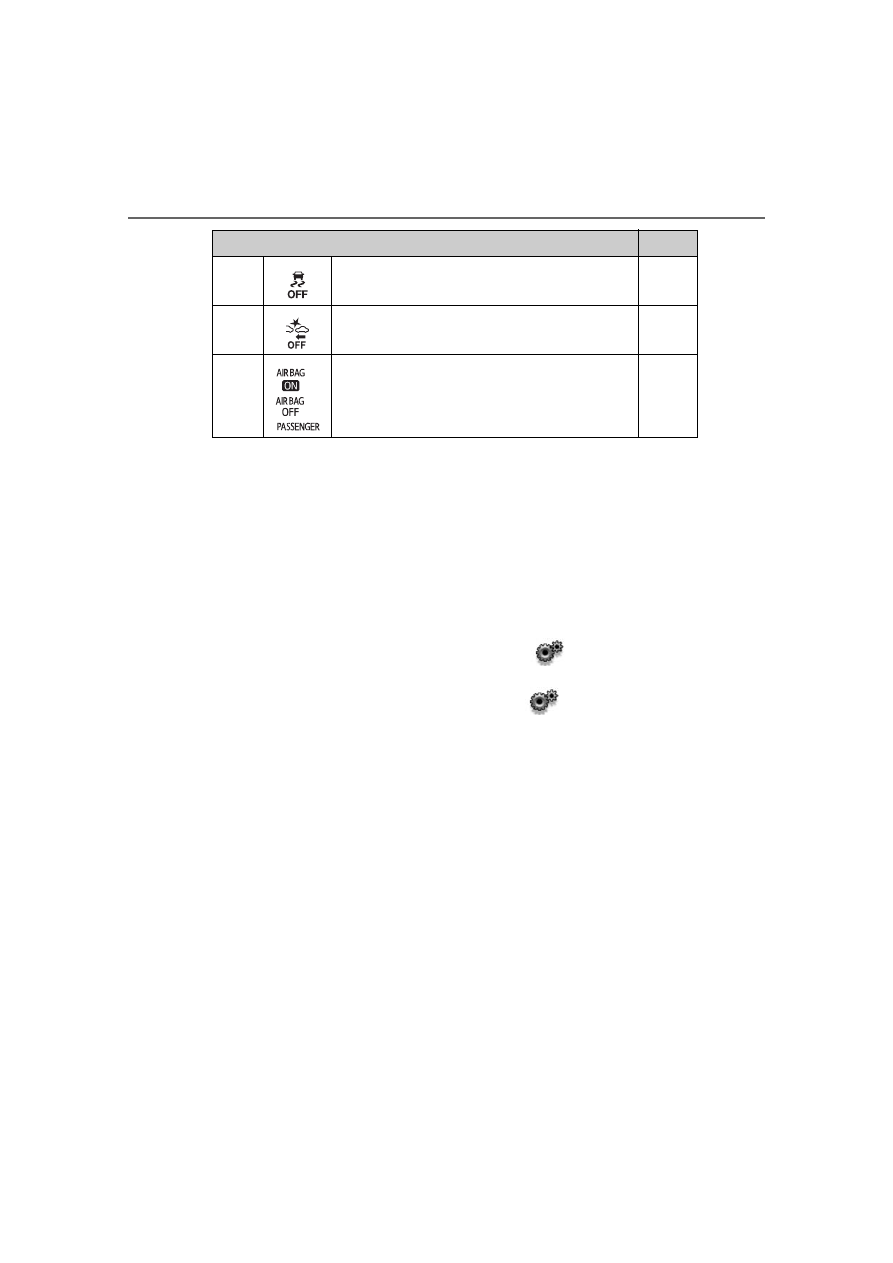

: The light turns on when the system is off.

VSC off indicator

P. 280

1, 4

PCS warning light (if equipped)

P. 215

“AIR BAG ON/OFF” indicator (on the center
panel) (if equipped)

P. 46

Indicators

Pages

2. Instrument cluster

Instrum

nt clus

ter

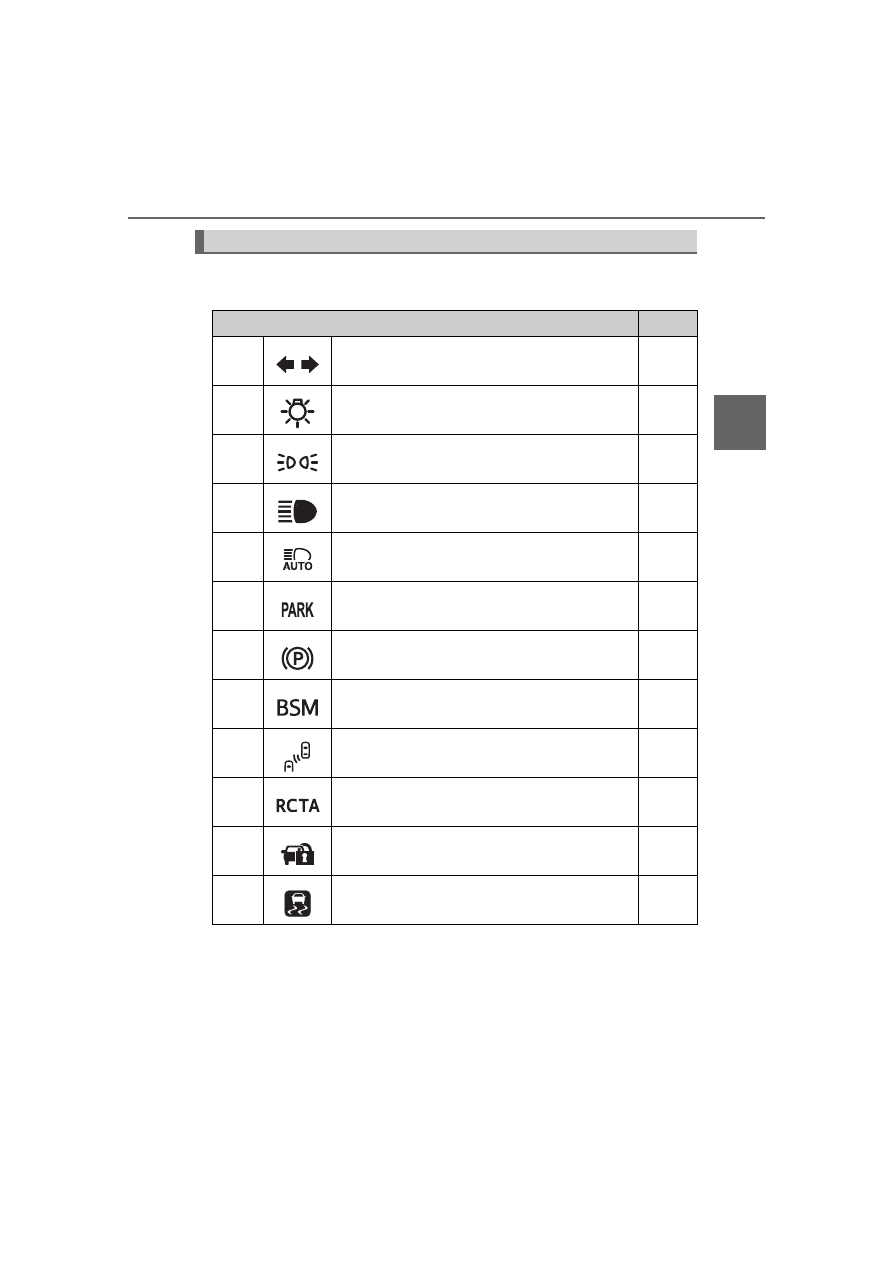

: These lights turn on when the engine switch is turned to the “ON” position

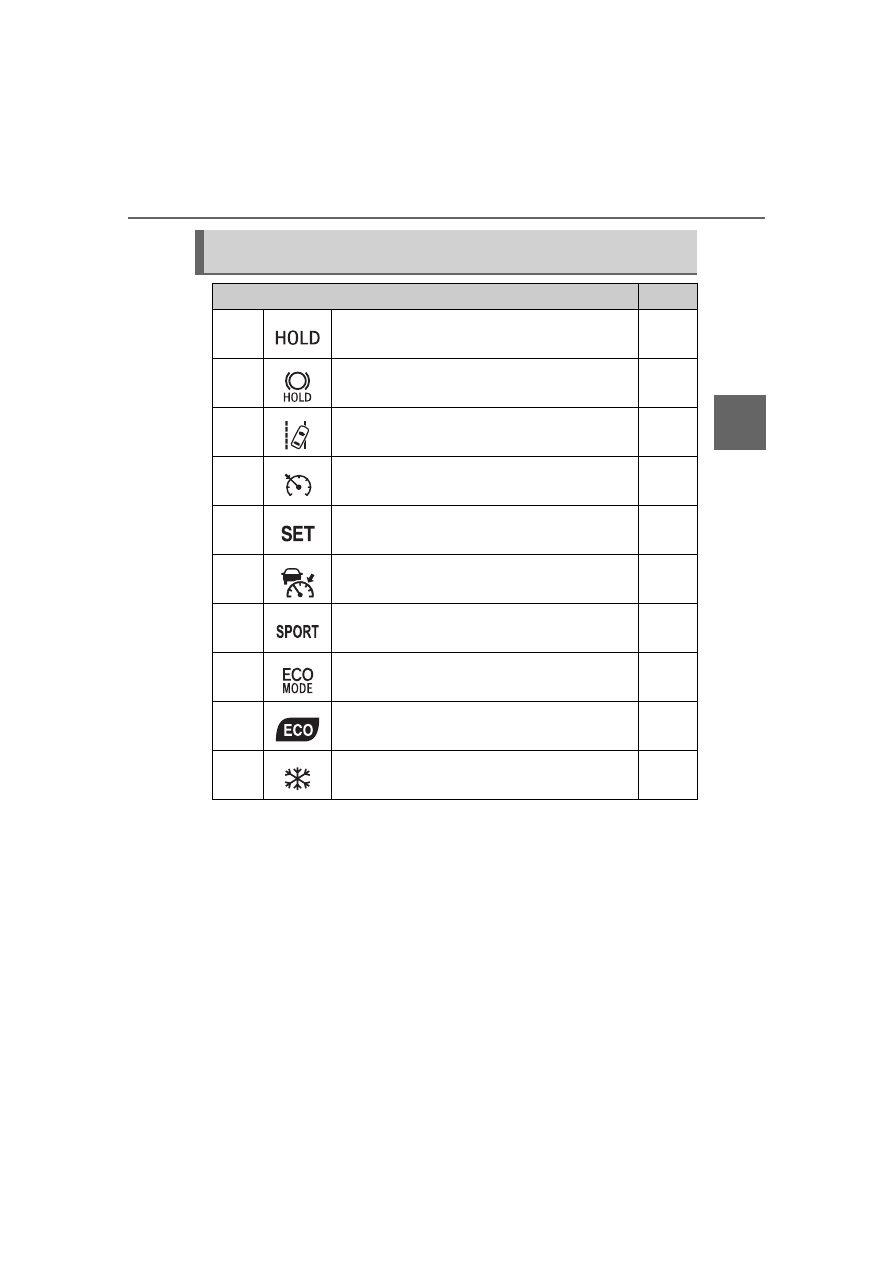

Indicators and symbols displayed on the multi-information dis-
play

Indicators

Pages

Brake hold operated indicator

P. 182

Brake hold standby indicator

P. 182

LDA indicator

P. 230

Cruise control indicator

P. 236

Cruise control “SET” indicator

P. 236

Radar cruise control indicator

P. 236

“SPORT” indicator

P. 251

“ECO MODE” indicator

P. 251

Eco Driving Indicator Light

P. 85

Low outside temperature indicator

P. 86

2. Instrument cluster

Symbols on multi-information display

Pages

Charging system warning light

P. 408

Low engine oil pressure warning light

P. 408

High engine coolant temperature warning light

P. 411

Smart key system (if equipped)

P. 165

Brake Override System/Drive-Start Control

P. 412

2. Instrument cluster

Instrum

nt clus

ter

■

Eco Driving Indicator Light

Eco Driving Indicator Light will not operate in the following conditions:

●

The shift lever is in anything other than D.

●

The vehicle is being driven in “SPORT” mode (

→P. 251)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

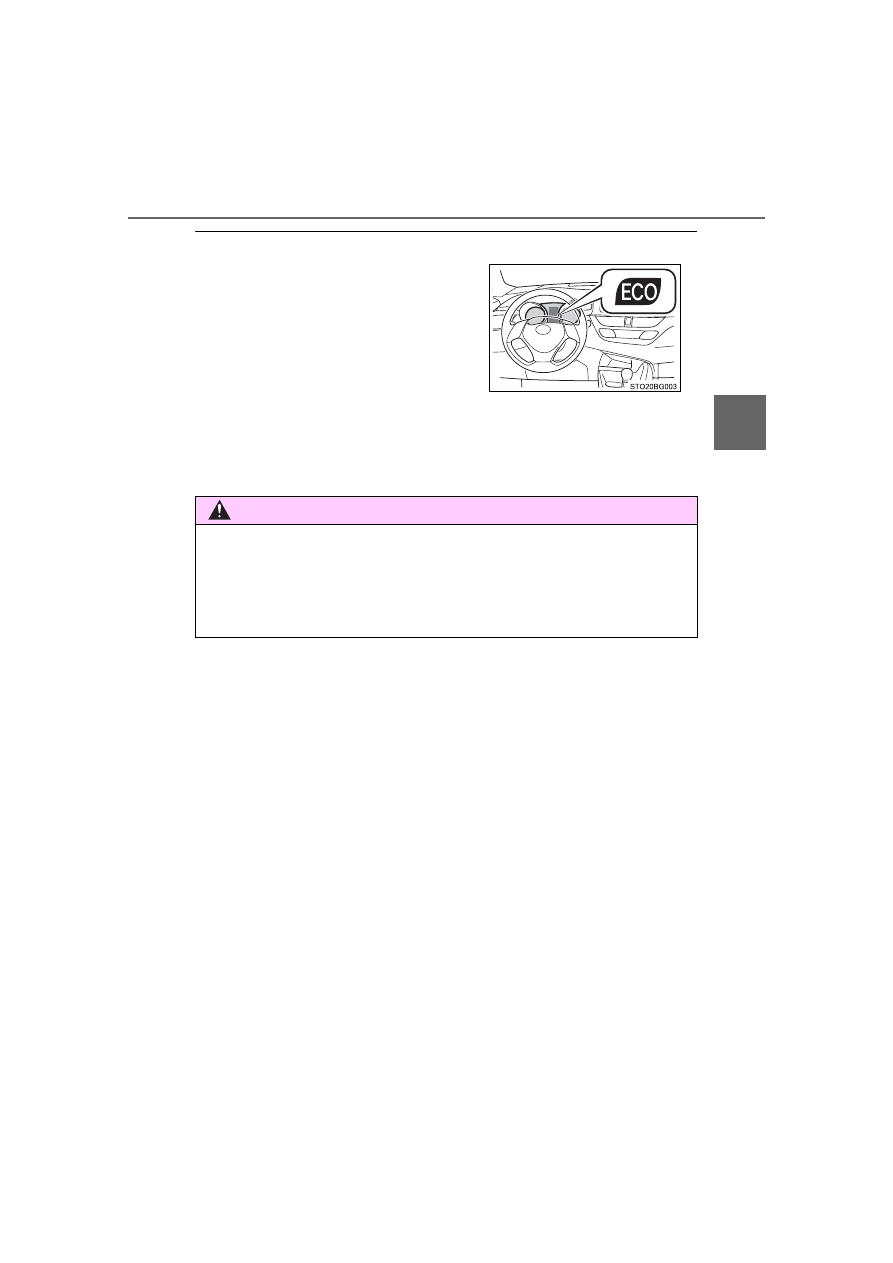

During Eco-Friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.

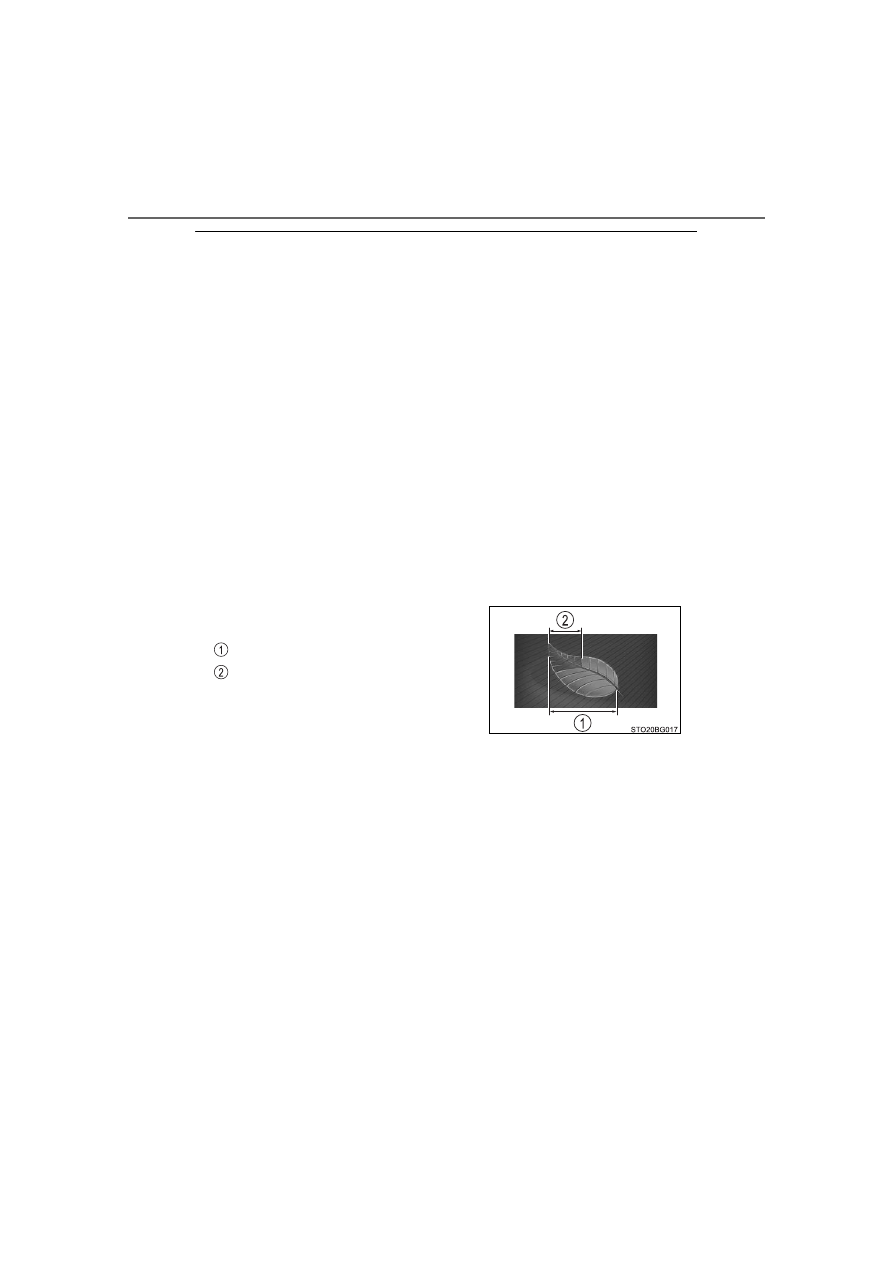

Eco Driving Indicator Light availability can
be customized. The default setting is on.
(

→P. 475)

WARNING

■

If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer.

2. Instrument cluster

Gauges and meters

The units used on the speedometer may differ depending on the tar-
get region.

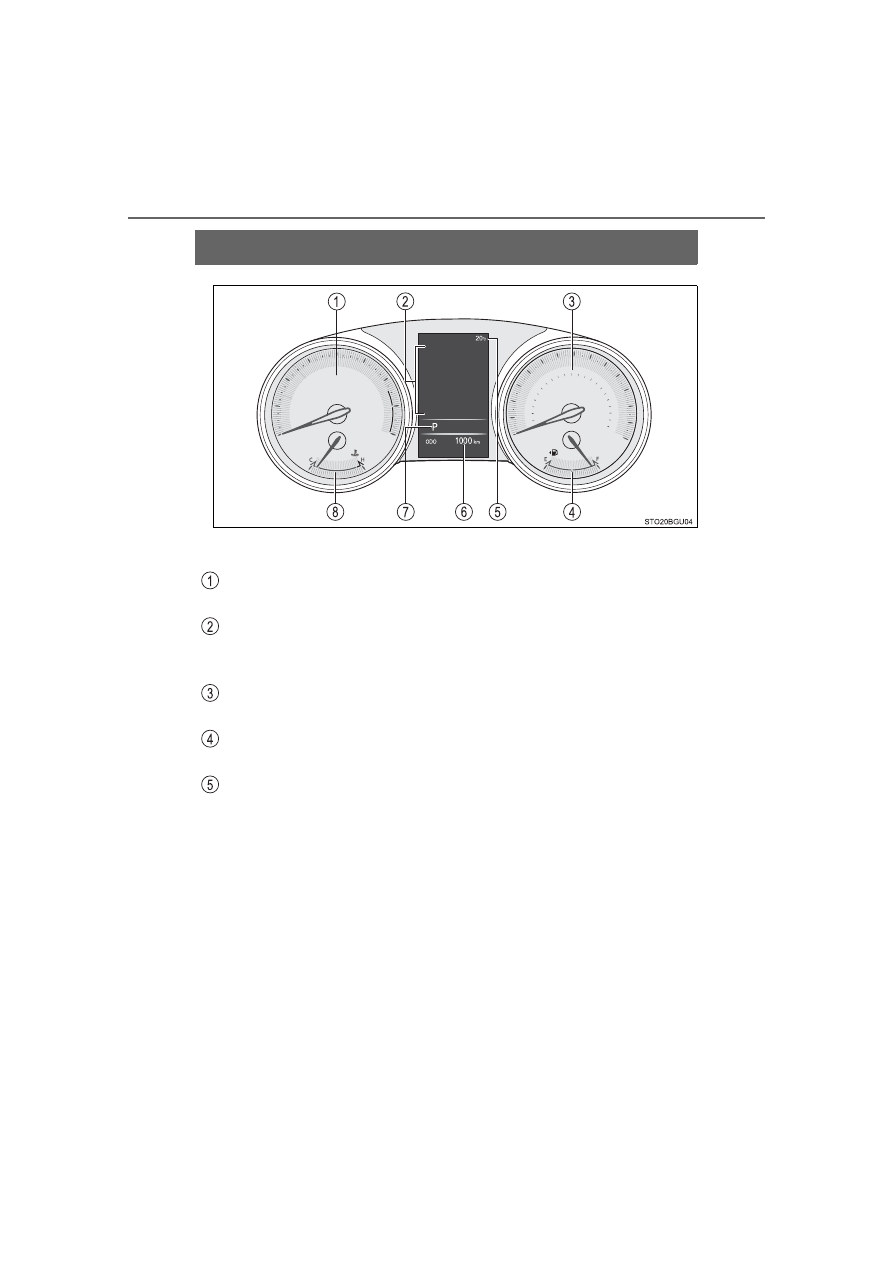

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

Presents the driver with a variety of driving-related data. (

→P. 89)

Displays warning messages in case of a malfunction. (

→P. 418)

Speedometer

Displays the vehicle speed.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Outside temperature display

Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.

2. Instrument cluster

Instrum

nt clus

ter

Odometer and trip meter display

Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information (U.S.A. only):
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by your Toyota dealer.

• Displays the maintenance required information when the engine switch

is turned to the “ON” position (vehicles without smart key system) or in
IGNITION ON mode (vehicles with smart key system).

• Maintenance required information reset method (

→P. 328)

Shift position and shift range display

Displays the selected shift position or selected shift range. (

→P. 171)

Engine coolant temperature gauge

Displays the engine coolant temperature.

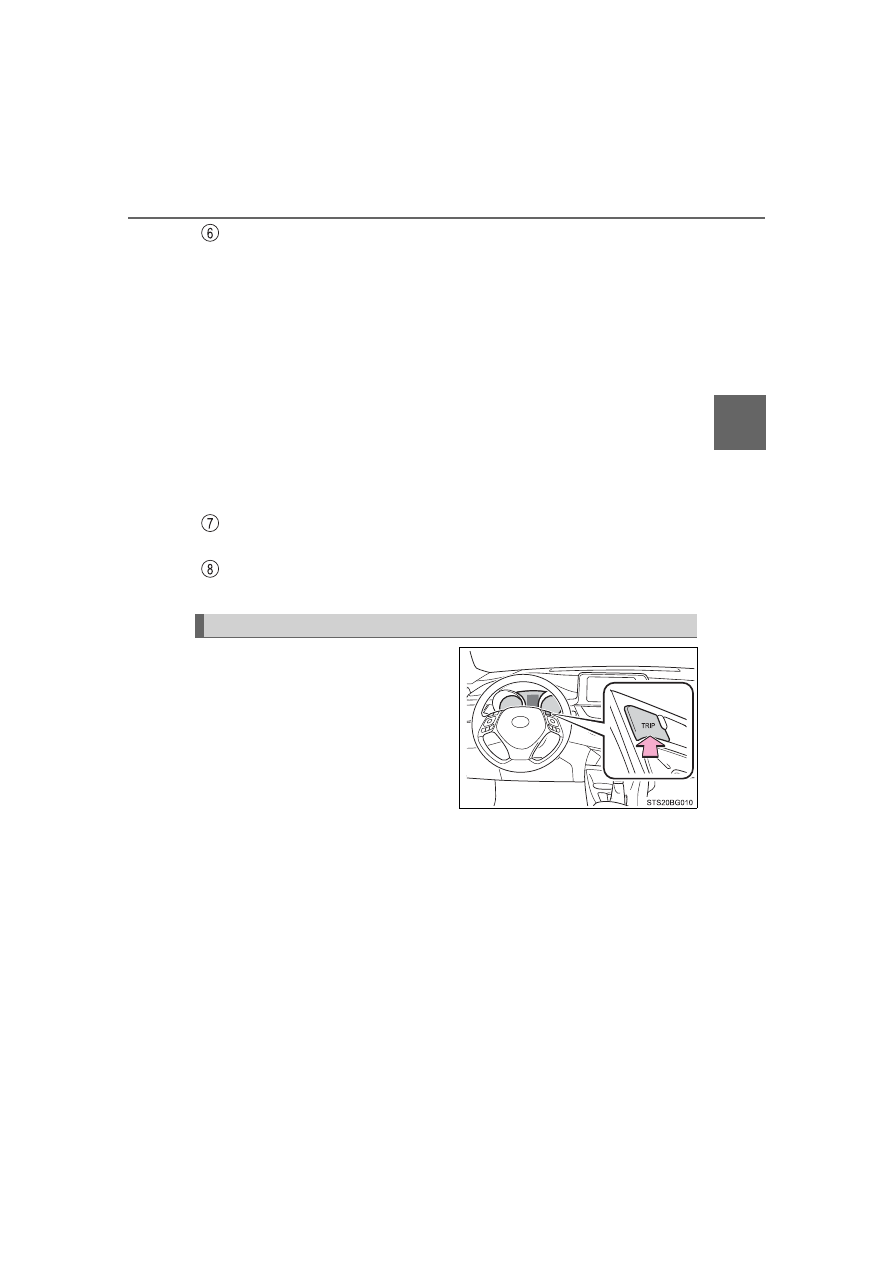

Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.

When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.

Changing the display

2. Instrument cluster

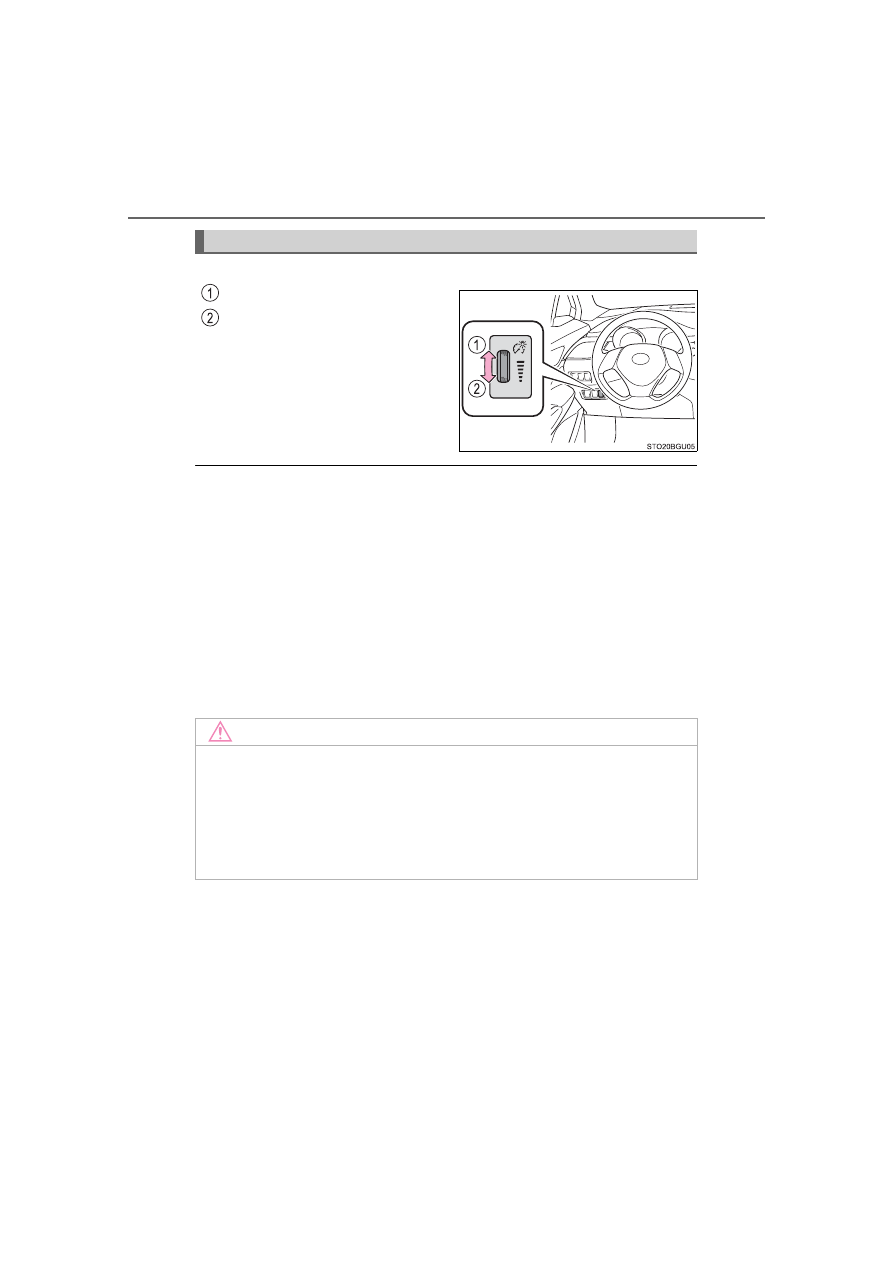

The brightness of the instrument panel lights can be adjusted.

Brighter
Darker

■

The meters and display illuminate when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

If “

− −” is displayed continuously, the system may be malfunctioning. Take

your vehicle to your Toyota dealer.

Instrument panel light control

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge
enters the red zone (“H”). In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (

→P. 443)

2. Instrument cluster

Instrum

nt clus

ter

Multi-information display

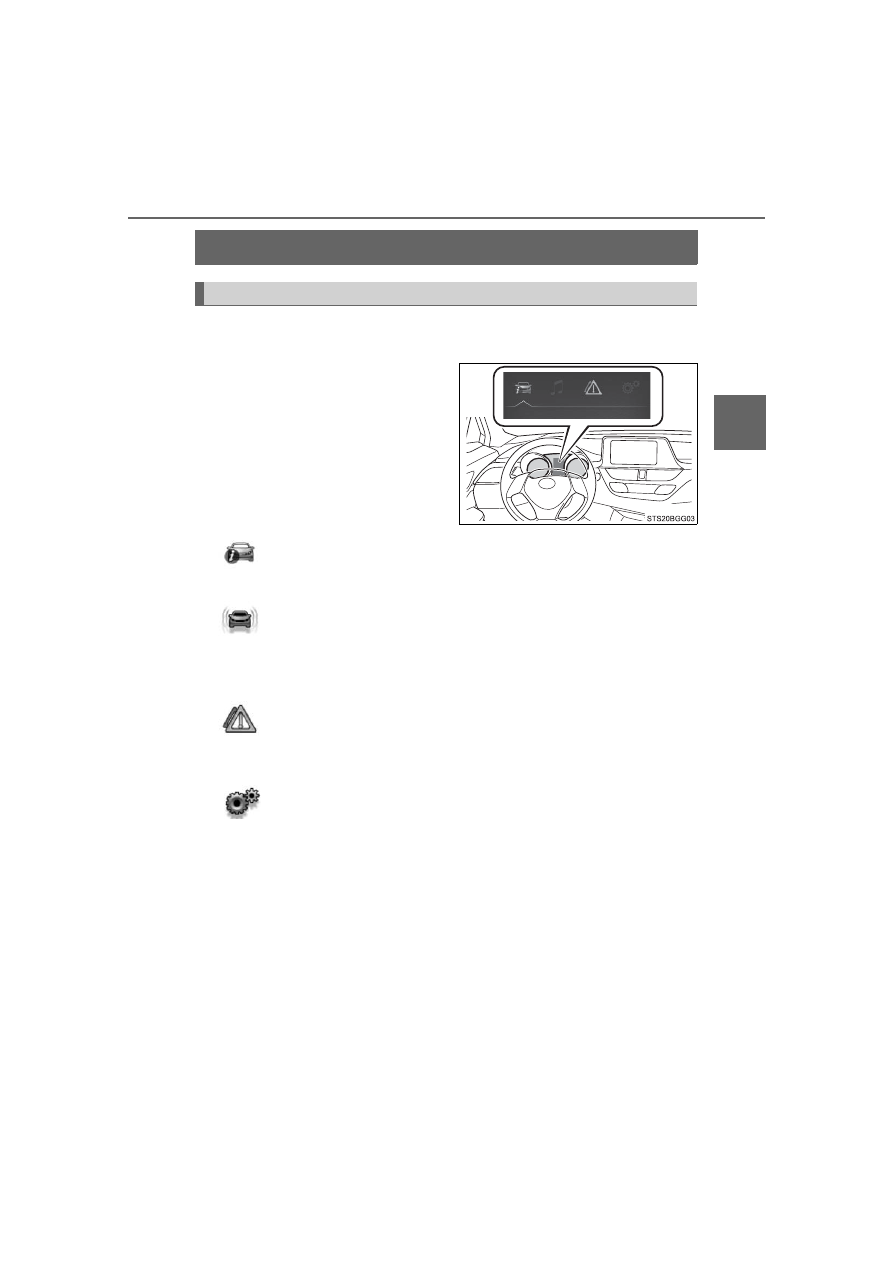

The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons

Displays the following informa-
tion when an icon is selected.
(

→P. 90)

Some of the information may be
displayed automatically
depending on the situation.

Drive information

Select to display various drive data. (

→P. 90)

Driving assist system information (if equipped)

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert) (

→P. 226)

• Dynamic radar cruise control with full-speed range (

→P. 236)

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (

→P. 418)

Settings display

Select to change the meter display settings and the operation set-
tings of some vehicle functions. (

→P. 92)

Display contents

2. Instrument cluster

The multi-information display is

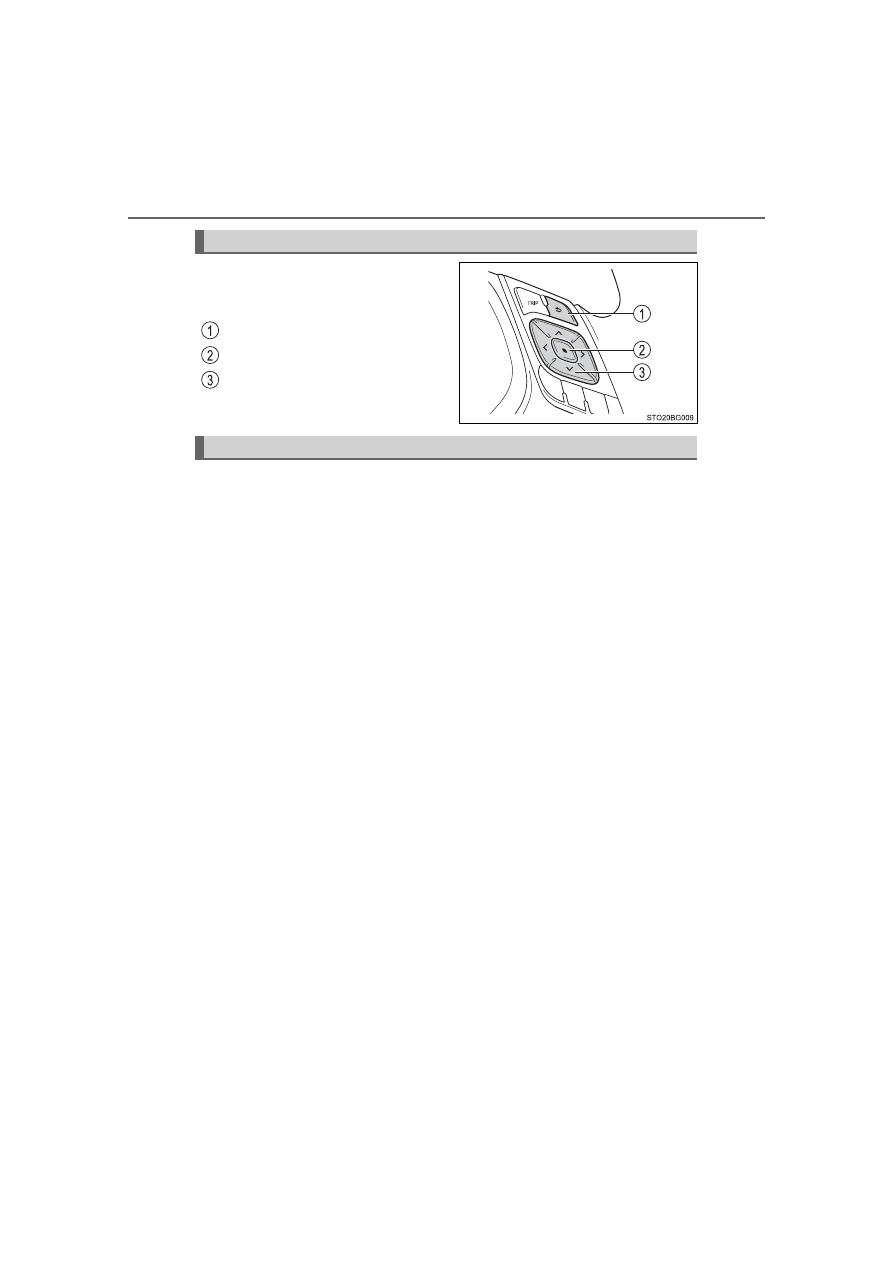

operated using the meter control
switches.

Return to the previous screen
Enter/set
Select an item/change pages

● Current fuel consumption (zone display/numerical display)

Displays the current rate of fuel consumption.

● Average fuel consumption (after reset

/after start/after refuel)

Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.

● Average vehicle speed (after reset

/after start)

Displays the average vehicle speed since the function was reset and the
engine was started, respectively

● Elapsed time (after reset

/after start)

Displays the elapsed time since the function was reset and the engine was
started, respectively

Operating the meter control switches

Drive information

2. Instrument cluster

Instrum

nt clus

ter

● Distance (driving range/after start)

Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started, respectively

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

● Eco Driving Indicator Zone Display

→P. 94

● Speedometer

Displays the vehicle speed.

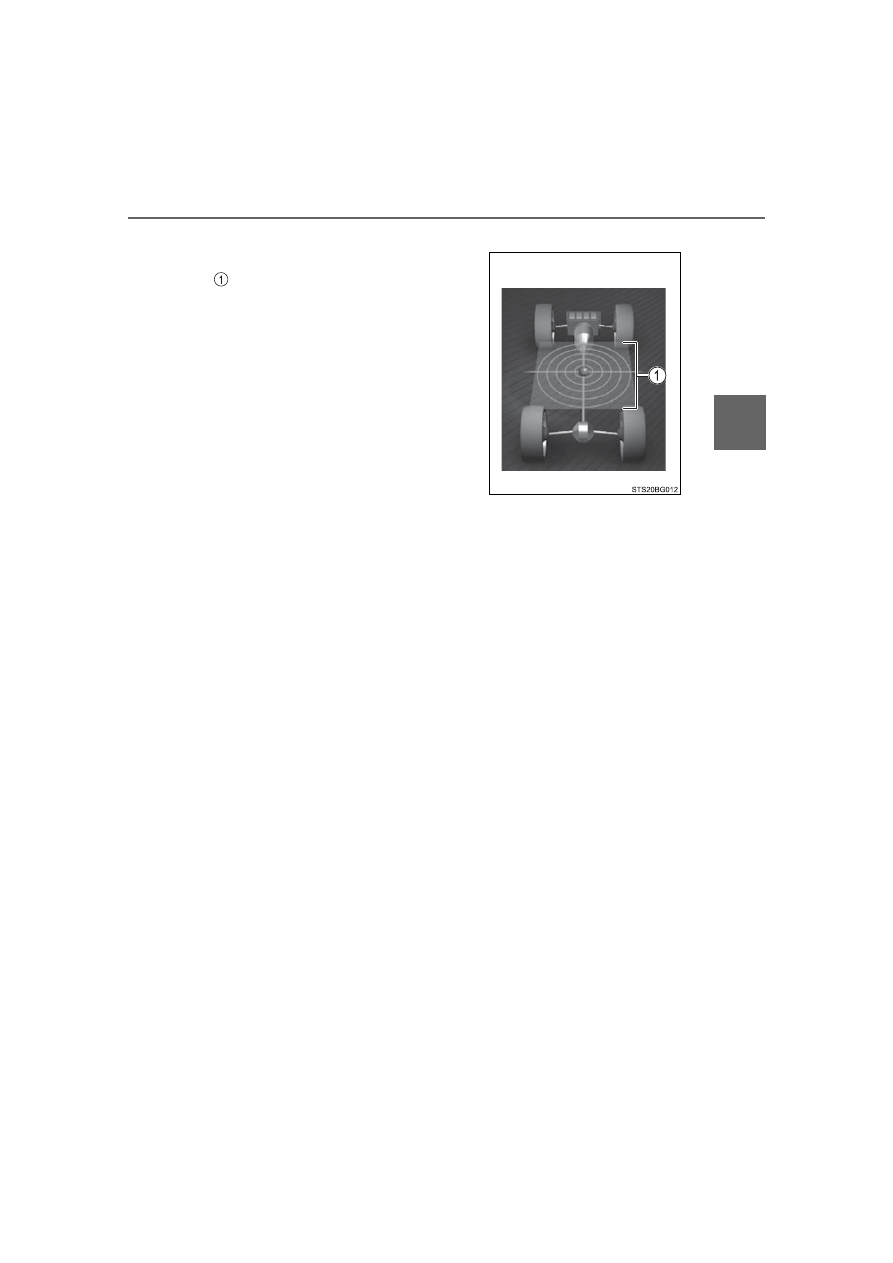

● G Monitor

→P. 95

● Sway warning (if equipped)

Detects the sway of the vehicle within a lane, which is often associated
with a decrease in the driver’s attention level, and displays the decrease in
attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering con-
trol). The display is enabled when the operating conditions of the vehicle
sway warning are met. (

→P. 226)

● Display off

A blank screen is displayed.

: Can be registered to Drive information 1 and 2. (

→P. 92)

: Resetting procedures:

• Select a function to be reset using the meter control switches and then

press and hold

to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to those functions.

2. Instrument cluster

The settings of the following items can be changed, refer to P. 474.

For functions that can be enabled or disabled, the function switches
between on and off each time

is pressed.

●

LDA (Lane Departure Alert) (

→P. 226)

Select to set up the following items.

• Steering Assist on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity

●

PCS (Pre-Collision System) (

→P. 211)

Select to set up the following items.

• PCS on/off
• PCS sensitivity

●

BSM (Blind Spot Monitor) (

→P. 253)

Select to set up the following items.

• BSM function on/off
• RCTA function on/off

: The RCTA function can be enabled/disabled only when the BSM func-

tion is enabled.

● Driving mode select (→P. 251)

Settings display

2. Instrument cluster

Instrum

nt clus

ter

● Vehicle Settings

Select the menu to set up the following item.

•

(Tire pressure warning system) setup (

→P. 355)

Select to initialize the tire pressure warning system.

● Meter settings

Select the menu to set up the following items.

• Language

Select to change the language on the display.

• Units

Select to change the unit of measure for fuel consumption.

•

(Eco Driving Indicator Light) setup

Select to activate/deactivate the Eco Driving Indicator Light

• Drive information 1 and 2

Select to select up to 2 items that will be displayed on a Drive informa-
tion screen, up to 2 Drive information screens can be set.

• Default settings

Registered or changed meter settings will be deleted or returned to their
default setting.

: If equipped

2. Instrument cluster

■

Setting items

●

“Meter Settings” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily displayed on the multi-information display.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

When disconnecting and reconnecting battery terminals
The drive information will be reset.

■

Eco Driving Indicator Zone Display

Suggests Zone of Eco driving and Eco
driving ratio based on acceleration.

Zone of Eco driving
Eco driving ratio based on accelera-
tion
If the vehicle exceeds Zone of Eco
driving, the green area disappears
and Eco Driving Indicator Light will
turn off. (

→P. 85)

2. Instrument cluster

Instrum

nt clus

ter

■

G Monitor

■

Ending display
When the engine switch is turned off, each of the following will be displayed
on the multi-information display, and will extinguish after approximately
30 seconds.

●

Elapsed time

●

Distance

●

Average fuel consumption

The following item is displayed.

G-force display
Displays the current G-force state.

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

■

Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.

NOTICE

■

While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

Content .. 4 5 6 7 ..
