8-1. Specifications

Ve
hicle

spe

ifi

ations

■

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.

Oil grade: API SN/RC multigrade engine oil

Recommended viscosity: SAE 0W-16

SAE 0W-16 is the best choice for
good fuel economy and good start-
ing in cold weather.

If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However,
it must be replaced with SAE 0W-
16 at the next oil change.

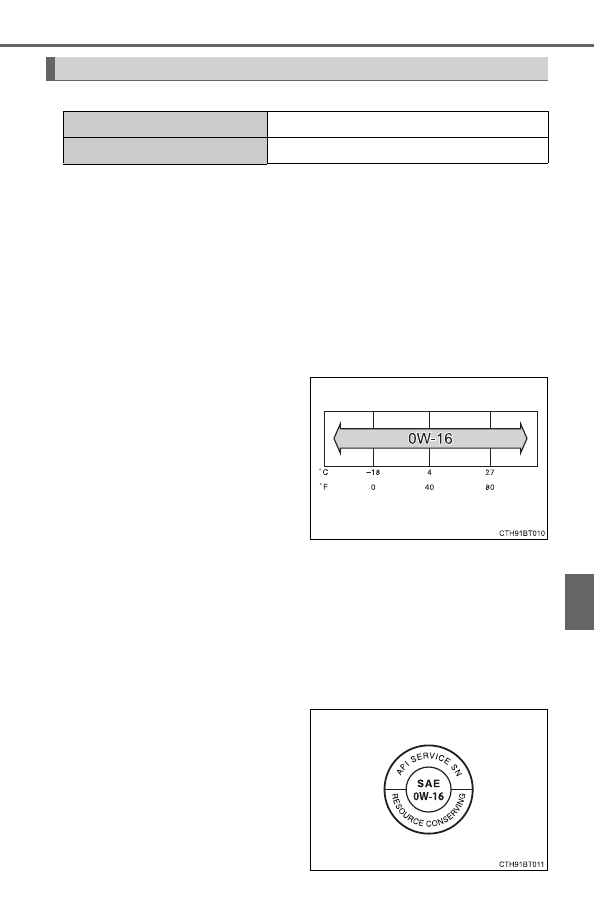

Oil viscosity (0W-16 is explained here as an example):

• The 0W in 0W-16 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

How to read oil container label:

API registered marks is added
to some oil containers to help
you select the oil you should
use.

Lubrication system

With filter

4.8 qt. (4.5 L, 4.0 Imp. qt.)

Without filter

4.4 qt. (4.2 L, 3.7 Imp. qt.)

Outside temperature

530

8-1. Specifications

Cooling system

Capacity
(Reference)



Gasoline engine

6.4 qt. (6.1 L, 5.4 Imp. qt.)



Power control unit

1.9 qt. (1.8 L, 1.6 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

531

8-1. Specifications

Ve
hicle

spe

ifi

ations

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31

kgf) while the hybrid system is operating.

Electrical system

12-volt battery

Open voltage at
68

°F (20°C):

12.0 V or higher
If the voltage is lower than the standard value,
charge the battery.
(When checking the voltage, after turning the
power switch off, wait for 30 seconds with the
high beam headlights illuminated, then turn the
high beam headlights off and check the voltage.)

Charging rates

5 A max.

Transmission

Fluid capacity

4.1 qt. (3.9 L, 3.4 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the transmission of your vehicle.

Brakes

Pedal clearance

3.3 in. (85 mm)

Pedal free play

0.04

⎯ 0.24 in. (1 ⎯ 6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

FMVSS No.116 DOT 3 or SAE J1703

Steering

Free play

Less than 1.2 in. (30 mm)

532

8-1. Specifications



Type A



Type B

Tires and wheels

Tire size

205/65R16 95H, T155/70D17 110M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front:
35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:
35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:
60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph
[160 km/h]) (in countries where such
speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

× 6 1/2 J, 17 × 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

215/55R17 94V, T155/70D17 110M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front:
35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:
35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:
60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph
[160 km/h]) (in countries where such
speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

× 7 1/2 J, 17 × 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

533

8-1. Specifications

Ve
hicle

spe

ifi

ations



Type C

Tire size

235/45R18 94V, T155/70D17 110M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front:
35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:
35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:
60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph
[160 km/h]) (in countries where such
speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never
exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

× 8 J, 17 × 4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

534

8-1. Specifications

: Light bulbs not listed in this table are LED bulbs.

: If equipped

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Front side marker
lights (bulb type)

W5W

Front turn signal/
parking lights
(bulb type)

7444NA

28/8

Rear turn signal lights
(bulb type)

WY21W

Rear side marker
lights (bulb type)

W5W

Back-up lights
(bulb type)

921

Interior

Rear interior light

⎯

Door courtesy lights

⎯

Vanity lights

⎯

Trunk light

⎯

A: Wedge base bulbs (clear)

C: Double end bulbs

B: Wedge base bulbs (amber)

535

8-1. Specifications

Ve
hicle

spe

ifi

ations

■

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

■

Gasoline quality standards

●

Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.

●

The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.

●

The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.

●

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.

Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

536

8-1. Specifications

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).

Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.

The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

●

Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).

DO NOT use gasoline contain-
ing more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

537

8-1. Specifications

Ve
hicle

spe

ifi

ations

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

■

When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

539

8-1. Specifications

Ve
hicle

spe

ifi

ations

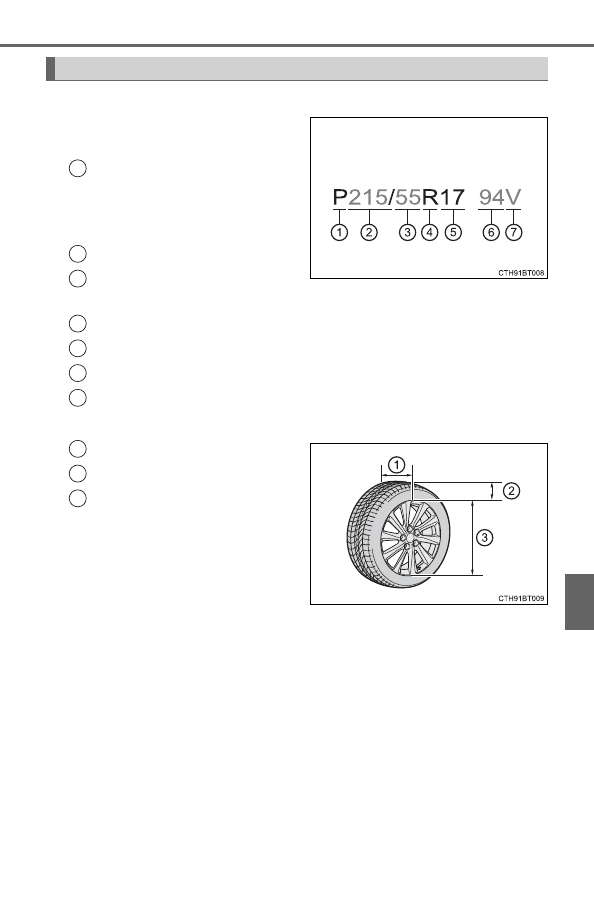

Tire size (

→P. 541)

Summer tires or all season tires (

→P. 435)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.

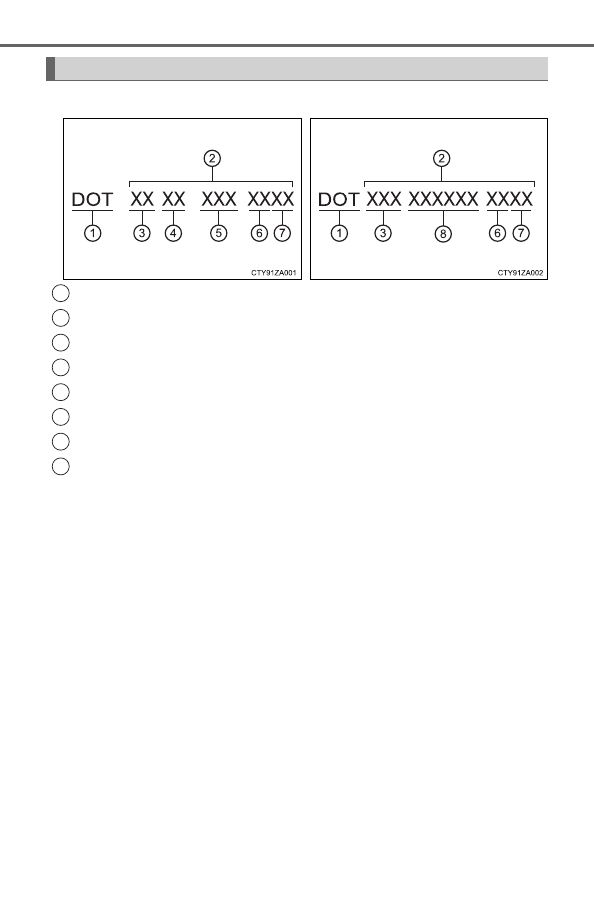

DOT and Tire Identification Number (TIN) (

→P. 540)

Location of treadwear indicators (

→P. 428)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Maximum cold tire inflation pressure (

→P. 532)

This means the pressure to which a tire may be inflated.

Load limit at maximum cold tire inflation pressure (

→P. 434)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.

1
2

5
6
7

540

8-1. Specifications

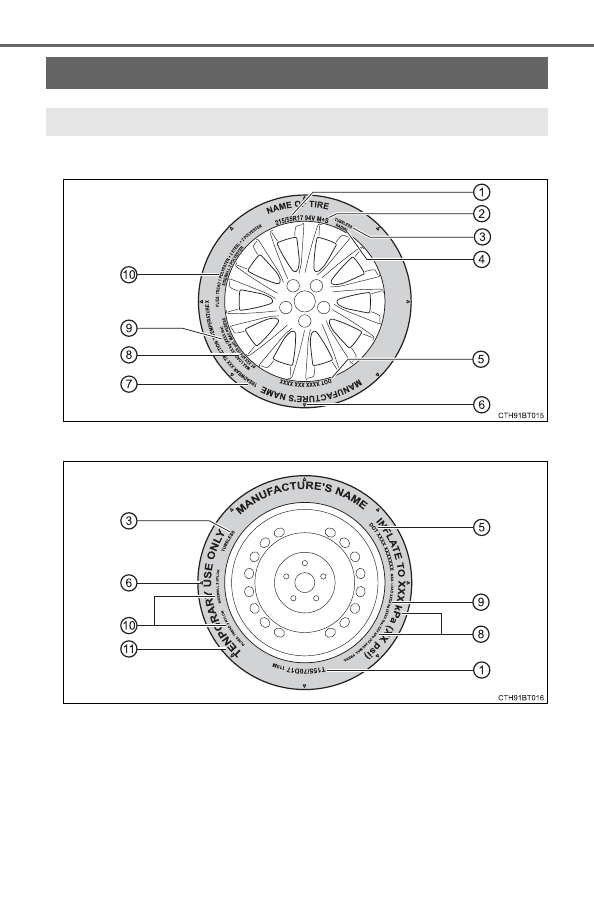

DOT symbol

Tire Identification Number (TIN)

Tire manufacturer’s identification mark

Tire size code

Manufacturer’s optional tire type code (3 or 4 letters)

Manufacturing week

Manufacturing year

Manufacturer’s code

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

1
2
3
4
5
6
7
8

541

8-1. Specifications

Ve
hicle

spe

ifi

ations

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use
(P = Passenger car [some-
times omitted],
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code (R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Tire size

2
3

4
5
6
7

1
2
3

542

8-1. Specifications

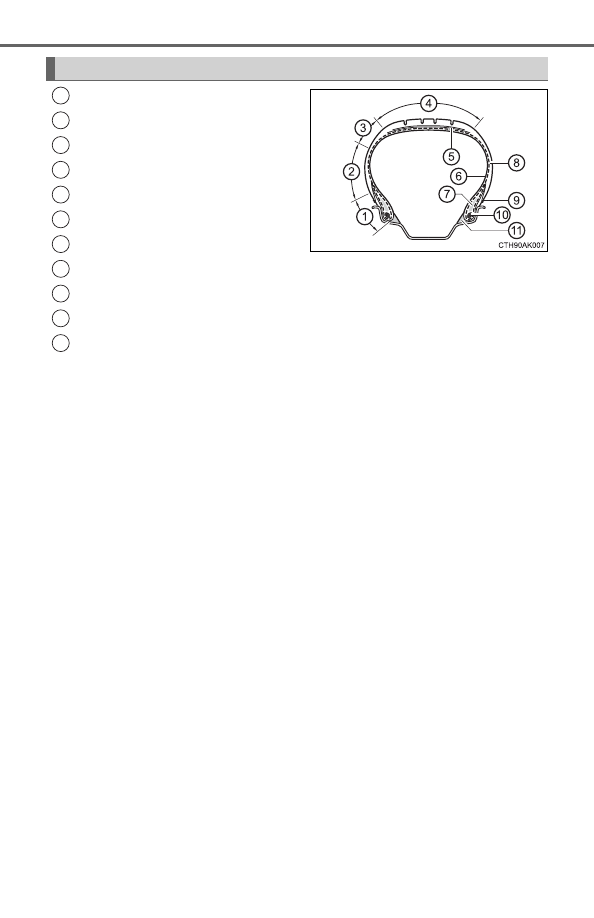

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

Tire section names

1
2
3
4
5
6
7
8
9

543

8-1. Specifications

Ve
hicle

spe

ifi

ations

This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.

Your Toyota dealer will help answer any questions you may have as
you read this information.

■

DOT quality grades

All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.

For example: Treadwear 200 Traction AA Temperature A

■

Treadwear

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.

For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.

Uniform Tire Quality Grading

544

8-1. Specifications

■

Temperature A, B, C

The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.

Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109.

Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.

Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire
failure.

Toyota Camry Hybrid (2018 year). Manual - part 34
