POWER STEERING  –  POWER STEERING LINK (for 4WD)

PS

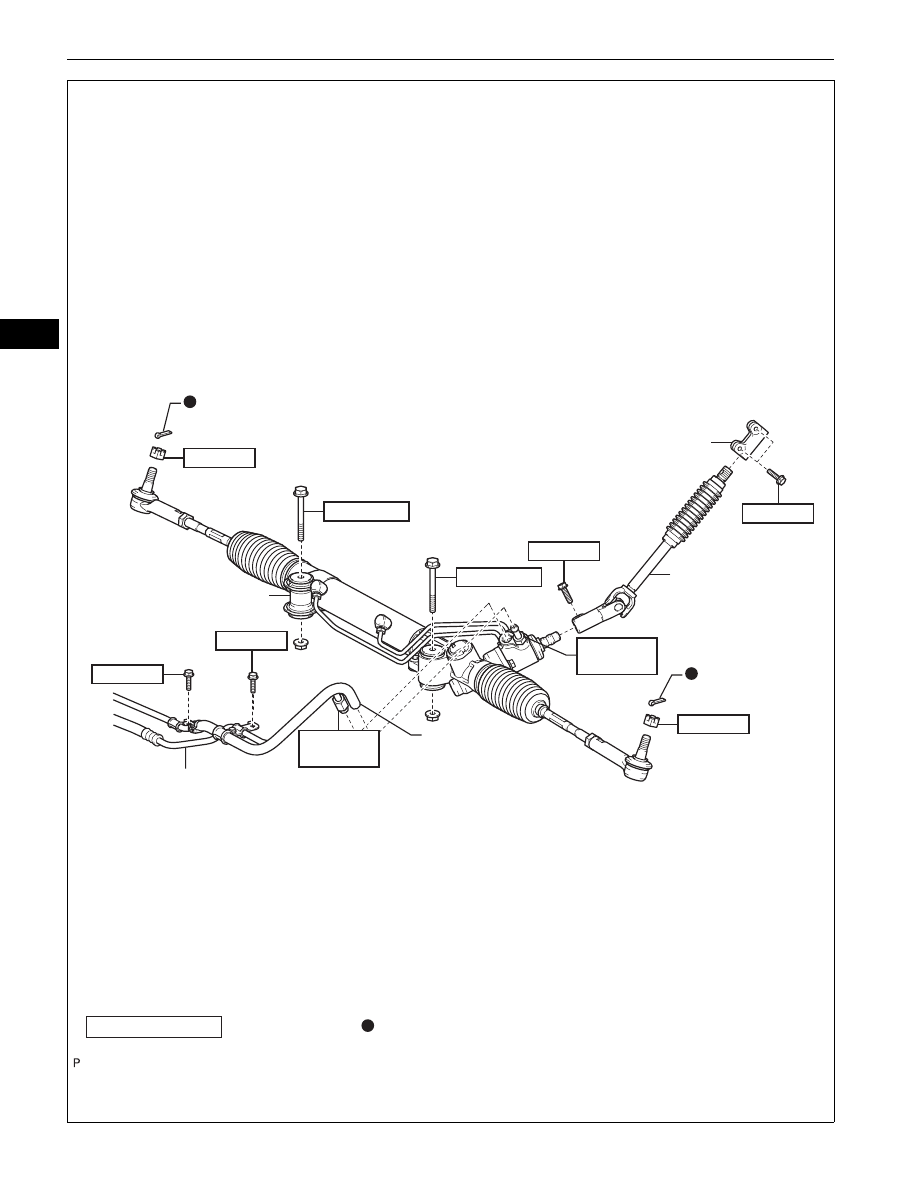

POWER STEERING LINK

STEERING SLIDING YOKE

RETURN
HOSE

36 (367, 27)

91 (928, 67)

28 (286, 21)

PRESSURE FEED
TUBE ASSEMBLY

36 (367, 27)

100 (1,020, 74)

91 (928, 67)

COTTER PIN

COTTER PIN

44 (449, 33)
42 (428, 31)

*

28 (286, 21)

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

* For use with SST

100 (1,020, 74)

44 (449, 33)
42 (428, 31)

*

NO. 2 STEERING
INTERMEDIATE
SHAFT

C133818E01

POWER STEERING  –  POWER STEERING LINK (for 4WD)

PS–35

PS

STEERING GEAR

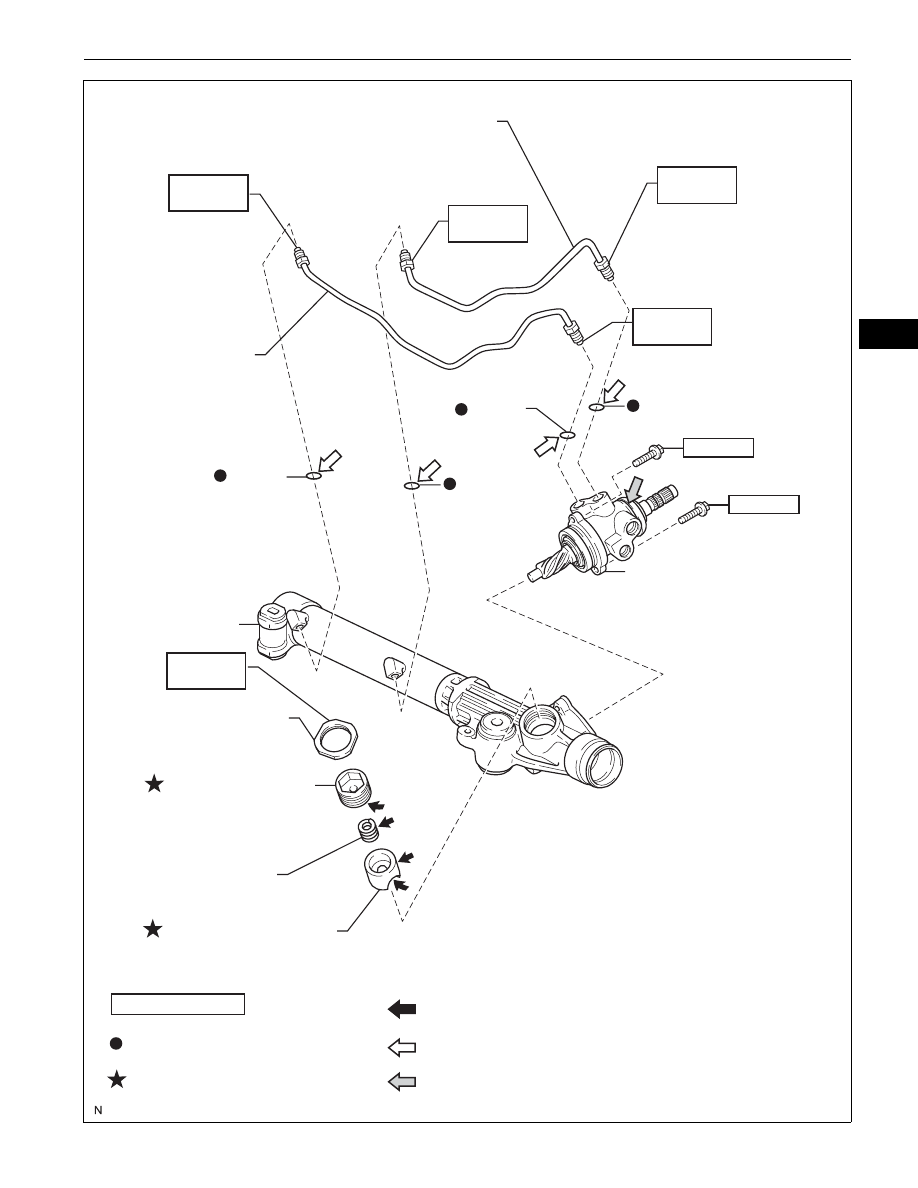

RACK GUIDE

STEERING TURN
PRESSURE TUBE

CONTROL VALVE HOUSING

RACK HOUSING

STEERING GEAR
RACK GUIDE SPRING

18 (184, 13)

O-RING

O-RING

O-RING

O-RING

25 (250, 18)
23 (235, 17)

*

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

Molybdenum disulfide lithium base grease

Power steering fluid

Precoated part

* For use with SST

STEERING RACK
GUIDE SPRING CAP

STEERING RACK GUIDE
SPRING CAP NUT

MP grease

69 (704, 51)
65 (663, 48)

*

STEERING TURN
PRESSURE TUBE

25 (250, 18)
21 (214, 16)

*

18 (184, 13)

25 (250, 18)
23 (235, 17)

*

25 (250, 18)
21 (214, 16)

*

C137989E01

PS–36

POWER STEERING  –  POWER STEERING LINK (for 4WD)

PS

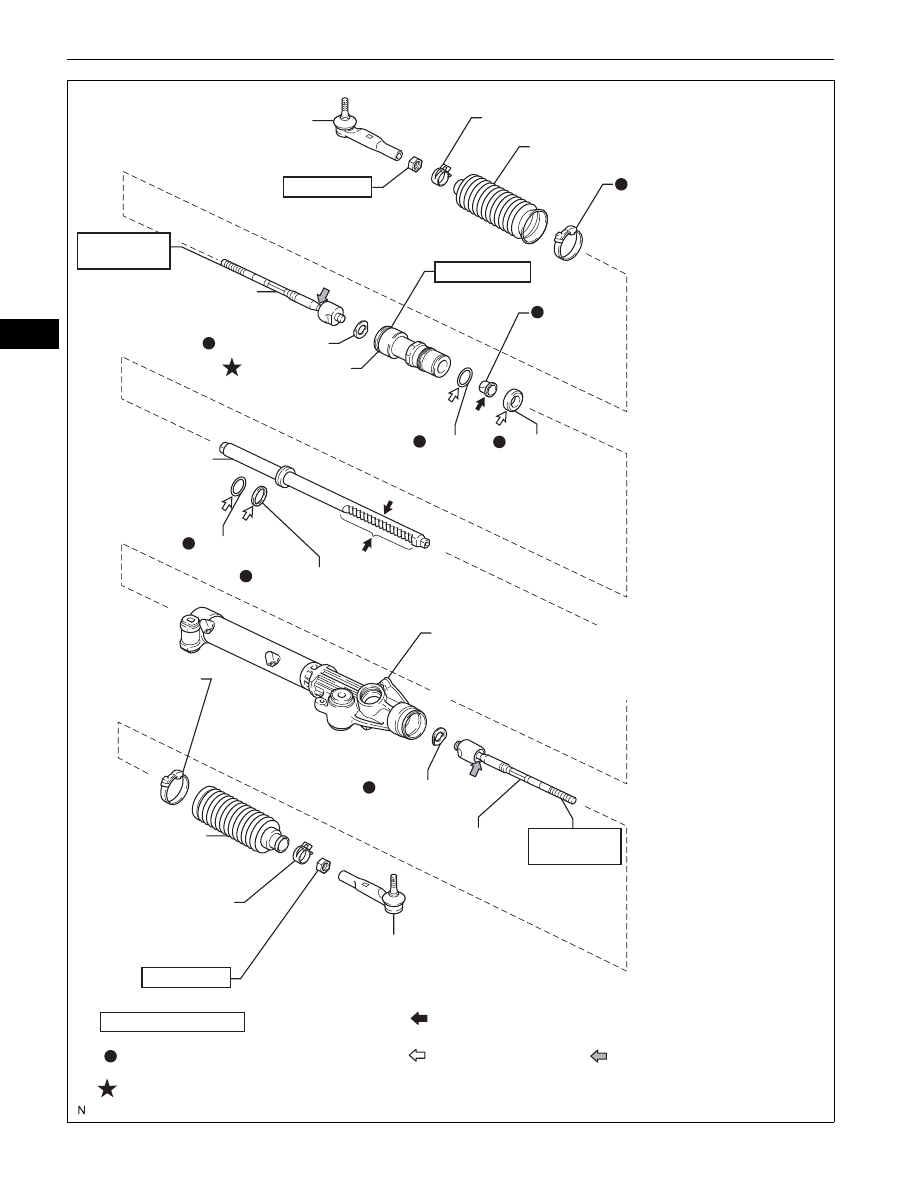

CYLINDER END
STOPPER

POWER STEERING
RACK

STEERING RACK
BOOT CLIP LH

STEERING RACK BOOT CLIP RH

STEERING RACK BOOT RH

Liquid sealant

N*m (kgf*cm, ft.*lbf)

; Specified torque

Molybdenum disulfide lithium base grease

Power steering fluid

* For use with SST

TIE ROD END SUB-ASSEMBLY
LH

88 (897, 65)

STEERING RACK
BOOT LH

TIE ROD END SUB-ASSEMBLY RH

88 (897, 65)

RACK END

145 (1,479, 107)

103 (1,050, 76)

*98 (1,000, 72)

POWER STEERING RACK HOUSING
SUB-ASSEMBLY

103 (1,050, 76)

*98 (1,000, 72)

CLAW WASHER

̌TEFLON̍ RING

BUSHING

O-RING

CLAW WASHER

STEERING RACK BOOT
CLAMP RH

Non-reusable part

OIL SEAL

MP grease

STEERING RACK
BOOT CLAMP LH

O-RING

RACK END

C137988E01

POWER STEERING  –  POWER STEERING LINK (for 4WD)

PS–37

PS

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

PLACE FRONT WHEELS FACING STRAIGHT AHEAD

3.

REMOVE FRONT WHEELS

4.

REMOVE NO. 1 ENGINE UNDER COVER SUB-
ASSEMBLY (See page

EM-6

)

5.

REMOVE REAR ENGINE UNDER COVER ASSEMBLY
(a) Remove the 4 bolts, then remove the rear engine

under cover.

6.

REMOVE NO. 2 EXHAUST FRONT PIPE ASSEMBLY
(See page

EX-4

)

7.

REMOVE FRONT EXHAUST PIPE ASSEMBLY (See
page

EX-4

)

8.

REMOVE PROPELLER SHAFT HEAT INSULATOR
(See page

AT-178

)

9.

REMOVE FRONT PROPELLER SHAFT ASSEMBLY
(See page

PR-2

)

10. REMOVE PROPELLER SHAFT ASSEMBLY (See page

PR-9

)

11. REMOVE AUTOMATIC TRANSMISSION WITH

TRANSFER (See page

AT-180

)

12. REMOVE FRONT SUSPENSION MEMBER BRACKET

LH (See page

AT-180

)

13. REMOVE FRONT SUSPENSION MEMBER BRACKET

(See page

AT-180

)

14. REMOVE NO. 3 FRAME CROSSMEMBER SUB-

ASSEMBLY (See page

MT-11

)

15. REMOVE NO.2 STEERING INTERMEDIATE SHAFT

SUB-ASSEMBLY

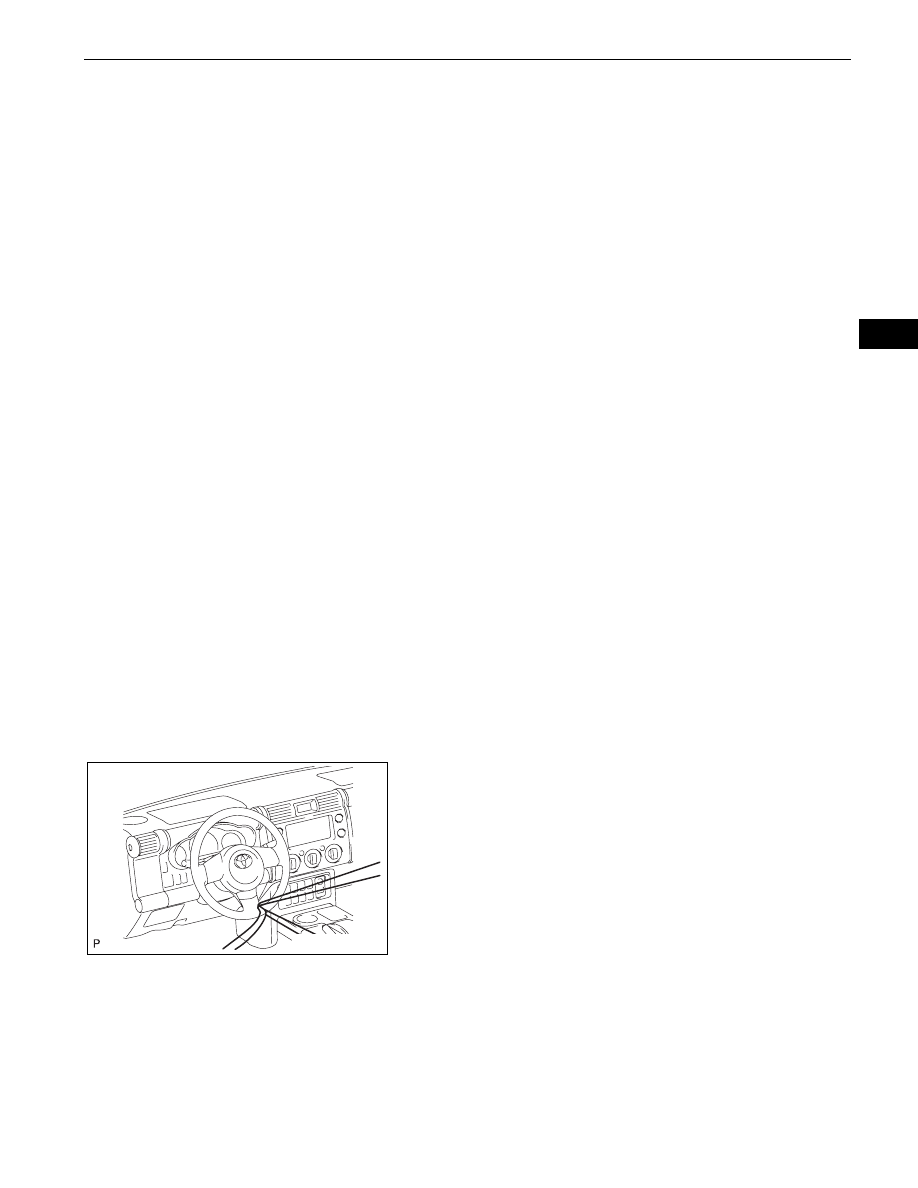

(a) Fix the steering wheel with the seat belt in order to

prevent it from rotating.
HINT:
The operation is effective for preventing any
damage to the spiral cable.

C137982
