Toyota FJ Cruiser (GSJ 10, 15 series). Manual - part 358

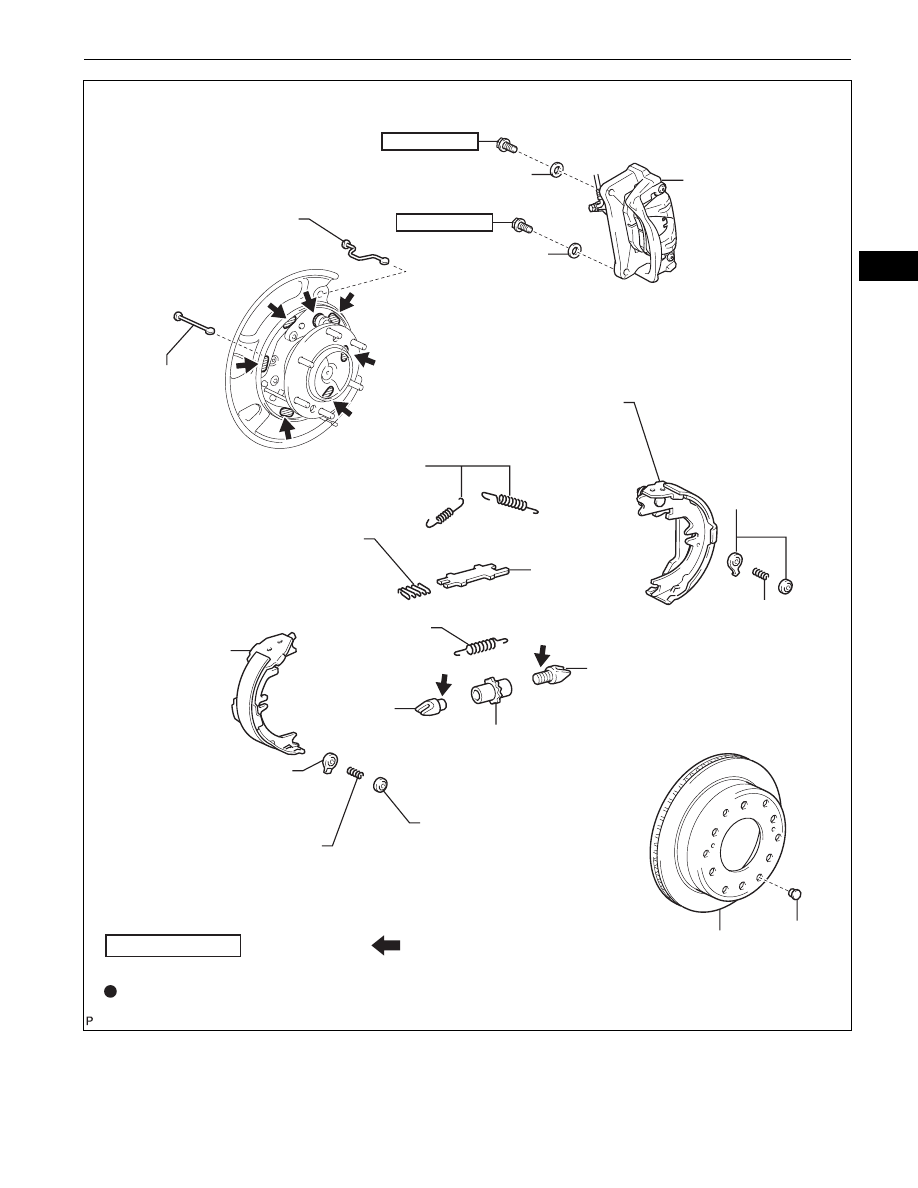

PARKING BRAKE  –  PARKING BRAKE CABLE

PB–9

PB

PARKING BRAKE NO. 1
SHOE ASSEMBLY

PARKING BRAKE SHOE
RETURN TENSION SPRING

REAR DISC

REAR DISC BRAKE
CALIPER ASSEMBLY

PARKING BRAKE
NO. 2 SHOE
ASSEMBLY

PARKING BRAKE
SHOE HOLD
DOWN SPRING
PIN

PARKING BRAKE SHOE STRUT
COMPRESSION SPRING

PARKING BRAKE
SHOE STRUT

PARKING BRAKE SHOE HOLD
DOWN COMPRESSION SPRING

HOLE
PLUG

PARKING BRAKE SHOE
ADJUST SCREW SET

ADJUSTING
PIECE

ADJUSTING
BOLT

PARKING BRAKE SHOE
HOLD DOWN SPRING CUP

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

High temperature grease

105 (1,071, 78)

105 (1,071, 78)

WASHER

WASHER

PARKING BRAKE SHOE
HOLD DOWN SPRING PIN

PARKING BRAKE
SHOE RETURN
TENSION SPRING

PARKING BRAKE SHOE
HOLD DOWN SPRING CUP

PARKING BRAKE
SHOE HOLD DOWN
SPRING CUP

PARKING BRAKE
SHOE HOLD DOWN
COMPRESSION
SPRING

C133093E01

PB–10

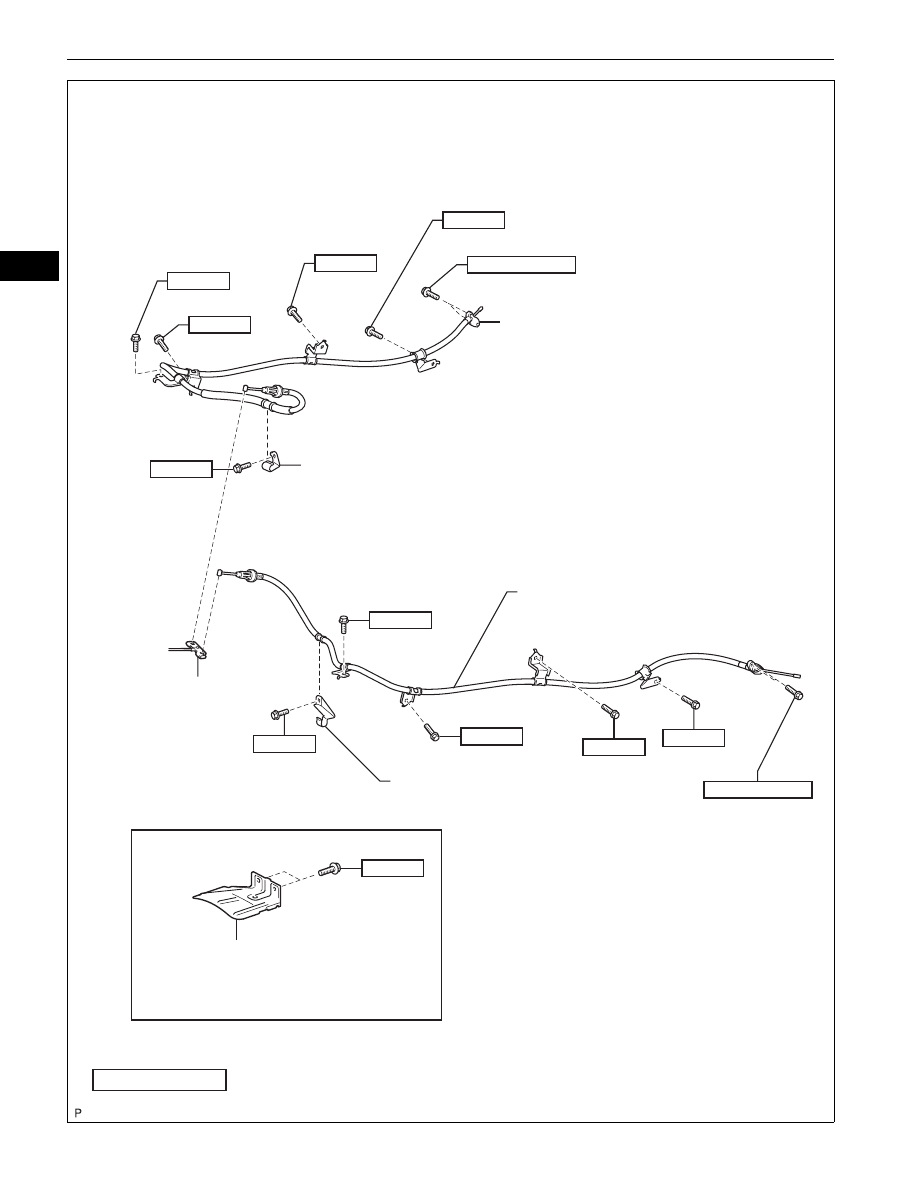

PARKING BRAKE  –  PARKING BRAKE CABLE

PB

PARKING BRAKE NO. 3
CABLE ASSEMBLY

PARKING BRAKE CABLE
HEAT INSULATOR

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (82, 71 in.*lbf)

13 (127, 9)

13 (127, 9)

13 (127, 9)

13 (127, 9)

13 (127, 9)

PARKING BRAKE
NO. 1 PULL ROD
SUB-ASSEMBLY

PARKING BRAKE NO. 2
CABLE ASSEMBLY

for RH Side:

PARKING BRAKE
CABLE CLAMP

PARKING BRAKE
CABLE CLAMP

8.0 (82, 71 in.*lbf)

13 (127, 9)

13 (127, 9)

13 (127, 9)

13 (127, 9)

13 (127, 9)

13 (127, 9)

C133094E01

PARKING BRAKE  –  PARKING BRAKE CABLE

PB–11

PB

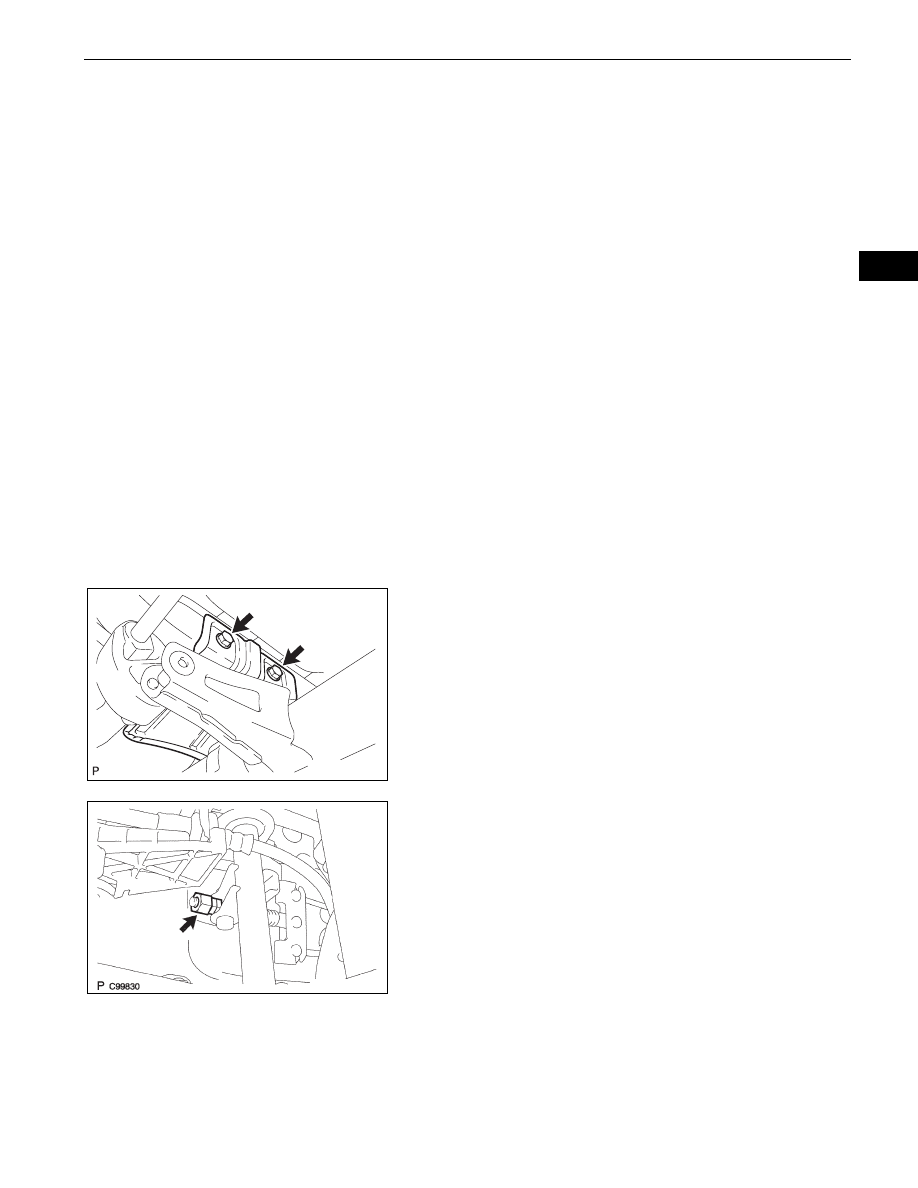

REMOVAL

1.

REMOVE PARKING BRAKE HOLE COVER SUB-
ASSEMBLY (See page

IP-11

)

2.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for
Manual Transmission) (See page

IP-11

)

3.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for
4WD) (See page

IP-11

)

4.

REMOVE CONSOLE UPPER REAR PANEL SUB-
ASSEMBLY (See page

IP-12

)

5.

REMOVE BOX BOTTOM MAT (See page

IP-12

)

6.

REMOVE FRONT CONSOLE BOX (See page

IP-13

)

7.

REMOVE REAR WHEEL

8.

SEPARATE REAR DISC BRAKE CALIPER
ASSEMBLY (See page

PB-17

)

9.

REMOVE REAR DISC (See page

PB-17

)

10. REMOVE PARKING BRAKE SHOE RETURN

TENSION SPRING (See page

PB-17

)

11. REMOVE PARKING BRAKE SHOE STRUT (See page

PB-17

)

12. REMOVE PARKING BRAKE SHOE (See page

PB-17

)

13. REMOVE PARKING BRAKE CABLE HEAT

INSULATOR (for RH Side)
(a) Remove the 2 bolts and the heat insulator.

14. REMOVE PARKING BRAKE CABLE

(a) Loosen the adjusting nut.

C133095

G022563

PB–12

PARKING BRAKE  –  PARKING BRAKE CABLE

PB

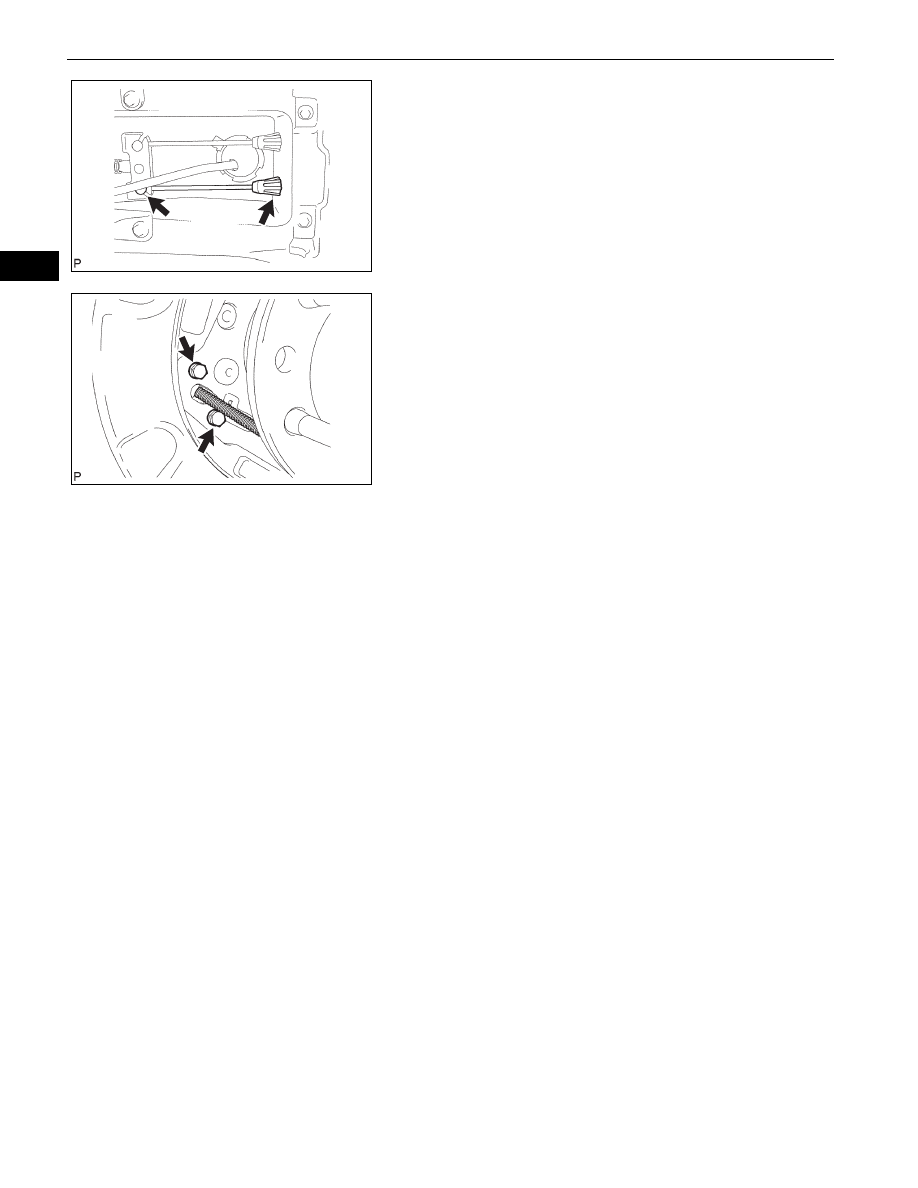

(b) Disconnect the cable end from the parking brake

pull rod.

(c) Contract the claws of the spring cap and push the

parking brake cable slightly out of the vehicle.

(d) Remove the 2 bolts and separate the parking brake

cable from the parking brake plate.

D028481E01

D028121E01
