Toyota FJ Cruiser (GSJ 10, 15 series). Manual - part 327

ME–40

METER  –  METER / GAUGE SYSTEM

ME

(d) Reconnect the combination meter connector.

NG

OK

E13-1 (B) - Body ground

Always

11 to 14V

REPAIR OR REPLACE HARNESS AND
CONNECTOR

Terminal No.

Condition

Specified Condition

REPLACE COMBINATION METER ASSEMBLY

METER  –  METER / GAUGE SYSTEM

ME–41

ME

DESCRIPTION

The combination meter assembly controls the speedometer in accordance with vehicle speed signals
from the speed sensor or skid control ECU.

WIRING DIAGRAM

Speedometer Malfunction

for M/T:

for A/T:

Combination Meter Assembly

Combination Meter Assembly

Speed Sensor

Skid Control ECU

IG1

IGN

To IG1 Relay

To IGN Relay

IG+

SE

SI

SE

SI

SI

SP1

IG2

GND2

E126860E02

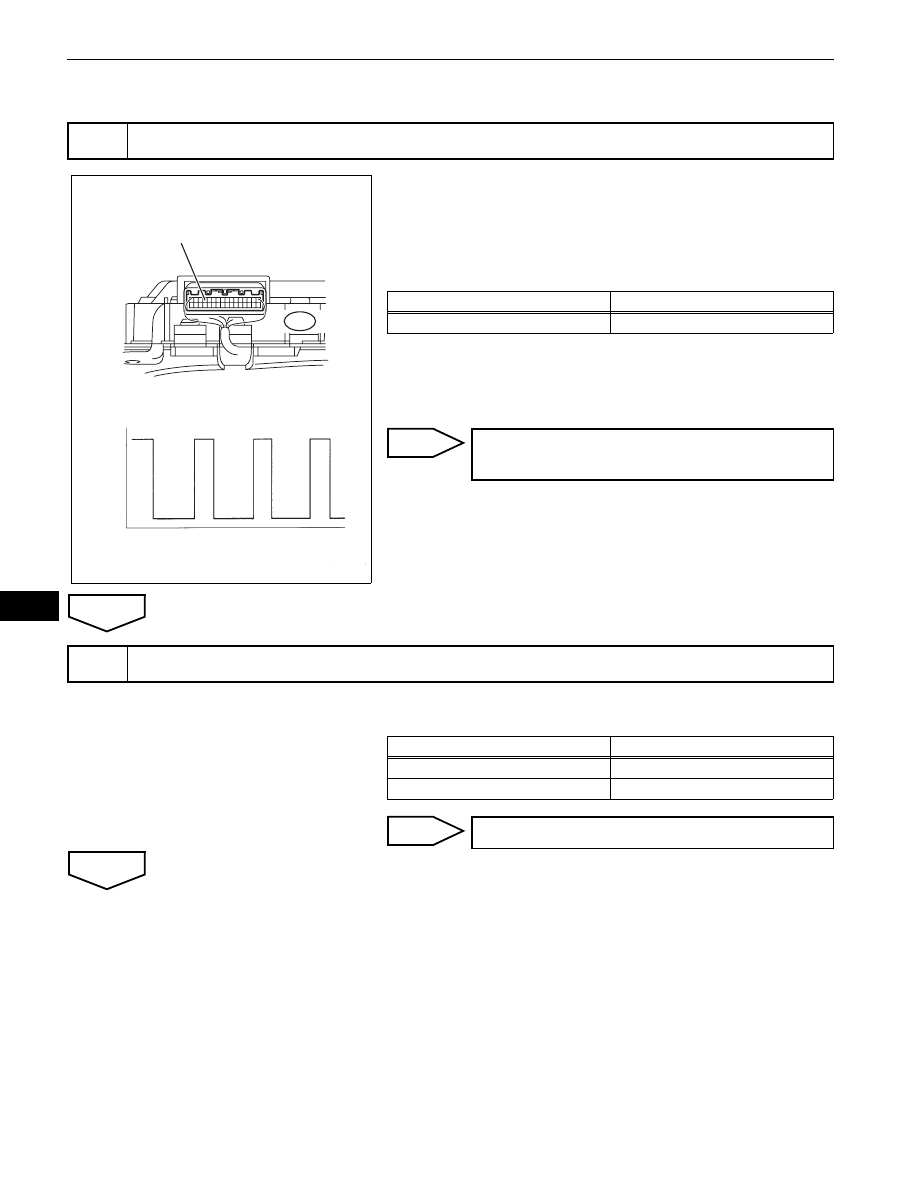

ME–42

METER  –  METER / GAUGE SYSTEM

ME

INSPECTION PROCEDURE

(a) Shift the shift lever (M/T) or transmission gear selector

lever (A/T) to the neutral position.

(b) Jack up the vehicle.
(c) Turn the ignition switch to ON.
(d) Check the voltage while turning the wheel slowly.

Standard

HINT:
The output voltage should fluctuate up and down as
shown in the diagram on the left when the wheel is
turning slowly.

OK

NG

(a) Check the vehicle's transaxle type.
Result

B

A

1

INSPECT COMBINATION METER ASSEMBLY

11 to
14V

0V

Turn Wheel

Combination Meter Assembly Connector:

E13

13

E126867E01

Tester Connection

Specified Condition

E13-13 (SI) - Body ground

Voltage generated intermittently

REPLACE COMBINATION METER
ASSEMBLY

2

CHECK TRANSAXLE TYPE

Transaxle Type

Proceed to

M/T

A

A/T

B

              Go to step 5

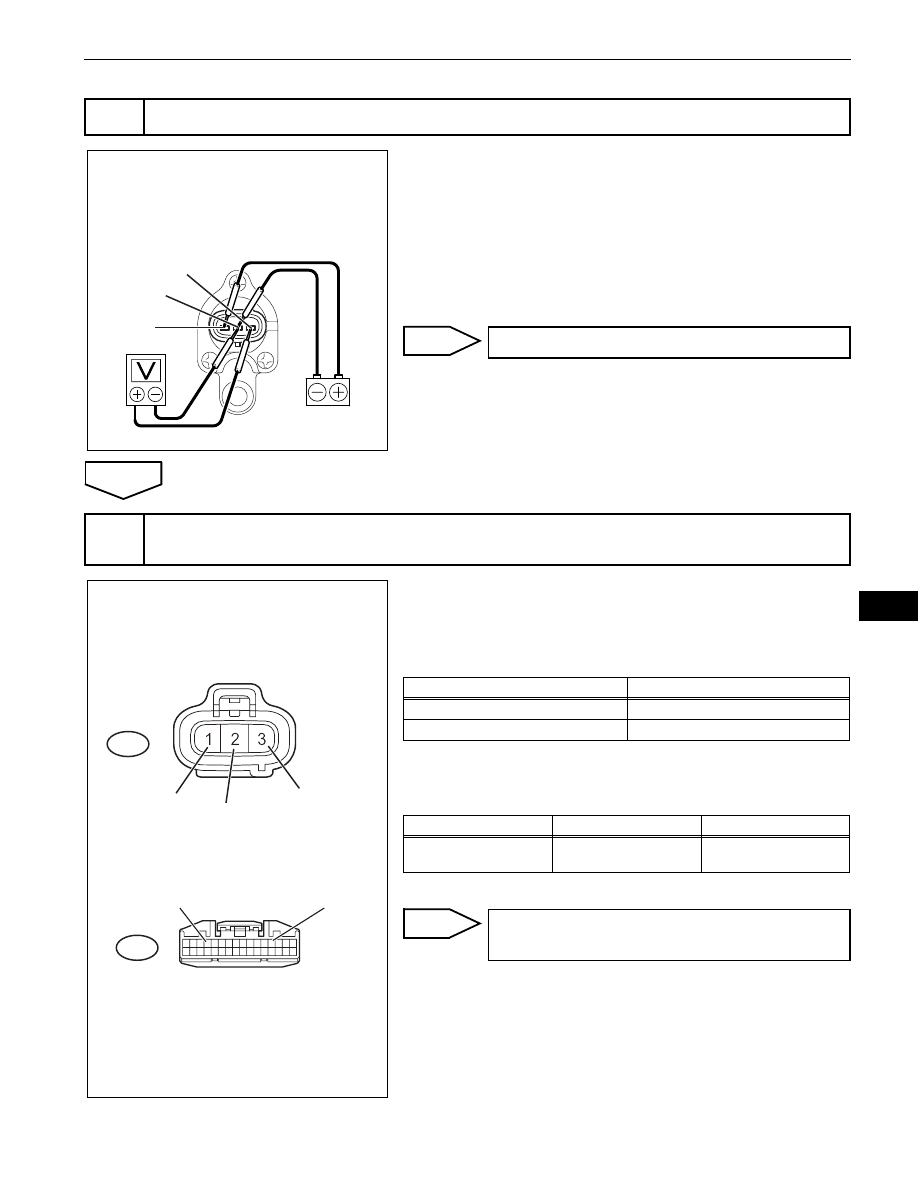

METER  –  METER / GAUGE SYSTEM

ME–43

ME

(a) Remove the speed sensor.
(b) Connect the positive (+) lead from the battery to terminal

1 and the negative(-) lead to terminal 2.

(c) Connect the positive (+) lead from the tester to terminal 3

and the negative (-) lead to terminal 2.

(d) Rotate the shaft.
(e) Check that the voltage output between terminals 2 and 3

varies between 0V and 11V.

(f)

Reinstall the speed sensor.

NG

OK

(a) Disconnect the E13 combination meter assembly

connector.

(b) Disconnect the B44 speed sensor connector.
(c) Measure the resistance

Standard resistance

(d) Reconnect the combination meter assembly connector.
(e) Measure the voltage

Standard voltage

(f)

Reconnect the speed sensor connector.

NG

3

INSPECT SPEED SENSOR

Component Side:

Speed Sensor

1

2

3

E133751E01

REPLACE SPEED SENSOR

4

CHECK HARNESS AND CONNECTOR (SPEED SENSOR - COMBINATION METER
ASSEMBLY)





Wire Harness Side:

Speed Sensor Connector

Combination Meter Assembly Connector

B44

SI

IG+

SI

SE

E13

Front View

SE

E126862E01

Tester Connection

Specified Condition

E13-13 (SI) - B44-3 (SI)

Below 1

Ω

B44-2 (SE) - E13-4 (SE)

Below 1

Ω

Tester Connection

Condition

Specified Condition

B44-1 (IG+) - Body

ground

Ignition switch ON

11 to 14V

REPAIR OR REPLACE HARNESS OR
CONNECTOR
