MA–10

MAINTENANCE  –  BODY

MA

BODY

GENERAL MAINTENANCE

1.

INSPECT BOLTS AND NUTS ON CHASSIS AND
BODY
(a) In addition to the scheduled maintenance items,

check for loose or missing bolts and nuts of the
following.
Canada:
•

Steering system

•

Drive train

•

Suspension system

•

Fuel tank mounts

•

Engine mounts, etc.

2.

FINAL INSPECTION
(a) Check the operation of the body parts:

(1) Hood:

•

Auxiliary catch operates properly

•

Hood locks securely when closed

(2) Front and rear doors:

•

Door locks operate properly

•

Doors close properly

(3) Back door:

•

Door lock operates properly

(4) Seats:

•

Seat adjusts easily and locks securely in any
position

•

Front seatback locks securely in any
position

•

Folding down rear seatbacks lock securely.

(b) Be sure to deliver a clean car. Especially check:

•

Steering wheel

•

Shift lever knob

•

All switch knobs

•

Door handles

•

Seats

METER  –  METER / GAUGE SYSTEM

ME–1

ME

METER / GAUGE SYSTEM

PRECAUTION

1.

DISCONNECT AND RECONNECT CABLE OF
NEGATIVE BATTERY TERMINAL
(a) Before performing electronic work, disconnect the

cable from the negative (-) battery terminal in order
to prevent it from shorting and burning out.

(b) Before disconnecting and reconnecting the battery

cable, turn the ignition switch OFF and the headlight
dimmer switch OFF. Then loosen the terminal nut
completely. Do not damage the cable or terminal.

(c) When the battery cable is disconnected, the clock

and radio settings and stored DTCs are erased.
Therefore, before disconnecting the battery cable,
make a note of them.

NOTICE:
When the cable is disconnected from the negative (-)
battery terminal, initialize the following system(s) after
the cable is reconnected.

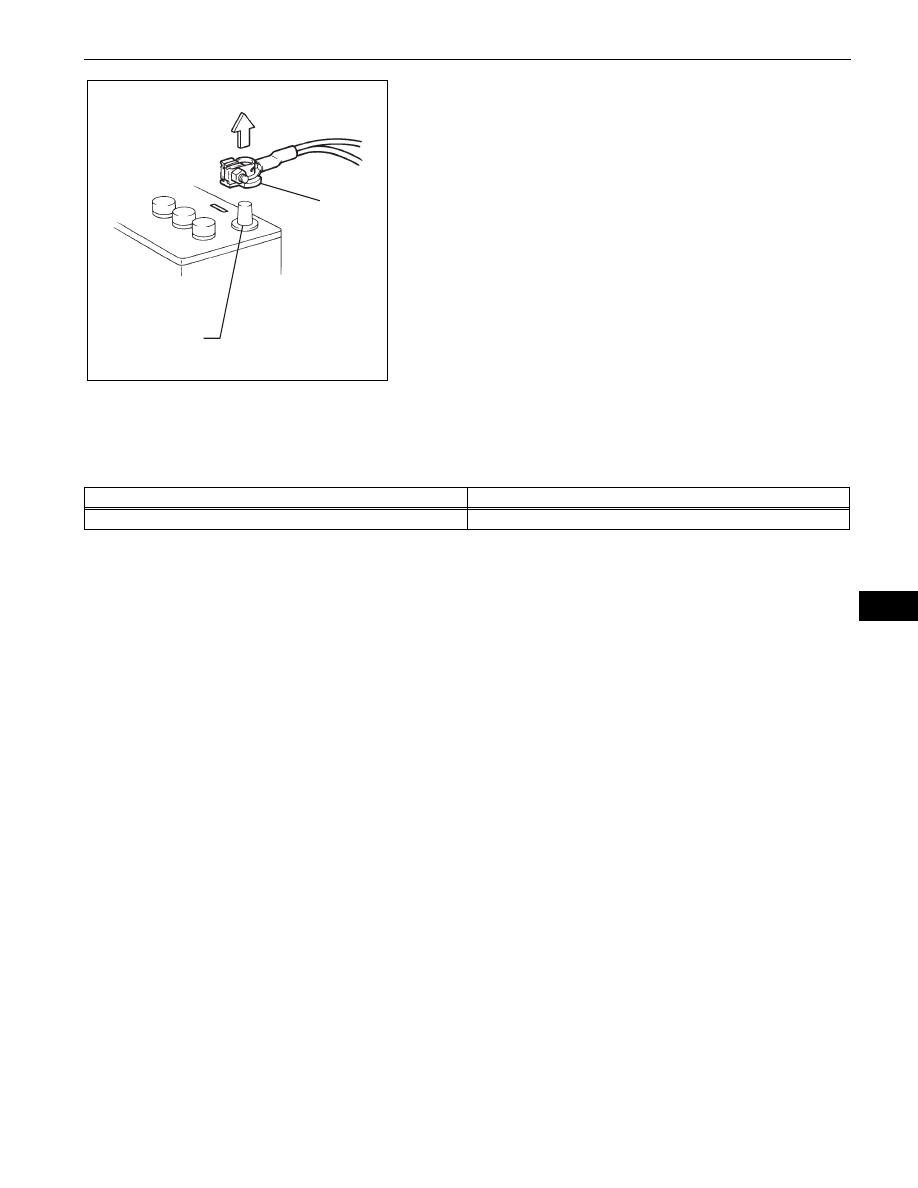

Negative (-)
Battery Terminal

Cable

D033496E01

System name

See procedure

METER / GAUGE SYSTEM

ME-10

ME–2

METER  –  METER / GAUGE SYSTEM

ME

PARTS LOCATION

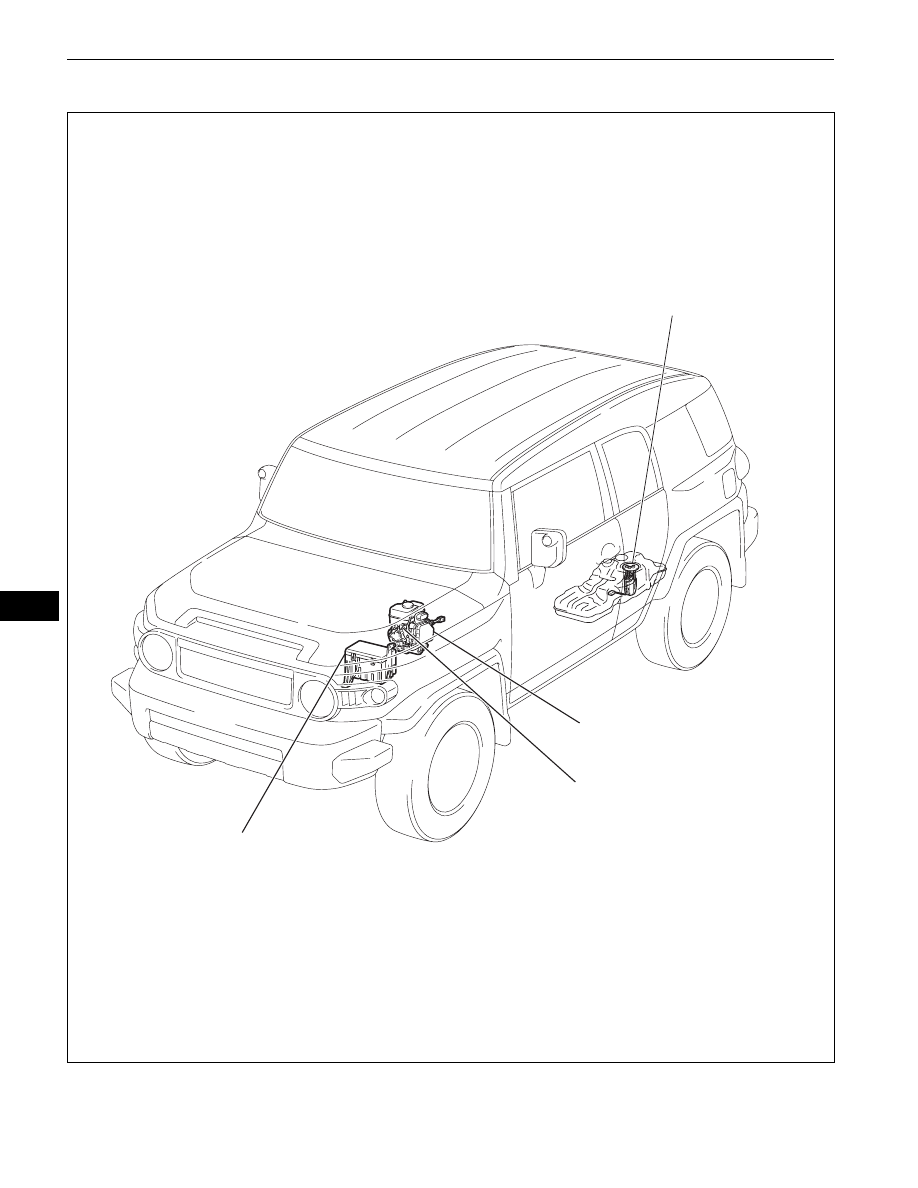

SKID CONTROL ECU

ENGINE ROOM RELAY
BLOCK NO. 2

- AM2 FUSE

- DOME FUSE

BRAKE FLUID LEVEL
WARNING SWITCH

FUEL SENDER
GAUGE ASSEMBLY

E125392E01

METER  –  METER / GAUGE SYSTEM

ME–3

ME

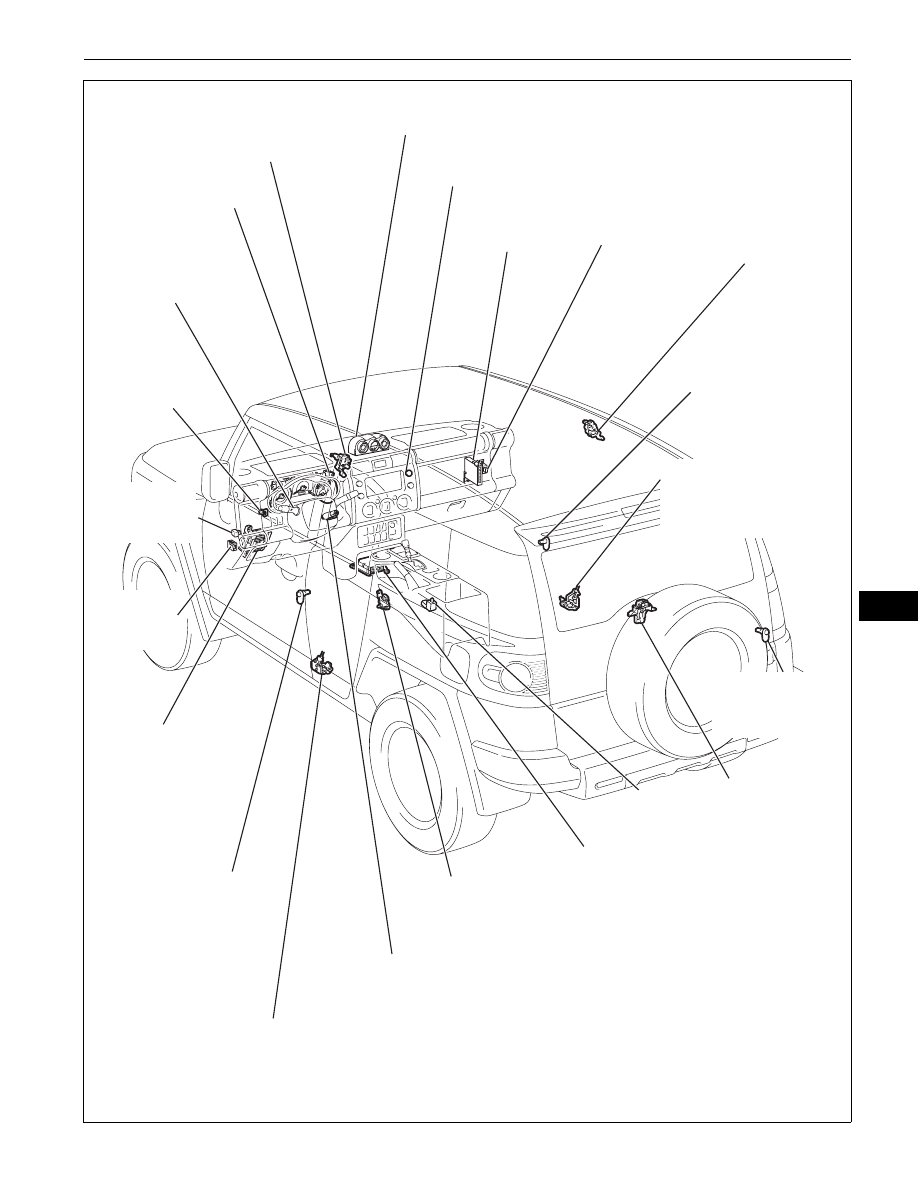

HEADLIGHT
DIMMER
SWITCH

UNLOCK WARNING
SWITCH

CENTER AIRBAG
SENSOR ASSEMBLY

BACK DOOR
COURTESY
SWITCH

FRONT DOOR COURTESY
SWITCH LH

REAR DOOR COURTESY SWITCH LH (LOWER)

- TAILLIGHT RELAY

ECM

ACCESSORY METER ASSEMBLY*3

MAIN BODY ECU
(DRIVER SIDE J/B)

LIGHT
CONTROL
RHEOSTAT

4WD CONTROL
ECU*1

4WD
CONTROL
ECU*2

COMBINATION
METER ASSEMBLY

REAR DOOR
COURTESY
SWITCH RH
(UPPER)

FRONT DOOR
COURTESY
SWITCH RH

REAR DOOR COURTESY
SWITCH RH (LOWER)

REAR DOOR COURTESY
SWITCH LH (UPPER)

PARK / NEUTRAL
POSITION SWITCH*4

PARKING
BRAKE SWITCH

TURN SIGNAL
FLASHER
ASSEMBLY

*1: W/O REAR DIFFERENTIAL LOCK

*2: W/ REAR DIFFERENTIAL LOCK

*3: W/ ACCESSORY METER ASSEMBLY

*4: FOR AUTOMATIC TRANSAXLE

FRONT PASSENGER SEAT BELT
WARNING LIGHT

BACK WINDOW
LOCK

- BACK WINDOW
COURTESY
SWITCH

E125393E01
