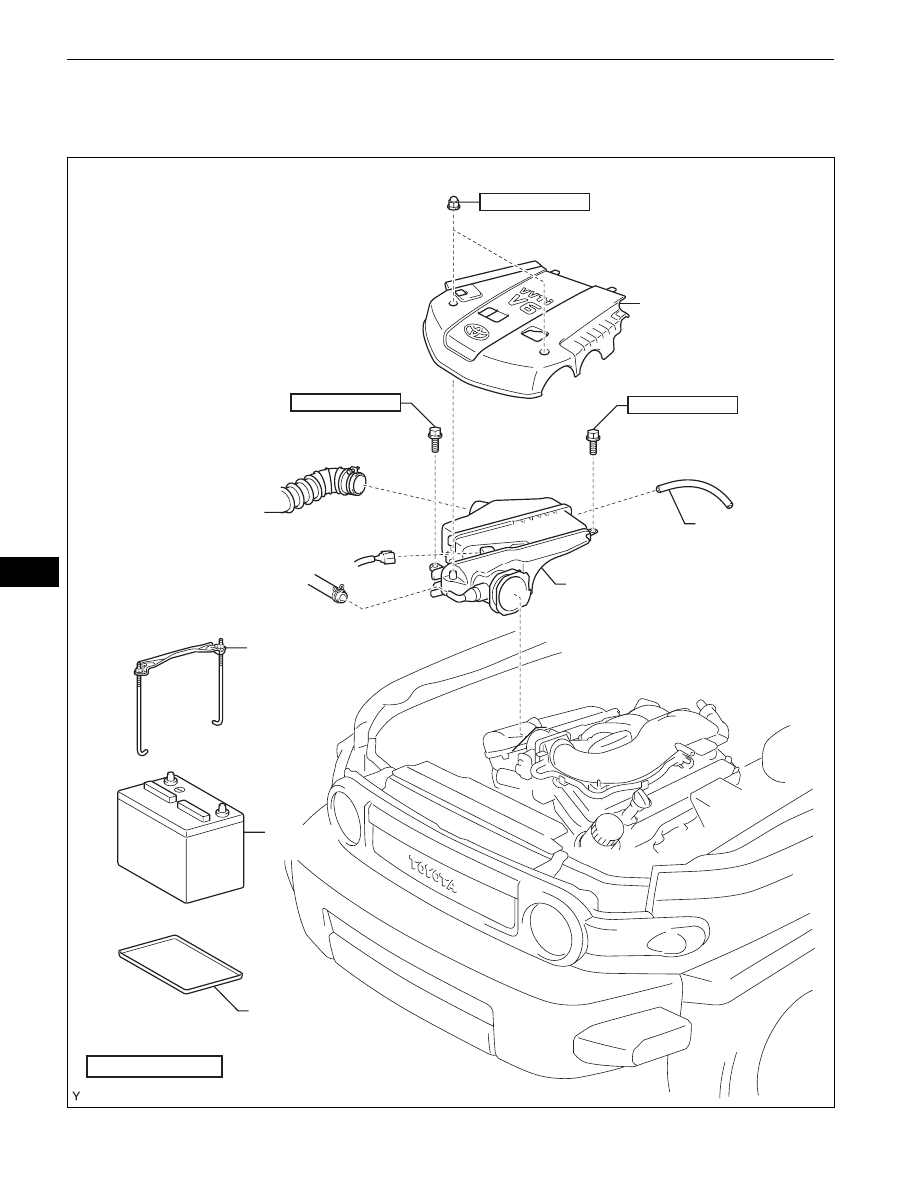

LU–6

1GR-FE LUBRICATION  –  OIL PUMP

LU

ENGINE

1GR-FE LUBRICATION

OIL PUMP

COMPONENTS

AIR CLEANER ASSEMBLY

BATTERY

V-BANK COVER

VACUUM HOSE

BATTERY TRAY

BATTERY CLAMP

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (82, 71 in.*lbf)

8.0 (82, 71 in.*lbf)

7.5 (76, 66 in.*lbf)

NO. 2 AIR CLEANER
HOSE

A126420E01

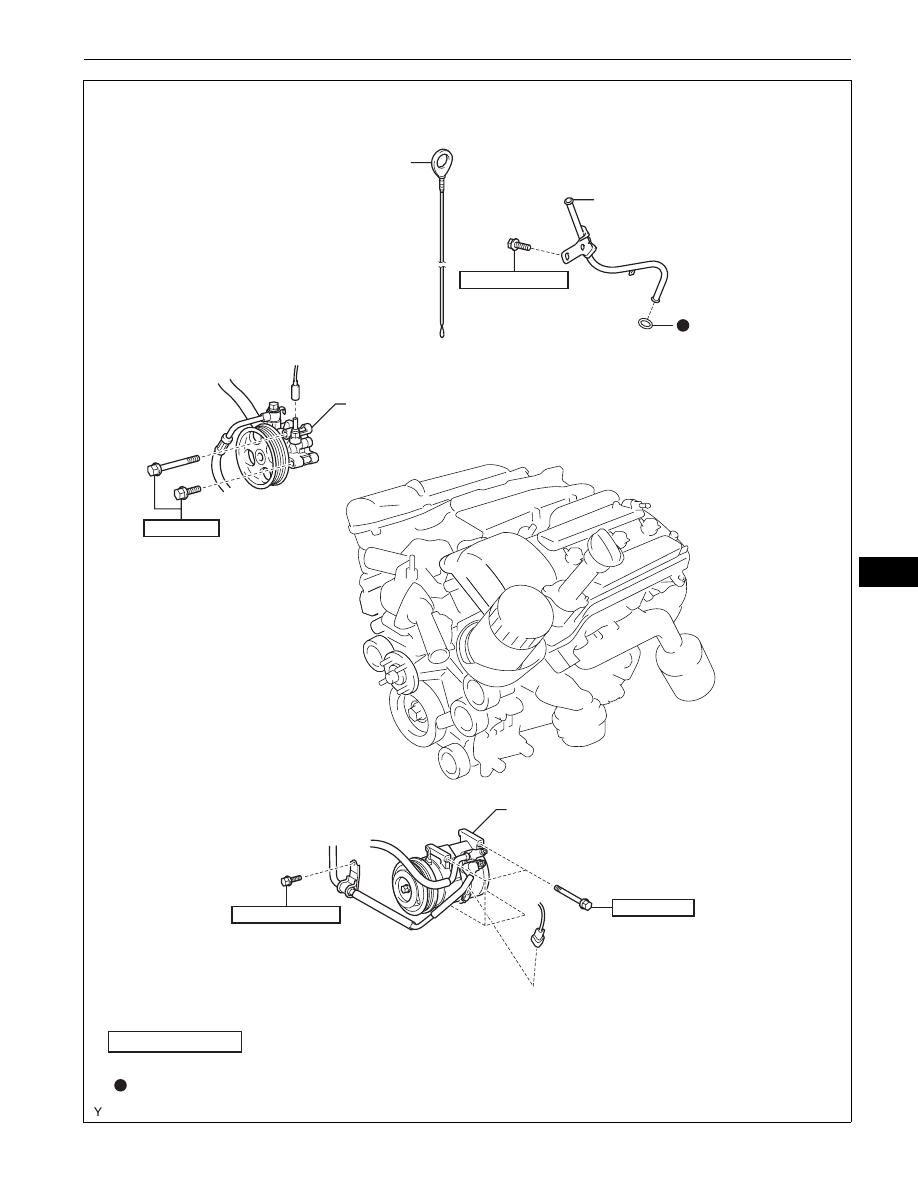

1GR-FE LUBRICATION  –  OIL PUMP

LU–7

LU

COOLER COMPRESSOR ASSEMBLY

VANE PUMP ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

43 (438, 32)

O-RING

9.0 (92, 80 in.*lbf)

OIL LEVEL GAUGE

24.5 (250, 18)

7.8 (80, 69 in.*lbf)

OIL LEVEL GAUGE GUIDE

A126421E01

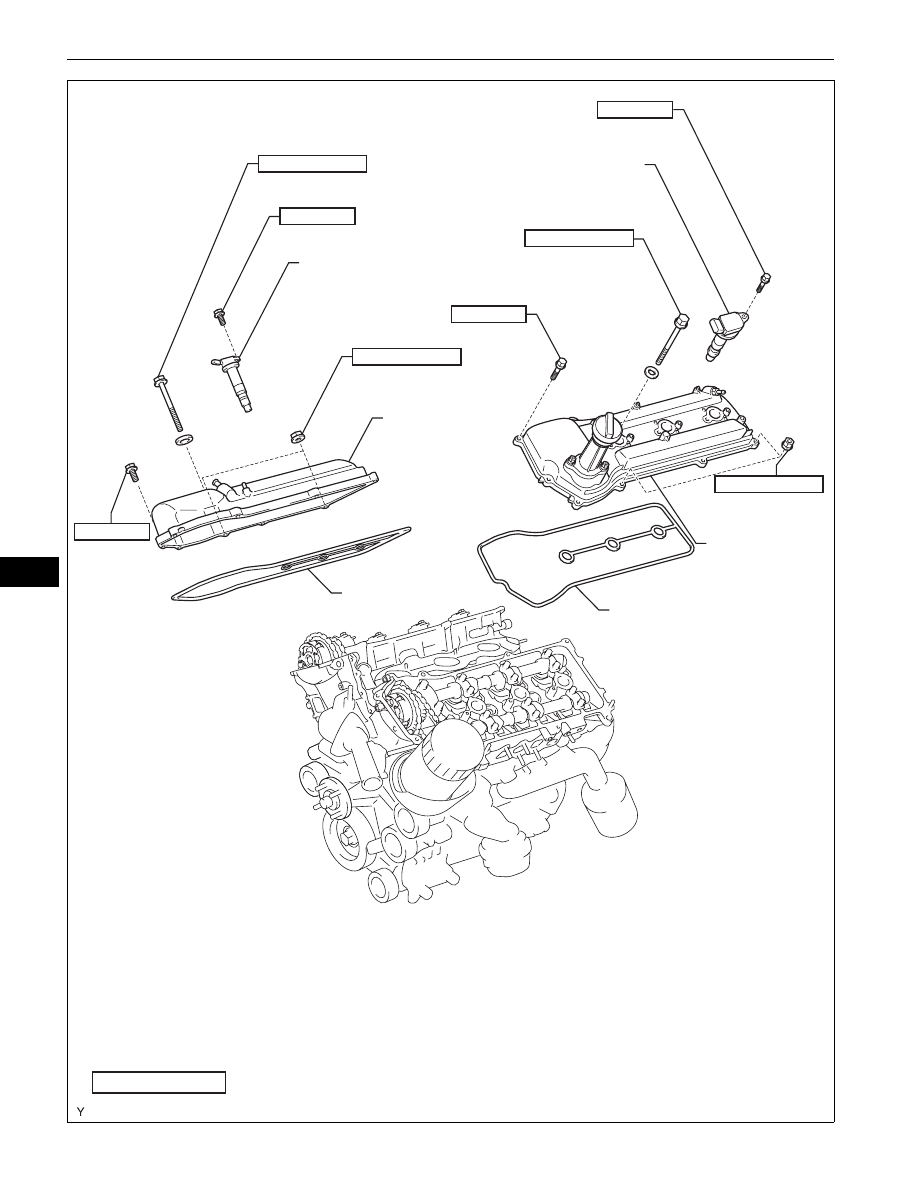

LU–8

1GR-FE LUBRICATION  –  OIL PUMP

LU

CYLINDER
HEAD COVER
SUB-ASSEMBLY

CYLINDER
HEAD COVER
SUB-ASSEMBLY
LH

IGNITION COIL
ASSEMBLY

IGNITION COIL
ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

GASKET

GASKET

10 (102, 7.4)

9.0 (92, 80 in.*lbf)

10 (102, 7.4)

9.0 (92, 80 in.*lbf)

9.0 (92, 80 in.*lbf)

10 (102, 7.4)

x3

x3

x3

10 (102, 7.4)

9.0 (92, 80 in.*lbf)

x7

x7

A126423E01

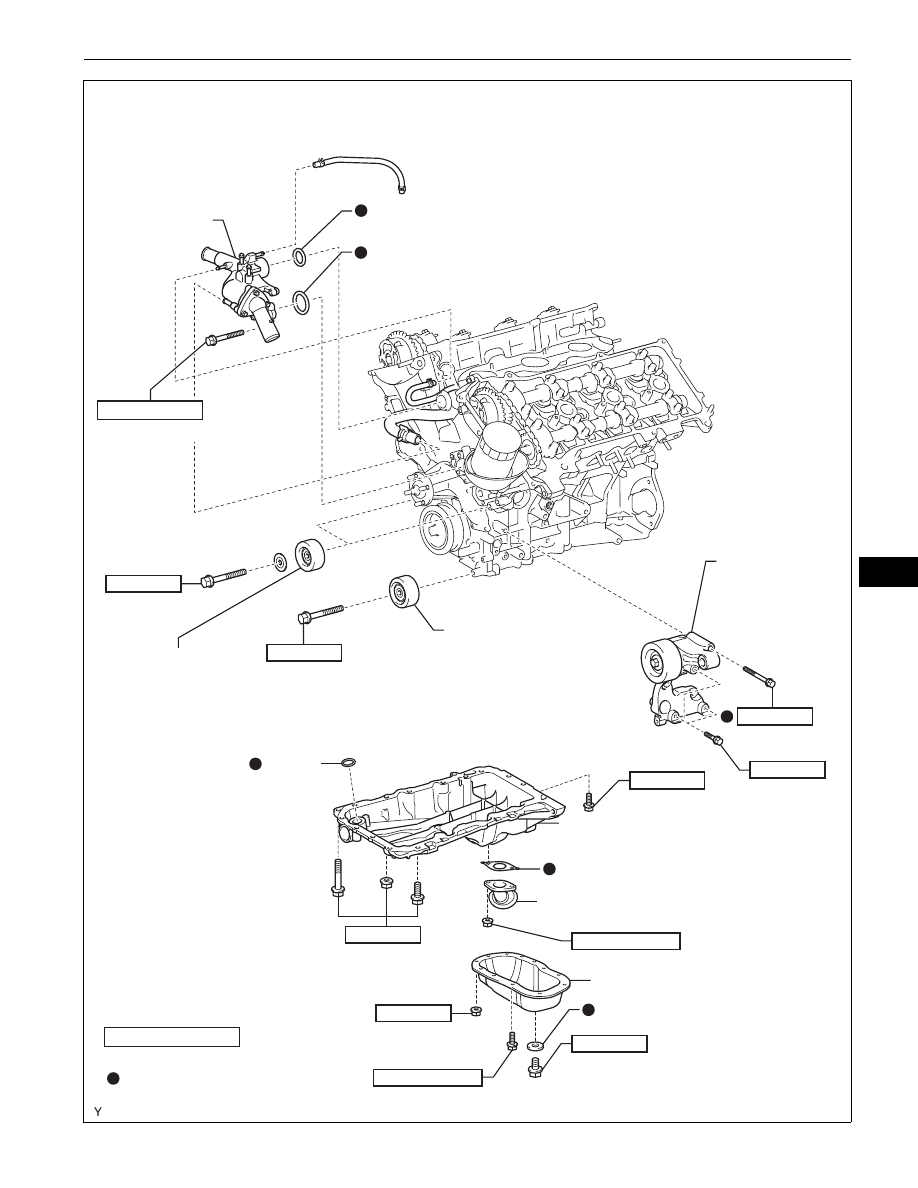

1GR-FE LUBRICATION  –  OIL PUMP

LU–9

LU

WATER INLET

O-RING

x5

9.0 (92, 80 in.*lbf)

39 (398, 29)

NO. 2 IDLER PULLEY
SUB-ASSEMBLY

54 (551, 40)

NO. 1 IDLER PULLEY
SUB-ASSEMBLY

V-RIBBED BELT
TENSIONER
ASSEMBLY

36 (367, 27)

36 (367, 27)

GASKET

10 (102, 7.4)

OIL PAN SUB-ASSEMBLY

x2

GASKET

OIL STRAINER SUB-ASSEMBLY

x2

9.0 (92, 80 in.*lbf)

NO. 2 OIL PAN SUB-ASSEMBLY

GASKET

40 (408, 30)

OIL DRAIN PLUG

9.0 (92, 80 in.*lbf)

x10

10 (102, 7.4)

x2

21 (214, 13)

x9

x6

x2

N*m (kgf*cm, ft.*lbf) : Specified torque

Non-reusable part

O-RING

A126506E01
