LIGHTING  –  LICENSE PLATE LIGHT ASSEMBLY

LI–91

LI

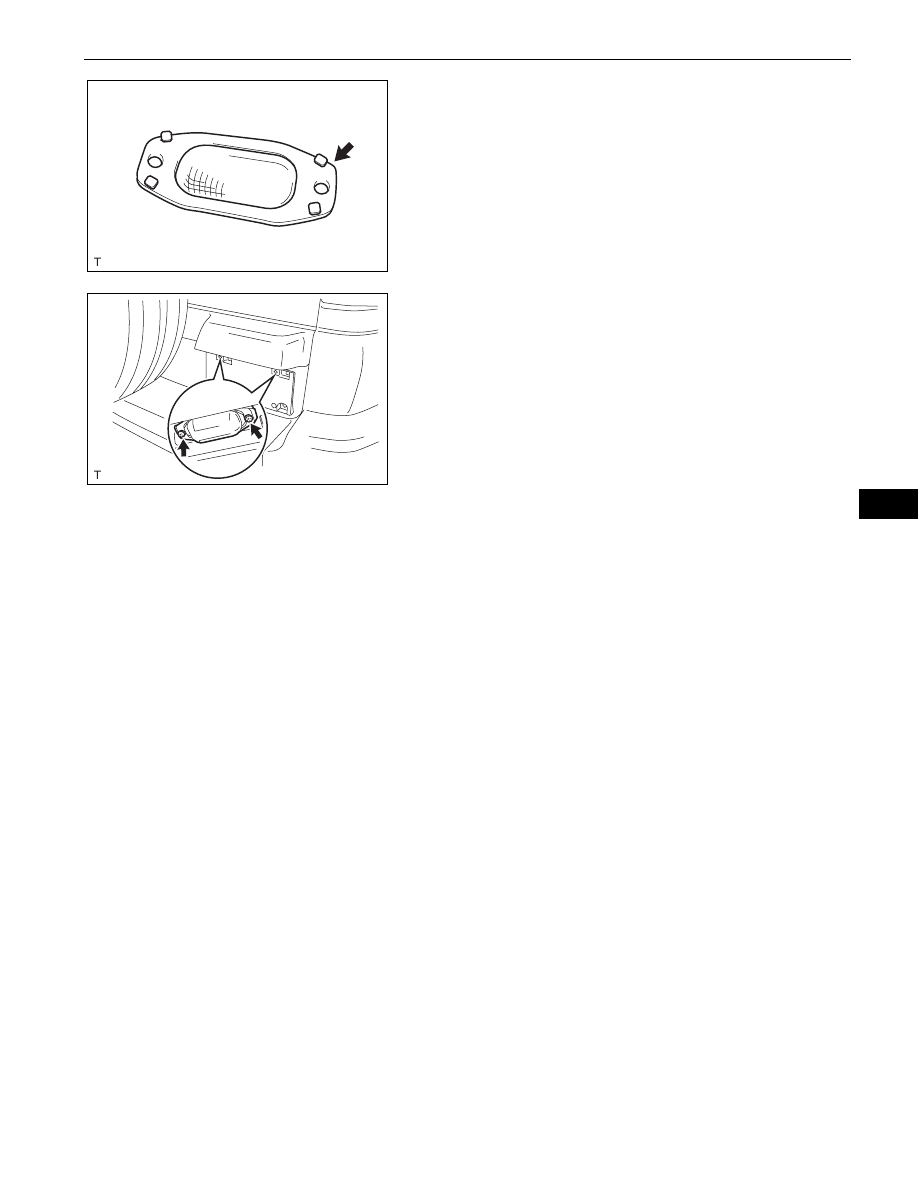

2.

INSTALL LICENSE PLATE LIGHT LENS GASKET
(a) Install the license plate light lens gasket onto the

license plate light lens.

3.

INSTALL LICENSE PLATE LIGHT LENS
(a) Install the license plate light lens with the 2 screws.

4.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

E127212

E127211

LI–92

LIGHTING  –  HIGH MOUNTED STOP LIGHT ASSEMBLY

LI

BODY ELECTRICAL

LIGHTING

HIGH MOUNTED STOP LIGHT ASSEMBLY

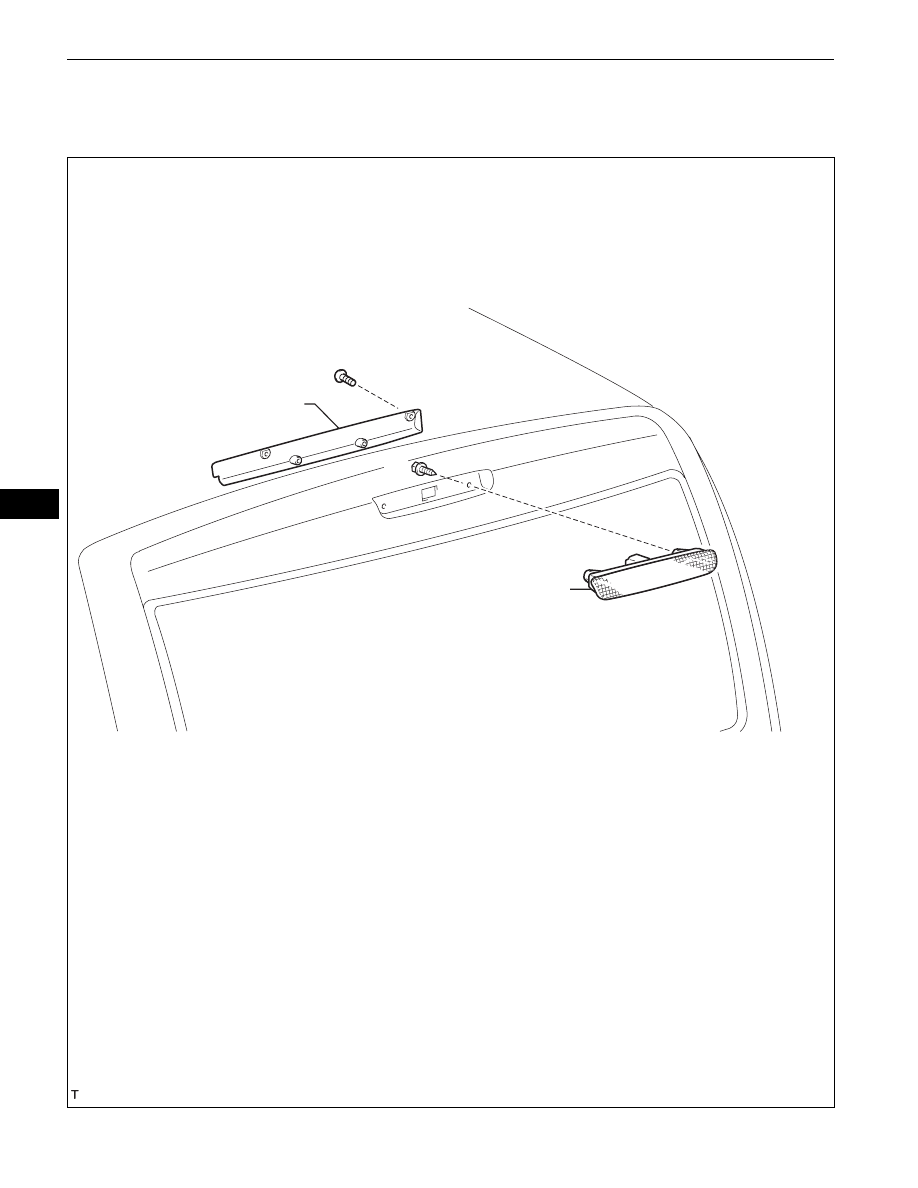

COMPONENTS

HIGH MOUNTED STOP
LIGHT ASSEMBLY

NO. 1 REAR SPOILER COVER

x4

x2

E127217E01

LIGHTING  –  HIGH MOUNTED STOP LIGHT ASSEMBLY

LI–93

LI

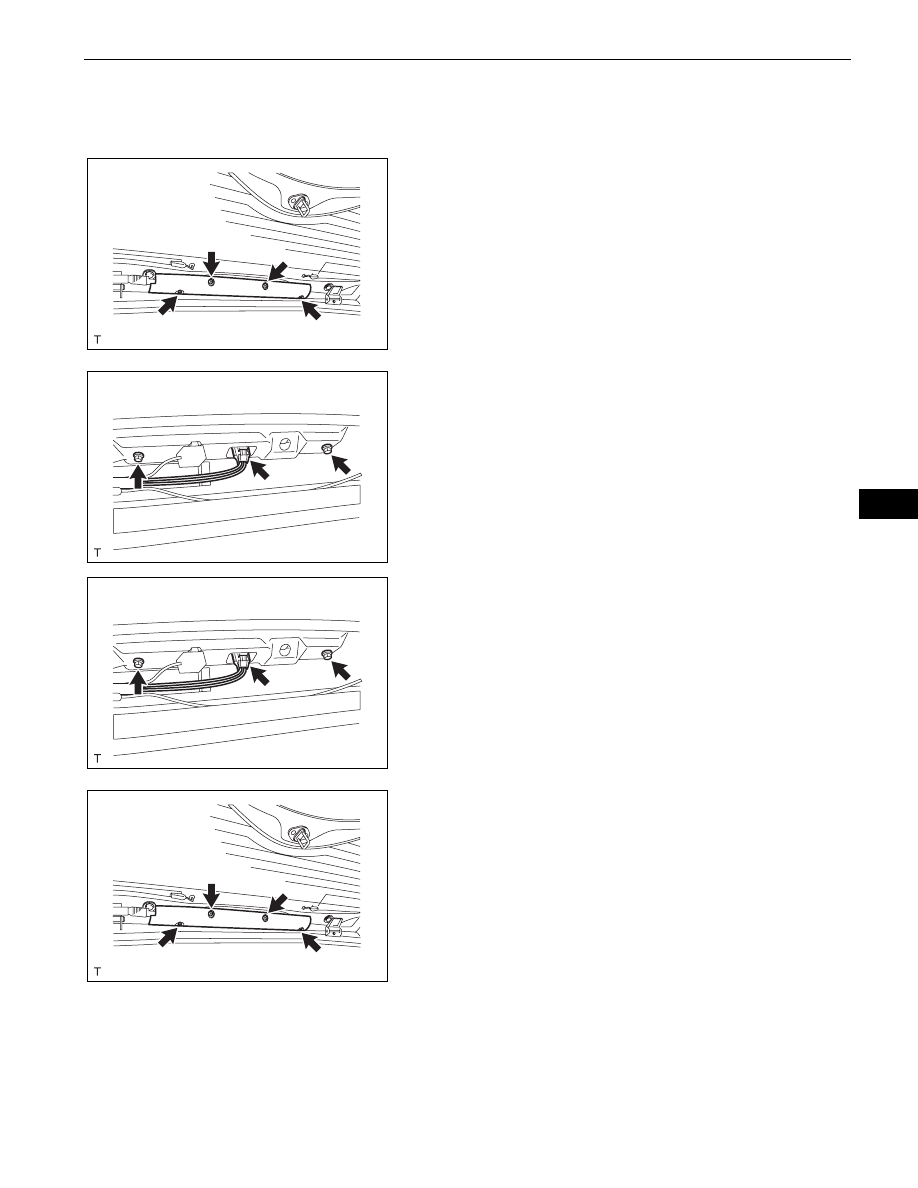

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE NO. 1 REAR SPOILER COVER
(a) Remove the 4 screws and No. 1 rear spoiler cover.

3.

REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY
(a) Remove the 2 screws.
(b) Disconnect the connector and remove the high

mounted stop light.

INSTALLATION

1.

INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
(a) Connect the connector.
(b) Install the high mounted stop light with the 2 screws.

2.

INSTALL NO. 1 REAR SPOILER COVER
(a) Install the No. 1 rear spoiler cover with the 4 screws.

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

E127215

E127216

E127216

E127215

LI–94

LIGHTING  –  ROOM LIGHT ASSEMBLY

LI

BODY ELECTRICAL

LIGHTING

ROOM LIGHT ASSEMBLY

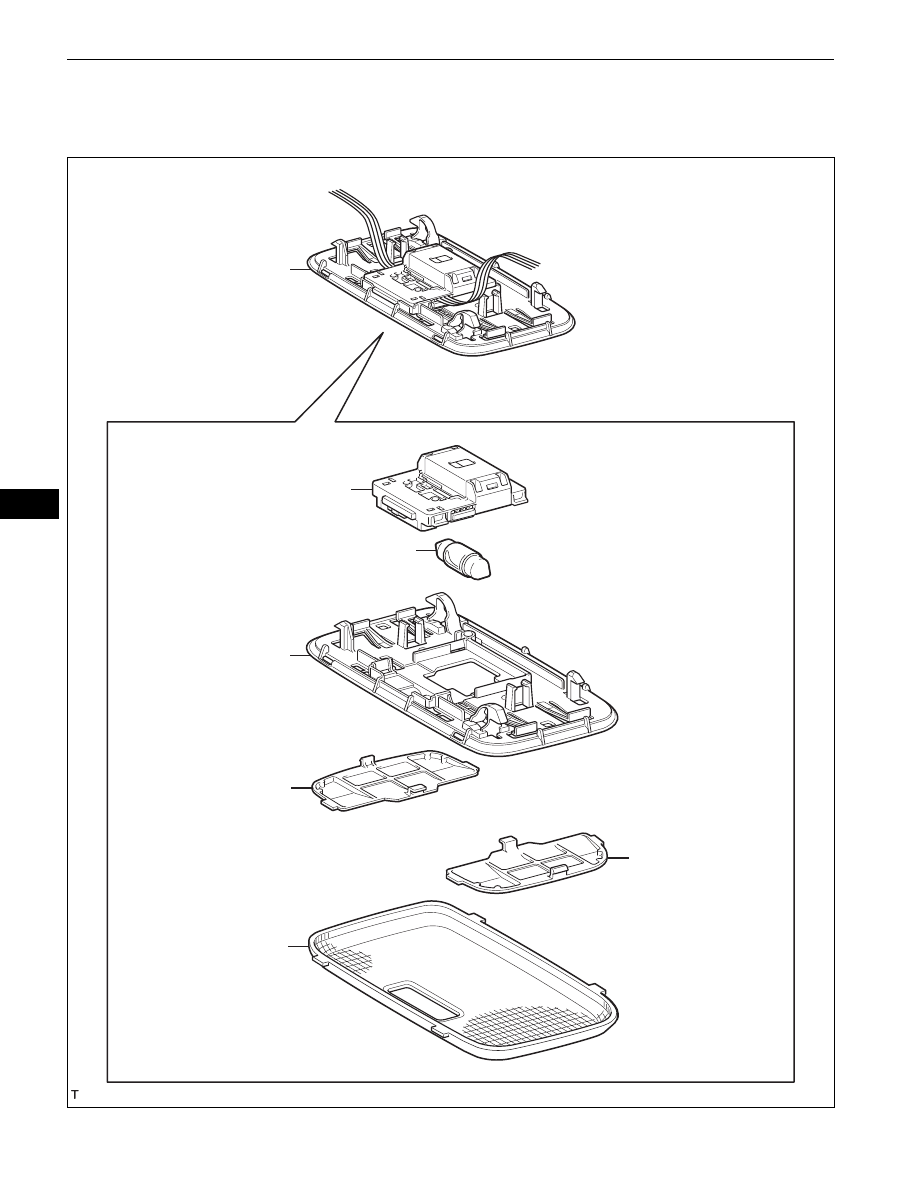

COMPONENTS

ROOM LIGHT ASSEMBLY

ROOM LIGHT SWITCH BASE

ROOM LIGHT BULB NO. 1

ROOM LIGHT HOUSING
ASSEMBLY

ROOM LIGHT COVER

ROOM LIGHT LENS

ROOM LIGHT
COVER

E127223E01
