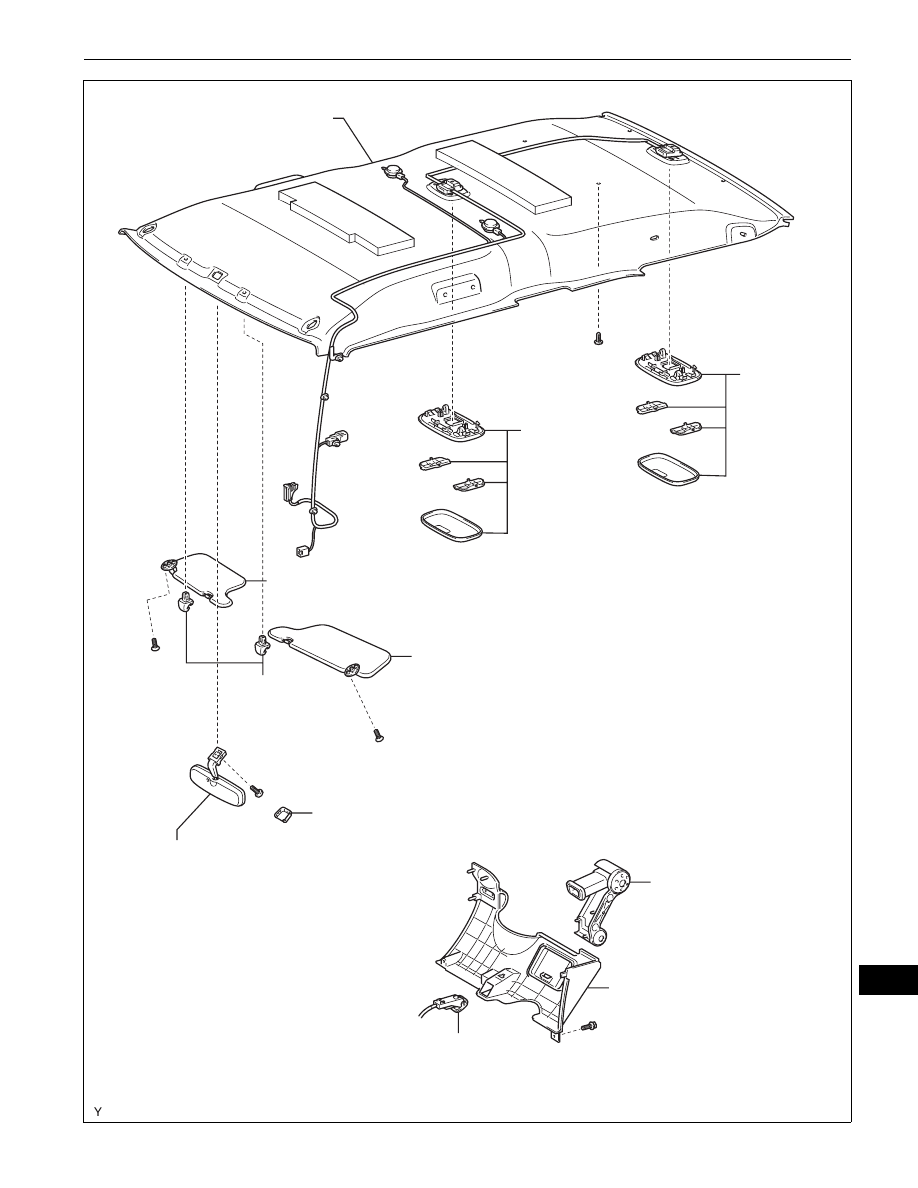

INTERIOR  –  ROOF HEADLINING

IR–11

IR

HOOD LOCK CONTROL
LEVER SUB-ASSEMBLY

INNER REAR VIEW
MIRROR ASSEMBLY

INNER REAR VIEW
MIRROR STAY
HOLDER COVER

INSTRUMENT PANEL FINISH
LOWER PANEL SUB-ASSEMBLY

INSTRUMENT PANEL
REGISTER ASSEMBLY

ROOF HEADLINING

ROOM LIGHT
ASSEMBLY

VISOR ASSEMBLY LH

VISOR ASSEMBLY RH

VISOR HOLDER

ROOM LIGHT
ASSEMBLY

x4

x2

x2

x2

x2

B130661E01

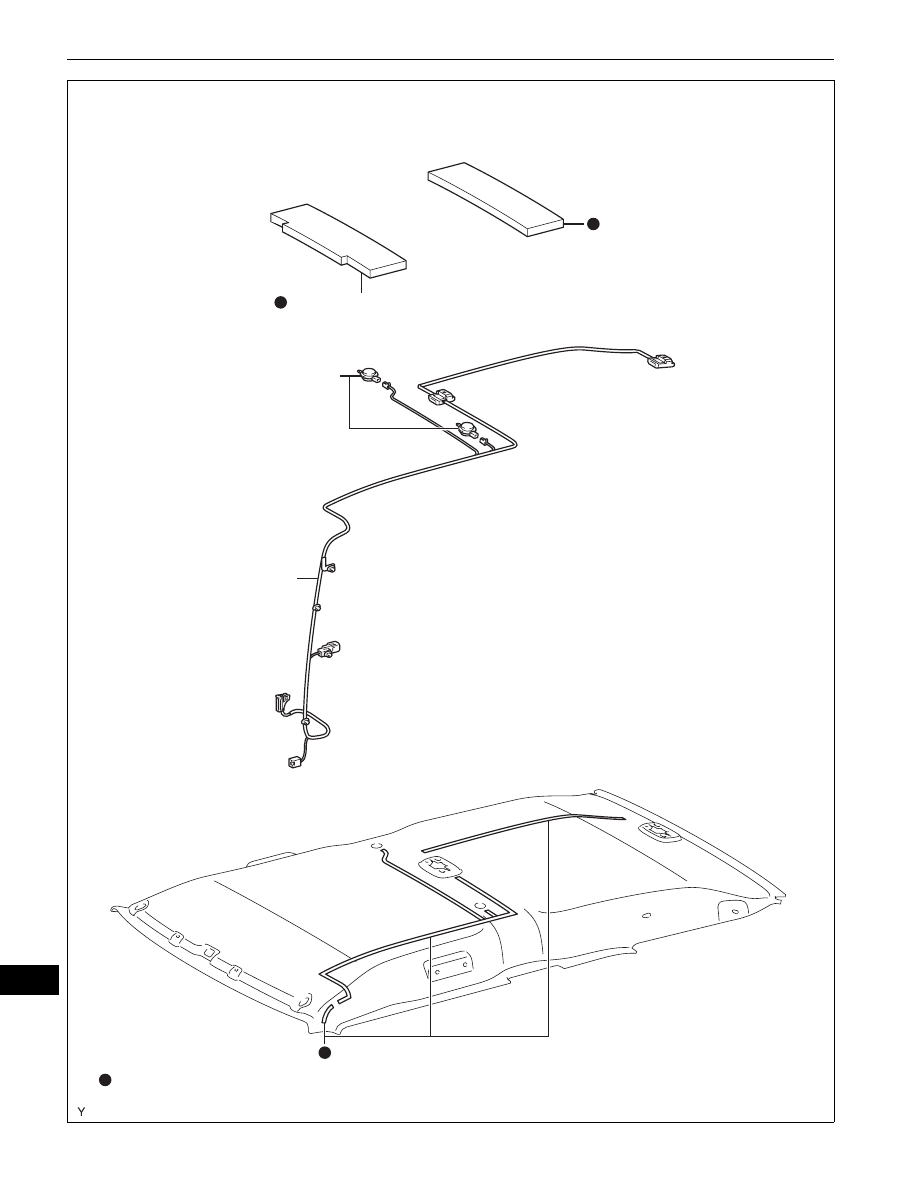

IR–12

INTERIOR  –  ROOF HEADLINING

IR

ROOF SPEAKER ASSEMBLY

ROOF WIRE

Non-reusable part

ROOF SILENCER PAD

ROOF SILENCER PAD

B130662E01

INTERIOR  –  ROOF HEADLINING

IR–13

IR

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY RH (See page

SE-43

)

3.

REMOVE REAR SEATBACK ASSEMBLY RH (See
page

SE-43

)

4.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY LH (See page

SE-29

)

5.

REMOVE REAR SEATBACK ASSEMBLY LH (See
page

SE-29

)

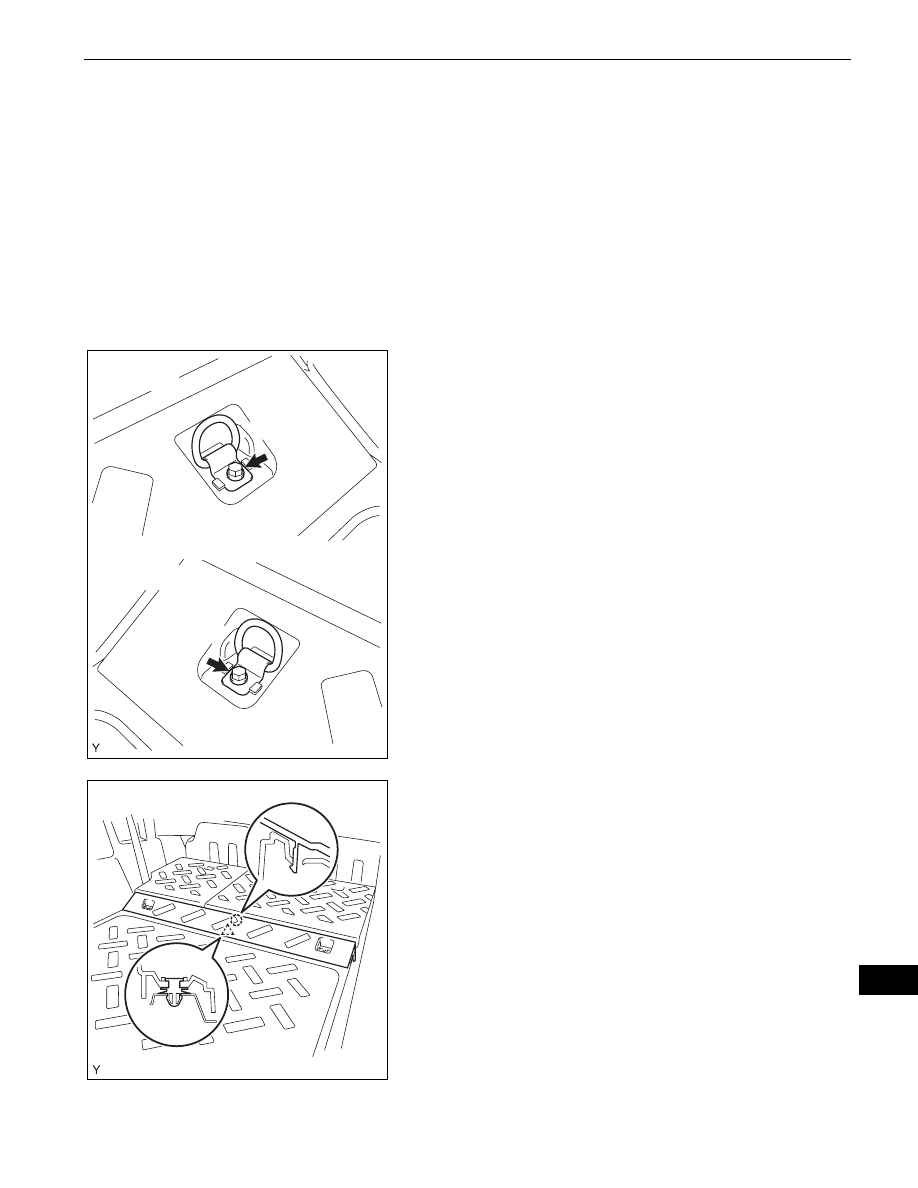

6.

REMOVE REAR FLOOR BOARD
(a) Remove the bolt and the luggage hold belt striker.

HINT:
Use the same procedure for both sides.

(b) Disengage the clip and the claw and remove the

rear floor board.

for LH Side:

for RH Side:

B135073E01

B135075

IR–14

INTERIOR  –  ROOF HEADLINING

IR

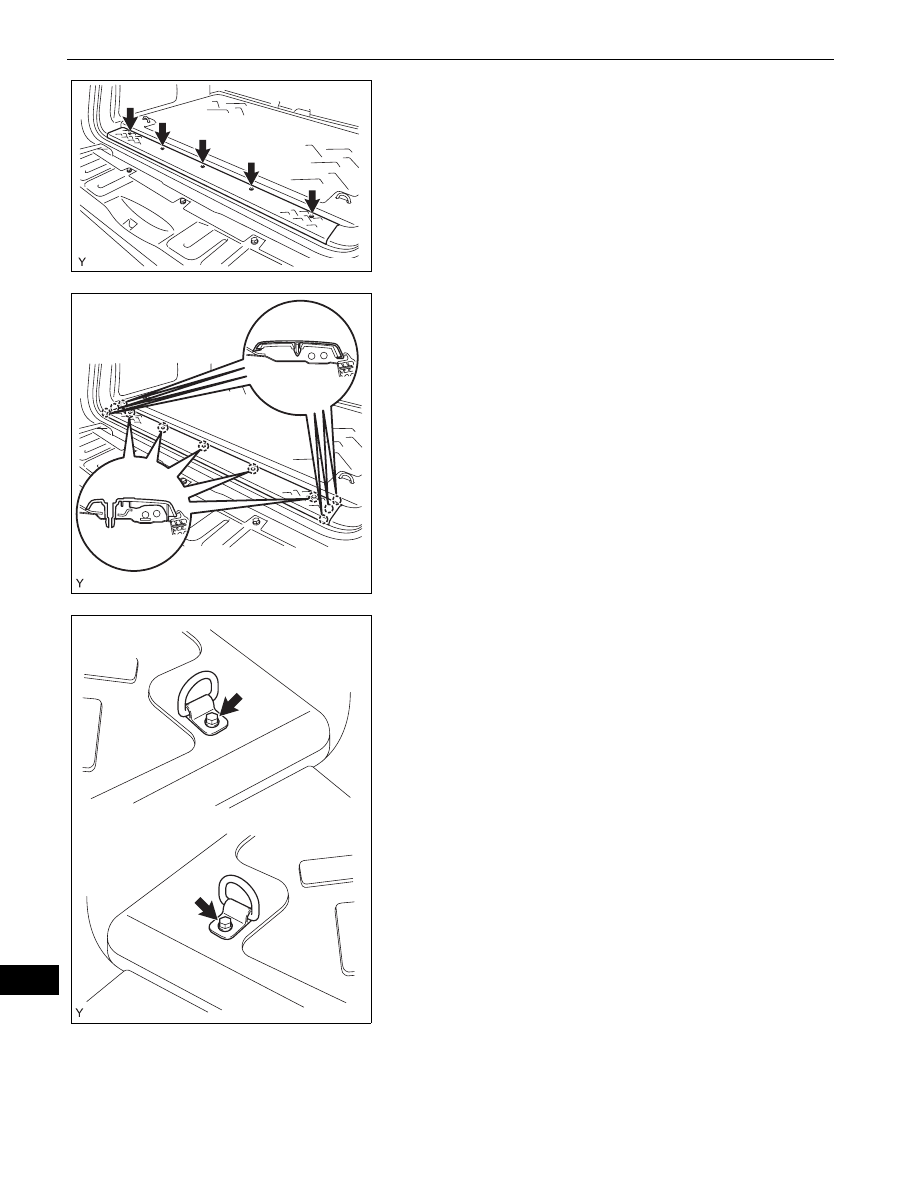

7.

REMOVE REAR FLOOR MAT SUPPORT PLATE
(a) Remove the 5 screws.

(b) Disengage the 11 claws and remove the rear floor

mat support plate.

8.

REMOVE LUGGAGE HOLD BELT STRIKER
ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Remove the bolt and the luggage hold belt striker.

B130592

B130593

for RH Side:

for LH Side:

B130595E01
