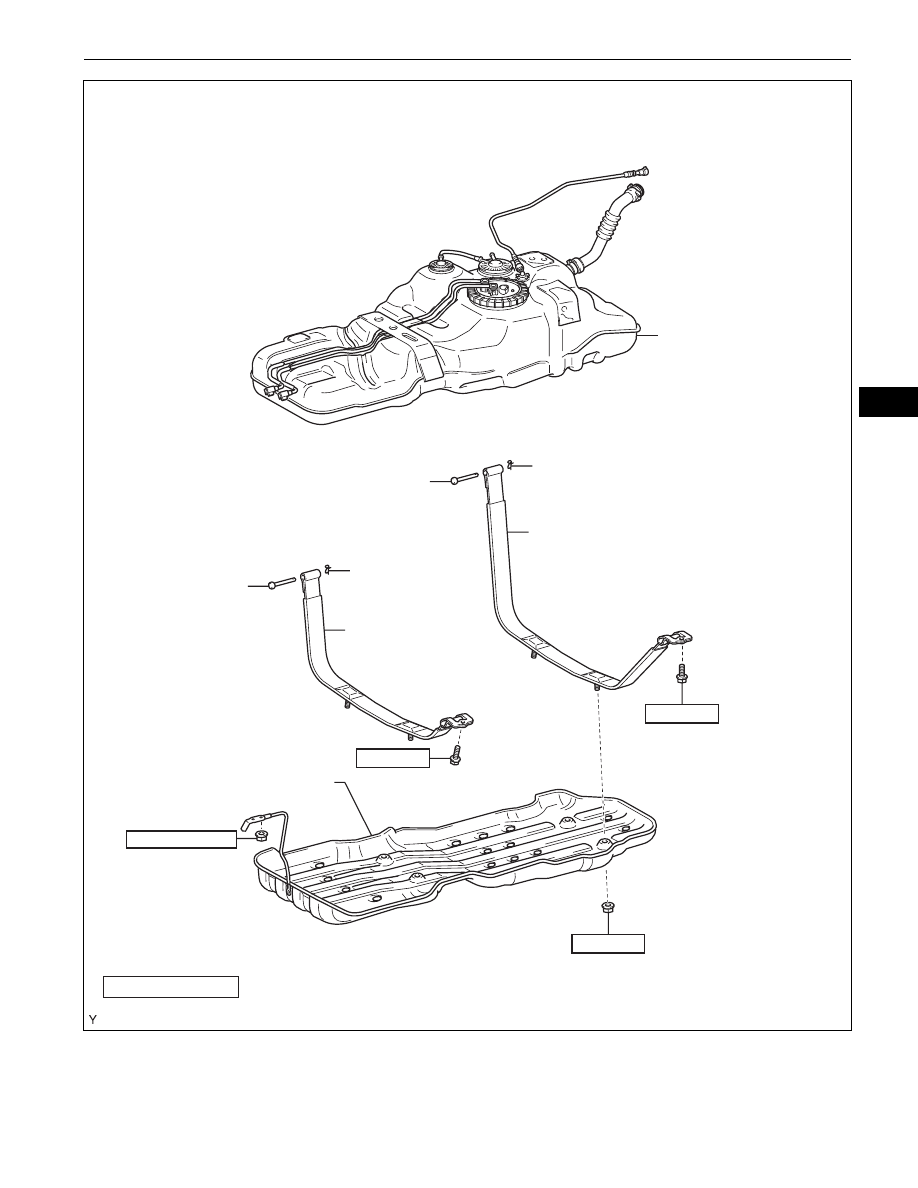

1GR-FE FUEL  –  FUEL TANK

FU–39

FU

FUEL TANK ASSEMBLY

FUEL TANK BAND

FUEL TANK BAND

PIN

PIN

N*m (kgf*cm, ft*lbf)  : Specified torque

20 (204, 15)

CLIP

CLIP

40 (408, 30)

40 (408, 30)

NO.1 FUEL TANK PROTECTOR
SUB-ASSEMBLY

Z

5.5 (56, 49 in.*lbf)

A129896E01

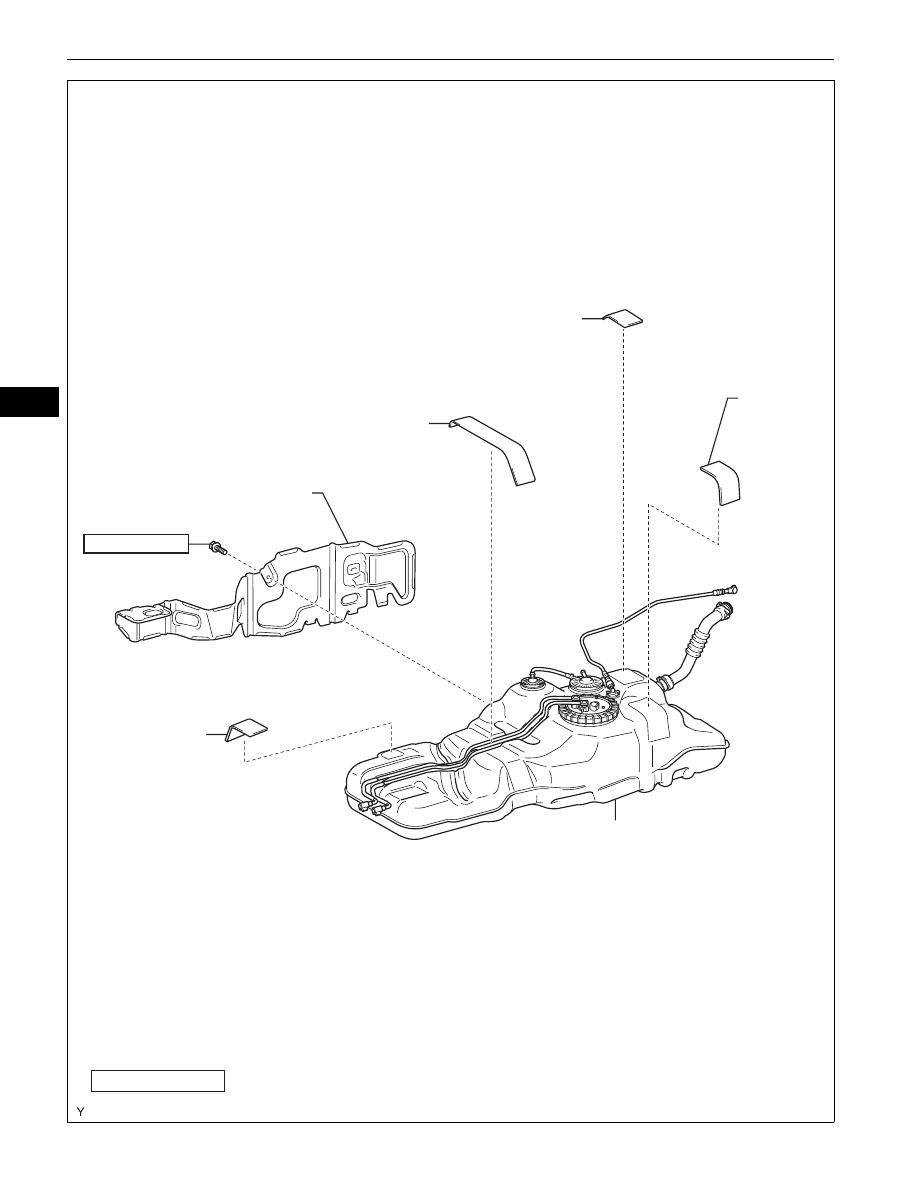

FU–40

1GR-FE FUEL  –  FUEL TANK

FU

NO. 3 FUEL TANK PROTECTOR

NO. 2 FUEL TANK CUSHION

NO. 1 FUEL TANK CUSHION

NO. 3 FUEL
TANK
CUSHION

NO. 1 FUEL
TANK CUSHION

N*m (kgf*cm, ft*lbf)  : Specified torque

x2

5.0 (51, 44 in.*lbf)

FUEL TANK ASSEMBLY

A129903E01

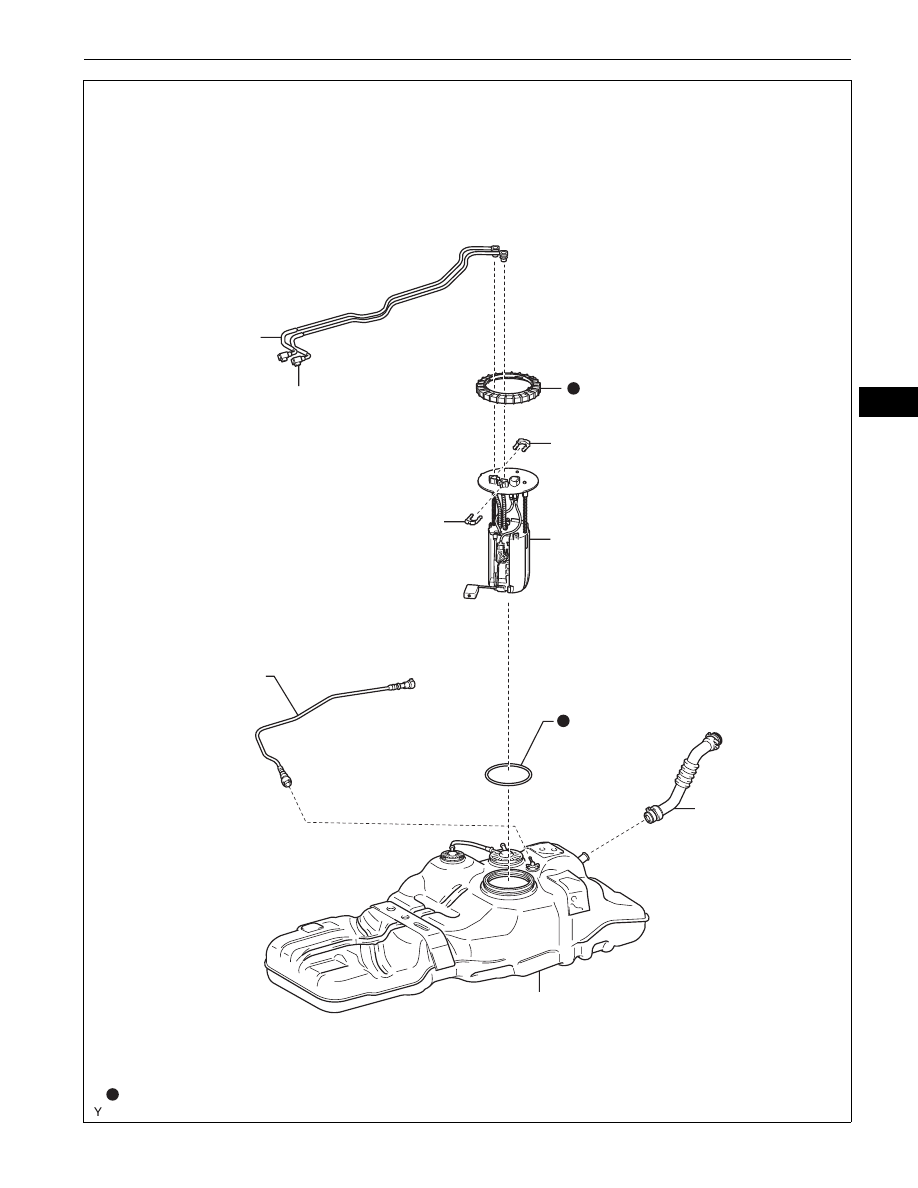

1GR-FE FUEL  –  FUEL TANK

FU–41

FU

FUEL TANK ASSEMBLY

Non-reusable part

GASKET

JOINT CLIP

JOINT CLIP

RETAINER

FUEL SUCTION WITH PUMP
AND GAUGE TUBE ASSEMBLY

FUEL TANK BREATHER
TUBE SUB-ASSEMBLY

FUEL TANK TO
FILLER PIPE HOSE

FUEL TANK MAIN TUBE

FUEL TANK RETURN TUBE

A129902E01

FU–42

1GR-FE FUEL  –  FUEL TANK

FU

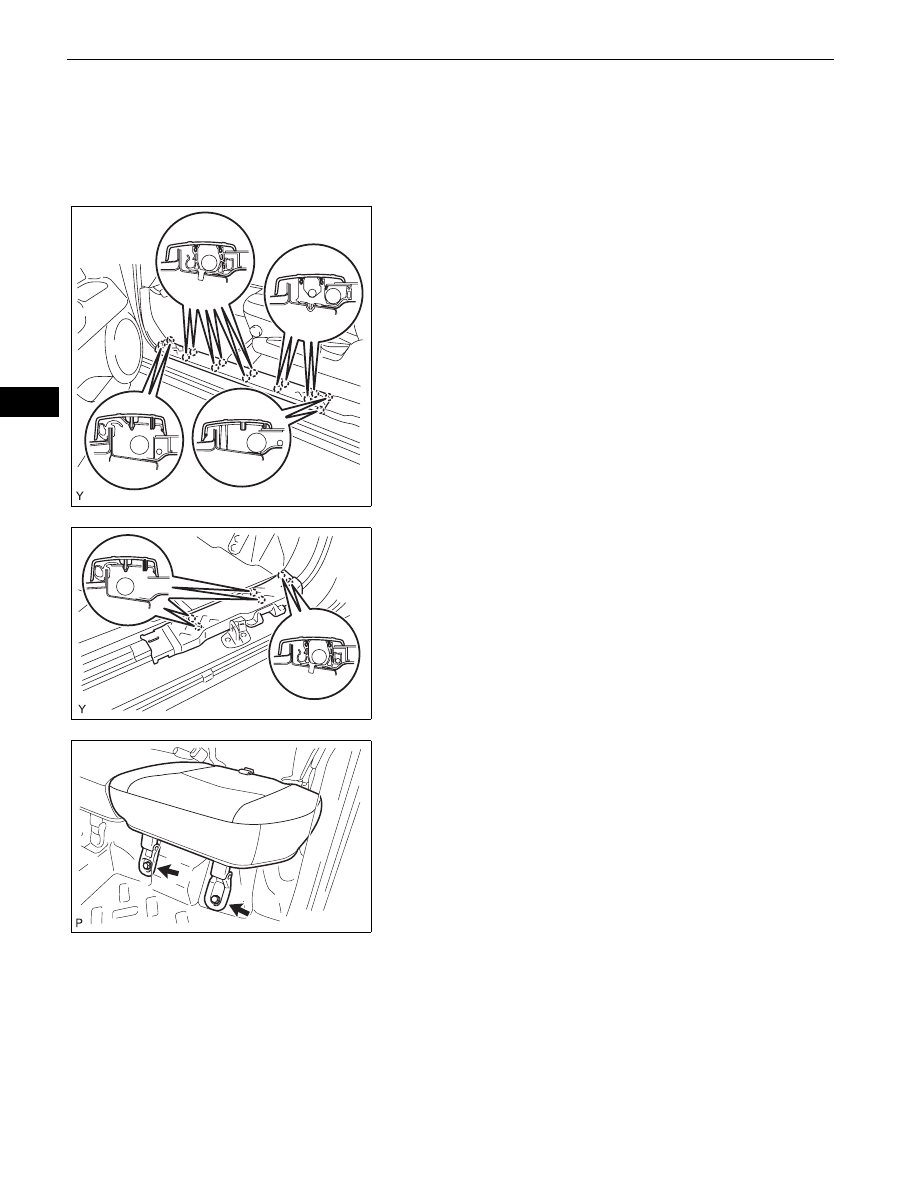

REMOVAL

1.

DISCHARGE FUEL SYSTEM PRESSURE
(See page

FU-1

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

3.

REMOVE FRONT DOOR SCUFF PLATE LH
(a) Disengage the 14 claws and remove the front door

scuff plate.

4.

REMOVE REAR DOOR SCUFF PLATE LH
(a) Disengage the 6 claws and remove the rear door

scuff plate.

5.

REMOVE REAR SEAT CUSHION ASSEMBLY LH
(a) Remove the 2 bolts, then remove the rear seat

cushion LH.

6.

REMOVE REAR FLOOR SERVICE HOLE COVER
(a) Pull back the floor carpet.

A130151

A130152

A129905
