EXTERIOR  –  REAR BUMPER

ET–23

ET

6.

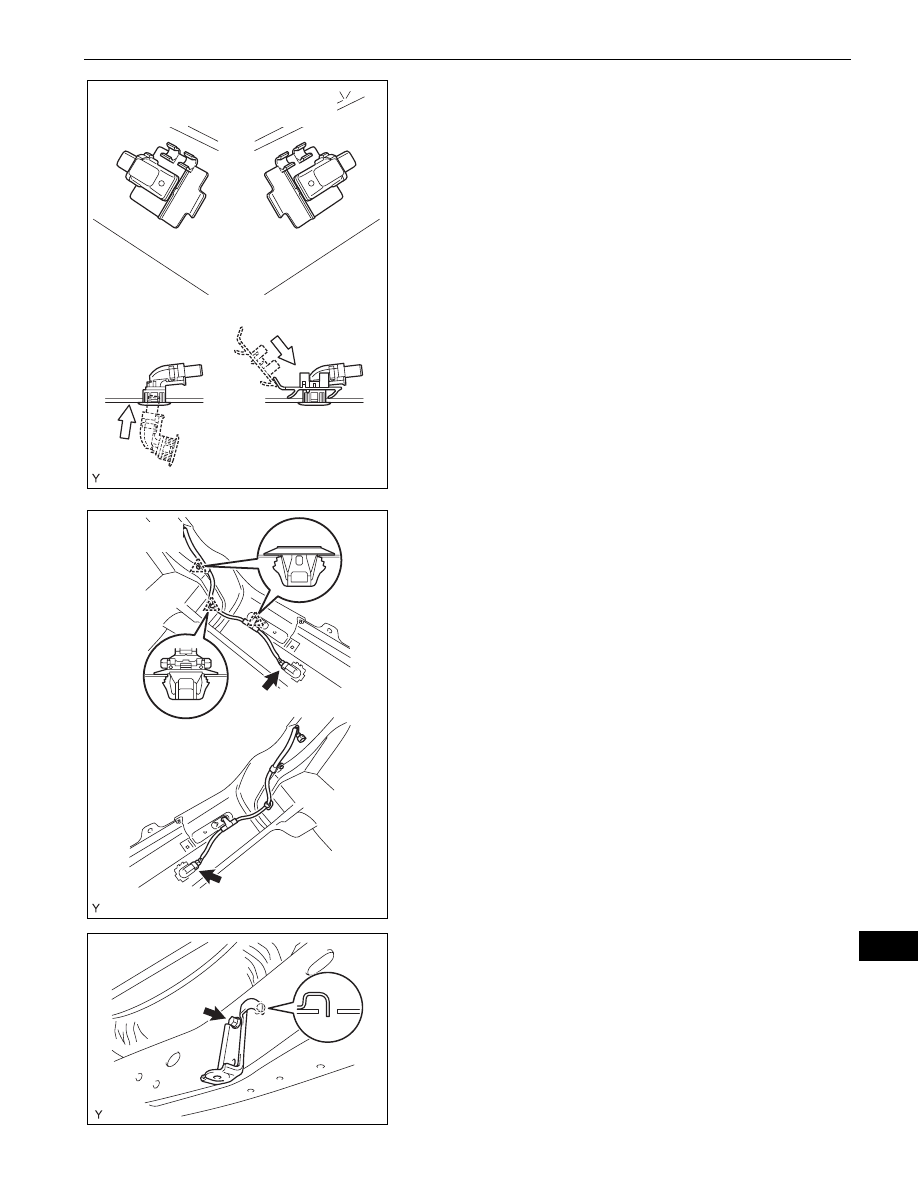

INSTALL ULTRASONIC SENSOR (w/ Back Sonar)
HINT:
Use the same procedure for both sides.
(a) Install the ultrasonic sensor with the retainer as

shown in the illustration.

7.

INSTALL FLOOR WIRE (w/ Back Sonar)
HINT:
Use same procedure for both sides.
(a) Connect the ultrasonic sensor connector.
(b) Install the floor wire with the 3 clamps.

INSTALLATION

1.

INSTALL REAR BUMPER BAR BRACKET LH
(a) Insert the hook into the body hole and install the

rear bumper bar bracket with the bolt.
Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

2.

INSTALL REAR BUMPER BAR BRACKET RH
HINT:
Use the same procedure as for the LH side.

for LH Side:

for RH Side:

B135152E01

for LH Side:

for RH Side:

B135145E01

B134754

ET–24

EXTERIOR  –  REAR BUMPER

ET

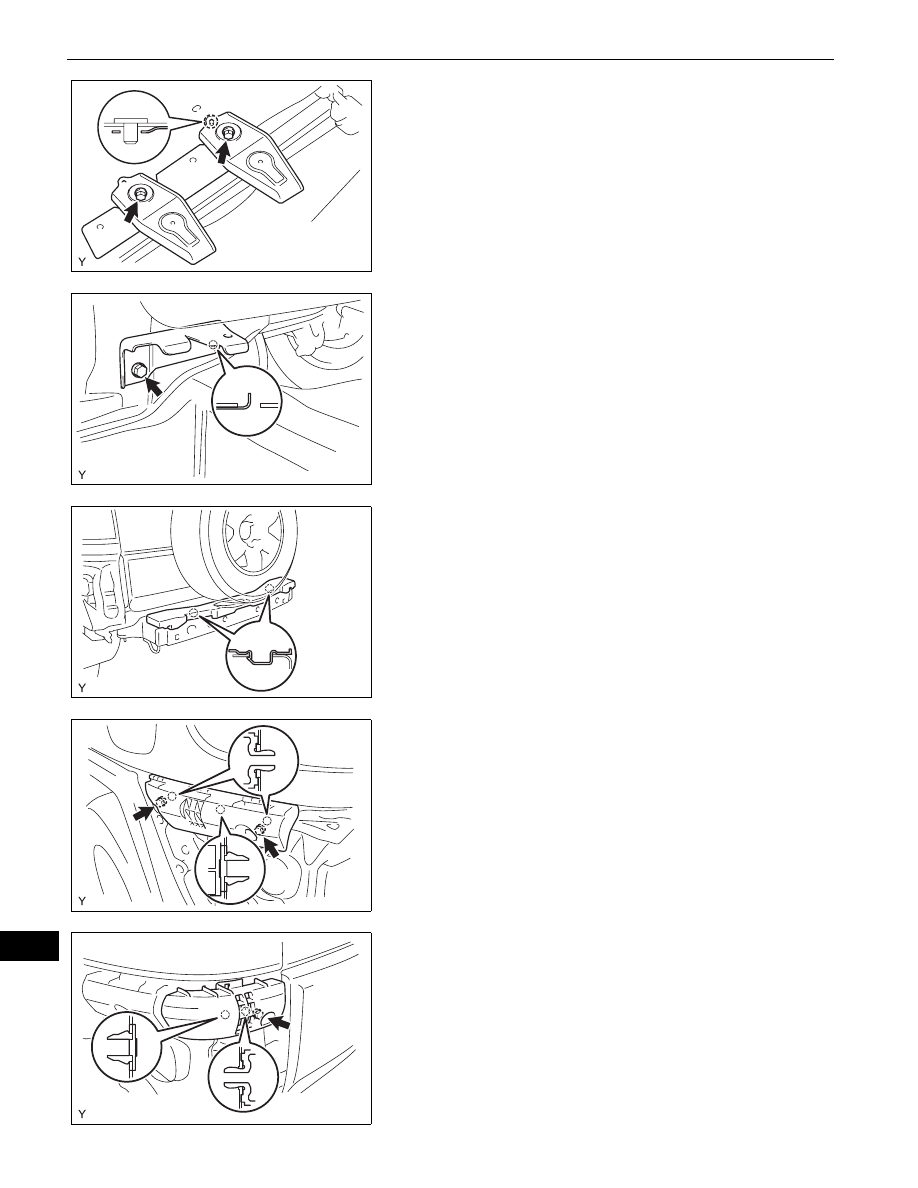

3.

INSTALL REAR BUMPER SIDE SUPPORT SUB-
ASSEMBLY LH
(a) Align the locating pin with the hole and install the

rear bumper side support with the 2 bolts.
Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

4.

INSTALL REAR BUMPER SIDE SUPPORT SUB-
ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

5.

INSTALL REAR BUMPER SIDE STAY LH
(a) Insert the hook into the body hole and install the

rear bumper side stay with the bolt.
Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

6.

INSTALL REAR BUMPER SIDE STAY RH
HINT:
Use the same procedure as for the LH side.

7.

INSTALL REAR BUMPER ENERGY ABSORBER
(a) Engage the 2 claws and install the rear bumper

energy absorber.

8.

INSTALL REAR BUMPER UPPER RETAINER LH
(a) Engage the 3 claws and install the rear bumper

upper retainer.

(b) Tighten the 2 screws.

Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)

9.

INSTALL REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.

10. INSTALL REAR BUMPER END RETAINER LH

(a) Engage the 2 claws and install the rear bumper end

retainer.

(b) Tighten the screw.

Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)

11. INSTALL REAR BUMPER END RETAINER RH

HINT:
Use the same procedure as for the LH side.

B135072

B134753

B134752

B134751

B134750

EXTERIOR  –  REAR BUMPER

ET–25

ET

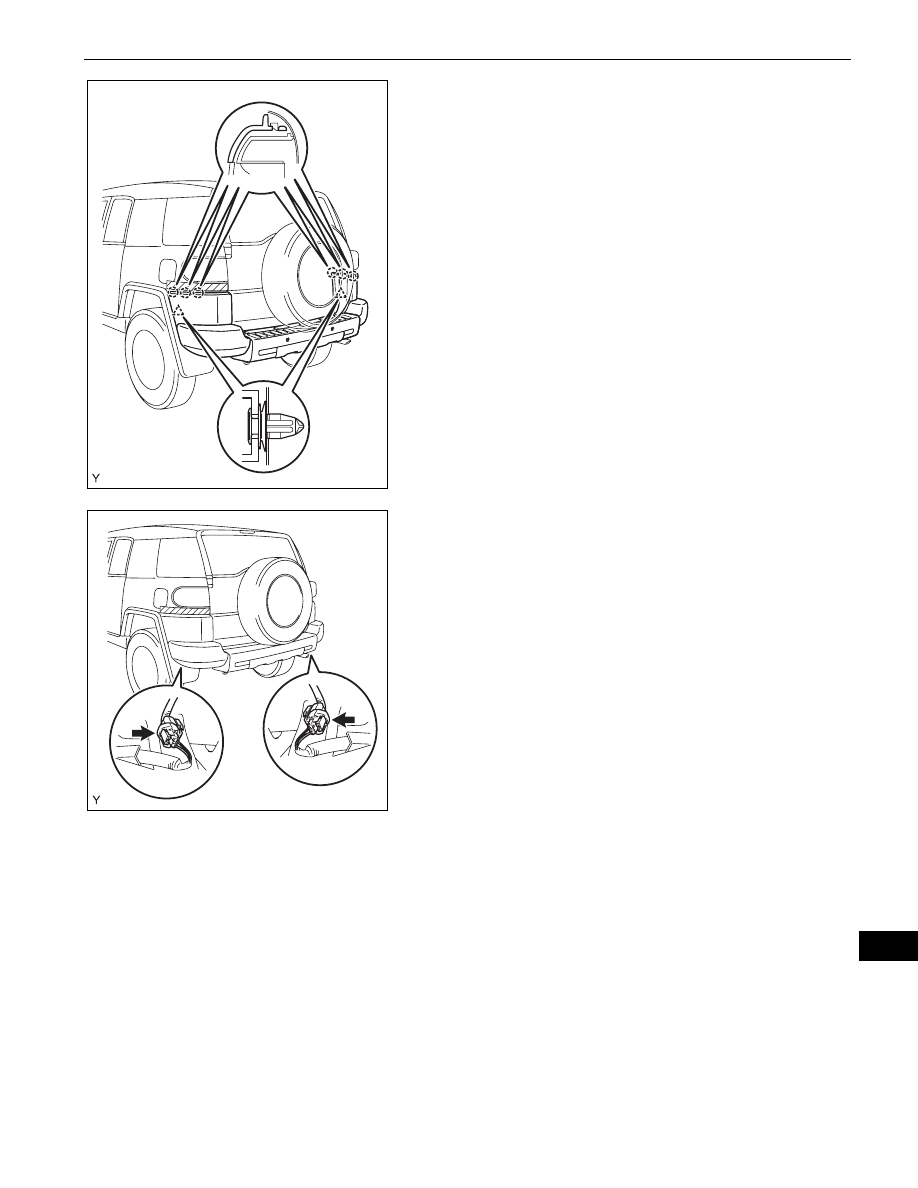

12. INSTALL REAR BUMPER COVER

(a) Engage the 6 claws and the 2 clips and install the

rear bumper cover.

(b) w/ Back Sonar:

(1) Connect the 2 wire to wire connectors.

B135143

B135142

ET–26

EXTERIOR  –  REAR BUMPER

ET

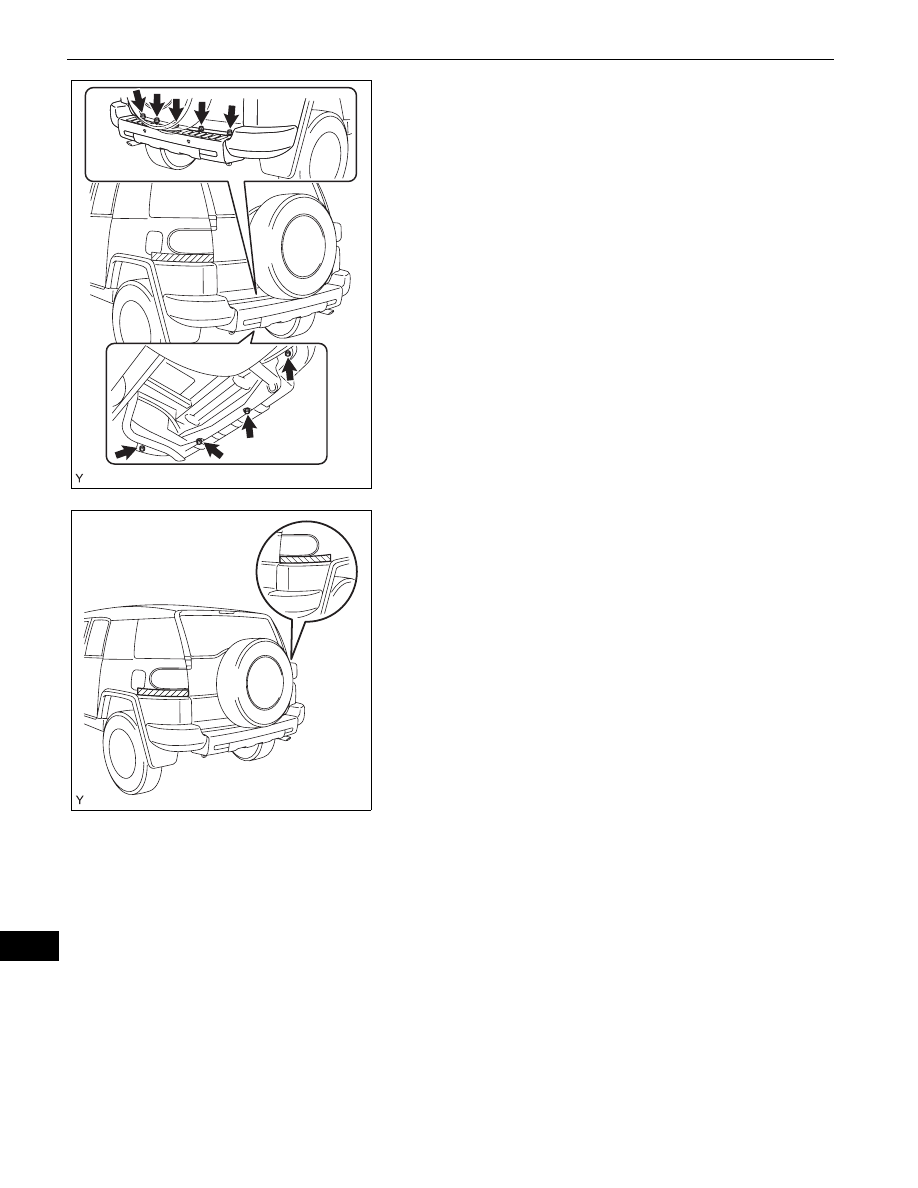

(c) Tighten the 7 bolts and the 2 screws.

Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf) for bolt

3.0 N*m (30 kgf*cm, 27 in.*lbf) for screw

(d) Remove the protective tape.

13. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B135141

B135140
