Toyota FJ Cruiser (GSJ 10, 15 series). Manual - part 183

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM–163

EM

37. INSPECT CRANKSHAFT

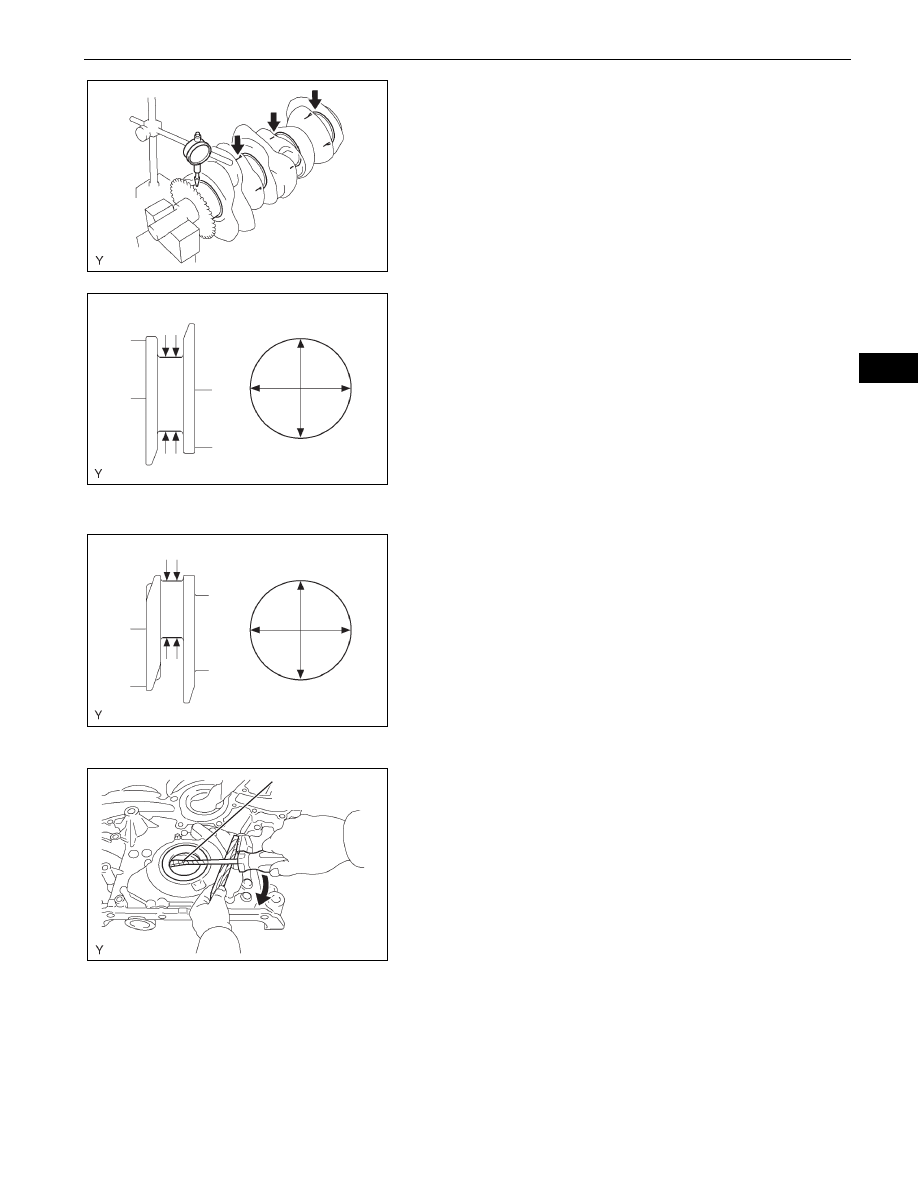

(a) Using a dial indicator and V-blocks, measure the

runout as shown in the illustration.
Maximum circle runout:

0.06 mm (0.0024 in.)

If the result is not as specified, replace the
crankshaft.

(b) Using a micrometer, measure the diameter of each

main journal.
Standard Diameter:

71.988 to 72.000 mm (2.8342 to 2.8346 in.)

If the result is not as specified, replace the
crankshaft.

(c) Check each main journal for taper and out-of-

roundness as shown.
Maximum taper and out-of-roundness:

0.02 mm (0.0008 in.)

If the result is not as specified, replace the
crankshaft.

(d) Using a micrometer, measure the diameter of each

crank pin.
Standard diameter:

55.992 to 56.000 mm (2.2044 to 2.2047 in.)

If the result is not as specified, replace the
crankshaft.

(e) Check each crank pin for taper and out-of-

roundness as shown.
Maximum taper and out-of-roundness:

0.02 mm (0.0008 in.)

If the result is not as specified, replace the
crankshaft.

REPLACEMENT

1.

REMOVE TIMING GEAR CASE OR TIMING CHAIN
CASE OIL SEAL

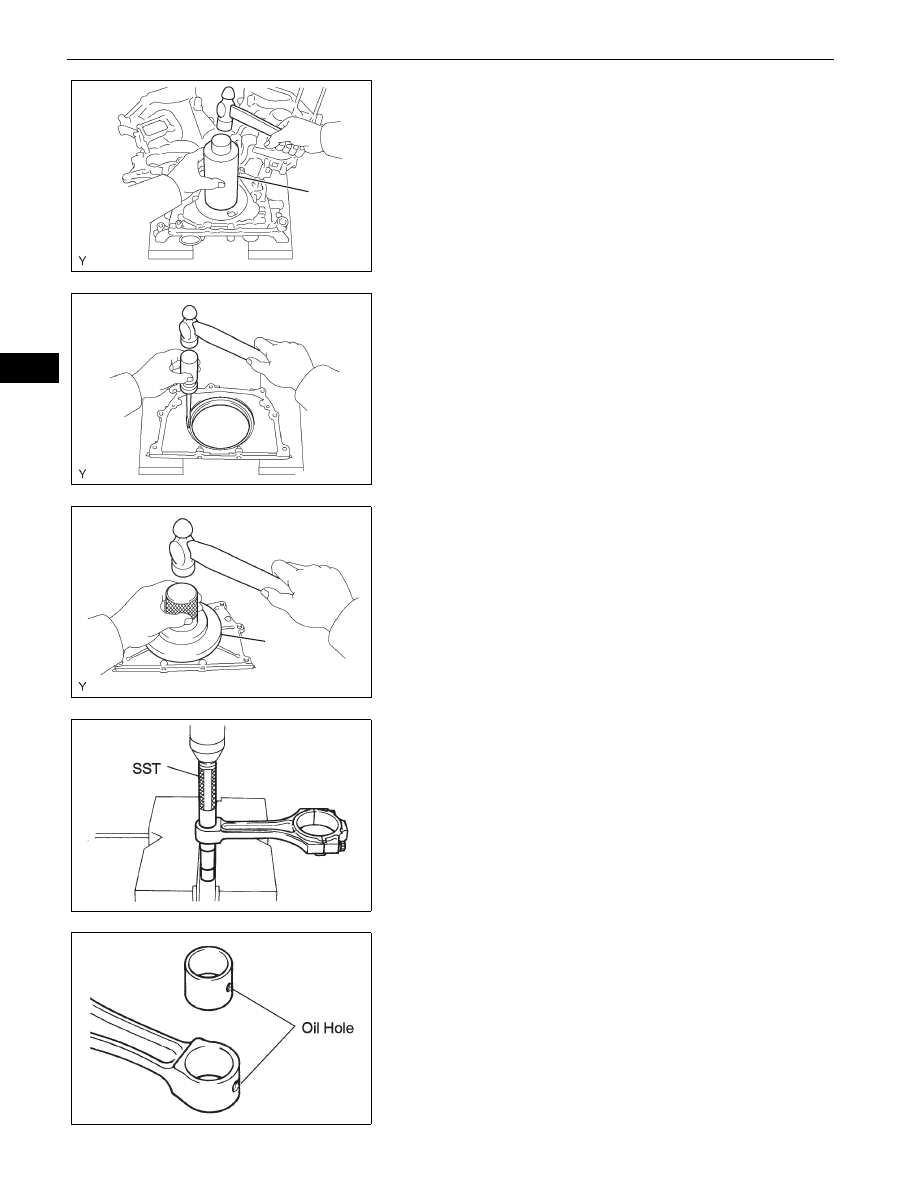

(a) Using a screwdriver with its tip wrapped in

protective tape, pry out the oil seal.
NOTICE:
Do not damage the oil pump assembly.

A076058E01

A076059E01

A076060E01

Protective Tape

Pry

A072957E01

EM–164

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM

2.

INSTALL TIMING GEAR CASE OR TIMING CHAIN
CASE OIL SEAL
(a) Using SST and a hammer, tap in a new oil seal until

its surface is flush with the timing chain cover edge.
SST

09226-10010

(b) Apply MP grease to the oil seal lip.

3.

REMOVE REAR ENGINE OIL SEAL
(a) Using a screwdriver and hammer, tap the oil seal

out.

4.

INSTALL REAR ENGINE OIL SEAL
(a) Using SST and a hammer, tap in a new oil seal until

its surface is flush with the rear oil seal retainer
edge.
SST

09223-78010

(b) Apply MP grease to the oil seal lip.

5.

REMOVE VALVE GUIDE BUSH (See page

EM-81

)

6.

INSTALL VALVE GUIDE BUSH (See page

EM-81

)

7.

REMOVE CONNECTING ROD SMALL END BUSH
(a) Using SST and a press, press out the bushing.

SST

09222-30010

8.

INSTALL CONNECTING ROD SMALL END BUSH
(a) Align the oil holes of a new bushing and the

connecting rod.

SST

A076300E02

A076248E02

SST

A076268E02

EM06363E01

A051812E01

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM–165

EM

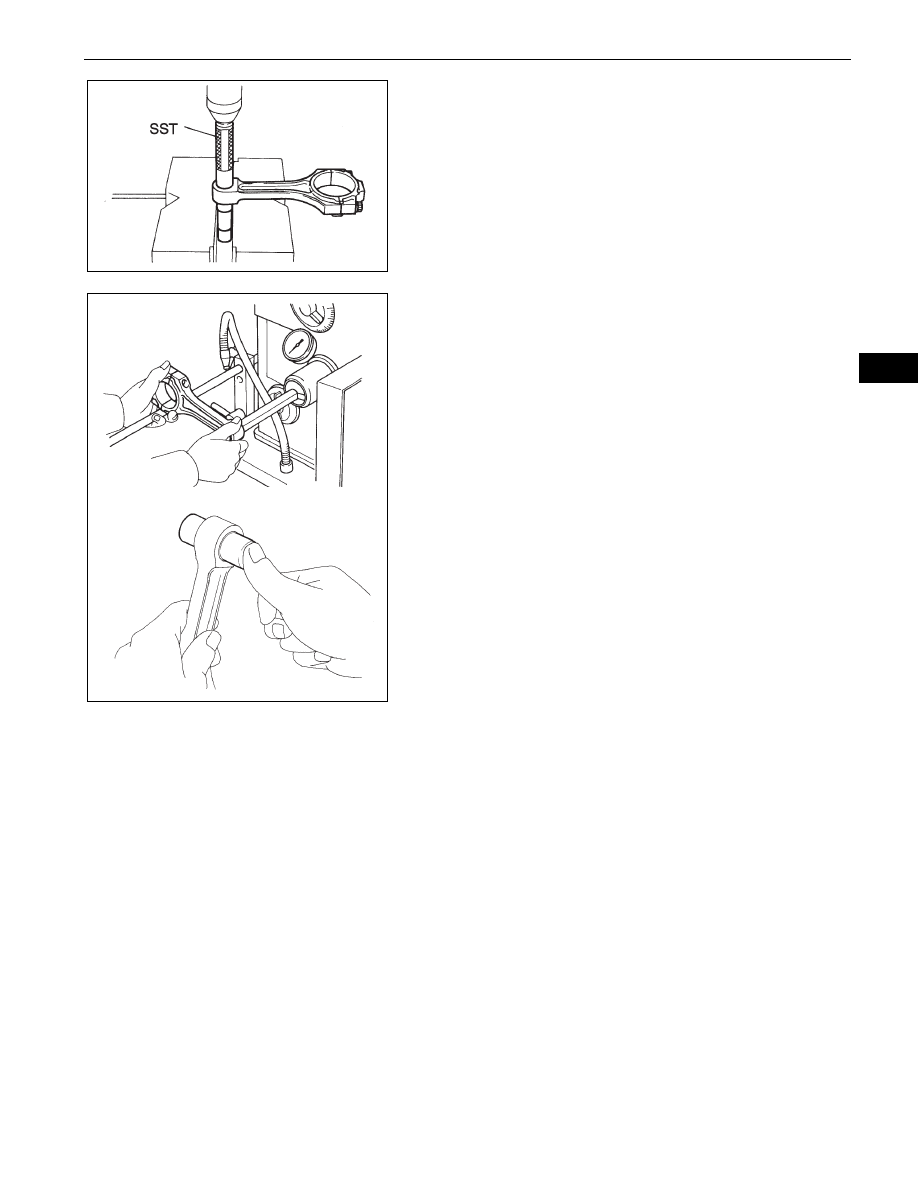

(b) Using SST and a press, press in the bushing.

SST

09222-30010

(c) Using a pin hole grinder, hone the bushing to bring

the clearance between the bushing and piston pin to
the specified value.
Standard oil clearance:

0.005 to 0.011 mm (0.0002 to 0.0004 in.)

HINT:
Check the measurement at room temperature. Coat
the piston pin with engine oil, and push it into the
connecting rod with a thumb.

EM06363E01

A121034E01

EM–166

1GR-FE ENGINE MECHANICAL  –  ENGINE UNIT

EM

REASSEMBLY

1.

REASSEMBLY CYLINDER HEAD SUB-ASSEMBLY
Refer to the procedures up to "REASSEMBLY
CYLINDER HEAD" (See page

EM-82

).

2.

INSTALL STUD BOLT

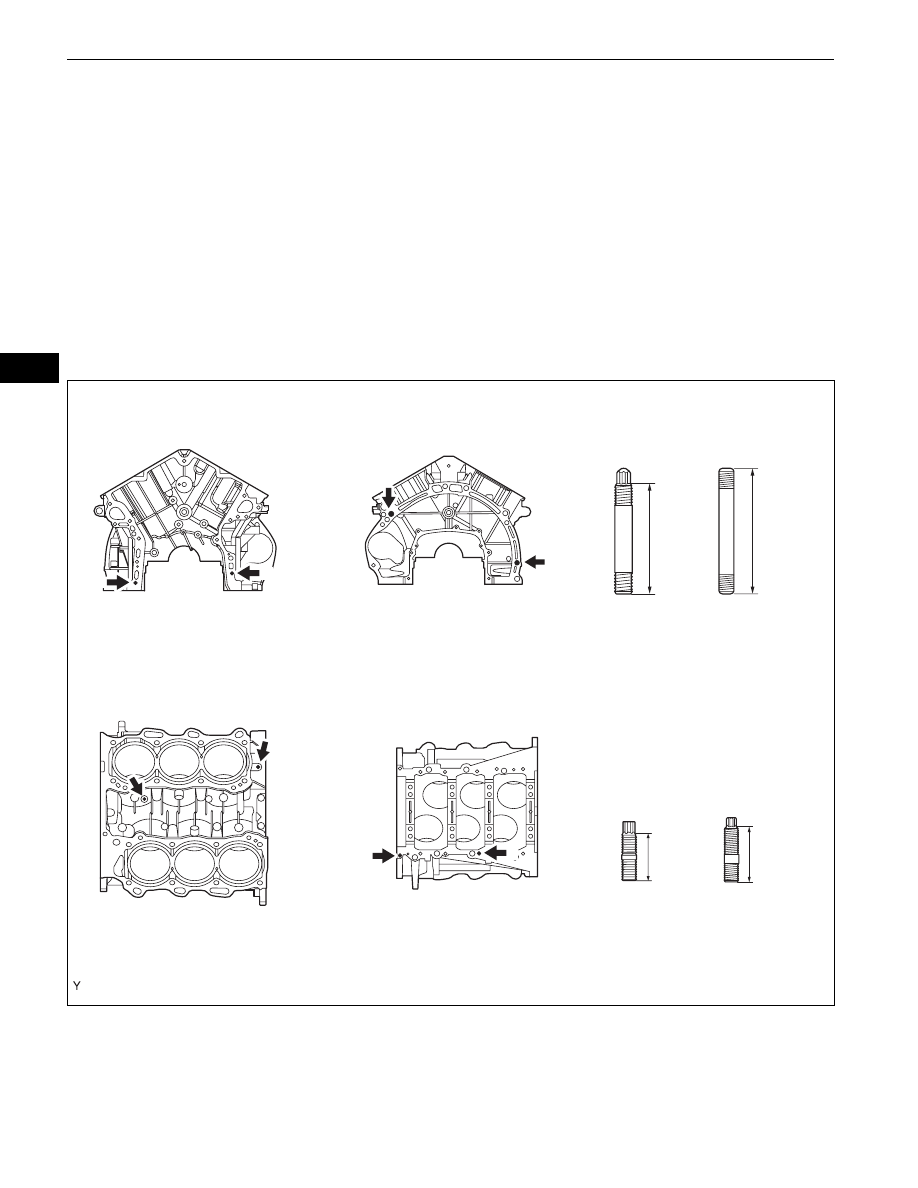

(a) Install the stud bolts as shown in the illustration.

Torque: Stud bolt A

11 N*m (112 kgf*cm, 8.1 ft.*lbf)
Stud bolt B
4.5 N*m (46 kgf*cm, 40 in.*lbf)
Stud bolt C
4.0 N*m (41 kgf*cm, 35 in.*lbf)
Stud bolt D
4.0 N*m (41 kgf*cm, 35 in.*lbf)

3.

INSTALL STRAIGHT PIN
(a) Using a plastic-faced hammer, tap in a new straight

pin.
Standard protrusion:

Pin A:

22.5 to 23.5 mm (0.886 to 0.925 in.)

Front Side

52 mm

Lower Side

Rear Side

56 mm

23 mm

A

A

A

B

B

B

C

C

C

18 mm

D

D

D

Upper Side

A126356E01
