GENERAL INFORMATION

Identification Numbers

7-1

Safety Certification Label

7-1

Emission Compliance Label (for U.S.A.)

7-2

Warranties

7-2

On-Board Vehicle Computers and Event Data

Recorders

7-2

Reporting Safety Defects

7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

Identification Numbers

Engine Serial Number

Safety Certification Label

Vehicle Identification Number

EXAMPLE (for some vehicles)

60G128

52D059

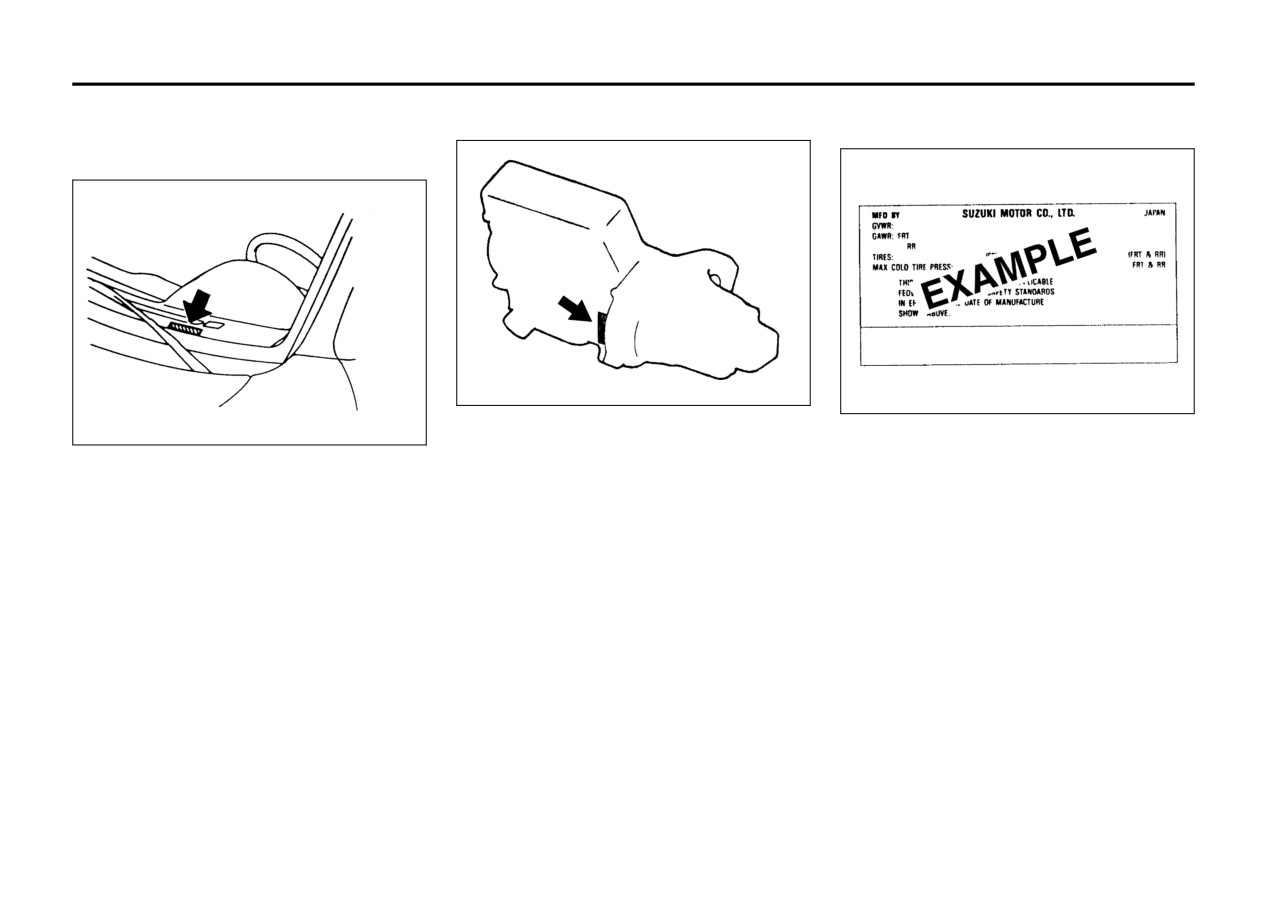

The engine serial number is stamped on

60G152

This label contains important safety-

the cylinder block as shown in the above

related information about your vehicle. The

The Vehicle Identification Number

(VIN)

illustration.

label is located on the driver’s door lock pil-

may be found in the location shown in the

lar.

above illustrations. This number is used to

your dealer when ordering parts or refer-

ring to special service information.

7-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

Emission Compliance Label

Warranties

On-Board Vehicle Computers

(for U.S.A.)

The warranties covering your vehicle are

and Event Data Recorders

explained in a separate New Vehicle War-

Your vehicle, like other modern motor

ranty Information booklet given to you at

vehicles, has a number of sophisti-

the time of sale. Please read this booklet

cated computer systems that monitor

carefully so you can understand your rights

and control several aspects of the

and responsibilities.

vehicle’s performance. Your vehicle

uses on-board vehicle computers to

For U.S.A.

The following warranties are provided with

monitor emission control components

your vehicle:

to optimize fuel economy, to monitor

•

New Vehicle Limited Warranty

conditions for airbag deployment and,

•

Limited Warranty For SUZUKI Parts or

if so equipped, to provide anti-lock

Accessories

braking and to help the driver control

•

Emission Components Defect Warranty

the vehicle in difficult driving situa-

•

Emission Performance Warranty

tions. Some information may be stored

60A412

during regular operations to facilitate

repair of detected malfunctions; other

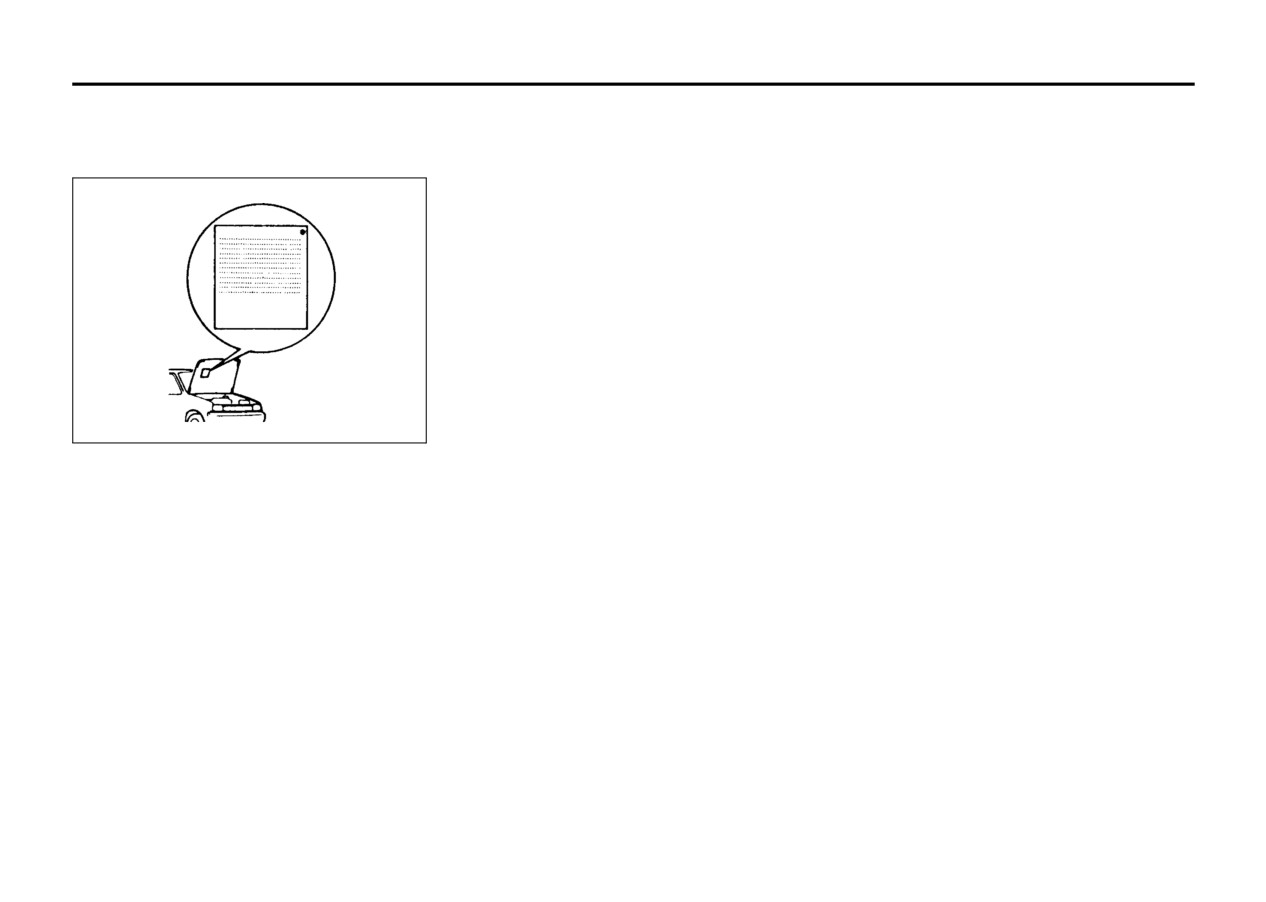

The EPA emission compliance label is

information is stored only in a crash

located under the hood. It provides much

event by computer systems, such as

of the information needed to perform an

those commonly called event data

engine tune-up on your vehicle.

recorders (EDR).

In a crash event, computer systems,

such as the Airbag Sensing and Diag-

nostic Module (SDM) in your vehicle

may record information about the con-

dition of the vehicle and how it was

operated, such as data related to

engine speed, brake application, throt-

tle position, vehicle speed, safety belt

usage, airbag readiness, airbag per-

formance, and the severity of a colli-

sion. This information has been used

to improve vehicle crash performance

7-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

and may be used to improve crash

Others, such as law enforcement, may

Reporting Safety Defects

performance of future vehicles and

have access to the special equipment

If you believe that your vehicle has a

driving safety. Unlike the data record-

that can read the information if they

defect which could cause a crash or

ers on many airplanes, these on-board

have access to the vehicle

the

could cause injury or death, you

systems do not record sounds, such

device that stores the data.

should immediately inform the

as conversation of vehicle occupants.

National Highway Traffic Safety

To read this information, special

Administration (NHTSA) in addition to

equipment is needed and access to

notifying American Suzuki Motor Corp.

the vehicle or the device that stores

If NHTSA receives similar complaints,

the data is required. Suzuki will not

it may open an investigation, and if it

access information about a crash

finds that a safety defect exists in a

event or share it with others other

group of vehicles, it may order a recall

than:

and remedy campaign. However,

• with the consent of the vehicle

NHTSA cannot become involved in

owner or, if the vehicle is leased,

individual problems between you, your

with the consent of the lessee,

dealer, or American Suzuki Motor

• in response to an official request of

Corp.

police or similar government office,

• as part of Suzuki’s defense of litiga-

To contact NHTSA, you may call the

tion through the discovery process,

Vehicle Safety Hotline toll-free at

888-327-4236 (TTY: 1-800-424-9153);

• as required by law.

go to http://www.safercar.gov; or write

to: Administrator, NHTSA, 400 Sev-

In addition, once Suzuki collects or

enth Street, SW., Washington, D.C.

receives data, Suzuki may:

20590. You can also obtain other

• use the data for Suzuki research

information about motor vehicle safety

needs,

from http://www.safercar.gov.

• make it available for research where

appropriate confidentiality is to be

maintained and need is shown, or

• share summary data which is not

tied to a specific vehicle with non-

Suzuki organizations for research

purposes.

7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

To contact American Suzuki, owners

in the continental United States can

call toll-free 1-800-934-0934, or write

to:

American Suzuki Motor Corporation

Automotive Customer Relations

3251 East Imperial Highway

Brea, CA 92821-6795

For owners outside the continental

United States, please refer to the dis-

tributor’s address listed in your War-

ranty Information booklet.

For vehicles registered for use and

principally operated in Canada please

contact Suzuki Canada Inc. at 1-905-

889-2677 extension 2254 or write to:

Suzuki Canada Inc.

Customer Relations

100 East Beaver Creek Road

Richmond Hill, On

L4B 1J6

7-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------
