10E-8 Keyless Start System:

Alarm Function

S6JB0AA501006

Under conditions as described in the table below, the keyless start control module makes the key indicator light flash in
red and the buzzer sound to call the driver’s attention.

CAN Communication System Description

S6JB0AA501007

Refer to “CAN Communication System Description: For Petrol Engine Model in Section 1A” or “CAN Communication
System Description: For Diesel Engine Model in Section 1A” for CAN communication system description.
Keyless start control module communicates control data with each control module as follows.

Keyless Start Control Module Transmission Data

Keyless Start Control Module Reception Data

Condition

Buzzer operation

Key indicator light operation

Ignition knob switch has stopped between ACC and OFF
positions while driver side door is opened (ignition knob
switch un-returned alarm)

Intermittent

—

Ignition switch has stopped between ACC and OFF
positions while driver side door is closed (ignition knob
switch un-returned alarm)

2 times

Flashing in red

Remote controller is carried out of vehicle and doors are
closed while ignition switch is at ON position (remote
controller carried-out alarm)

5 times

Flashing in red

Remote controller is carried out of vehicle through a window
without opening door while ignition switch is at ON position
(engine is running) and vehicle has been driven at 10 km/h
(6 MPH) or more speed without remote controller in vehicle
compartment (the first time 10 km/h (6 MPH) speed is
exceeded only) (Remote controller carried-out alarm)

5 times

Flashing in red

BCM

ECM

Combination

Meter

ID code of keyless start control module

ECM-keyless start control module code

Ignition knob switch signal

Door lock/unlock request signal

Buzzer request signal

Answer back request signal

Key indicator light control signal

DATA

Transmit

Keyless Start

 Control Module

I6JB0AA50005-01

Vehicle speed signal

ECM-keyless start control module code

Door switch status

Door lock status

Charing system signal

Engine oil pressure switch signal

ECM

BCM

DATA

Receive

Keyless Start

Control Module

I5RW0BA50001-01

Keyless Start System:  10E-9

Schematic and Routing Diagram

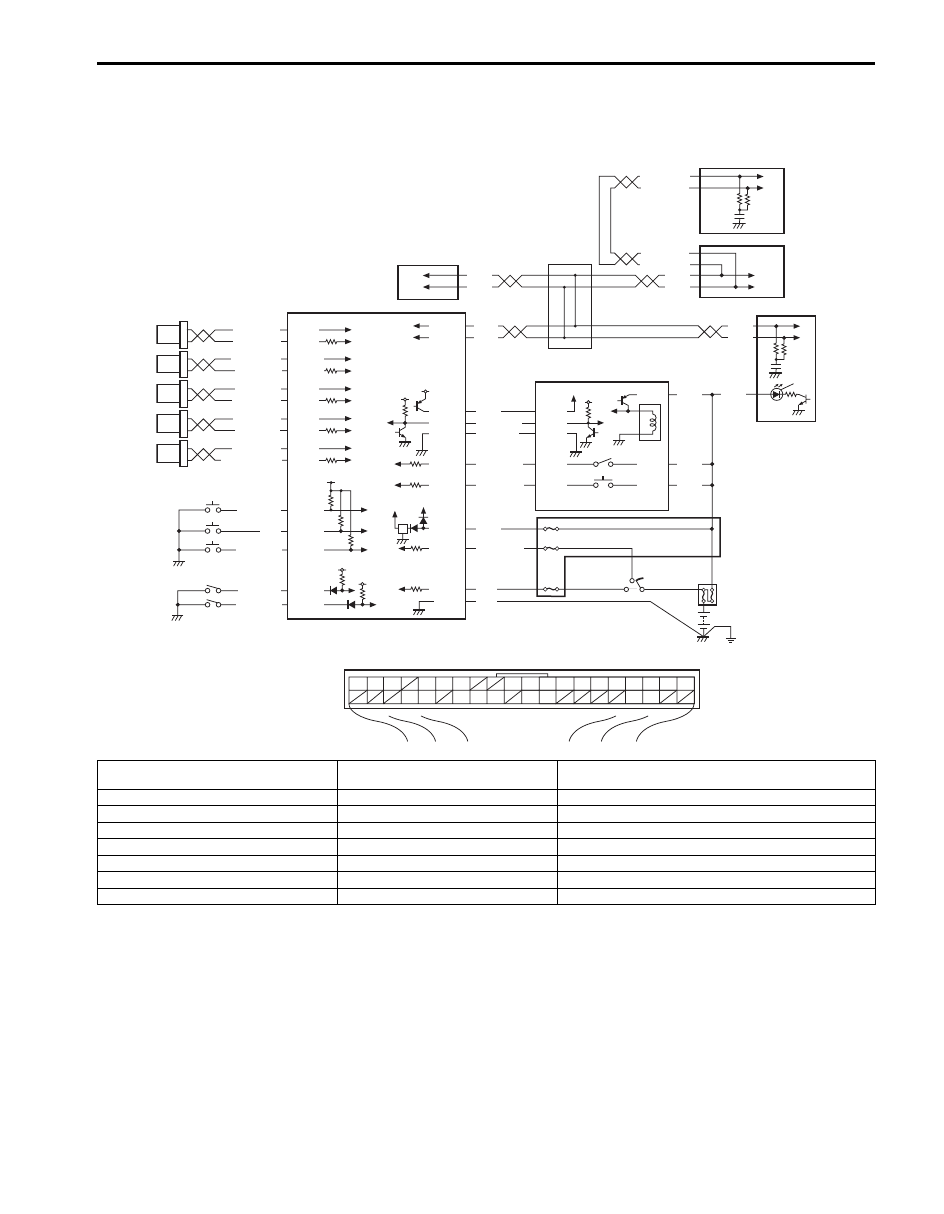

Keyless Start System Electric Wiring Circuit Diagram

S6JB0AA502001

BLK

G44-9

G44-15

G44-14

G44-37

G44-33

G44-16

G44-20
G44-29
G44-30

G44-36

G44-32

G44-10

G44-34

G44-11

WHT/BLK

WHT

WHT

RED/BLU

BLU/YEL

BLU

YEL/RED

RED/BLK

YEL

5V

5V

5V

5V

5V

5V

5V

12V

12V

G44-2
G44-1

WHT/BLU

ORN/BLU

WHT

RED

WHT

RED

G44-18

G44-19

BLU/RED

BRN/RED

G44-24
G44-23

BLK/RED

WHT/RED

G44-7

LT GRN/BLK

GRN/RED G44-8

G44-5

G44-6

PNK/BLK

GRY/RED

G44-4
G44-3

GRY/BLK

GRY/GRN

BLK/YEL

BRN/YEL

ORN

G22-3

G22-4

G22-5

G22-2

G22-1

G22-6

G22-7
G22-8

WHT

WHT

G44

[A]

1

2

3

4

5

6

7

8

9

10

11

14

15

16
36

34 33 32

30 29

24 23

37

18

19

20

WHT

WHT/BLU

WHT/BLU

WHT/RED

WHT/RED

WHT

RED

WHT

RED

6

7

8

9

10

11

12

13

14

15

1

18

21

2

3

5

4

19

20

16

17

I5JB0DA50002-01

[A]: Keyless start control module connector

(viewed from harness side)

8. Rear end door antenna

16. Combination meter

1. Keyless start control module

9. Center antenna

17. Key indicator light

2. Steering Lock unit

10. Luggage room antenna

18. BCM

3. Steering lock solenoid

11. Driver side door request switch

19. ECM

4. Ignition knob switch

12. Passenger side door request switch

20. ABS or ESP

® control module

5. Key reminder switch

13. Rear end door request switch

21. Junction connector

6. Driver side door antenna

14. Driver side door lock switch

7. Passenger side door antenna

15. Passenger side door lock switch

10E-10 Keyless Start System:

Diagnostic Information and Procedures

Self-Diagnosis Function

S6JB0AA504002

The keyless start control module has self-diagnosis function to monitor the system components and circuits while the
keyless start system is at work. When the keyless start control module detects an abnormality in the system, it saves
the area where such abnormality has occurred as a DTC in its memory. The DTC stored in memory of the keyless start
control module is indicated by the key indicator light in the combination meter flashing in a specific pattern. For DTC
indication, refer to “DTC Check” and for the clearing procedure, to “DTC Clearance”.

Keyless Start System Diagnosis Introduction

S6JB0AA504003

To ensure that the trouble diagnosis is done accurately and smoothly, observe “Precautions in Diagnosing Troubles”
and follow “Keyless Start System Check”.

Keyless Start System Check

S6JB0AA504004

Step

Action

Yes

No

1

1) Record details of the problem. For your record, use of a

questionnaire form will facilitate collecting information for
proper analysis and diagnosis.

2) Check if the problem described in “Customer

Questionnaire (Example)” actually occurs in the vehicle.
(This step should be performed with the customer if
possible.)
Perform “Keyless Start System Operation Inspection”
procedure to check if the symptom which has occurred is
abnormal or not.

3) Check for DTC referring to “DTC Check”, and then

record DTC(s).

4) Clear DTC referring to “DTC Clearance” if any DTC

exists, and then recheck for DTC.

Is any DTC still detected?

Go to Step 2.

Go to Step 3.

2

1) Check and repair referring to applicable “DTC Table”.

Are check and repair complete?

Go to Step 5.

Check and repair
malfunction part(s), and
go to Step 5.

3

1) Inspect and repair basic parts referring to “Keyless Start

System Symptom Diagnosis”.

Is there faulty condition?

Repair or replace
malfunction part(s), and
go to Step 5.

Go to Step 4.

4

1) Check for intermittent problems referring to “Intermittent

and Poor Connection Inspection in Section 00”.

Is there any faulty condition?

Repair or replace
malfunction part(s), and
go to Step 5.

Go to Step 5.

5

1) Confirm if the problem is solved and the keyless start

system is free from any abnormal conditions. If what has
been repaired is related to the DTC, clear the DTC once
and then confirm that no DTC is indicated.

Is there any problem symptom, DTC or abnormal condition?

Go to 2) of Step 1 and
perform trouble
diagnosis again.

End.

Keyless Start System:  10E-11

Customer Questionnaire (Example)

S6JB0AA504005

Key Indicator Light Check

S6JB0AA504006

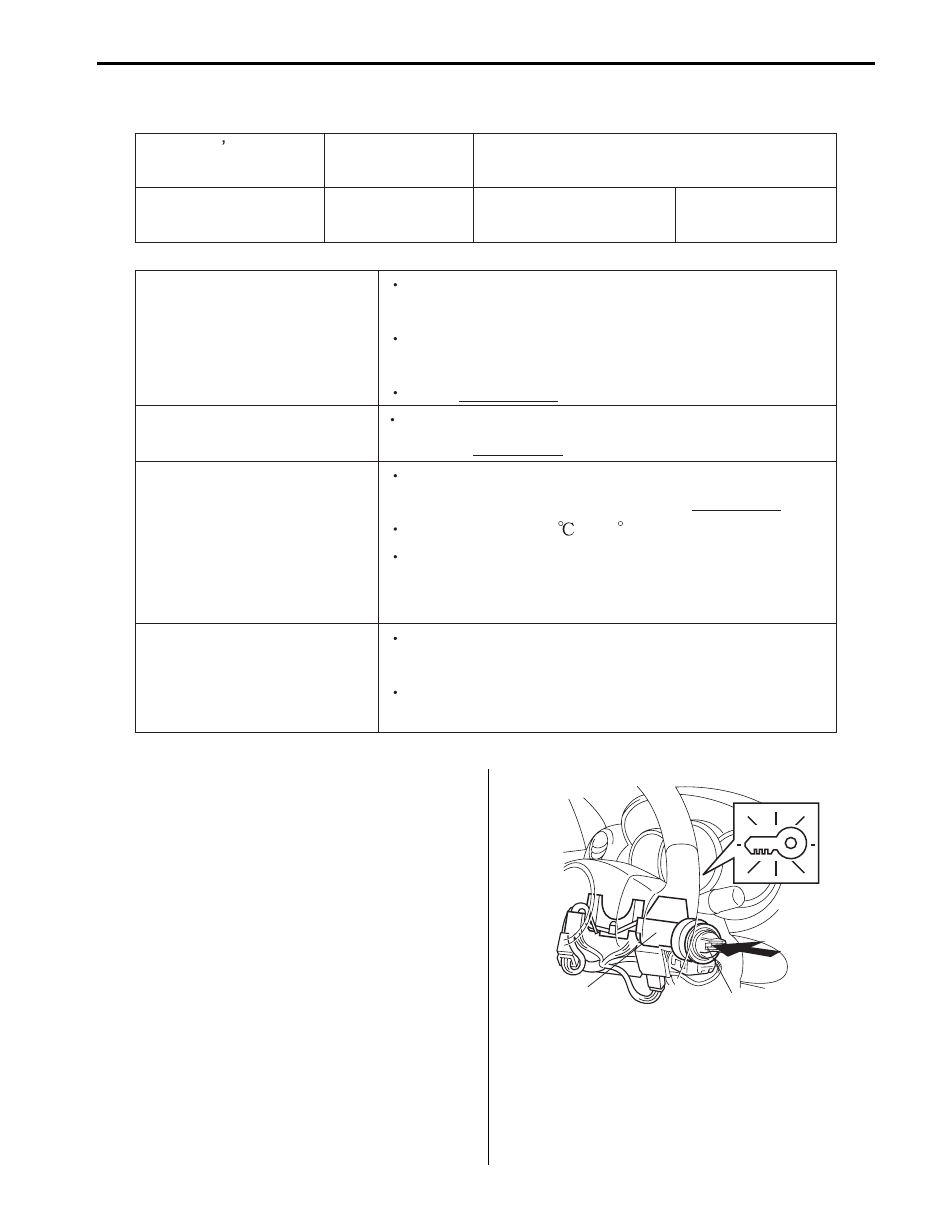

Push the ignition knob switch (2) of the steering lock unit
(1) and check that the key indicator light (3) in the
combination meter lights up in red or blue. If it does not
light, go to “Key Indicator Light Circuit Check (Key
Indicator Light Doesn’t Light when Ignition Knob Switch
is Pushed)”.

Customer s name:



Model:



VIN:



Date of issue:



Date Reg:



Date of problem:



Mileage:



Problem Symptoms

Engine can not be started by turning Ignition knob

switch

All doors can not be locked / unlocked by all of

request switches

Other

Frequency of Occurrence

Continuous / Intermittent (      times a day, a month)

/

Other

Environmental Condition

Weather:

Fine / Cloudy / Rain / Snow / Other

Temperature:

(

F )

Stopping near area where intense radio waves are

emitted such as TV station, radio station, etc.

Yes / No

Diagnostic Trouble Code

First check:

Normal code / malfunction code (           )

Second check:

Normal code / malfunction code (           )

I4RS0BA50007-03

3

1

2

I5JB0AA50006-01
