10C-33 Immobilizer Control System: For Diesel Engine Model

Component Location

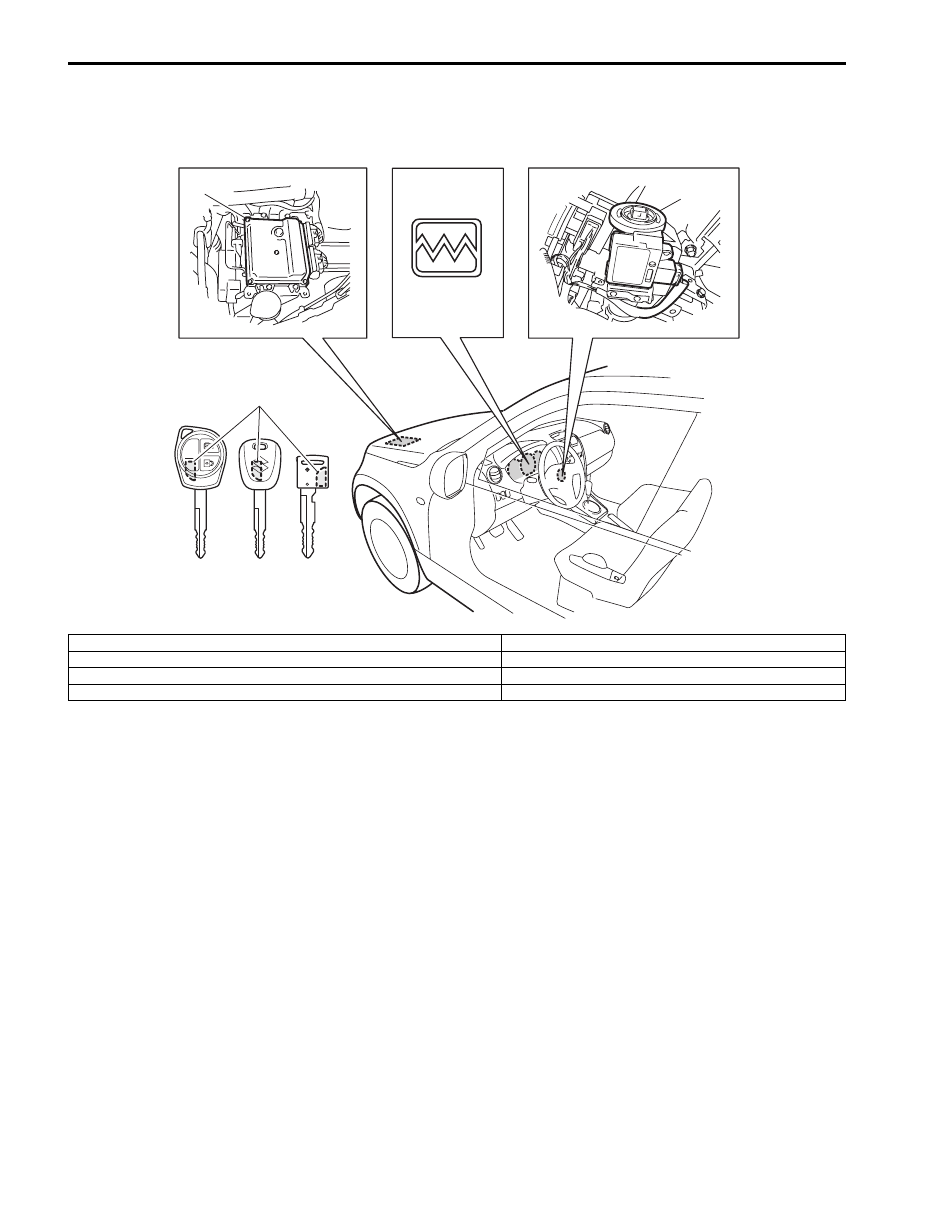

Immobilizer Control System Components Location

S6JB0AA323001

1

2

3

4

5

6

7

I6JB0AA32001-01

1. ECM

5. Ignition key (non-keyless entry model)

2. Injection warning light (gravity 1 warning light)

6. Transponder

3. Immobilizer control module (ICM)

7. Ignition key (keyless start model)

4. Ignition key (keyless entry model)

Immobilizer Control System: For Diesel Engine Model 10C-34

Diagnostic Information and Procedures

Immobilizer Control System Check

S6JB0AA324001

Diagnostic Trouble Code (DTC) Check

S6JB0AA324002

NOTE
To know how to use SUZUKI scan tool in
detail, refer to its operator’s manual.



1) Turn the ignition switch to OFF position.
2) Connect SUZUKI scan tool to data link connector

(DLC) (1) located under instrument panel at driver’s
seat side.

Special tool
(A):  SUZUKI scan tool

3) Turn the ignition switch to ON position.
4) Check if any DTC is stored in ICM according to the

instructions displayed on SUZUKI scan tool.

5) After completing the check, turn ignition switch to

OFF position, and then disconnect SUZUKI scan
tool from DLC.

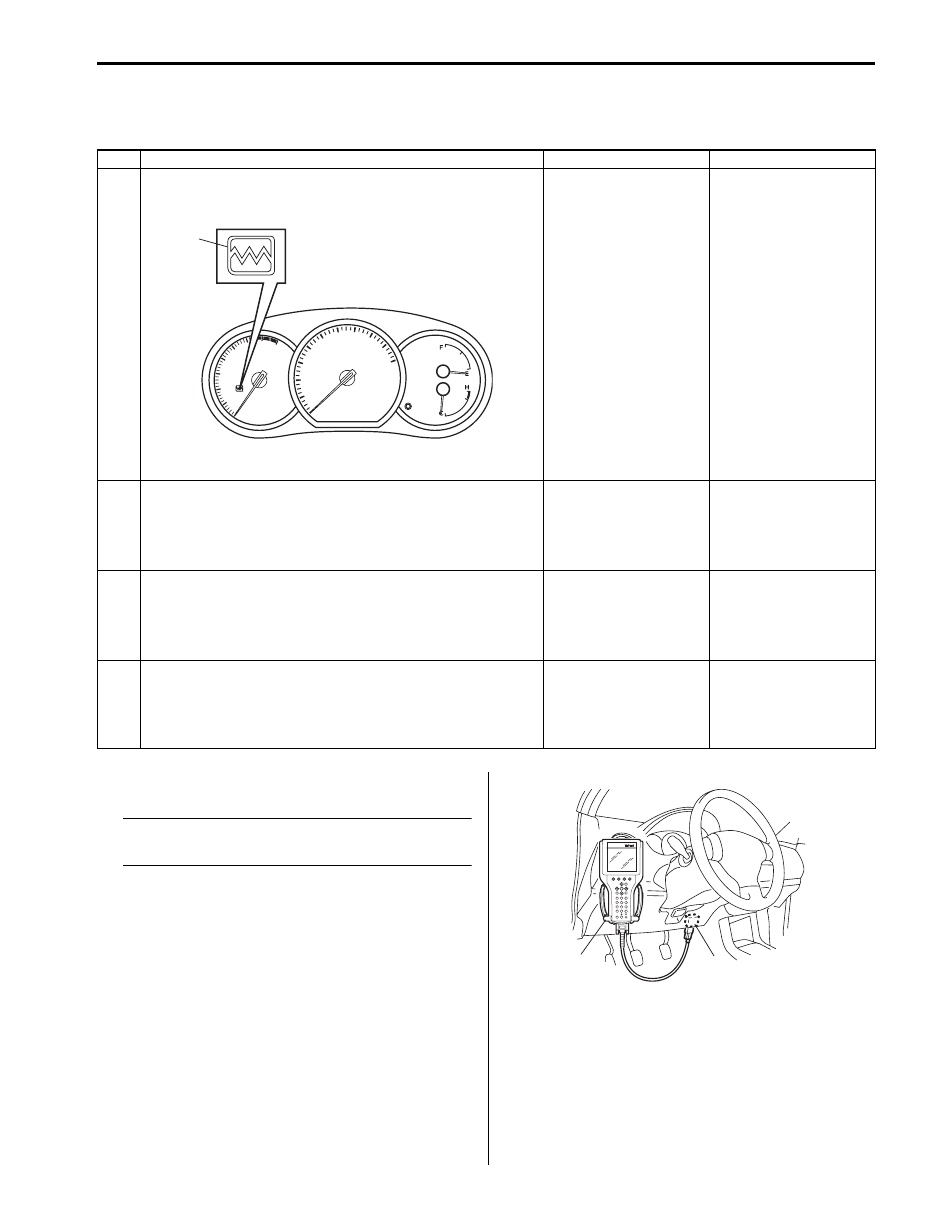

Step

Action

Yes

No

1

Injection warning light ON check
1) Turn ignition switch to ON position using ignition key.

Does injection warning light (1) come on?

Go to Step 2.

Go to “Injection Warning
Light Does Not Come
ON with Ignition Switch
ON and Engine Stop:
For Diesel Engine
Model”.

2

Injection warning light flash check

Does injection warning light flash on and off continuously in
Step 1?

Check ICM for DTC
referring to “Diagnostic
Trouble Code (DTC)
Check: For Diesel
Engine Model”.

Go to Step 3.

3

Engine start check
1) Start engine using ignition key.

Does engine start?

Go to step 4.

Go to “Engine and
Emission Control
System Check: For
Diesel Engine Model in
Section 1A”.

4

Injection warning light remain ON check
1) Check if injection warning light remains ON after engine

start.

Does injection warning light remain ON after engine start?

Go to “Injection Warning
Light Remains ON after
Engine Start: For Diesel
Engine Model”.

Immobilizer control
system is in good
condition.

1

I6JB0AA32003-01

(A)

1

I4RS0BA30003-03

10C-35 Immobilizer Control System: For Diesel Engine Model

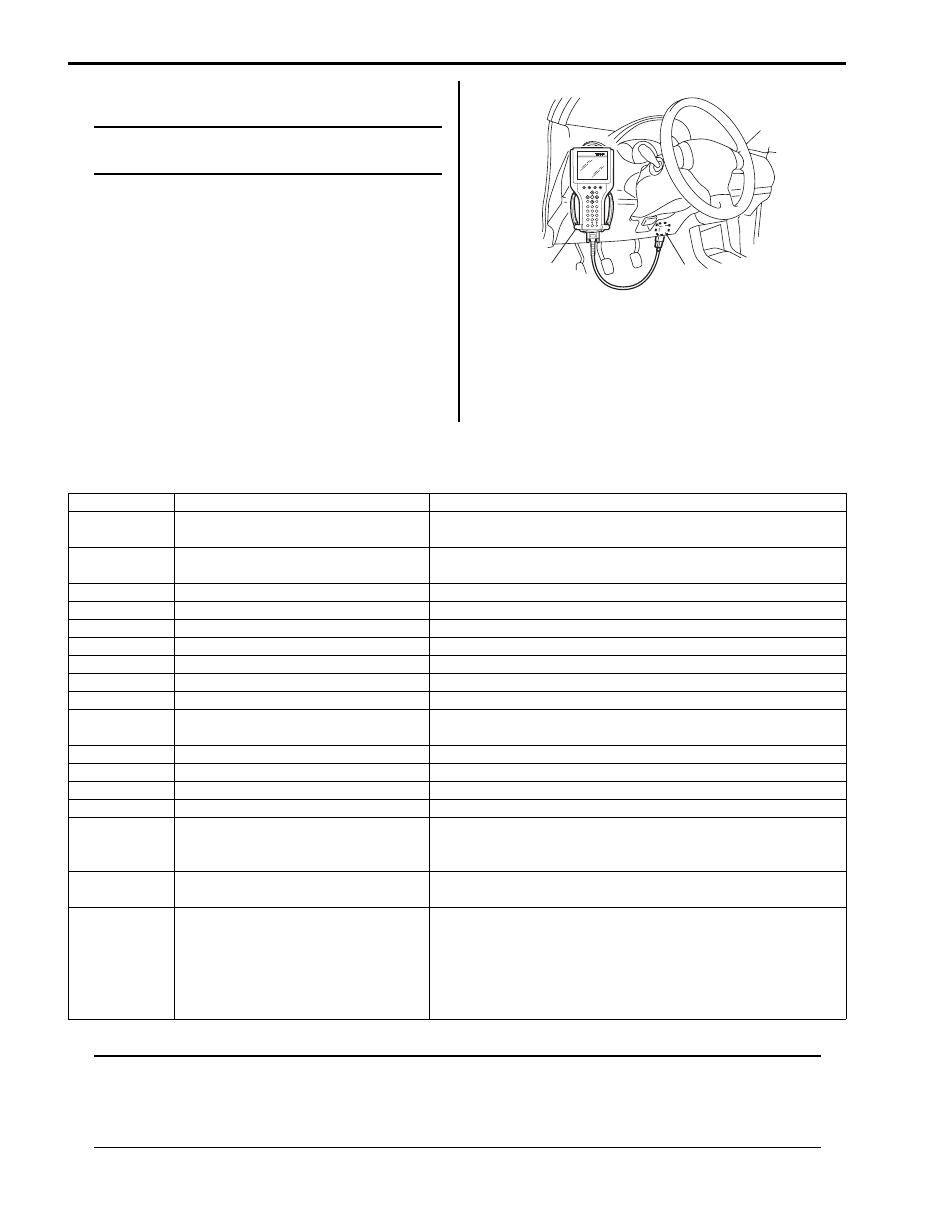

Diagnostic Trouble Code (DTC) Clearance

S6JB0AA324003

NOTE
To know how to use SUZUKI scan tool in
detail, refer to its operator’s manual.



1) Turn the ignition switch to OFF position,
2) Connect SUZUKI scan tool to data link connector

(DLC) (1) located under instrument panel at driver’s
seat side.

Special tool
(A):  SUZUKI scan tool

3) Turn the ignition switch to ON position.
4) Clear DTC(s) according to the instructions displayed

on SUZUKI scan tool.

5) After completing the clearance, turn the ignition

switch to OFF position, and then disconnect SUZUKI
scan tool from DLC.

Diagnostic Trouble Code (DTC) Table

S6JB0AA324004

Immobilizer control module (ICM)

NOTE

• DTC marked with (*) is detected by ECM, transmitted through CAN to ICM and indicated by ICM.

ECM does not indicate (*) marked DTC.

• Immobilizer control module detects DTC B1705 when ignition switch is turned on by using remote

controller of keyless start control system (not using the ignition key). It is not abnormal.



(A)

1

I4RS0BA30003-03

DTC No.

Detecting item

Detecting condition

)

 B1701

Transponder Code Error 1

Inconsistent transponder data from transponder while
registering ignition key

)

 B1702

ECM Communication Error 1

Communication error between ICM and ECM and/or battery
voltage is lower than specified value

)

 B1703

Unregistered Transponder

Transponder code unregistered

)

 B1704

Transponder Code Error 2

Inconsistent transponder data from transponder

)

 B1705

Transponder Response Error

Cannot receive transponder data from transponder

)

 B1706

Immobilizer Antenna Error

Immobilizer antenna faulty

)

 B1707

IMM EEPROM Error

EEPROM in ICM faulty

)

 B1708

ECM Code Error

Verification error between ICM and ECM

)

 B1709

ECM Communication Error 2

Communication error for OBD between ICM and ECM

)

 B1710

Transponder Code Error 3

Inconsistent transponder data from transponder while
registering ignition key

)

 B1711*

ECM EEPROM Error

EEPROM in ECM faulty

)

 B1712*

Immobilizer Communication Error

Communication error between ICM and ECM

)

 B1713*

Immobilizer Code Error

Verification error between ICM and ECM

)

 B1714*

Unregistered Code

ECM code unregistered

)

 B1716*

Keyless start control module CAN
communication error

Reception error of communication data for keyless start
control module is detected for longer than specified time
continuously.

)

 B1717*

Unregistered keyless start control
module

ECM detects different ID codes registered in ECM and keyless
start control module.

)

 B1718*

Steering lock unit communication
error

• While registering the verification code in the ECM in

immobilizer control system, the keyless start control module
sent a signal to ECM indicating that the ID code could not
be registered.

• The ID code could not be registered in the keyless start

control module or ECM.

Immobilizer Control System: For Diesel Engine Model 10C-36

Scan Tool Data

S6JB0AA324005

Scan Tool Data Definitions
NUMBER OF LEARNT KEY
0 – 4 PCS:  The number of the transponder code in the transponder built in the ignition key that is registered with

immobilizer control system

NOTE
A maximum of four transponder codes can be registered with immobilizer control system. Therefore,
the maximal value should be 4.



INPUT YEAR
20**:  The year in which the transponder code in the transponder built in the ignition key is registered with immobilizer

control system

INPUT MONTH
1 – 12:  The month in which the transponder code in the transponder built in the ignition key is registered with

immobilizer control system

Scan Tool Data

Vehicle Condition

Normal Data

NUMBER OF LEARNT KEY

Ignition switch at ON position

0 – 4

INPUT YEAR

Ignition switch at ON position

2006 or later

INPUT MONTH

Ignition switch at ON position

1 – 12
