Suzuki Grand Vitara JB416 / JB420 / JB419. Service manual - part 380

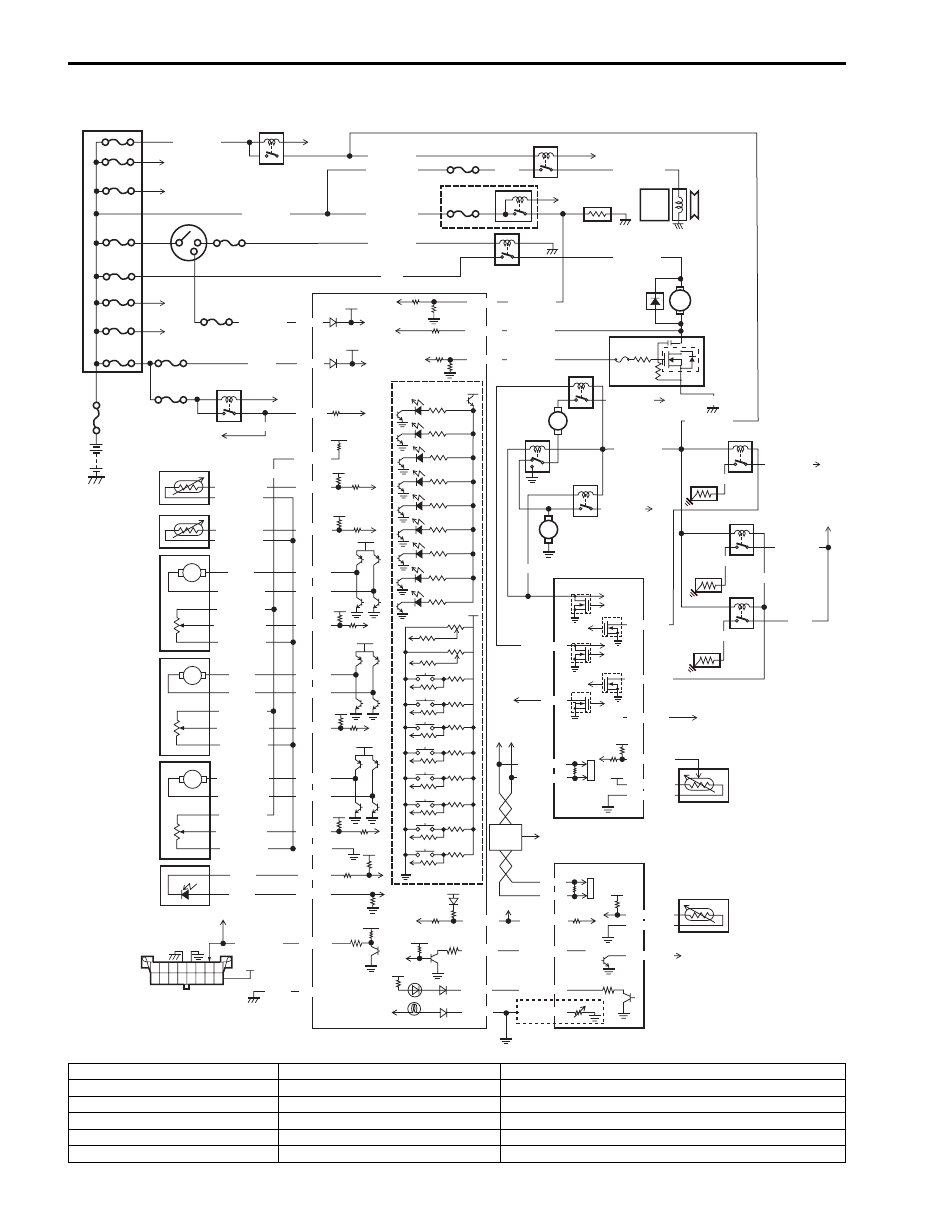

7B-11 Air Conditioning System:

12V

G52-1

G52-2

G52-8

G52-4

G52-15

G52-19

G52-20

12V

G52-21

G52-22

G52-23

G52-27

G52-28

G52-31

G52-32

G52-29

G52-30

G52-14

G52-18

G52-12

12V

G52-13

G52-16

12V

+BB

G52-17

G52-3

PPL/RED

WHT

RED/YEL

RED/WHT

WHT/BLK

BLU/BLK

BLK/RED

GRY

GRY/BLU

BLK/RED

WHT/RED

RED/WHT

ORN

GRN

RED/WHT

WHT/GRN

BLK/RED

GRY/RED

GRY/BLK

RED/WHT

WHT/BLU

BLK/RED

PNK

YEL

PPL/WHT

BLK

BLK/RED

RED/BLK

PPL/GRN

G52-10

G52-11

G52-6

G52-5

YEL/RED

PNK/GRN

PNK/BLK

RED/GRN

WHT/BLK

GRY/GRN

GRY/RED

GRY/BLK

RED/YEL

RED/BLK

BLU/WHT

BLK

WHT/RED

BLK/RED

BLU/BLK

YEL/GRN

BLK/RED

WHT/GRN

BLU/WHT

BLU/BLK

RED

WHT

WHT/RED

WHT/BLU

BLK/RED

[B]

RED

BLU

BLK/RED

RED

PNK

WHT/BLU 34

BLU/YEL

YEL/RED

YEL/BLK

BLU/RED

BLU

RED/BLK

BLU/BLK

YEL/BLK

BLU/BLK

I6JB0A720004-01

[A]: Petrol engine model

19. Blower motor relay

39. To information display

[B]: Diesel engine model

20. Rear defogger

40. To ECM

1. Battery

21. A/C compressor

41. To BCM

2. Main fuse

22. Blower motor

42. To compressor relay

3. Fuse box

23. Blower motor selector

43. To rear defogger relay

4. To radiator fan relay No.1

24. Radiator fan relay No.1

44. To combination switch

Air Conditioning System: 7B-12

Component Location

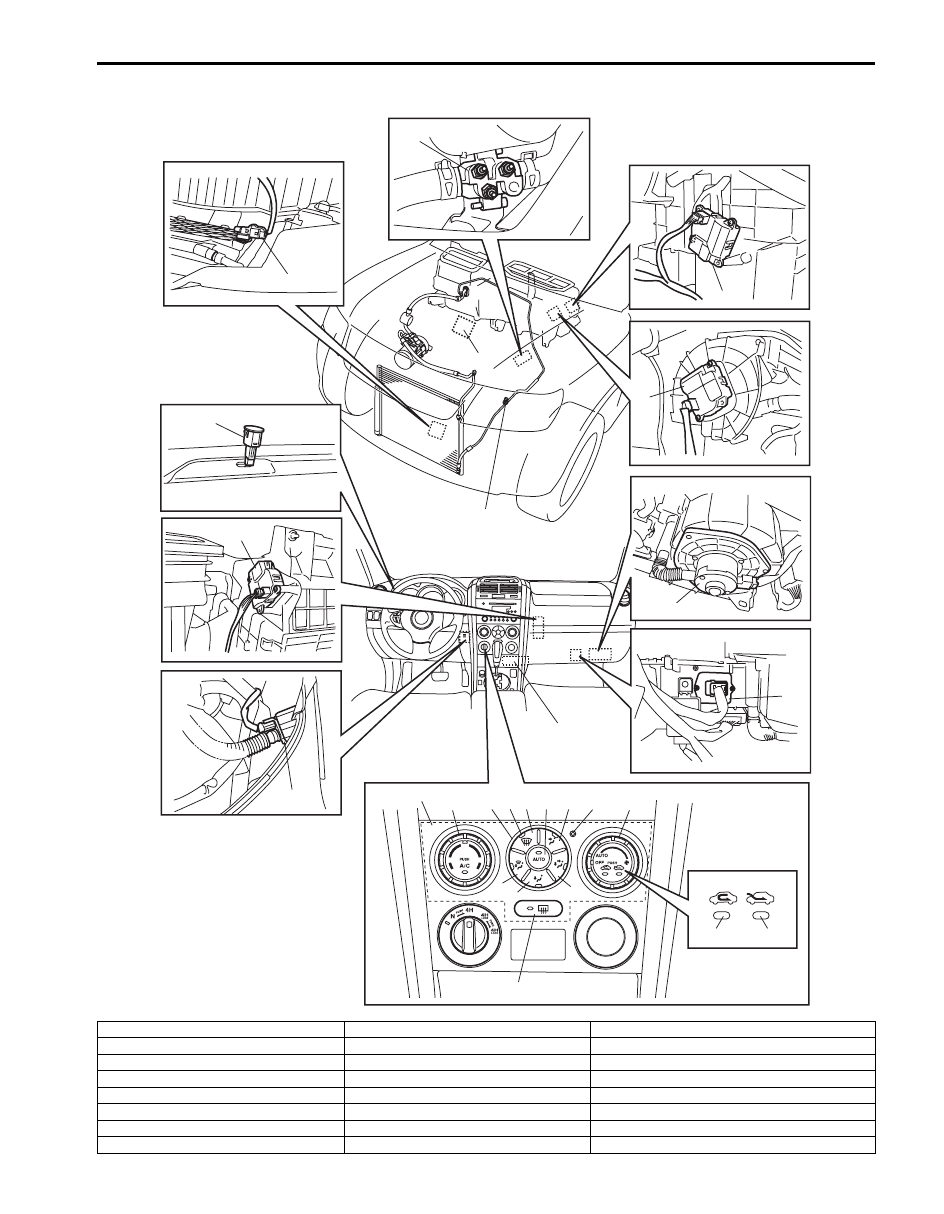

A/C Control System Components Location

S6JB0A7203002

NOTE
The figure shows left-hand steering vehicle. For right-hand vehicle, parts with (*) are installed at the
opposite side.

5. To radiator fan relay No.3

25. Radiator fan No.1

45. AUTO-ON head light system vehicle

6. Ignition switch

26. Radiator fan relay No.2

46. Integration relay No.1

7. Small lamp relay

27. Radiator fan relay No.3

47. Additional heater relay No.1

8. Main relay

28. Radiator fan No.2

48. Additional heater relay No.2

9. Evaporator temperature sensor

29. ECM

49. Additional heater relay No.3

10. Inside air temperature sensor

30. Outside temperature sensor

50. Additional heater No.1

11. Temperature control actuator

31. ABS or ESP

® control module

51. Additional heater No.2

12. Air intake control actuator

32. BCM

52. Additional heater No.3

13. Air flow control actuator

33. Refrigerant pressure sensor

53. To main relay

14. Sunload sensor

34. To fuse box

54. To additional heater relay No.1

15. Data link connector

35. Theft deterrent light

55. To additional heater relay No.2 and No.3

16. HVAC control module

36. Illumination lamp

56. To ECM, TCM, BCM, ABS or ESP

® control module, SDM, 4WD

control module and Immobilizer control module (ICM)

17. Compressor relay

37. Indicator lamp, switch, selector

57. To TCM, 4WD control module, keyless start control module,

Immobilizer control module (ICM), combination meter and steering
angle sensor

18. Rear defogger relay

38. To wheel speed sensor

*: M16 engine model

7B-13 Air Conditioning System:

[A]

*11

*10

24 26

I6JB0A720005-04

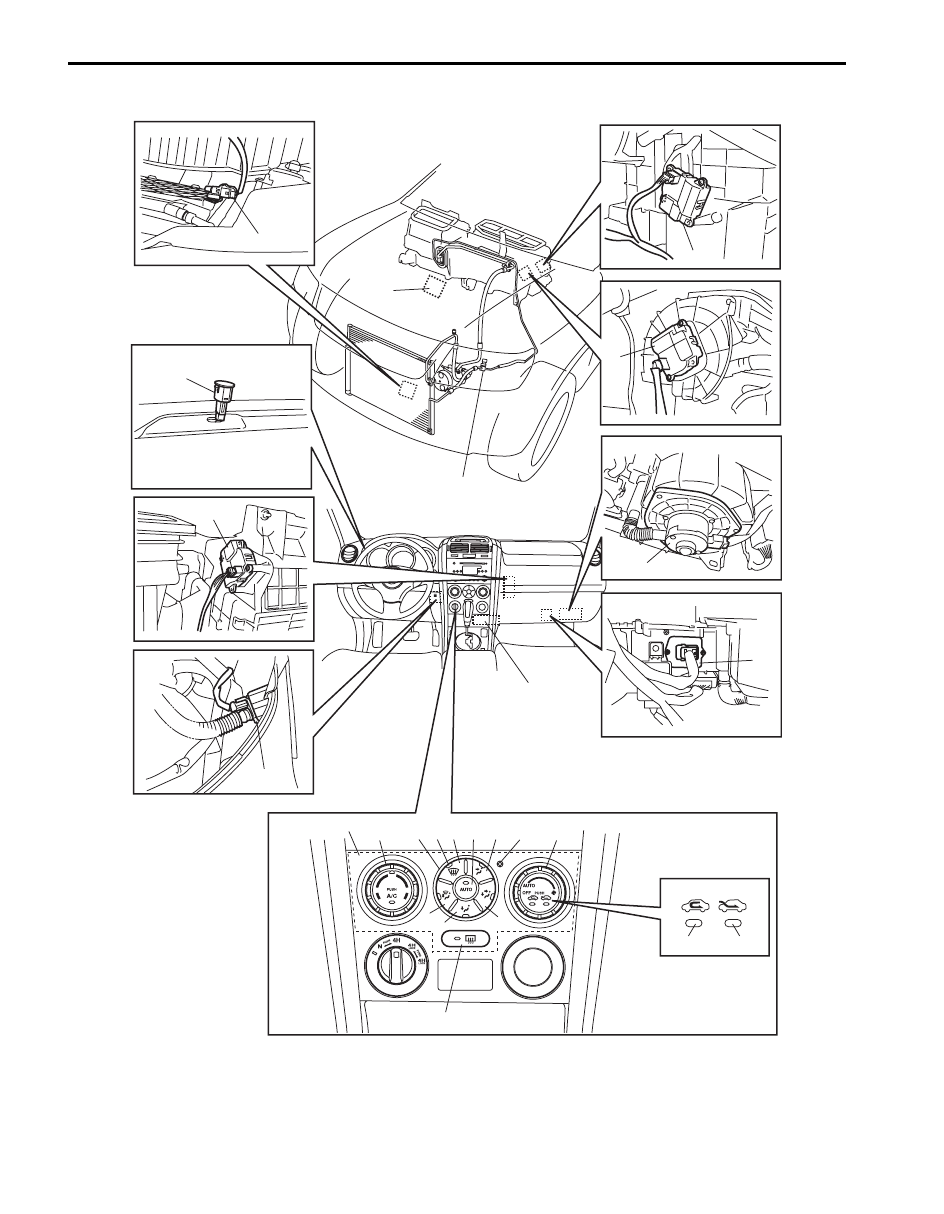

Air Conditioning System: 7B-14

*11

*10

24 26

[B]

I6JB0A720006-03

[A]: Petrol engine model

9. Air flow control actuator

19. Theft deterrent light

[B]: Diesel engine model

10. Blower motor

20. Blower speed selector / Air intake selector

1. Outside temperature sensor

11. Blower motor controller

21. Rear defogger switch

2. Sunload sensor

12. Temperature selector / A/C switch

22. “REC” indicator lamp

3. Inside temperature sensor

13. “DEF” switch

23. “FRE” indicator lamp

4. ECT sensor

14. “DEF / FOOT” switch

24. MODE selector

5. Refrigerant pressure sensor

15. “FOOT” switch

25. HVAC control module (vehicle with A/C)

6. Evaporator temperature sensor

16. “BI-LEVEL” switch

26. “DEF” indicator lamp
