Suzuki Grand Vitara JB416 / JB420 / JB419. Service manual - part 236

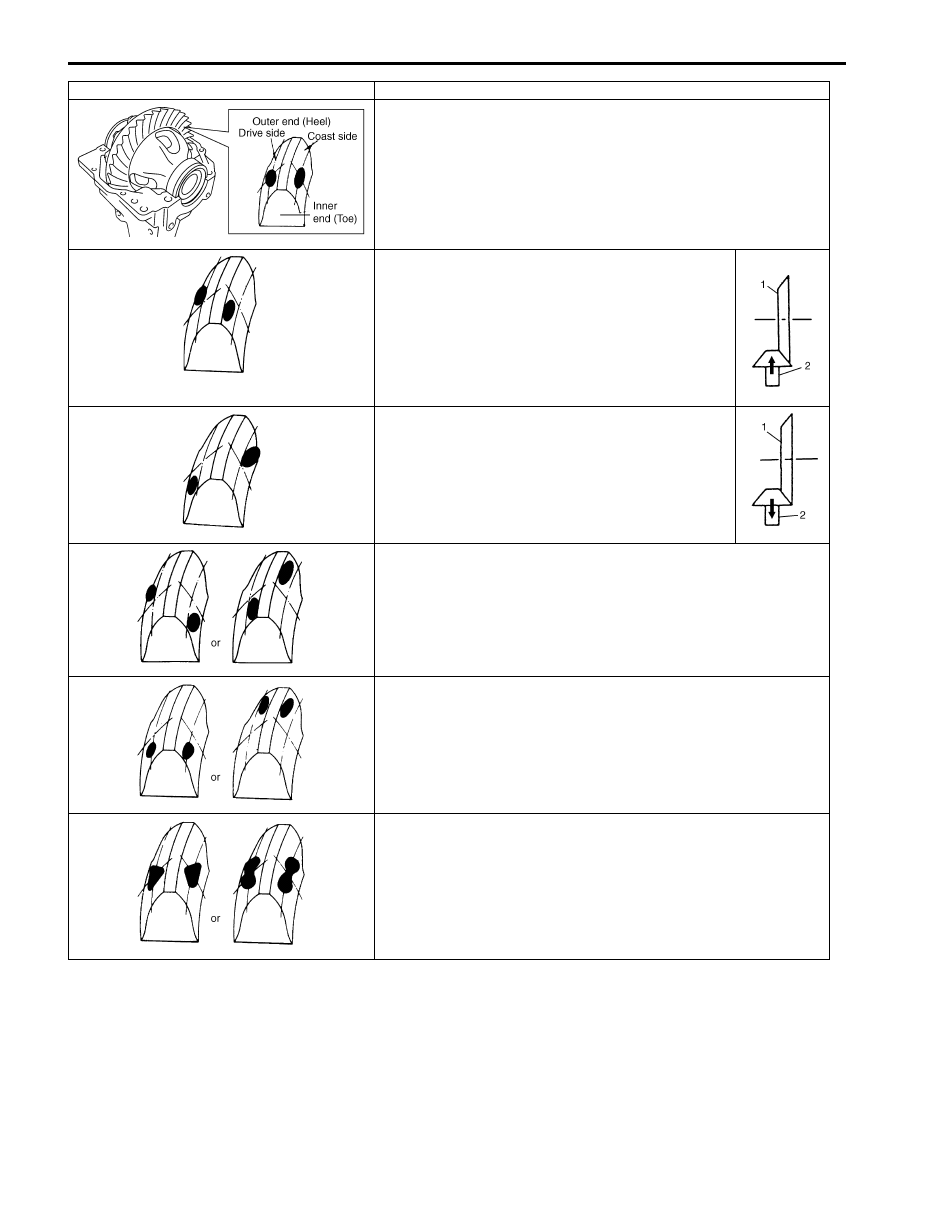

3B-15 Differential: Front

Tooth Contact Pattern

Diagnosis and Remedy

Normal

High Contact
Pinion is positioned too far from the center of drive
bevel gear (1).
• Increase thickness of pinion (2) height adjusting

shim and position pinion closer to gear center.

• Adjust drive bevel gear backlash to specification.

Low Contact
Pinion is positioned too close to the center of drive
bevel gear (1).
• Decrease thickness of pinion (2) height adjusting

shim and position pinion farther from gear center.

• Adjust drive bevel gear backlash to specification.

If adjustment is impossible, replace differential carrier.

• Check seating of bevel gear or differential case. (Check bevel

gear for runout.)

• If adjustment is impossible, replace drive bevel gear and pinion

set or differential carrier.

Replace drive bevel gear and pinion set or differential case.

I5JB0A321041-05

IYSQ01321072-01

IYSQ01321073-01

IYSQ01321074-01

IYSQ01321076-01

IYSQ01321077-01

IYSQ01321078-01

IYSQ01321079-01

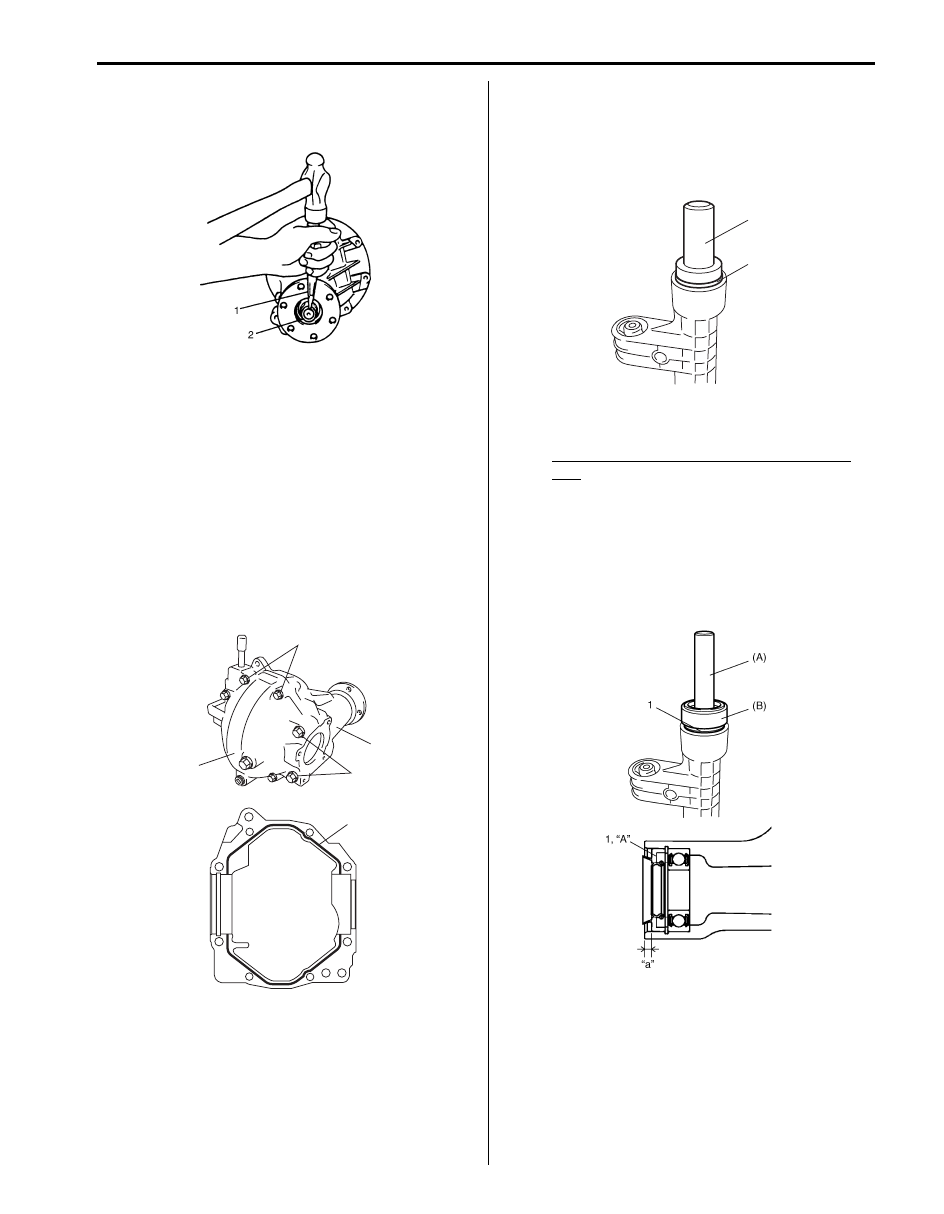

Differential: Front 3B-16

23) Upon completion of gear tooth contact check in Step

22), caulk flange nut (2) with caulking tool (1) and
hammer.

24) Clean mating surface of differential carrier (2) and

rear cover (1), apply sealant to carrier as shown in
figure by such amount that its section is 1.5 mm
(0.059 in.) in diameter, mate rear cover with
differential carrier, and then tighten bolts to specified
torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Rear cover bolt No.1 (a):  50 N·m (5.0 kgf-m, 36.5
lb-ft)
Rear cover bolt No.2 (b):  60 N·m (6.0 kgf-m, 43.5
lb-ft)

25) Assembly front drive shaft retainer as follows.

a) Install front drive shaft bearing (1) using special

tool, and then install snap ring.

Special tool
(A):  09913–75520

b) Apply grease to oil seal lip, and then install oil

seal (1) using special tools as shown in figure.

Distance between retainer surface and oil
seal
“a”: 4.7 – 5.2 mm (0.185 – 0.205 in.)

“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

Special tool
(A):  09924–74510
(B):  09951–16090

I1JA01322021-01

(a)

1

2

(b)

2, “A”

I6JB01321001-03

(A)

1

I5JB0A321043-01

I5JB0A321044-01

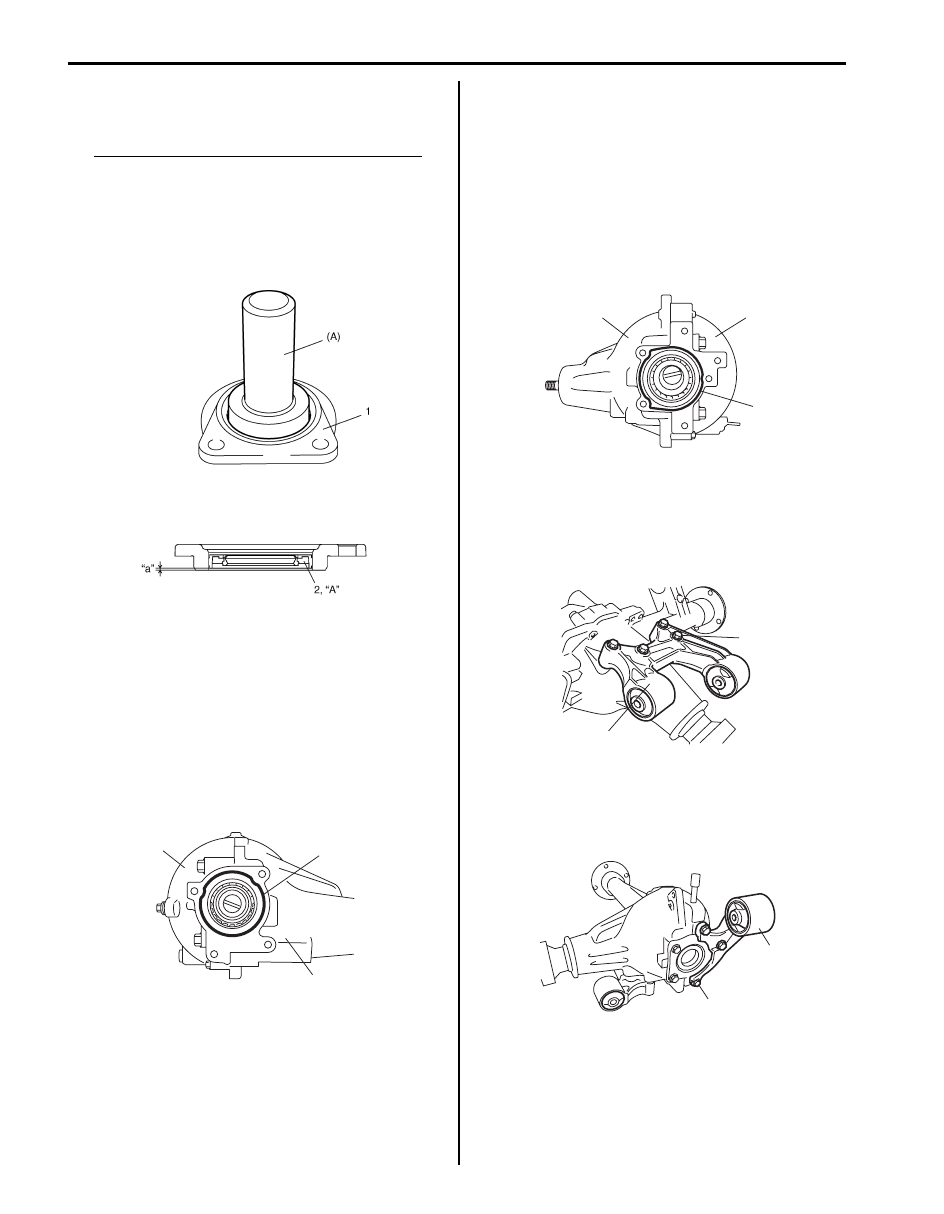

3B-17 Differential: Front

26) Apply grease to oil seal lip, and then install oil seal

into differential side right retainer (1) as shown in
figure.

Distance between retainer surface and oil seal
“a”: 0.65 – 1.65 mm (0.026 – 0.065 in.)

“A”:  Grease 99000–25010 (SUZUKI Super
Grease A)

Special tool
(A):  09913–75520

27) Clean mating surface of right retainer, carrier (1) and

rear cover (2), apply sealant to carrier and rear cover
as shown in figure by such amount that its section is
1.5 mm (0.059 in.) in diameter, mate right retainer
with carrier and rear cover, and then tighten bolts to
specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Retainer bolt:  50 N·m (5.0 kgf-m, 36.5 lb-ft)

28) Clean mating surface of front drive shaft retainer,

carrier (1) and rear cover (2), apply sealant to carrier
and rear cover as shown in figure by such amount
that its section is 1.5 mm (0.059 in.) in diameter,
mate front drive shaft retainer with carrier and rear
cover, and then tighten bolts to specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Retainer bolt:  50 N·m (5.0 kgf-m, 36.5 lb-ft)

29) Install front drive shaft using plastic hammer.
30) Install front differential rear mounting (1).

Tightening torque
Rear mounting bracket bolt (a):  50 N·m (5.0 kgf-
m, 36.5 lb-ft)

31) Install front differential right mounting (1).

Tightening torque
Right mounting bracket bolt (b):  50 N·m (5.0 kgf-
m, 36.5 lb-ft)

I5JB0A321045-01

1

“A”

2

I5JB0A321048-01

“A”

2

1

I5JB0A322014-01

(a)

1

I5JB0A321046-01

1

(b)

I5JB0A321047-02

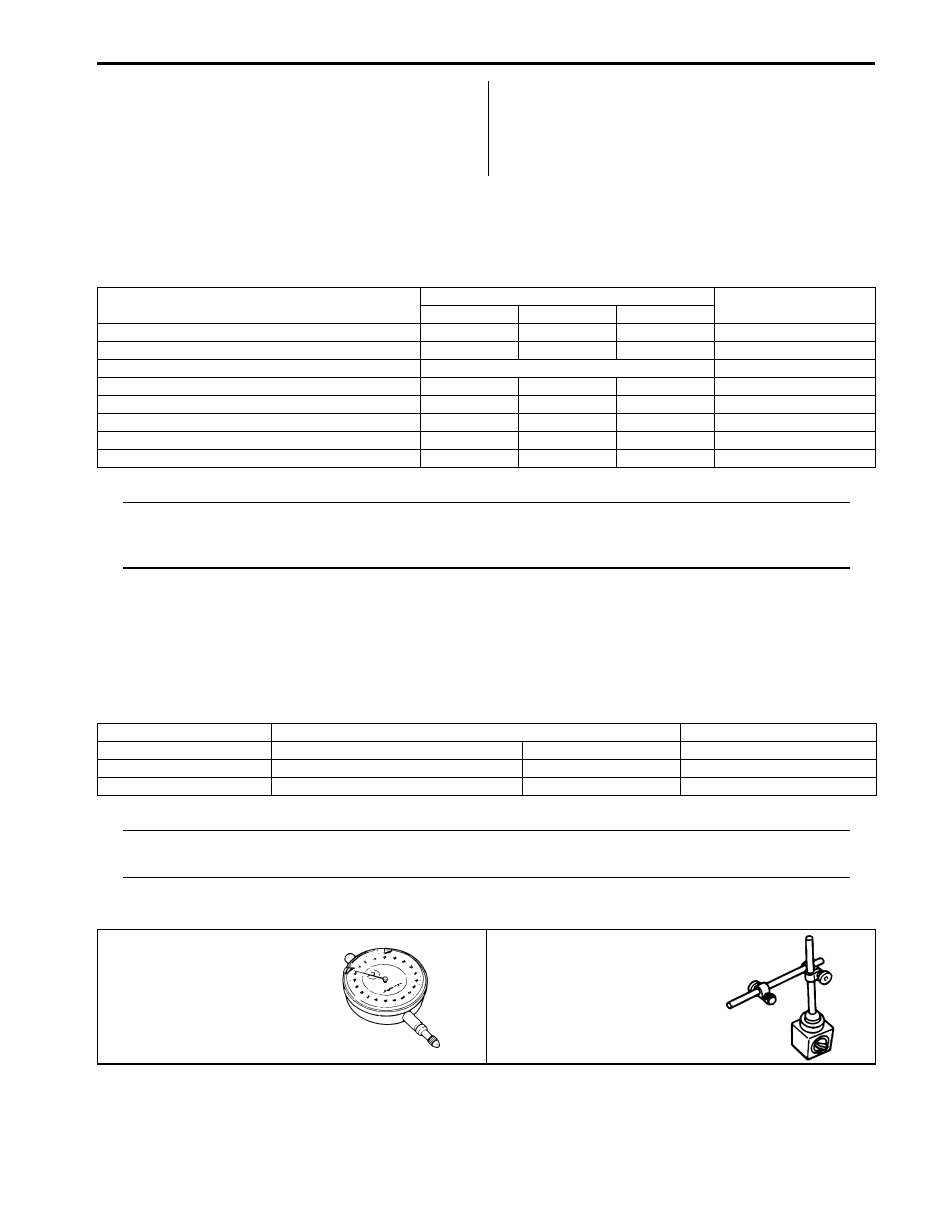

Differential: Front 3B-18

Front Differential Inspection

S6JB0A3216006

• Check companion flange for wear or damage.
• Check bearings for wear or discoloration.
• Check differential carrier for cracks.

• Check drive bevel pinion and drive bevel gear for

wear or cracks.

• Check differential gears, pinions and pinion shafts for

wear or damage.

• Check differential gear spline for wear or damage.

Specifications

Tightening Torque Specifications

S6JB0A3217001

NOTE
The specified tightening torque is also described in the following.
“Front Differential Unit Components: Front”
“Front Differential Components: Front”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0A3218001

NOTE
Required service material is also described in the following.
“Front Differential Components: Front”



Special Tool

S6JB0A3218002

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Differential oil drain plug

23

2.3

17.0

)

Differential oil level / filler plug

23

2.3

17.0

)

Bevel gear bolt

Tighten 40 N

⋅m (4.0 kgf-m, 29.5 lb-ft) + 50°  )

Rear cover bolt No.1

50

5.0

36.5

)

Rear cover bolt No.2

60

6.0

43.5

)

Retainer bolt

50

5.0

36.5

)

 / )

Rear mounting bracket bolt

50

5.0

36.5

)

Right mounting bracket bolt

50

5.0

36.5

)

Material

SUZUKI recommended product or Specification

Note

Grease

SUZUKI Super Grease A

P/No.: 99000–25010

)

 / ) / )

Sealant

SUZUKI Bond No.1217G

P/No.: 99000–31260

)

 / ) / ) / ) / )

Thread lock cement

Thread Lock Cement Super 1322

P/No.: 99000–32110

)

09900–20607

09900–20701

Dial gauge

Magnetic stand

)

 / ) / ) / )

)
