Suzuki Grand Vitara JB416 / JB420 / JB419. Service manual - part 188

1G-25 Fuel System: For Diesel Engine Model

A

B

C

C

C

C

D

D

D

E

E

E

E

E

E

E

E

G

G

G

G

G

G

G

G

I

H

A

B

C

D

E

F

G

H

I

1

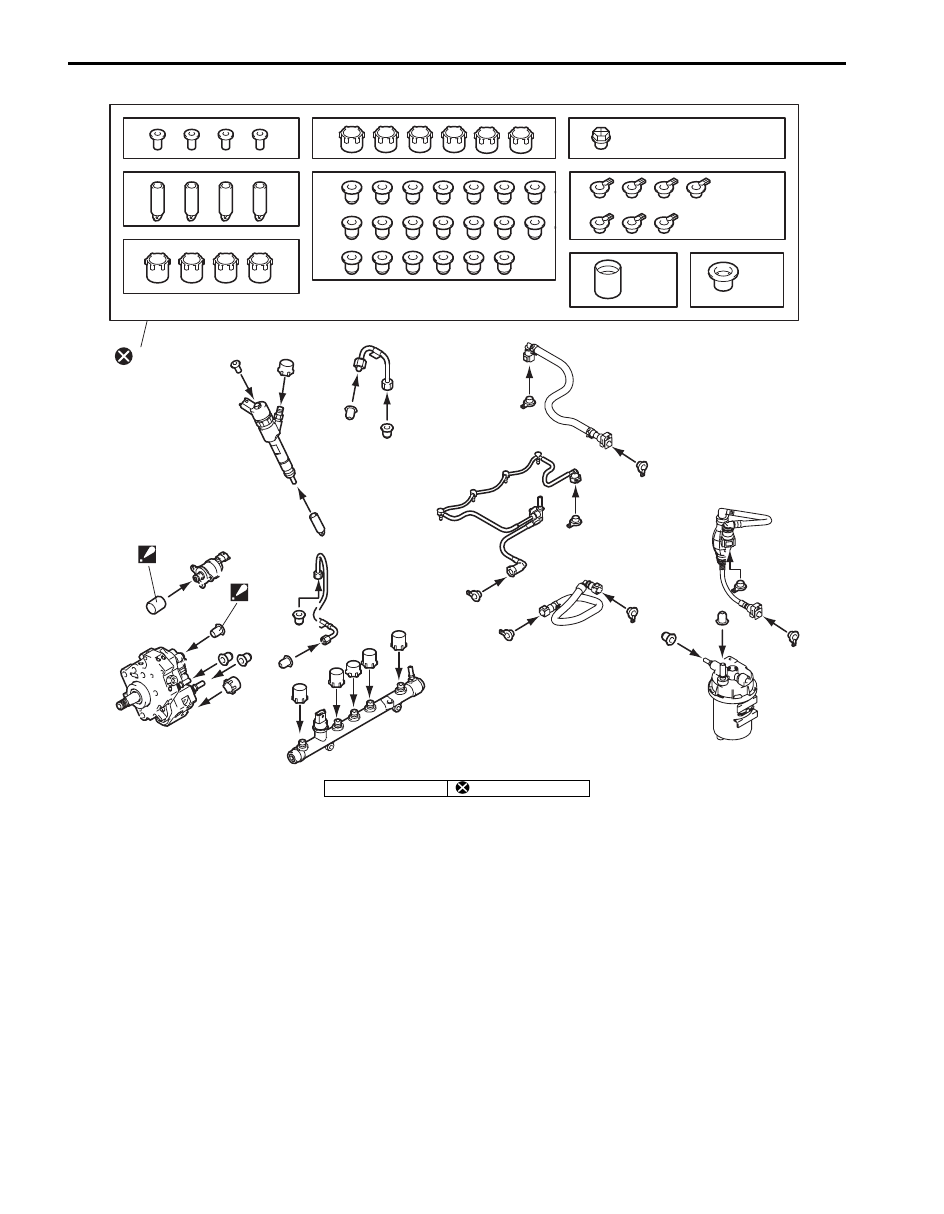

I6JB0A172005-01

1. Plug cap

: Do not reuse.

Fuel System: For Diesel Engine Model 1G-26

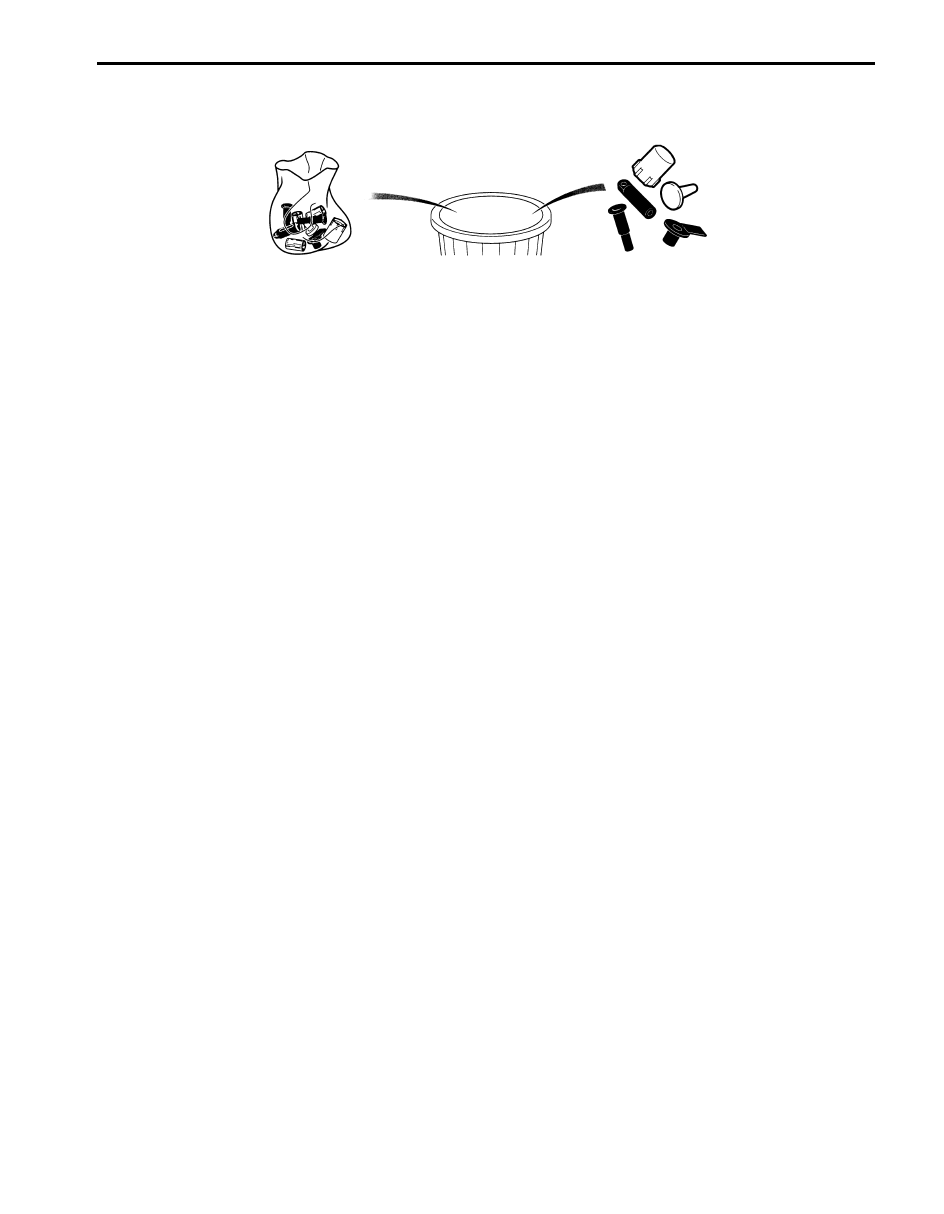

• Ensure that you have hermetically resalable plastic bags for storing removed parts. Stored parts will therefore be

less subject to the risk of impurities. The bags must be used only once, and after use they must be thrown away.

• Make sure that lint-free towelettes. The use of a normal cloth or paper for cleaning purposes is forbidden.

These are not lint-free and may contaminate the fuel circuit of the system. Each lint-free cloth should only be used
once.

• Carry out any servicing as much as possible with the plug cap installed in order to prevent impurities from entering

the system.

• Instructions to be followed before opening the fuel circuit.

– For each operation, use new thinner (used thinner contains impurities). Pour it into a clean receptacle.
– For each operation, use a clean brush which is in good condition (the brush must not shed its bristles).
– Use a brush and thinners to clean the connections to be opened.
– Blow compressed air over the cleaned parts (tools, cleaned the same way as the parts, connections and injection

system zone). Check that no bristles remain adhered.

– Wash your hands before and during the operation if necessary.
– When wearing leather protective gloves, cover these with latex gloves.

• Instructions to be followed during the operation.

– As soon as the circuit is open, all openings must be plugged to prevent impurities from entering the system by

using the plug cap. They must not, under any circumstances, be reused.

– Close the hermetically sealed bag, even if it has to be reopened shortly afterwards.

Ambient air carries contamination.

– All components of the injection system that are removed must be stored in a hermetically sealed plastic bag once

the plugs have been inserted.

– The use of a brush, thinner, bellows, sponge or normal cloth is strictly forbidden once the circuit has been

opened.
These items are likely to allow impurities to enter the system.

– A new component replacing an old one must not be removed from its packaging until it is to be fitted to the

vehicle.

I4RH0A170052-01

1G-27 Fuel System: For Diesel Engine Model

General Description

Fuel System Description

S6JB0A1721001

CAUTION

!



This engine requires the unleaded fuel only. The leaded and/or low lead fuel can result in engine
damage and reduce the effectiveness of the emission control system.



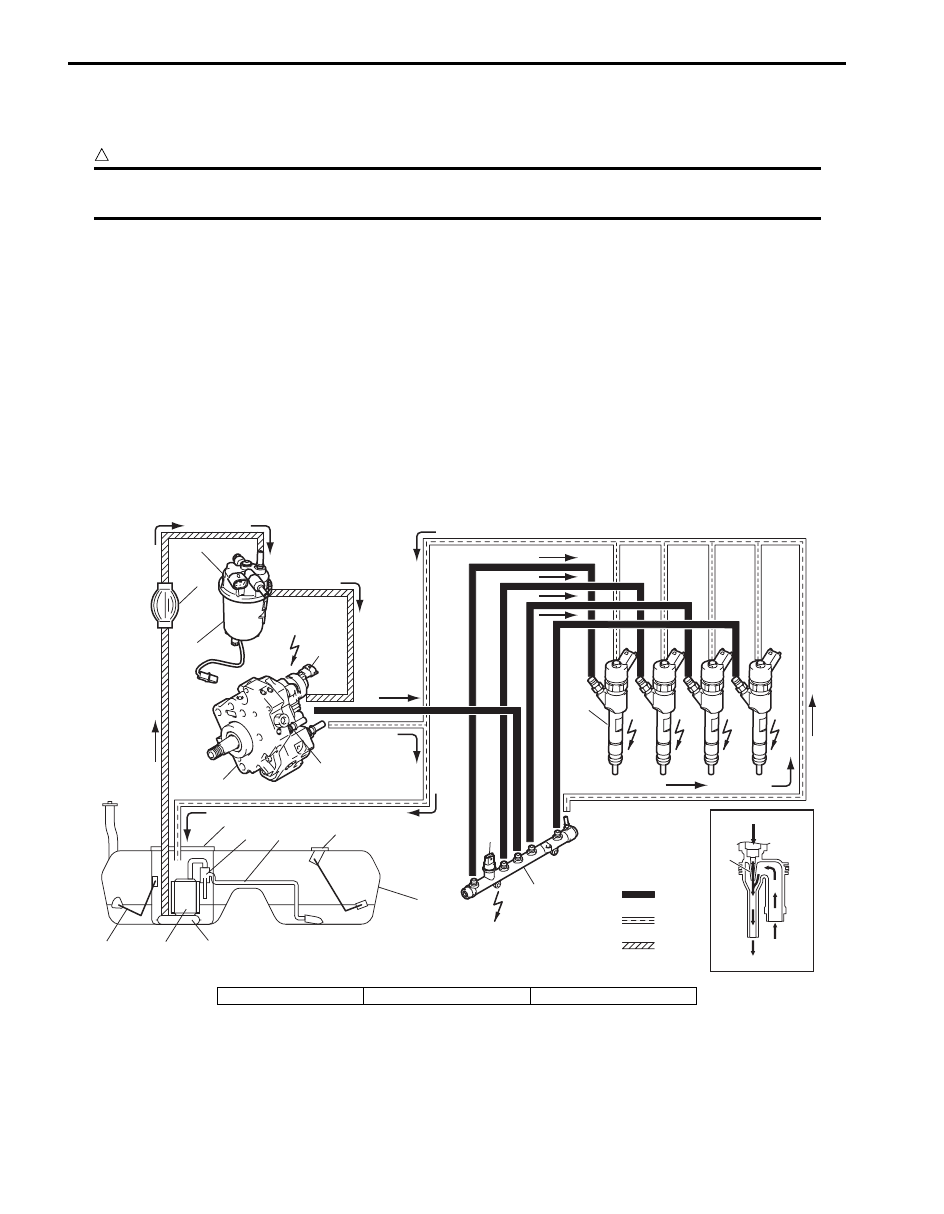

Low-pressure fuel supply circuit [A]
The fuel in the fuel tank (1) is pumped up to the high pressure fuel supply circuit [B] through the priming pump (2), the
fuel filter (3) and the fuel heater (4) by the low pressure fuel pump (5) built in the injection pump (6).
The fuel pump assembly (7) is composed of a fuel pump (8) a fuel suction filter (9), a main fuel level gauge (10) and a
jet pump (11). The fuel pump is an in-tank type electric pump, and the fuel pump is equipped only for the jet pump. The
jet pump sucks up the fuel from the sub fuel level gauge side (12) to the main fuel level gauge side (13) through the
fuel suction pipe/hose (14) by using the negative pressure produced when the pressured fuel (15) with the fuel pump
passes the venturi (16).

High-pressure fuel supply circuit [B]
The injection pump (6) driven by engine rotation creates high-pressure fuel from the low pressure fuel. The high-
pressure fuel is supplied to the common rail (17) through the high-pressure fuel pipe. And, the injectors (18) atomize
the fuel in the cylinders.
The fuel flow actuator (19) located on the injection pump regulates the quantity of fuel to the injection pump by ECM
signal in order to control the fuel pressure in the common rail.

[A]

[B]

[C]

4

2

3

1

7

11

14

9

17

20

18

8

10

12

15

13

16

11

5

6

19

21

I5JB0B170046-02

[C]: Return fuel circuit

20. Fuel pressure sensor

21. Sub fuel level gauge

Fuel System: For Diesel Engine Model 1G-28

Repair Instructions

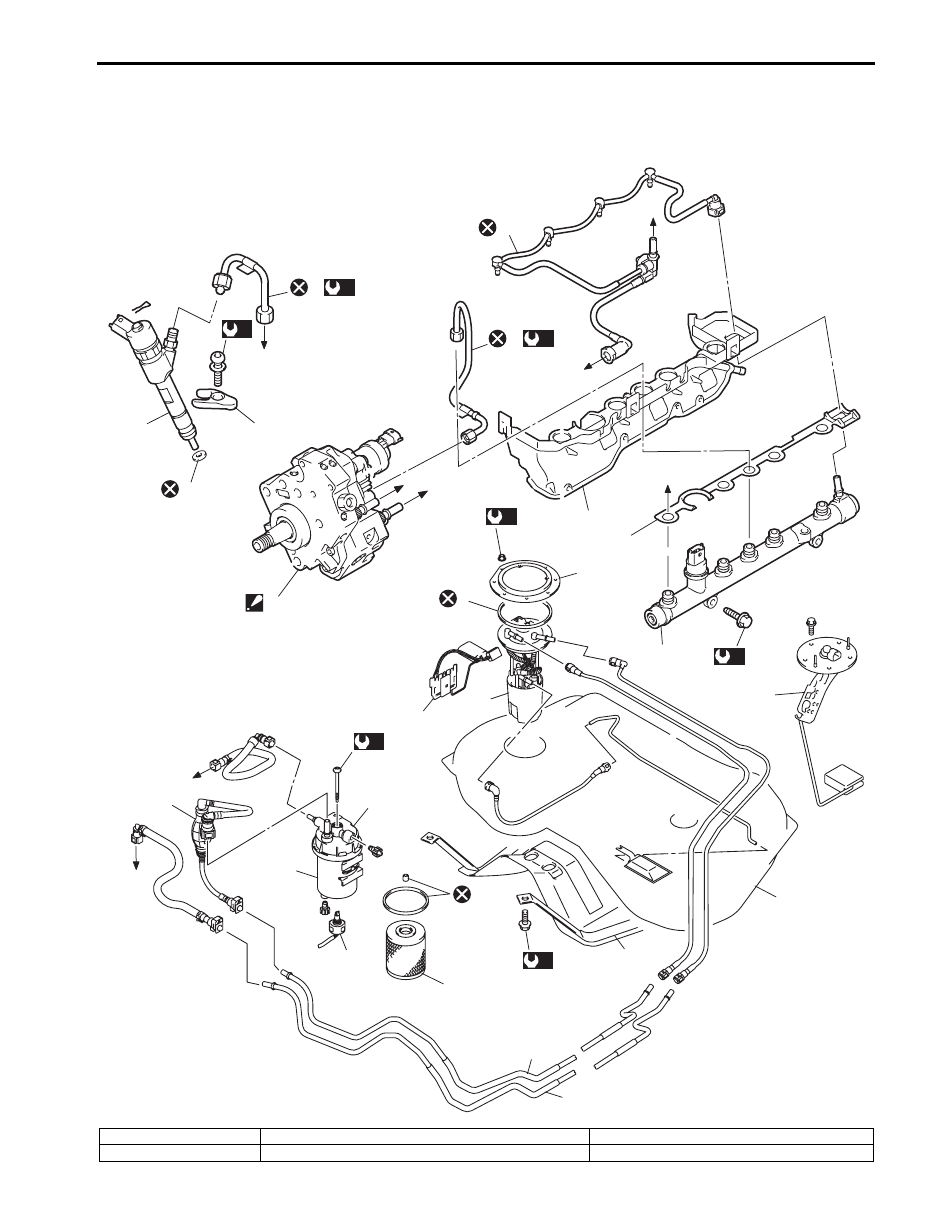

Fuel System Components

S6JB0A1726001

22

23

29

27

26

25

31

20

28

19

18

4

6

1

7

9

8

12

5

2

14

15

11

10

25

27

13

(a)

(b)

(c)

(d)

(e)

16

30

3

17

(e)

21

(e)

24

I6JB0A172004-01

1. Fuel tank

13. O-ring

25. To injection pump

2. Fuel pump assembly

14. Fuel heater

26. To fuel filter
