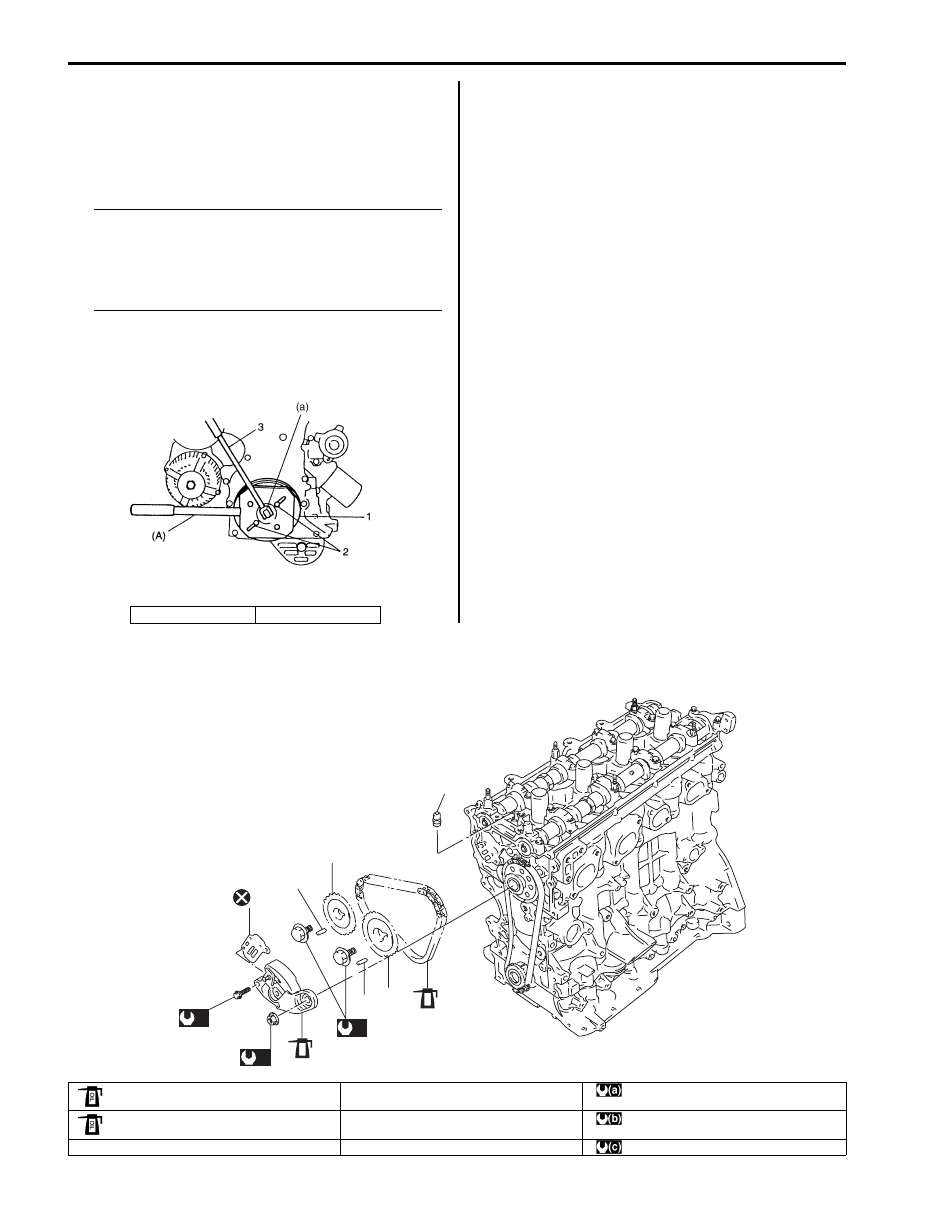

1D-86 Engine Mechanical: For J20 Engine

10) Install crankshaft pulley. To lock crankshaft pulley

(1), use special tool (camshaft pulley holder) as
shown in figure.

Special tool
(A):  09917–68221

NOTE
Be sure to use the following bolts instead of
pins in order to fix crank pulley by special
tool.
Bolt size: M8, P1.25 L = 25 mm (0.98 in.)
Strength: 7T



Tightening torque
Crankshaft pulley bolt (a):  150 N·m (15.0 kgf-m,
108.5 lb-ft)

11) Install engine assembly to vehicle referring to

“Engine Assembly Removal and Installation: For J20
Engine”.

Timing Chain Cover Cleaning and Inspection

S6JB0A1426014

Clean
Clean sealing surface on timing chain cover, crank case,
cylinder block and cylinder head.
Remove oil, old sealant, and dust from sealing surface.

Inspection
Check oil seal lip for fault or other damage. Replace as
necessary.

2nd Timing Chain and Chain Tensioner Components

S6JB0A1426015

2. Bolt

3. Wrench

I2RH01140060-01

10

4

9

5

1

9

OIL

2

OIL

3

8

(a)

7

(c)

6

(b)

I5JB0A142023-02

 1. 2nd timing chain

: Apply engine oil

6. Camshaft timing sprocket bolt

: 11 N

⋅m (1.1 kgf-m, 8.0 lb-ft)

 2. Timing chain tensioner adjuster No.2

: Apply engine oil to sliding surface.

7. Timing chain tensioner adjuster No.2 nut

: 80 N

⋅m (8.0 kgf-m, 58.0 lb-ft)

3. Tensioner adjuster No.2 gasket

8. Timing chain tensioner adjuster No.2 bolt

: 45 N

⋅m (4.5 kgf-m, 32.5 lb-ft)

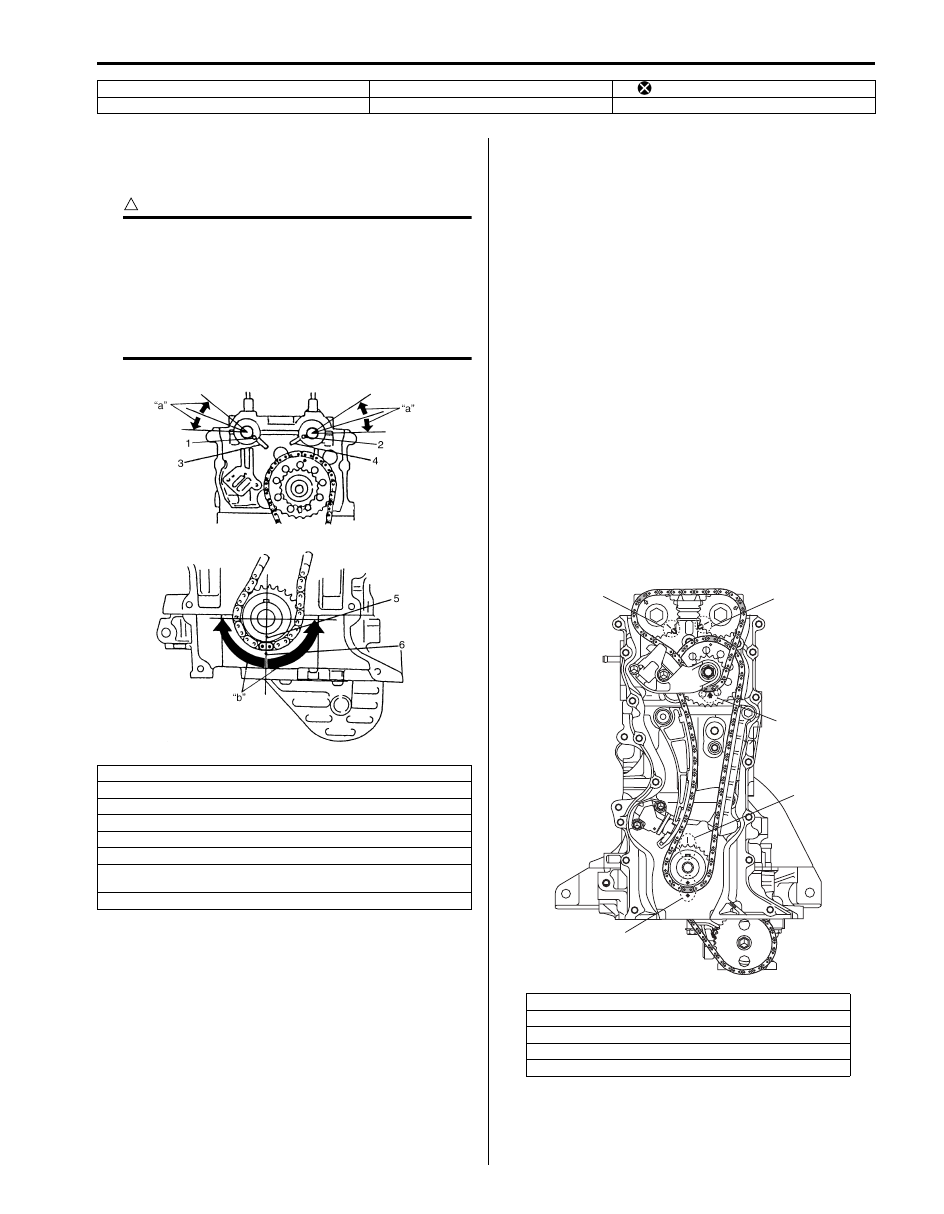

Engine Mechanical: For J20 Engine 1D-87

2nd Timing Chain and Chain Tensioner
Removal and Installation

S6JB0A1426016

CAUTION

!



After 2nd timing chain is removed, never turn
intake camshaft, exhaust camshaft and
crankshaft independently more than such an
extent as shown. If turned, interference may
occur between piston and valves and valves
themselves, and parts related to piston and
valves may be damaged.



Removal

1) Remove engine assembly from vehicle referring to

“Engine Assembly Removal and Installation: For J20
Engine”.

2) Remove oil pan. Refer to “Oil Pan and Oil Pump

Strainer Removal and Installation: For J20 Engine in
Section 1E” for removal.

3) Remove cylinder head cover. Refer to “Cylinder

Head Cover Removal and Installation: For J20
Engine” for removal.

4) Remove timing chain cover. Refer to “Timing Chain

Cover Removal and Installation: For J20 Engine” for
removal.

5) Turn crankshaft clockwise to meet the following

conditions.
• Key on crankshaft match with mark on cylinder

block (I).

• Arrow mark on idler sprocket points upward (II).
• Marks on cam sprockets match with marks on

cylinder head (III).

• Mark on crank sprocket match with mark on lower

crankcase (IV).

4. Intake camshaft timing sprocket

9. Pin

: Do not reuse.

5. Exhaust camshaft timing sprocket

10. Oil relief valve

1. Knock pin of intake camshaft
2. Knock pin of exhaust camshaft
3. Timing mark of intake side
4. Timing mark of exhaust side
5. Match mark on crank timing sprocket
6. Timing mark on lower crankcase

“a”: Camshafts (IN & EX) allowable turning range..... Within 20

° on both

right and left

“b”: Crankshaft allowable turning range..... Within 90

° on both right and left

I5JB0A142060-01

1. Timing marks of intake camshaft timing sprocket
2. Timing marks of exhaust camshaft timing sprocket
3. Arrow mark on idler sprocket
4. Key on crankshaft
5. Timing mark of crankshaft timing sprocket

2, (III)

1, (III)

3, (II)

4, (I)

5, (IV)

I5JB0A142024-01

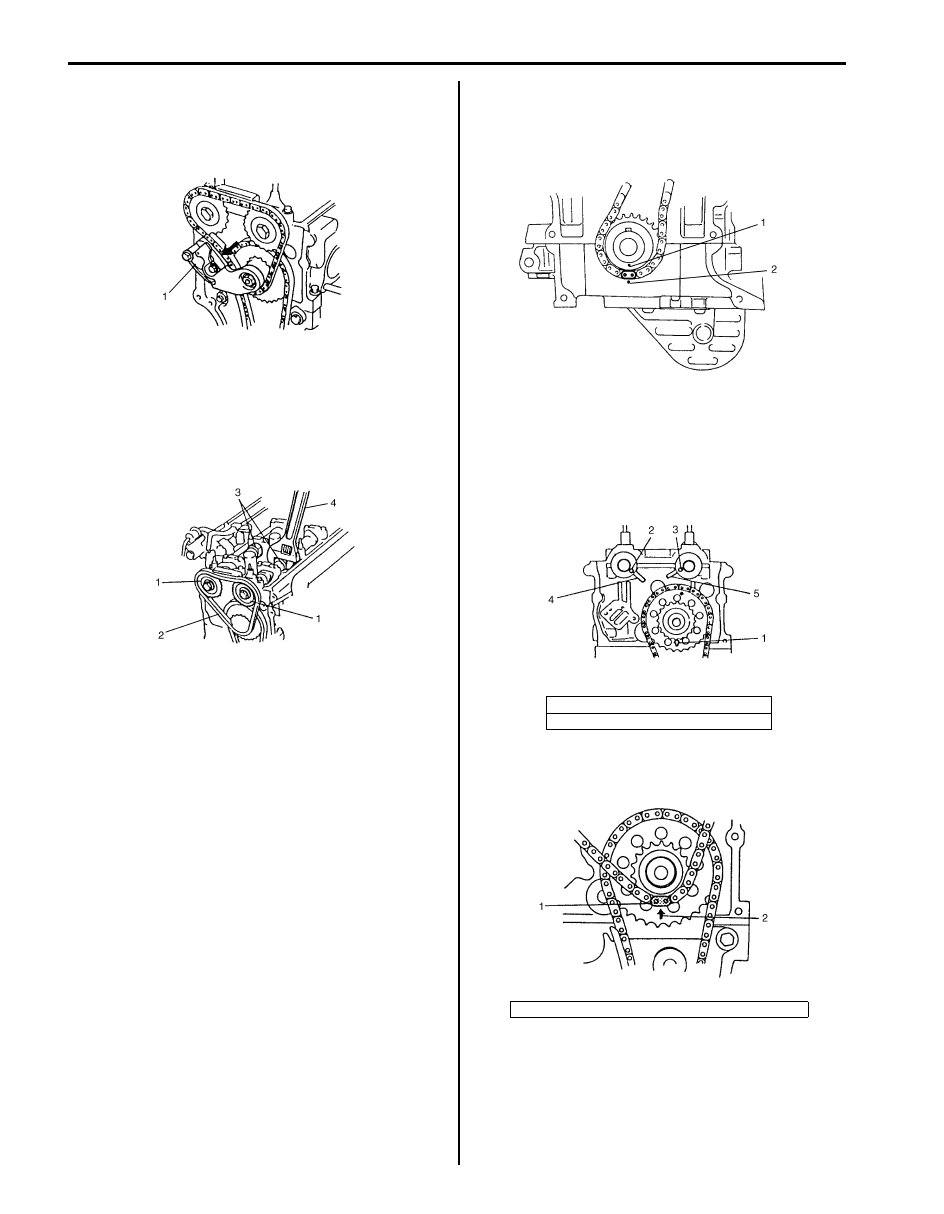

1D-88 Engine Mechanical: For J20 Engine

6) Remove timing chain tensioner adjuster No.2 (1) and

gasket. To remove them, slacken 2nd timing chain
by turning intake camshaft counterclockwise a little
while pushing back pad.

7) Remove intake and exhaust camshaft timing

sprocket bolts (1). To remove them, fit a spanner (4)
to hexagonal part (3) at the center of camshaft to
hold it stationary.

8) Remove camshaft timing sprockets and 2nd timing

chain (2).

Installation

1) Check that match mark (1) on crank timing sprocket

is in match with timing mark (2) on lower crankcase
as shown in figure.

2) Check that arrow mark (1) on idler sprocket faces

upward as shown in figure.

3) Check that knock pins of intake (2) and exhaust (3)

camshafts are aligned with timing marks on cylinder
head as shown in figure.

4) Install 2nd timing chain by aligning yellow plate (1) of

2nd timing chain and match marks on idler sprocket.

I2RH01140064-01

I5JB0A142025-01

4. Timing mark of intake side
5. Timing mark of exhaust side

2. Match mark of 2nd timing chain (Arrow mark)

I2RH01140067-01

I2RH01140068-01

I2RH01140069-01

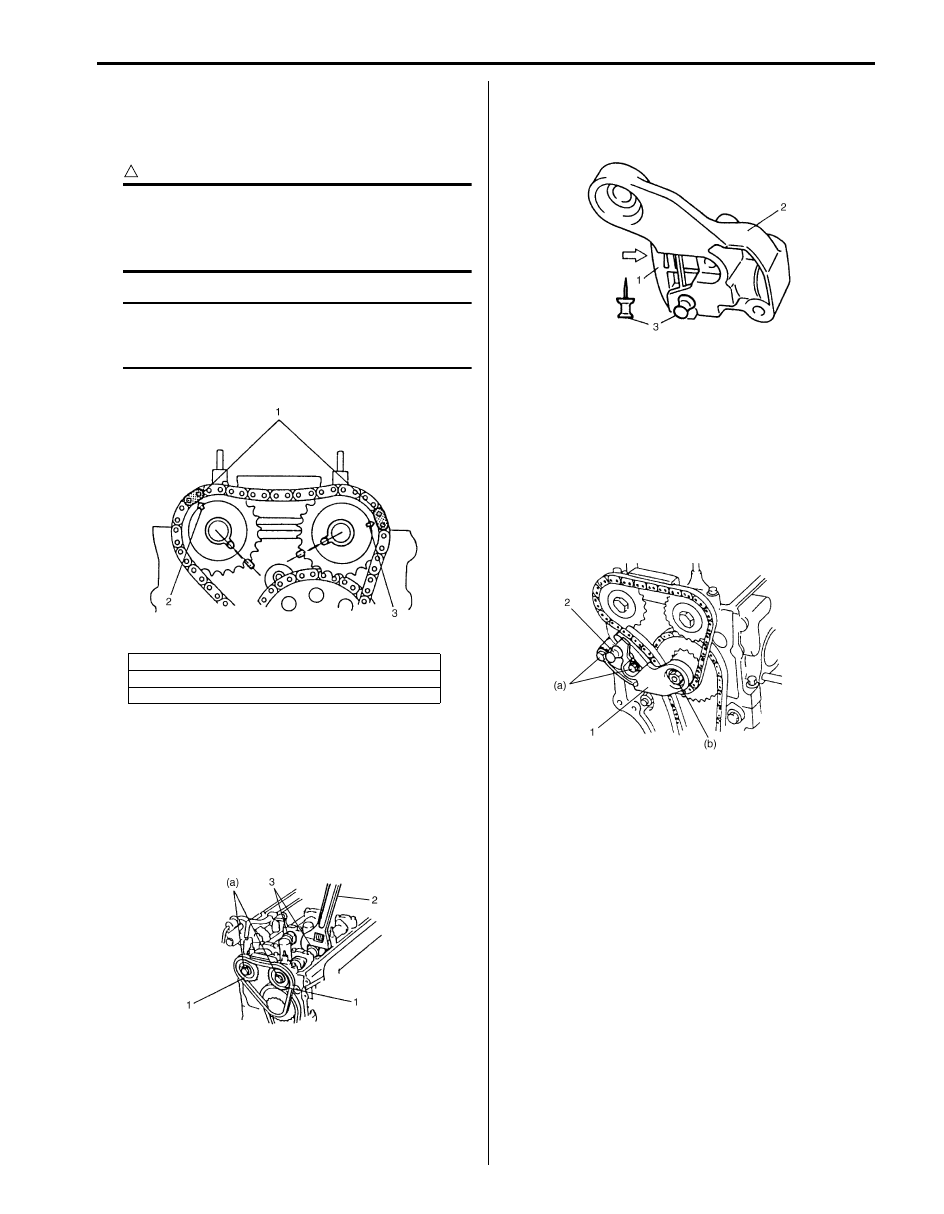

Engine Mechanical: For J20 Engine 1D-89

5) Install sprockets to intake and exhaust camshafts by

aligning dark blue plate of 2nd timing chain, match
marks on intake sprocket and exhaust sprocket
respectively.

CAUTION

!



Do not turn more than allowable turning
range.
If turned excessively, valve and piston may
be damaged.



NOTE
As an arrow mark is provided on both sides,
camshaft timing sprocket has no specific
installation direction.



6) Tighten intake and exhaust camshaft timing sprocket

bolts (1) to specified torque. To tighten it, fit a
spanner (2) to hexagonal part (3) at the center of
camshaft to hold it stationary.

Tightening torque
Camshaft timing sprocket bolt (a):  80 N·m (8.0
kgf-m, 57.5 lb-ft)

7) Push back plunger (1) into tensioner body (2), and

hold it at the position by inserting stopper (3) into
body.

8) Install timing chain tensioner adjuster No.2 (1) with

new gasket.

Tightening torque
Timing chain tensioner adjuster No.2 bolt (a):  11
N·m (1.1 kgf-m, 8.0 lb-ft)
Timing chain tensioner adjuster No.2 nut (b):  45
N·m (4.5 kgf-m, 33.0 lb-ft)

9) Pull out stopper (2) from timing chain tensioner

adjuster No.2.

1. Dark blue
2. Arrow mark on intake camshaft timing sprocket
3. Arrow mark on exhaust camshaft timing sprocket

I2RH01140070-01

I5JB0A142061-01

I2RH01140072-01

I2RH01140073-01
