1C-32 Engine Electrical Devices: For Diesel Engine Model

Boost Pressure Control Solenoid Valve
Inspection

S6JB0A1326030

1) Remove boost pressure control solenoid valve

referring to “Boost Pressure Control Solenoid Valve
Removal and Installation: For Diesel Engine Model”.

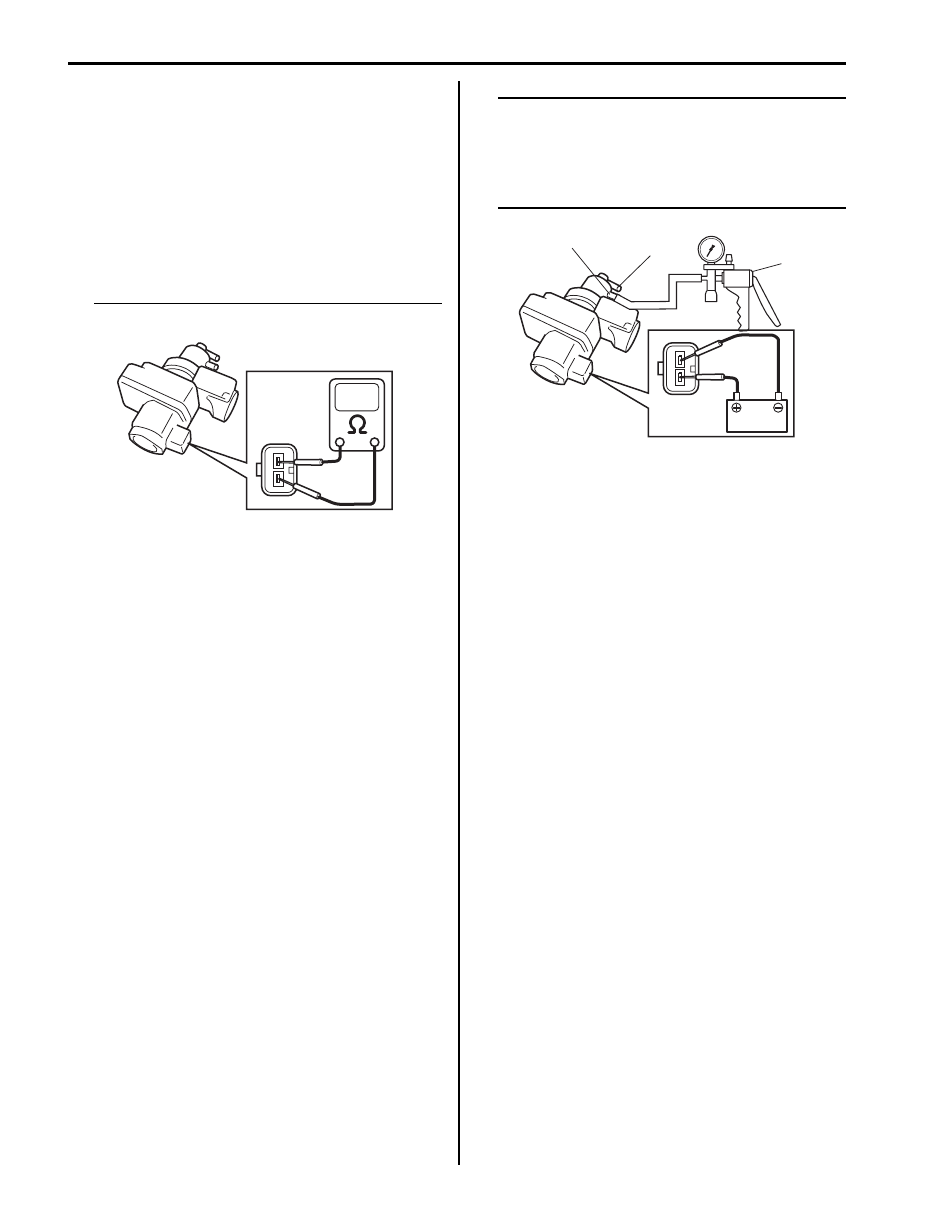

2) Check the resistance between terminals of boost

pressure control solenoid valve is within
specification.
If resistance is not as specified, replace boost
pressure control solenoid valve.

Boost pressure control solenoid valve resistance
14.7 – 16.1

Ω at 20 °C, 68 °F

3) Using special tool, check operation of boost

pressure solenoid valve as follows.

Special tool
(A): 09917–47011

a) Check if vacuum is applied at nozzle “a” with

nozzle “b” blocked off.
If vacuum is applied, replace solenoid valve.

b) Connect battery to solenoid valve as shown in

figure.
In this state, check if vacuum is applied up to 40
kPa (0.4 kg/cm

, 5.7 psi) in the same manner as

step a).
If applied vacuum is lower than specified value,
replace solenoid valve.

NOTE

• It is necessary to pump lever of special

tool several times quickly in order to
increase vacuum up to specified value.

• Valve does not hold vacuum but it does not

indicate anything faulty.

Turbocharger Electric Water Pump Removal
and Installation

S6JB0A1326031

Removal

1) Disconnect negative cable at battery.
2) Drain cooling system referring to “Cooling System

Components: For Diesel Engine Model in Section
1F”.

3) Remove turbocharger electric water pump referring

to “Cooling System Components: For Diesel Engine
Model in Section 1F”.

Installation
Reverse removal procedure for installation noting the
following.
• Refill cooling system referring to “Cooling System

Refilling: For Diesel Engine Model in Section 1F”.

• Check cooling system leakage referring to “Engine

Cooling System Inspection and Cleaning: For Diesel
Engine Model in Section 1F”.

I5JB0B130015-01

(A)

“a”

“b”

I5JB0B130016-02

Engine Electrical Devices: For Diesel Engine Model 1C-33

Turbocharger Electric Water Pump Inspection

S6JB0A1326032

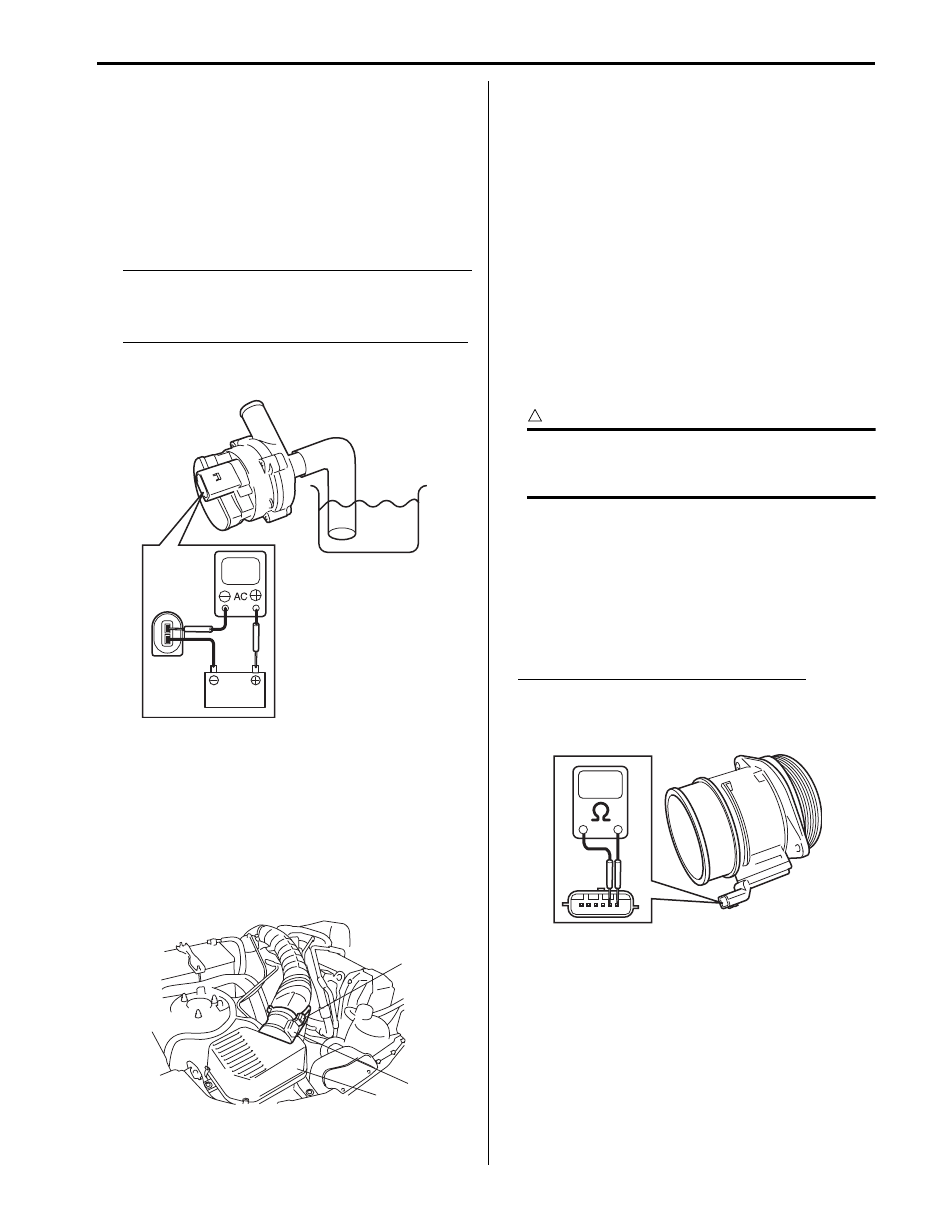

1) Connect 12 V battery terminals to turbocharger

electric water pump terminals.

2) Check if turbocharger electric water pump operates

smoothly without noise.

3) Check if ammeter indicates the specified current.

If measured current is out of specification, replace
turbocharger electric water pump.

Turbocharger electric water pump current at 12 V
1 – 1.3 A at 23

°C, 73 °F

4) Check pumping rate.

Turbocharger electric water pump pumping rate:
More than 850 L/h. (1796 US pt./h., 1496 Imp pt./
h.). at 23

°C, 73 °F

Mass Air Flow (MAF) and Intake Air
Temperature (IAT) Removal and Installation

S6JB0A1326033

Removal

1) Disconnect negative cable at battery.
2) Disconnect MAF and IAT sensor connector (1).
3) Remove MAF and IAT sensor (2) from air cleaner

(3).

Installation
Reverse removal procedure noting the followings.
• Tighten MAF and IAT sensor screws to specified

torque.

Tightening torque
MAF and IAT sensor screw: 6 N·m (0.6 kgf-m, 4.5
lb-ft)

• Tighten turbocharger inlet hose clamp to specified

torque.

Tightening torque
Inlet hose clamp: 2.5 N·m (0.25 kgf-m, 2.0 lb-ft)

• Connect MAF and IAT sensor connector securely.

Mass Air Flow (MAF) and Intake Air
Temperature (IAT) Sensor Inspection

S6JB0A1326034

CAUTION

Do not heat up MAF and IAT sensor more
than 100

°C (212 °F). Otherwise, MAF and IAT

sensor will be damaged.

• Check sensor O-ring (1) for damage and

deterioration. Replace as necessary.

• Blow hot air to temperature sensing part (2) of MAF

and IAT sensor (3) using hot air drier (4) and measure
resistance between sensor terminals while heating air
gradually.
If measured resistance does not show such
characteristic as shown, replace MAF and IAT sensor.

Intake air temperature sensor resistance
10

°C (50 °F): 3.55 – 3.87 kΩ

°C (68 °F): 2.35 – 2.54 kΩ

°C (86 °F): 1.61 – 1.73 kΩ

Inlet Throttle Valve Removal and Installation

S6JB0A1326035

Refer to “Air intake Pipe Removal and Installation: For
F9Q Engine in Section 1D”.

I5JB0B130017-01

I5JB0B130018-01

I5JB0B130019-02

1C-34 Engine Electrical Devices: For Diesel Engine Model

Inlet Throttle Valve On-Vehicle Inspection

S6JB0A1326036

CAUTION

Do not disassembly inlet throttle valve.

1) Connect SUZUKI scan tool to data link connector

(DLC) with ignition switch OFF.

2) Check that no abnormality is detected in ECM.

Refer to “DTC Check: For Diesel Engine Model in
Section 1A”.

3) Turn ignition switch to ON position and select menu

“Electronic Throttle Control” under “Miscellaneous
test” (“MISC. TEST”) mode of SUZUKI scan tool.
Follow the instructions indicated on the SUZUKI
scan tool.

NOTE
For further details, refer to the operator’s
manual for SUZUKI scan tool.

4) Confirm the inlet throttle valve operates five times. If

inlet throttle valve does nit operate, replace inlet
throttle valve referring to “Inlet Throttle Valve
Removal and Installation: For Diesel Engine Model”.

CAUTION

When replacing inlet throttle valve, perform
“Initialize inlet throttle valve date” mode of
SUZUKI scan tool referring to “Inlet Throttle
Valve Data Initialization: For Diesel Engine
Model”.

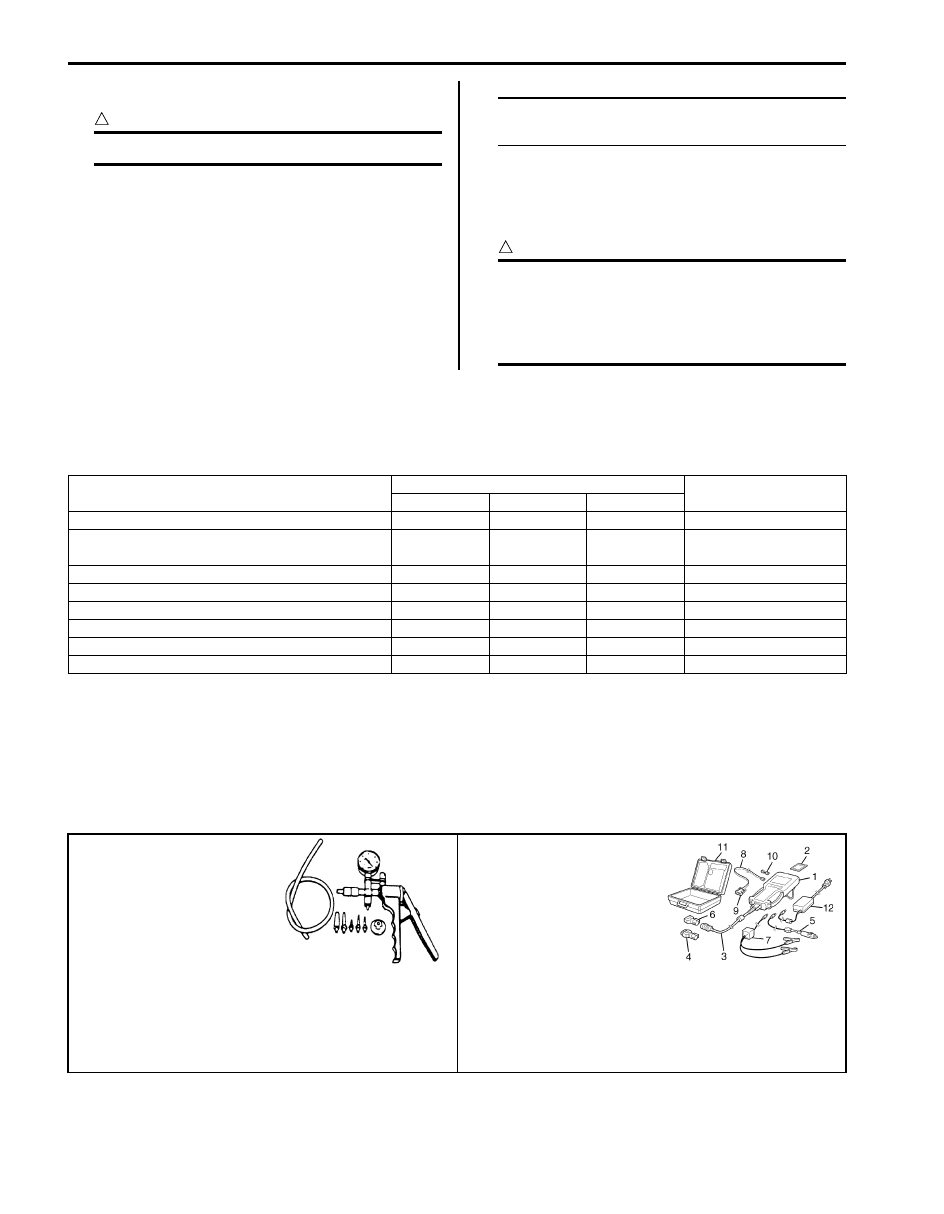

Specifications

Tightening Torque Specifications

S6JB0A1327001

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Special Tool

S6JB0A1328001

Fastening part

Tightening torque

Note

⋅m

kgf-m

lb-ft

Glow plug

1.5

11.0

)

Accelerator pedal position (APP) sensor
assembly nut

6.0 0.6 4.5

)

APP sensor assembly bracket nut

6.0

0.6

4.3

)

Throttle body to EGR valve pipe

2.1

15.5

)

CKP sensor bolt

1.1

8.0

)

Boost pressure sensor bolt

0.8

6.0

)

MAF and IAT sensor screw

0.6

4.5

)

Inlet hose clamp

2.5

0.25

2.0

)

09917–47011

SUZUKI scan tool

Vacuum pump gauge

—

)

This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. ) / ) / )
/ )

Engine Mechanical: For M16A Engine with VVT 1D-1

Engine

Engine Mechanical

For M16A Engine with VVT

General Description

Engine Construction Description

S6JB0A1411001

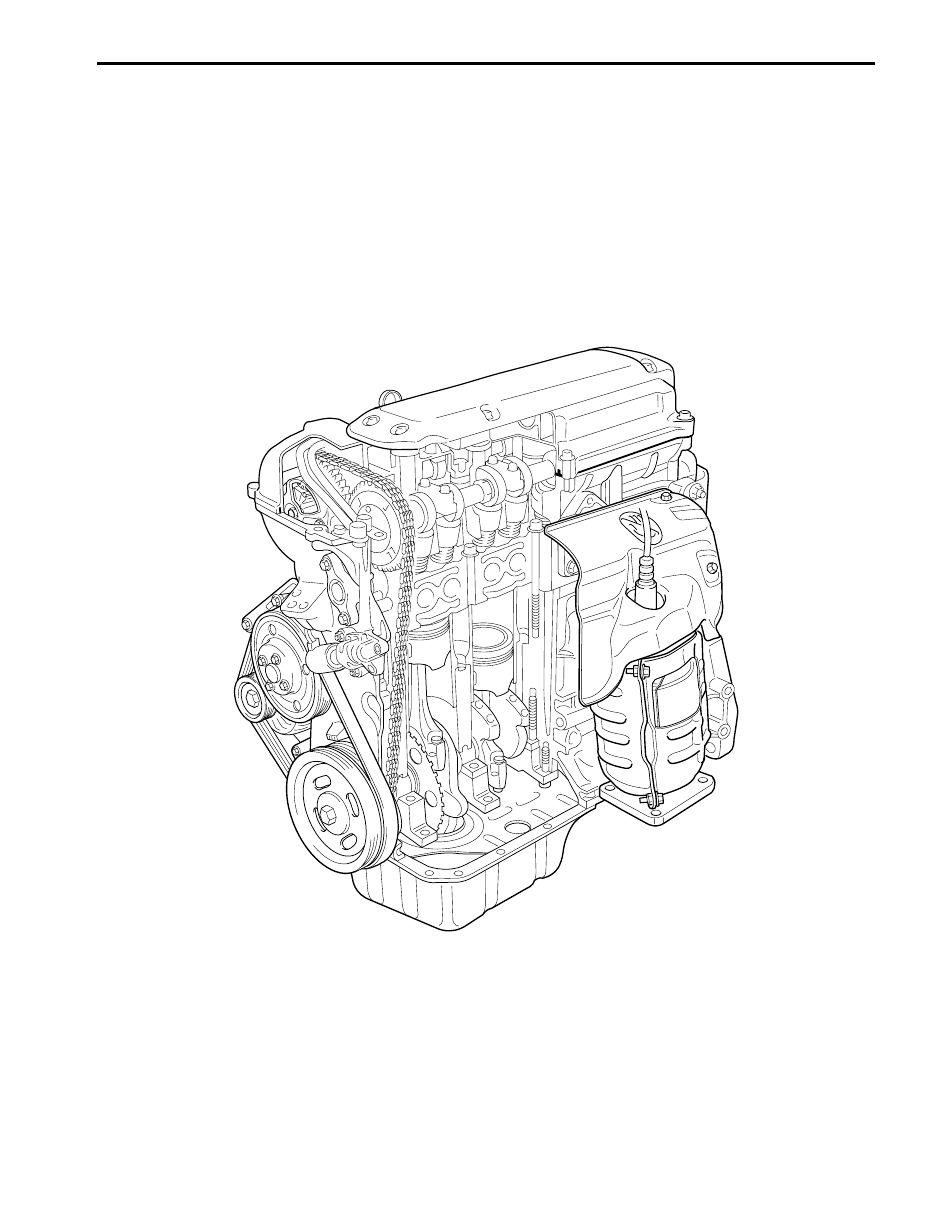

The engine is water-cooled, in line 4 cylinders, 4 stroke cycle gasoline unit with its DOHC (Double overhead camshaft)
valve mechanism arranged for “V” type valve configuration and 16 valves (4 valves / one cylinder). The double
overhead camshaft is mounted over the cylinder head; it is driven from crankshaft through timing chain, and no push
rods are provided in the valve train system.

I3RM0A140001-01
