Wiring Systems:  9A-34

L: Rear height sensor wire

R: Fuel pump wire

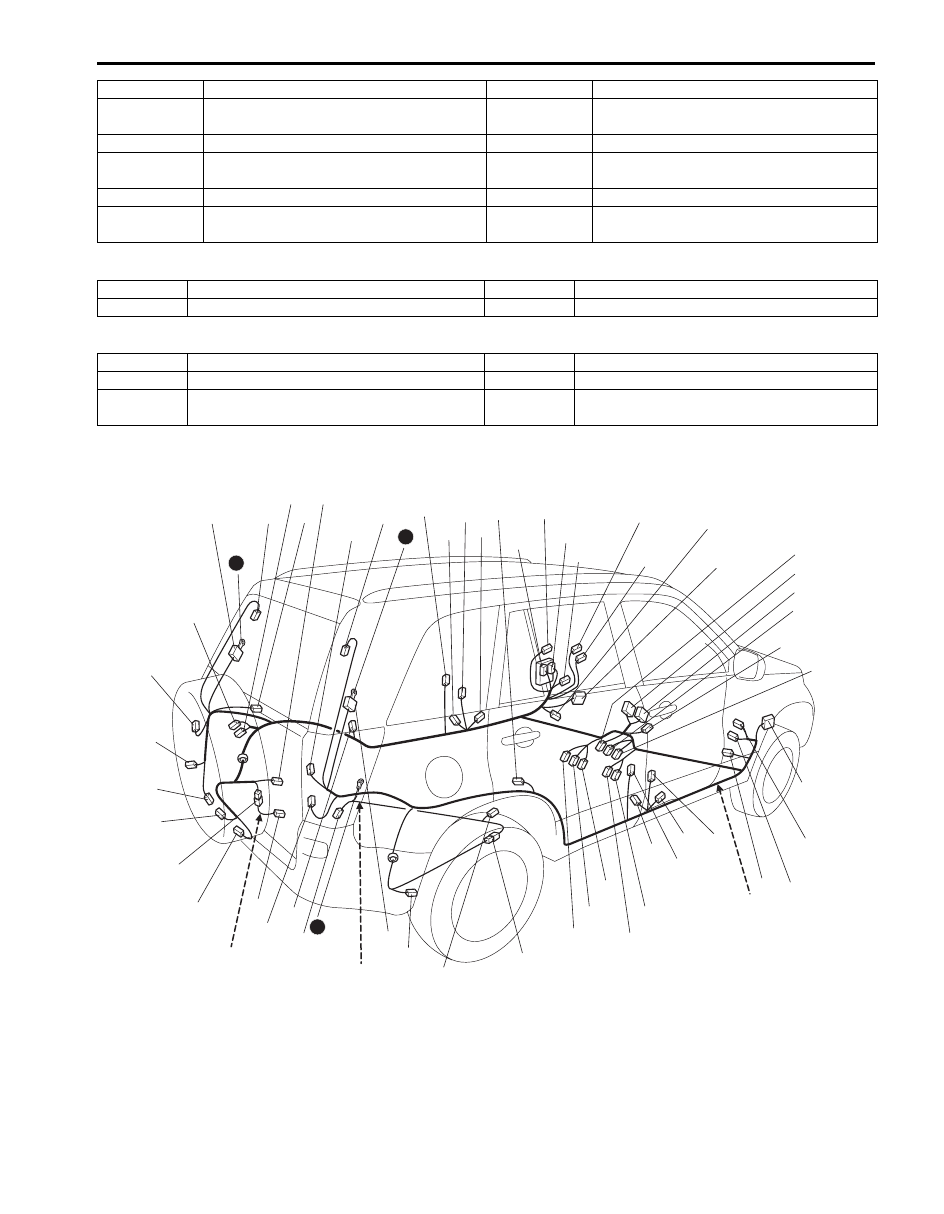

L: Floor harness, Rear height sensor wire / R: Fuel pump wire (LHD, 5dr)

L24/BLK (IF

EQPD)

J/C

L54/N

Rear end door switch

L25/YEL

Side air-bag inflator (R)

L56/N

Seat belt switch (Without seat heater)

L27/N

Instrument panel harness (To G72)

L57/N

Seat heater & Seat belt switch (Driver
side)

L28/N

Instrument panel harness (To G73)

L59/N

Seat heater (Passenger side)

L29/YEL

Instrument panel harness (To G55)

L73/N (IF

EQPD)

Sub woofer relay

No./Color

Connective position

No./Color

Connective position

No./Color

Connective position

No./Color

Connective position

L66/N

Floor harness (To L17)

L67/BLK

Rear height sensor

No./Color

Connective position

No./Color

Connective position

R01/GRY Floor harness (To L15)

R03/N

Fuel pump sub gauge

R02/GRY or

BLK

Fuel pump and gauge

{

L15

R01

{

L17
L66

L18

L21

L16

L44

L33

L06

L04

L05

L11 L34

L36

L25

L32

L45

L56

L57

L38

L19

L47

L41

L48

L43

L54

L49

L53

L23

L35

L12

L22

L14

R02

R03

L40

L20

L67

L52

L10

Fuel pomp wire

L31

 (TO J09)

L37

 (TO J27)

L42

 (TO O01)

L28

 (TO G73)

L29

 (TO G55)

L08

 (TO G07)

L09

 (TO G08)

L01

 (TO E80)

L07

 (TO J01)

L13

 (TO J16)

L03

 (TO E79)

L27

 (TO G72)

Rear height sensor wire

L

L39

L59

L30

18

19

21

I5JB0B910915-05

9A-35 Wiring Systems:

L: Floor harness

L: Rear height sensor wire

R: Fuel pump wire

No./Color

Connective position

No./Color

Connective position

L01/N

Main harness (To E80)

L30/YEL

Side air-bag inflator (L)

L03/YEL

Main harness (To E79)

L31/GRY

Front door wire (Passenger side) (To J09)

L04/BLK

Turn signal relay

L32/YEL (8ch) A/B SDM

L05/N

J/B

L33/YEL (8ch) A/B SDM

L06/N

J/B

L34/N

Front door switch (Passenger side)

L07/GRY

Front door wire (Driver side) (To J01)

L35/YEL

Side air- bag sensor (L)

L08/N

Instrument panel harness (To G07)

L36/BLK

Pretensioner (Passenger side)

L09/BLU

Instrument panel harness (To G08)

L37/N

Rear door wire (L) (To J21)

L10/N

Front door switch (Driver side)

L38/GRY

Wheel speed sensor (RL)

L11/YEL

Side air-bag sensor (R)

L39/GRY (IF

EQPD)

YAW / G sensor

L12/BLK

Pretensioner (Driver side)

L40/N

Rear door switch (L)

L13/N

Rear door wire (R) (To J16)

L41/BLK

Side curtain air-bag (L)

L14/N

Wheel speed sensor (RR)

L42/N

Rear end door wire (To O01)

L15/GRY

Fuel pump wire (To R01)

L43/N

Rear combination lamp (L)

L16/N

Rear door switch (R)

L44/N

Keyless entry receiver

L17/GRY

Rear height sensor harness (To L66)

L45/BRN

Inside antenna

L18/BLK

Side curtain air-bag (R)

L47/N

ACC socket #1

L19/GRY

Luggage compartment light

L48/N

ACC socket #1

L20/N

Rear combination lamp (R)

L49/BRN

Luggage antenna

L21/BLK

Diode #3

L52/N

Licence plate light #1

L22/N

J/C

L53/N

Licence plate light #2

L23/N

J/C

L54/N

Rear end door switch

L25/YEL

Side air-bag inflator (R)

L56/N

Seat belt switch (Without seat heater)

L27/N

Instrument panel harness (To G72)

L57/N

Seat heater & Seat belt switch (Driver
side)

L28/N

Instrument panel harness (To G73)

L59/N

Seat heater (Passenger side)

L29/YEL

Instrument panel harness (To G55)

No./Color

Connective position

No./Color

Connective position

L66/N

Floor harness (To L17)

L67/BLK

Rear height sensor

No./Color

Connective position

No./Color

Connective position

R01/GRY Floor harness (To L15)

R03/N

Fuel pump sub gauge

R02/GRY or

BLK

Fuel pump and gauge

Wiring Systems:  9A-36

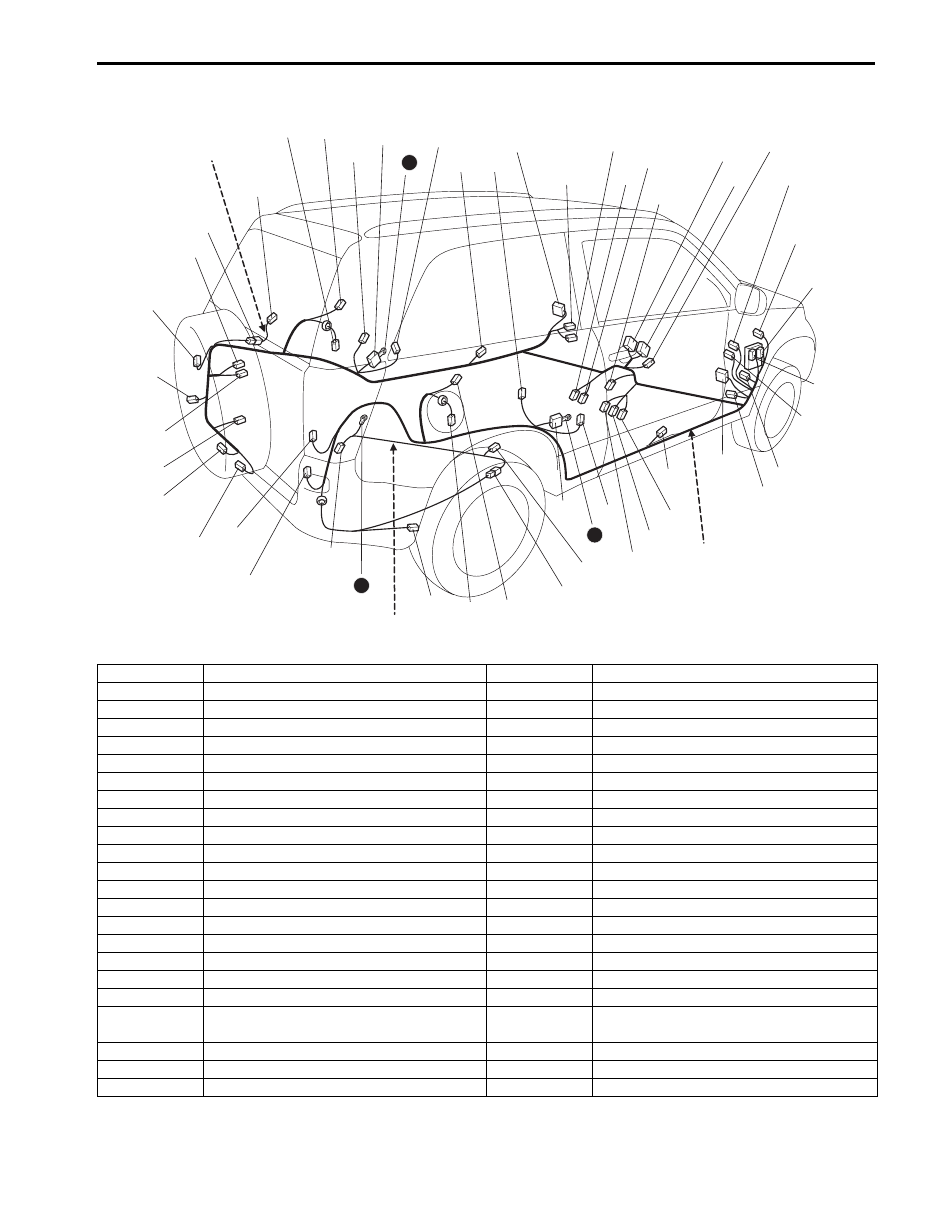

L: Floor harness, Luggage compartment light wire, Rear height sensor wire / R: Fuel pump wire (RHD, 3dr)

L: Floor harness

{

L15

R01

{

L19
L68

L23

L12

L44

L33

L06

L05

L11

L25

L04

L32

L59

L30

L36

L41

L64

L69

L47

L48

L43

L54

L53

L38

L35

L34

L14

R02

R03

L20

L52

Fuel pomp wire

L31

 (TO J09)

L42

 (TO O01)

L28

 (TO G72)

L29

 (TO G55)

L08

 (TO G07)

L09

 (TO G08)

L01

 (TO G80)

L07

 (TO J01)

L03

 (TO E79)

L27

 (TO G72)

Luggage compartment
light wire

L

L57

L56

L63

L18

L10

L22

18

21

19

I5JB0B910916-02

No./Color

Connective position

No./Color

Connective position

L01/N

Main harness (To E80)

L30/YEL

Side air-bag inflator (L)

L03/YEL

Main harness (To E79)

L31/GRY

Front door wire (Passenger side) (To J09)

L04/BLK

Turn signal relay

L32/YEL (8ch) A/B SDM

L05/N

J/B

L33/YEL (8ch) A/B SDM

L06/N

J/B

L34/N

Front door switch (Passenger side)

L07/GRY

Front door wire (Driver side) (To J01)

L35/YEL

Side air- bag sensor (L)

L08/N

Instrument panel harness (To G07)

L36/BLK

Pretensioner (Passenger side)

L09/BLU

Instrument panel harness (To G08)

L38/GRY

Wheel speed sensor (RL)

L10/N

Front door switch (Driver side)

L41/BLK

Side curtain air-bag (Passenger side)

L11/YEL

Side air-bag sensor (R)

L42/N

Rear end door wire (To O01)

L12/BLK

Pretensioner (Driver side)

L43/N

Rear combination lamp (L)

L14/N

Wheel speed sensor (RR)

L44/N

Keyless entry receiver

L15/GRY

Fuel pump wire (To R01)

L47/N

ACC socket #1

L18/BLK

Side curtain air-bag (Driver side)

L48/N

ACC socket #1

L19/N

Luggage compartment light wire (To L68)

L52/N

Licence plate light #1

L20/N

Rear combination lamp (R)

L53/N

Licence plate light #2

L22/N

J/C

L54/N

Rear end door switch

L23/N

J/C

L56/N

Seat belt switch (Without seat heater)

L25/YEL

Side air-bag inflator (R)

L57/N

Seat heater & Seat belt switch (Driver
side)

L27/N

Instrument panel harness (To G72)

L59/N

Seat heater (Passenger side)

L28/N

Instrument panel harness (To G73)

L63/N

Rear speaker (R)

L29/YEL

Instrument panel harness (To G55)

L64/N

Rear speaker (L)

9A-37 Wiring Systems:

L: Luggage compartment light wire

R: Fuel pump wire

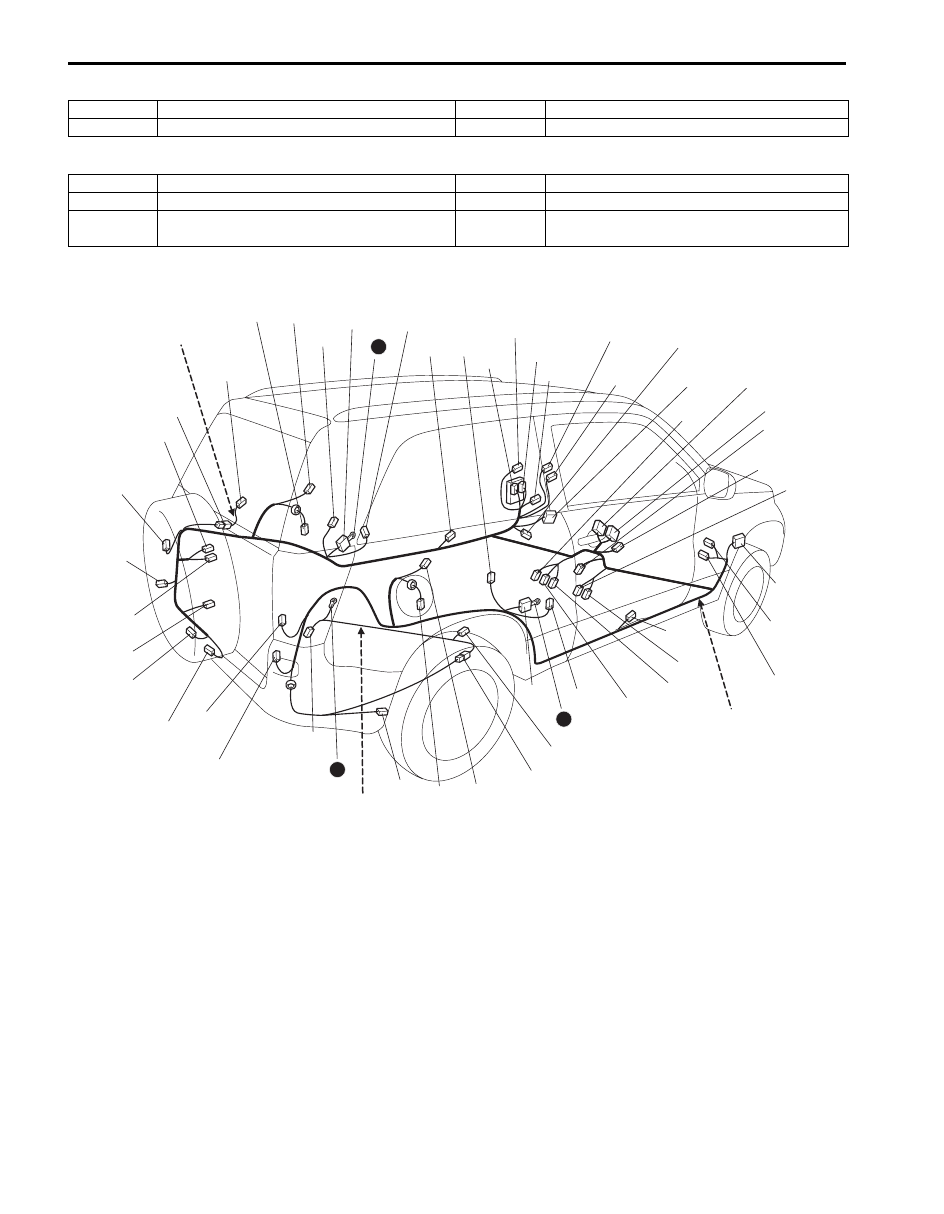

L: Floor harness, Luggage compartment light wire, Rear height sensor wire / R: Fuel pump wire (LHD, 3dr)

No./Color

Connective position

No./Color

Connective position

L68/N

Floor harness (To L19)

L69/N

Luggage compartment light

No./Color

Connective position

No./Color

Connective position

R01/GRY Floor harness (To L15)

R03/N

Fuel pump sub gauge

R02/GRY or

BLK

Fuel pump and gauge

L44

L33

L06

L04

L05

L25

L32

L56

L57

L31

 (TO J09)

L28

 (TO G72)

L29

 (TO G55)

L08

 (TO G07)

L09

 (TO G08)

L01

 (TO G80)

L07

 (TO J01)

L03

 (TO E79)

L27

 (TO G72)

L

L59

L30

{

L15

R01

{

L19
L68

L23

L36

L11

L12

L41

L64

L69

L47

L48

L43

L54

L53

L38

L35

L10

L14

R02

R03

L20

L52

Fuel pomp wire

L42

 (TO O01)

Luggage compartment
light wire

L63

L18

L34

L22

18

21

19

I5JB0B910917-02
