Suzuki Grand Vitara JB419. Service manual - part 106





Precautions: 5-1

Transmission / Transaxle

Precautions

Precautions

Precautions for Transmission / Transaxle

S5JB0B5000001

Air Bag Warning
Refer to “Air Bag Warning in Section 00 in related manual”.

Fastener Caution
Refer to “Fastener Caution in Section 00 in related manual”.

5B-1 Manual Transmission/Transaxle:

Transmission / Transaxle

Manual Transmission/Transaxle

General Description

Manual Transmission Construction

S5JB0B5201001

The manual transmission consists of the input shaft, main shaft, countershaft and reverse idle gear shaft which are
installed in the die-cast aluminum alloy case. This transmission provides five forward speeds and one reverse speed.
The 1st, 2nd and 3rd speeds are for speed reduction drive, 4th speed is for direct drive 5th speed is for speed
increasing drive. The low speed (1st and 2nd) synchronizer is mounted on the main shaft and engaged with the main
shaft 1st or 2nd gear. The high speed (3rd and 4th) synchronizer is mounted on of the main shaft and engaged with
the main shaft 3rd gear or input shaft 4th gear. The 5th & reverse synchronizer is mounted on the main shaft and
engaged with the main shaft 5th or reverse gear. The gear shift lever case is located at the upper behind the
transmission case and has a cam which prevents direct gear shifting from the 5th speed gear into the reverse gear.
The double cone synchronizing mechanism is provided to 1st gear synchromesh. The triple cone synchronizing
mechanism is provided to 2nd and 3rd gear synchromesh.
As the die-cast aluminum alloy case are sealed with liquid type gasket, it is necessary to use genuine sealant or its
equivalent on its mating surface when reassembling them. Also, the case fastening bolts must be tightened to
specified torque by means of the torque wrench and tightening over or below the specified torque should be avoided.
The description under “Repair Instructions” covers the transfer partially which is next to the transmission as well, but
their gear boxes are independent and each of them has its own drain and filler plugs for the oil change or the level
check.

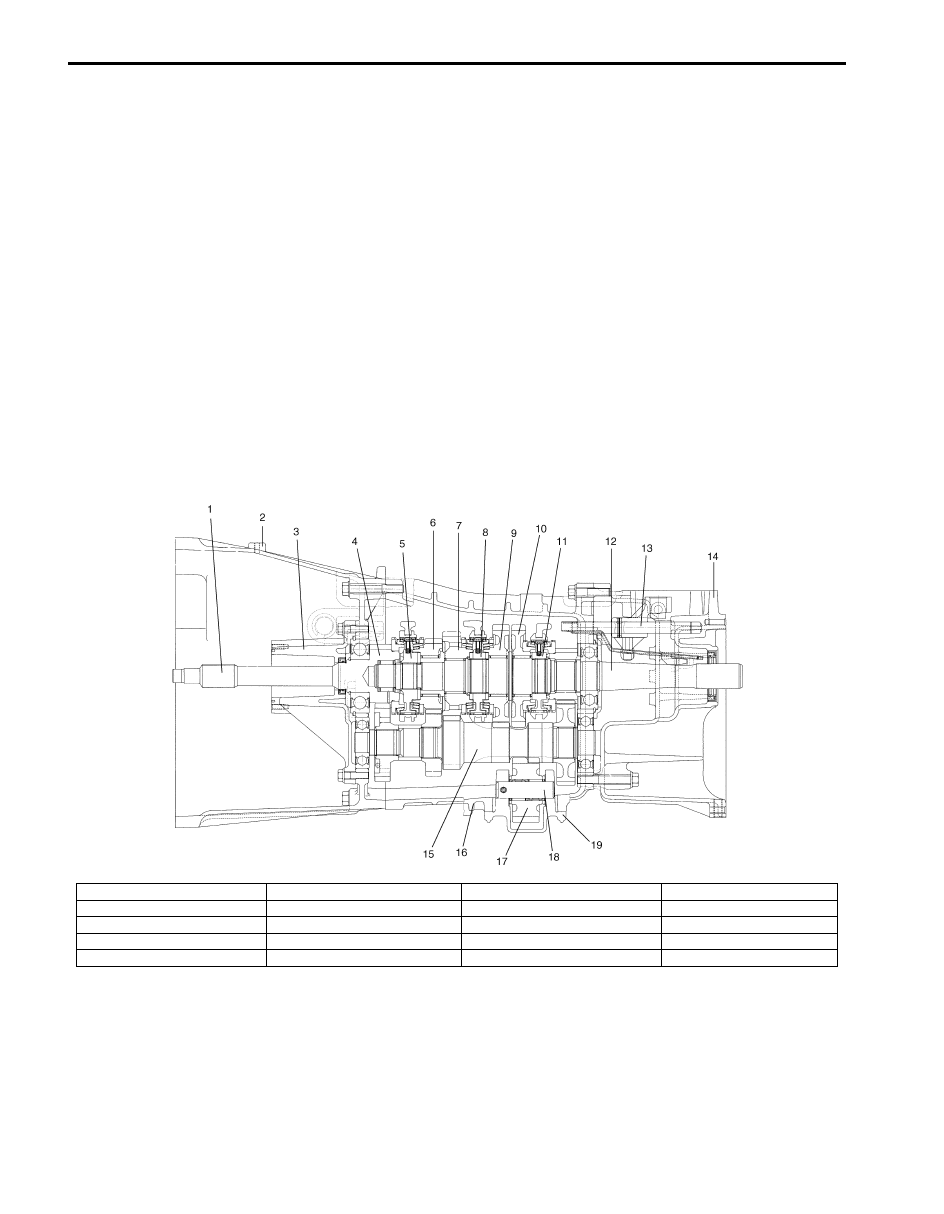

I5JB0B520001-01

1. Input shaft

6. 3rd gear

11. 5th & reverse synchronizer hub

16. Rear case

2. Transmission front case

7. 2nd gear

12. Main shaft

17. Reverse idle gear

3. Input shaft bearing retainer

8. Low speed synchronizer hub

13. Reverse shift shaft

18. Reverse idle gear shaft

4. 4th gear

9. 1st gear

14. Adapter case

19. Reverse idle gear case

5. High speed synchronizer hub

10. Reverse gear

15. Countershaft

Manual Transmission/Transaxle:  5B-2

Diagnostic Information and Procedures

Manual Transmission Symptom Diagnosis

S5JB0B5204001

Condition

Possible cause

Correction / Reference Item

Gear slipping out of mesh Worn shift fork shaft

Replace.

Worn shift fork or synchronizer sleeve

Replace.

Weak or damaged locating spring

Replace.

Worn bearings on input shaft,
countershaft or main shaft

Replace.

Worn chamfered tooth on sleeve or gear Replace sleeve and gear.
Missing or disengagement of snap
ring(s)

Install or replace.

Gears refusing to
disengage

Weakened or broken synchronizer key
spring

Replace.

Distorted shift shaft or shift fork

Replace.

Hard shifting

Improper clutch pedal free travel

Replace pedal arm and/or clutch master
cylinder.

Distorted or broken clutch disc

Replace.

Damaged clutch pressure plate

Replace clutch cover.

Air in clutch hydraulic system

Bleed air.

Fluid leakage from clutch fluid line

Locate leaking point and repair.

Worn synchronizer ring

Replace.

Worn chamfered tooth on sleeve or gear Replace sleeve and gear.
Distorted shift shaft

Replace.

Noise

Inadequate or insufficient lubricant

Replenish.

Damaged or worn bearing(s)

Replace.

Damaged or worn gear(s)

Replace.

Damaged or worn synchronizer ring

Replace.

Damaged or worn chamfered tooth on
sleeve or gear

Replace.

5B-3 Manual Transmission/Transaxle:

Repair Instructions

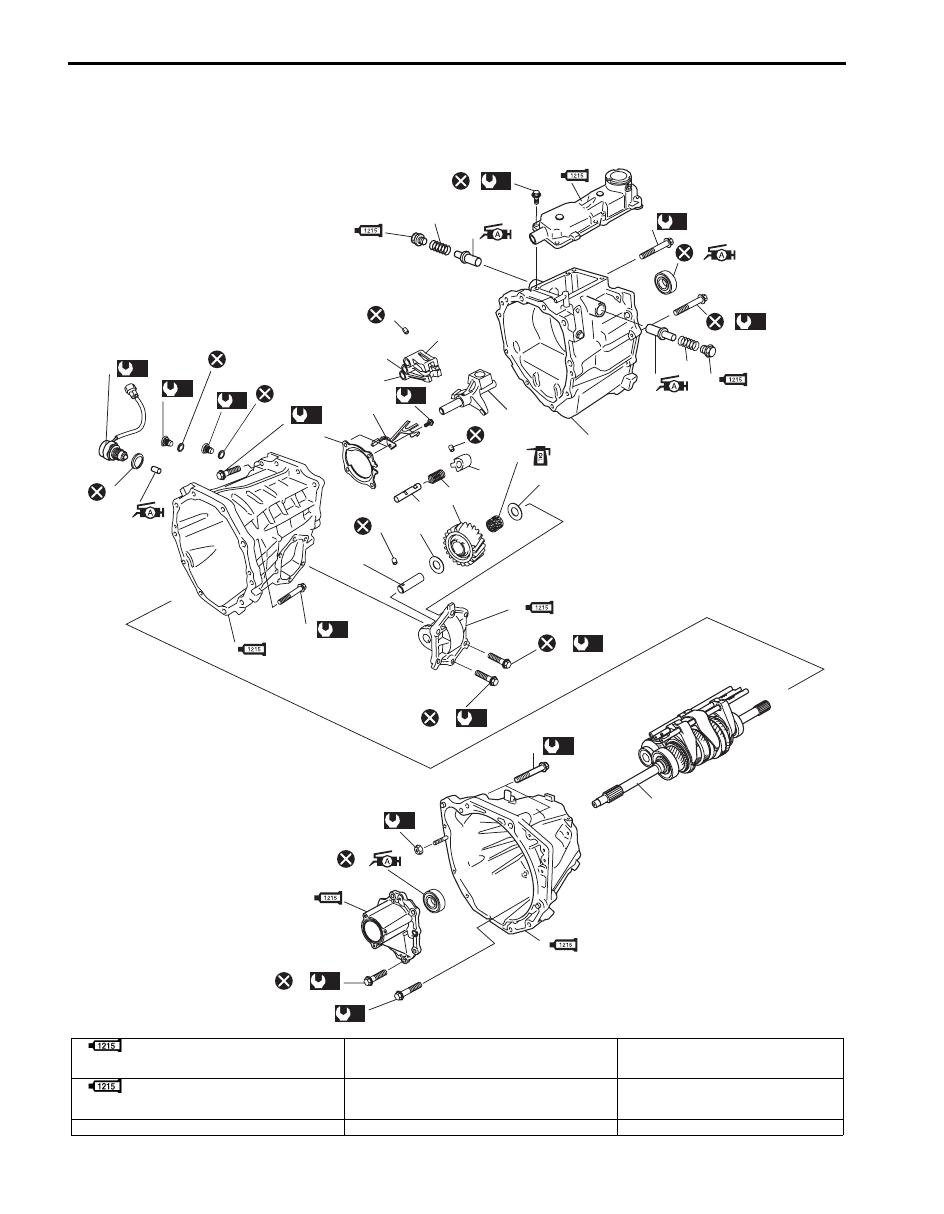

Manual Transmission Assembly Components

S5JB0B5206001

25

21

23

21

20

19

18

14

13

17

41

40

39

3

11

10

36

27

30

(h)

1

15

(c)

26

35

(g)

31

(b)

16

16

33

(e)

42

6

(a)

8

(f)

16

31

(b)

7

(b)

7

(b)

38

(d)

37

(d)

34

(g)

29

(h)

24

9

4

9

2

32

12

5

12

28

27

27

22

(j)

I5JB0B520099-02

1. Transmission front case

: Apply sealant 99000-31110 to mating
surface of front case and rear case.

19. Reverse shift limit cam spring

37. Reverse idle gear case No.1 bolt

2. Transmission rear case

: Apply sealant 99000-31110 to mating
surface of rear case and adapter case.

20. Reverse shift shaft

38. Reverse idle gear case No.2 bolt

 3. Adapter case

21. Reverse idle gear washer

39. 5th & reverse gear shift yoke
