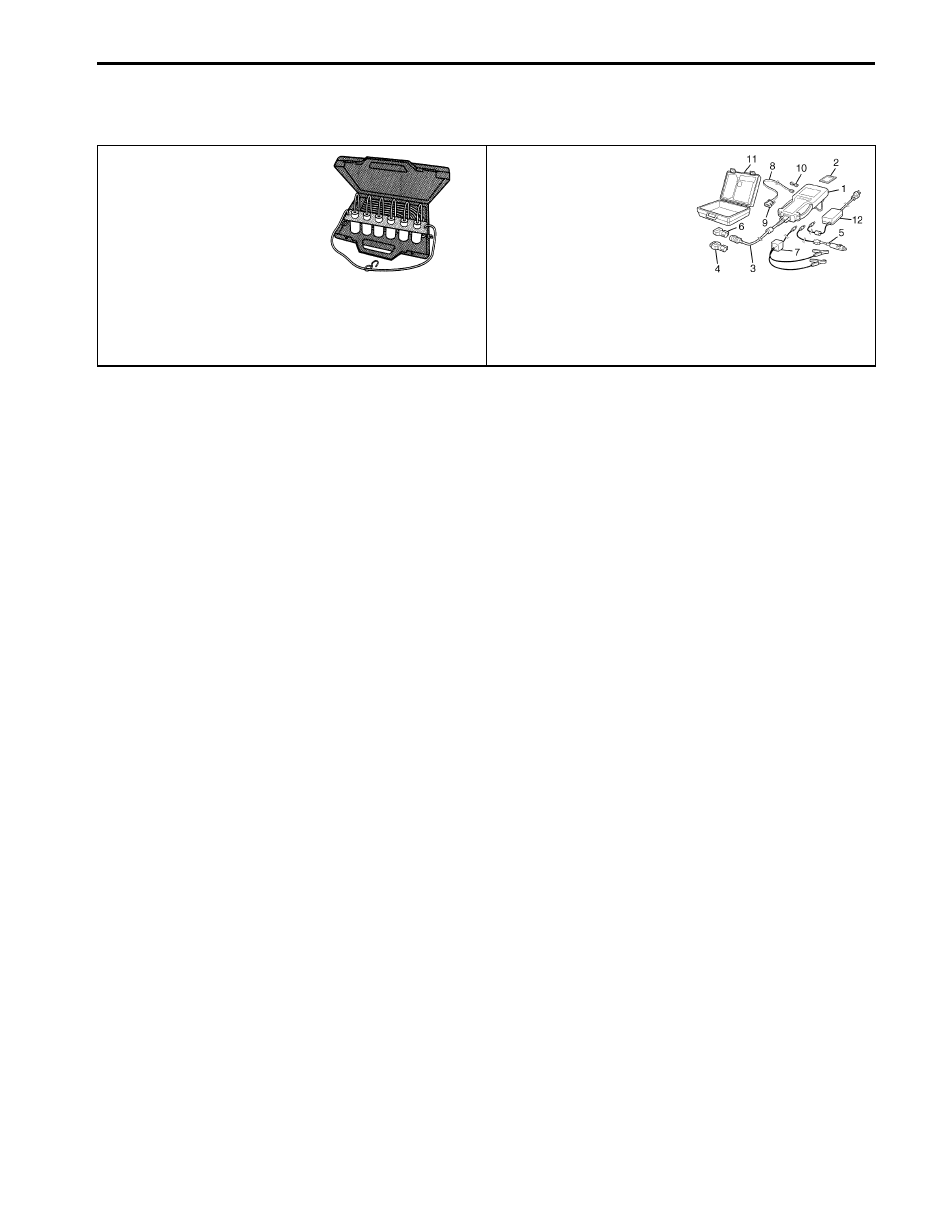

SUZUKI scan tool

Injector flow measuring kit

—

Mot. 1711)

This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12.)

1B-1 Aux. Emission Control Devices:

Engine

Aux. Emission Control Devices

Repair Instructions

EGR Valve Inspection

S5JB0B1206006

• Check EGR valve for wear or damage.

CAUTION

!



Do not disassembly EGR valve.



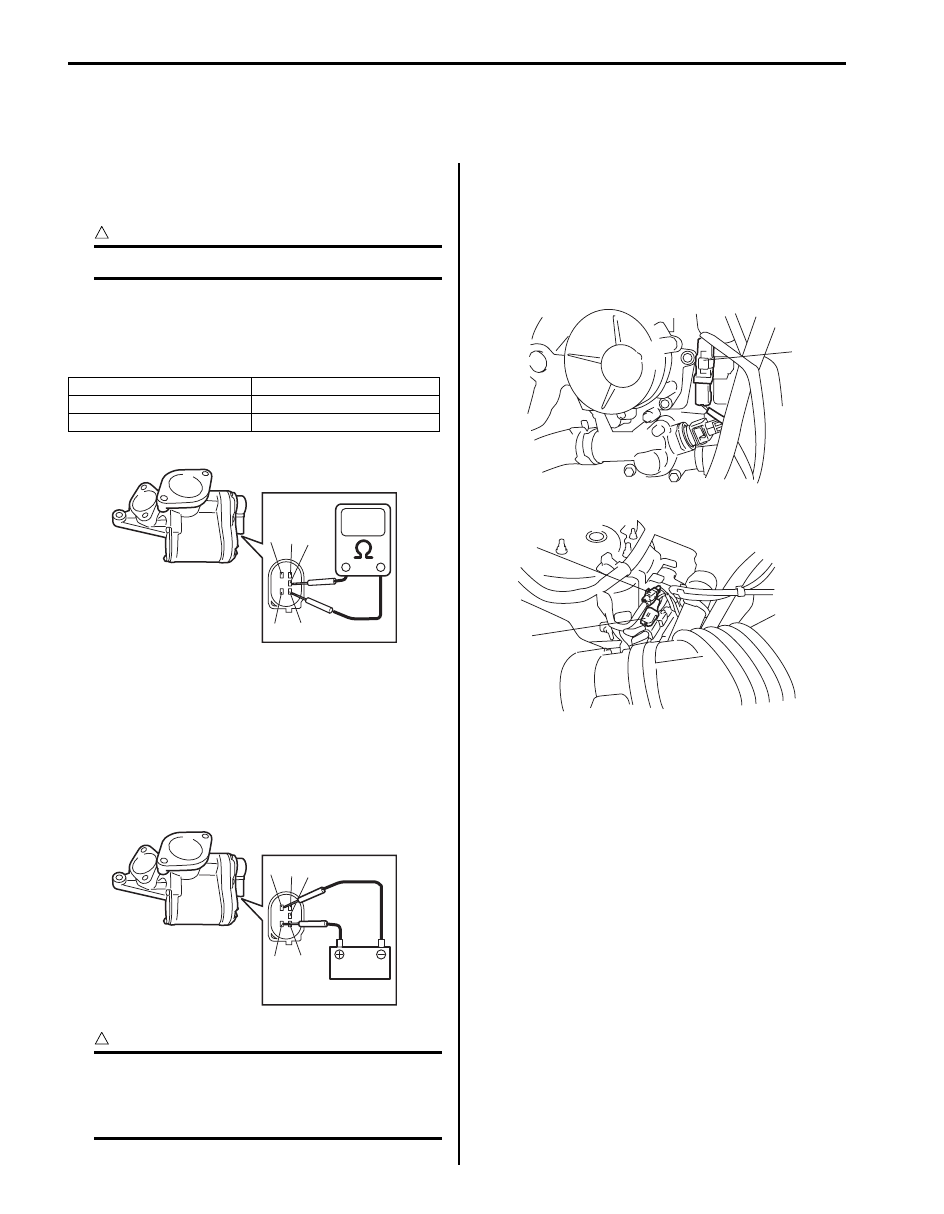

1) Check resistance between following terminals of

EGR valve in each pair. If resistance is out of
specification, replace EGR valve.

EGR valve resistance

2) Check EGR valve operation as following procedure.

If check result is not satisfied, replace EGR valve.
a) When connecting battery positive (+) terminal to

terminal “1” and its negative (–) terminal to
terminal “5”, confirm EGR valve operates fully
open.

b) When disconnecting battery from EGR valve,

confirm EGR valve operates fully close.

CAUTION

!



When replacing EGR valve, perform
“Initialize EGR valve data” mode of SUZUKI
scan tool referring to “EGR Valve Data
Initialization”.



Exhaust Gas Temperature Sensor 1, 2 and 3
Removal and Installation

S5JB0B1206007

Removal

1) Disconnect negative (–) cable at battery.

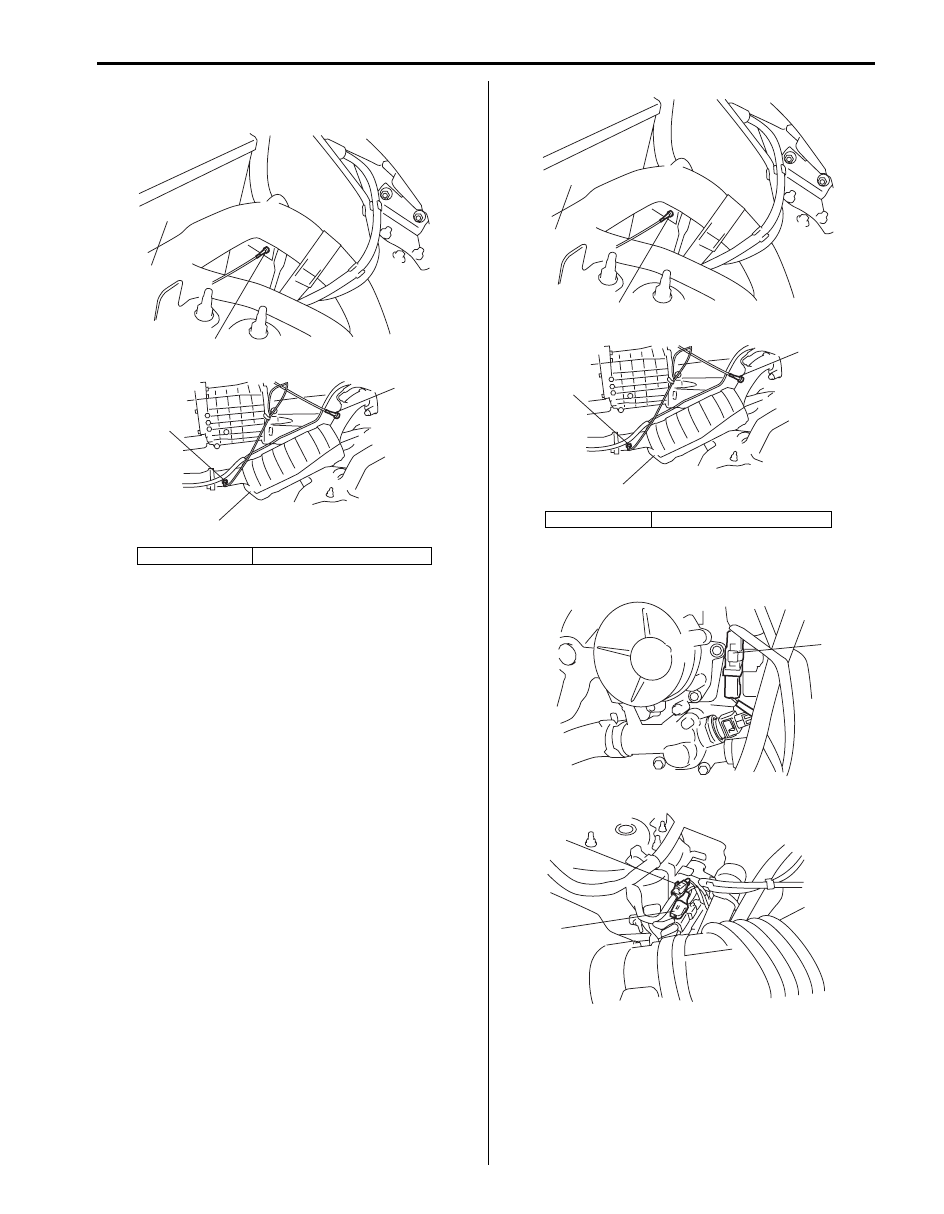

2) Disconnect exhaust gas temperature sensor 1, 2

and/or 3 connectors (1).

Terminal

Resistance

Between 1 and 5 terminals 2.96

± 0.3 Ω at 20 °C, 68 °F

Between 2 and 4 terminals 6.5

± 0.6 kΩ at 20 °C, 68 °F

1

2

4

5

6

I5JB0B120009-01

1

2

4

5

6

I5JB0B120010-01

1

1

1

I5JB0B120011-01

Aux. Emission Control Devices:  1B-2

3) Remove exhaust gas temperature sensor 1 (1), 2 (2)

and/or 3 (3).

Installation

1) Install exhaust gas temperature sensor 1, 2 and/or 3.

Tightening torque
Exhaust gas temperature sensor 1 (a):  40 N·m (
4.0 kgf-m, 29.0 lb-ft)
Exhaust gas temperature sensor 2 (b):  30 N·m (
3.0 kgf-m, 22.0 lb-ft)
Exhaust gas temperature sensor 3 (c):  30 N·m (
3.0 kgf-m, 22.0 lb-ft)

2) Connect exhaust gas temperature sensor 1, 2 and/or

3 connectors (1).

3) Connect negative (–) cable at battery.

4. Battery

5. Diesel particulate filter

2

3

4

5

1

I5JB0B120012-01

4. Battery

5. Diesel particulate filter

2, (b)

3, (c)

4

5

1, (a)

I5JB0B120013-01

1

1

1

I5JB0B120011-01

1B-3 Aux. Emission Control Devices:

Exhaust Gas Temperature Sensor 1, 2 and 3
Inspection

S5JB0B1206008

1) Disconnect negative (–) cable at battery.
2) Disconnect exhaust gas temperature sensor 1, 2

and/or 3 connectors.

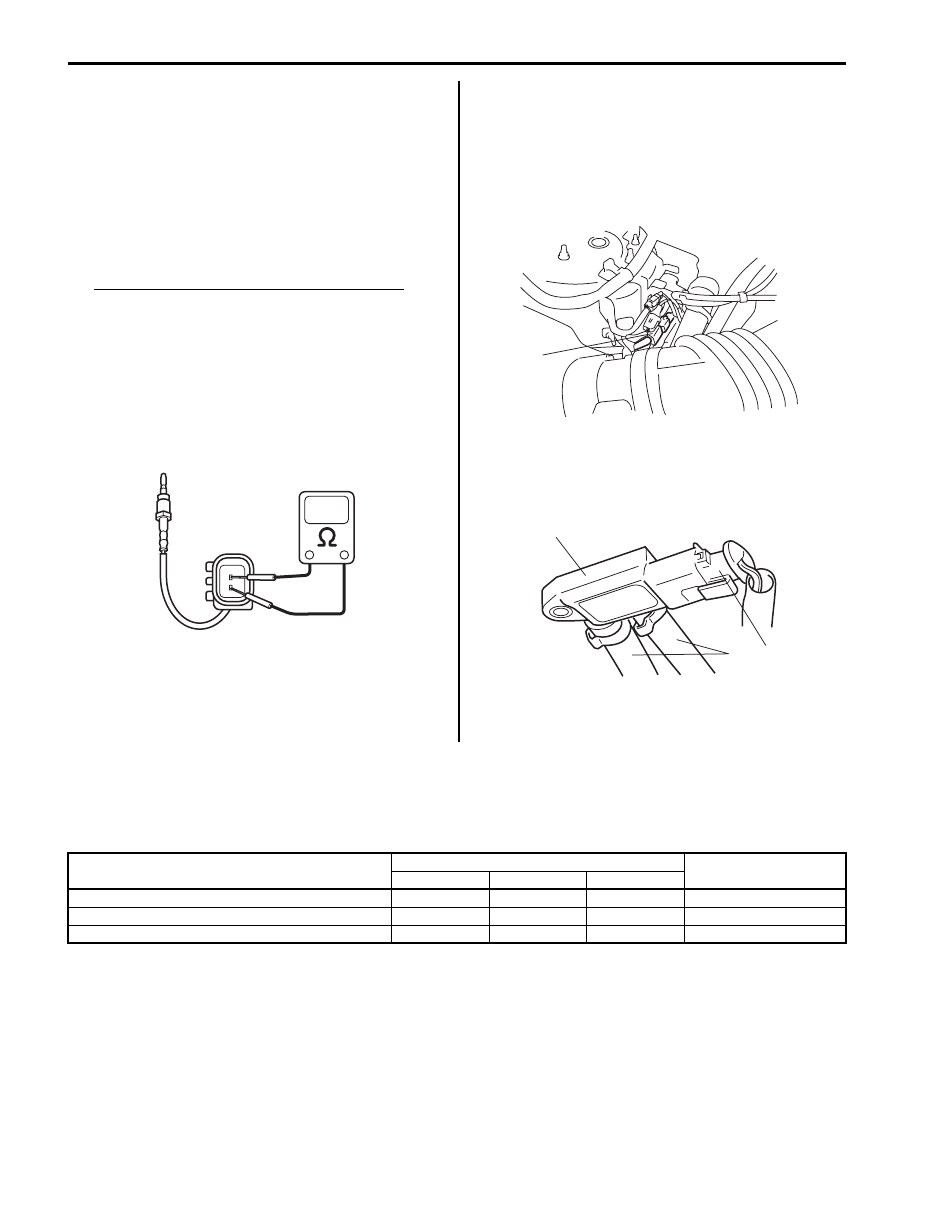

3) Measure resistance between terminals of exhaust

gas temperature sensor 1, 2 and/or 3 connectors.
If resistance is out of specification, replace exhaust
gas temperature sensor 1, 2 and/or 3.

Exhaust gas temperature sensor resistance
Exhaust gas temperature sensor 1
1.77 k

Ω at 400 °C, 752 °F

0.7 k

Ω at 500 °C, 932 °F

Exhaust gas temperature sensor 2
106 k

Ω at 50 °C, 122 °F

33.5 k

Ω at 100 °C, 212 °F

Exhaust gas temperature sensor 3
132 k

Ω at 250 °C, 482 °F

3.5 k

Ω at 500 °C, 932 °F

Diesel Particulate Filter Differential Pressure
Sensor Removal and Installation

S5JB0B1206009

Removal

1) Disconnect negative (–) cable at battery.
2) Detach diesel particulate filter differential pressure

sensor (1) from its bracket.

3) Disconnect diesel particulate filter differential

pressure sensor connector (1) and hoses (2) from
diesel particulate filter differential pressure sensor
(3).

Installation
Reverse removal procedure of installation.

Specifications

Tightening Torque Specifications

S5JB0B1207001

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

I5JB0B120014-01

1

I5JB0B120015-01

3

1

2

I5JB0B120016-01

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Exhaust gas temperature sensor 1

40

4.0

29.0

)

Exhaust gas temperature sensor 2

30

3.0

22.0

)

Exhaust gas temperature sensor 3

30

3.0

22.0

)
