1A-60 Engine General Information and Diagnosis:

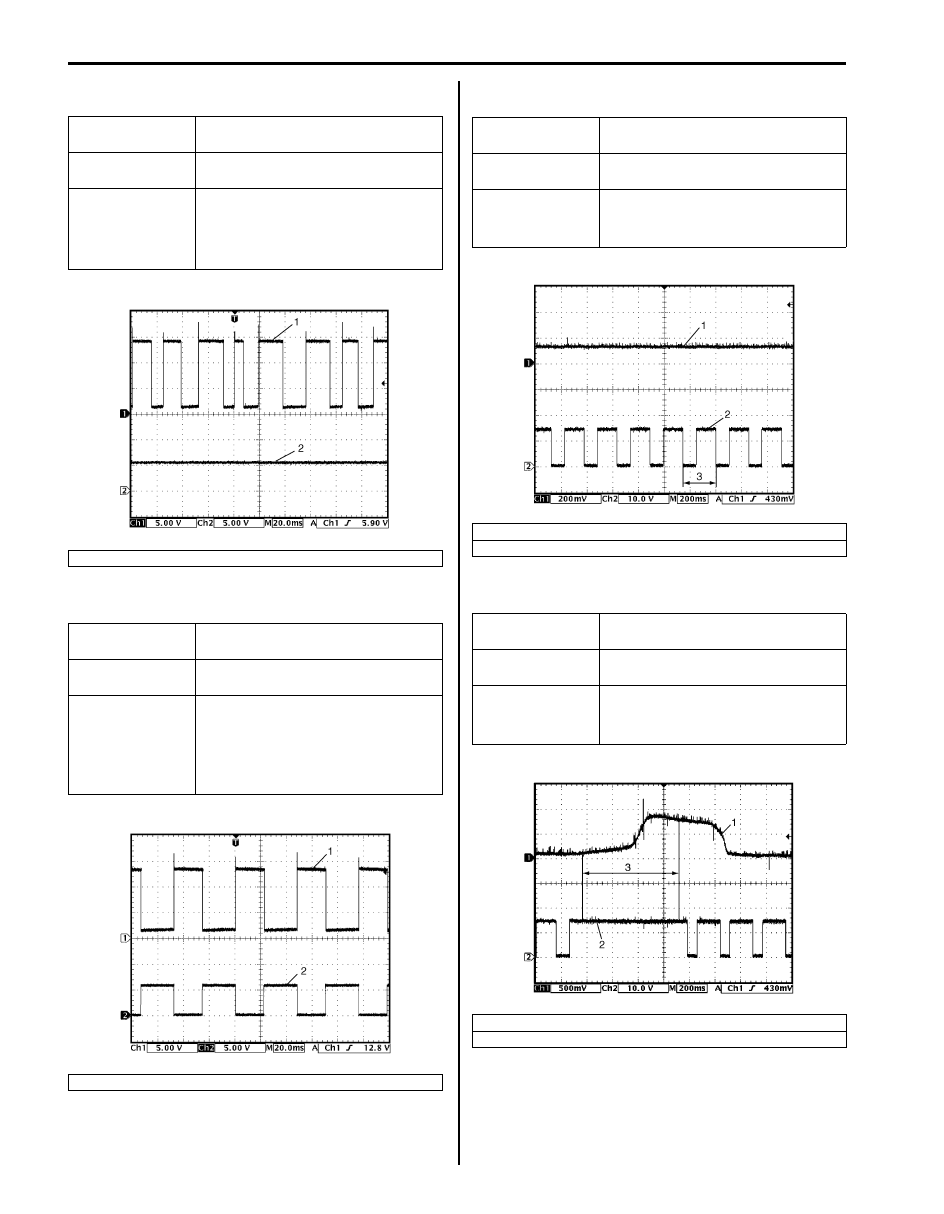

Reference waveform No.5
Generator field coil monitor signal (1) at engine idling

Reference waveform No.6
Generator field coil monitor signal (1) at engine idling

Reference waveform No.7
Heated oxygen sensor-2 signal (1) with engine idling

Reference waveform No.8
Heated oxygen sensor-2 signal (1) with engine racing

Measurement
terminal

CH1: “C37-8” to “C37-58”
CH2: “C37-28” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 20 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed
• All accessory switch turned off

2. Generator output control signal

Measurement
terminal

CH1: “C37-8” to “C37-58”
CH2: “C37-28” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 20 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed
• For a few sec. from headlight

switch turned ON

2. Generator output control signal

I5JB0A110077-01

I5JB0A110078-01

Measurement
terminal

CH1: “C37-11” to “C37-57”
CH2: “C37-47” to “C37-58”

Oscilloscope
setting

CH1: 200 mV/DIV, CH2: 10 V/DIV
TIME: 200 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

2. Heated oxygen sensor-2 heater signal
3. One duty cycle

Measurement
terminal

CH1: “C37-11” to “C37-57”
CH2: “C37-47” to “C37-58”

Oscilloscope
setting

CH1: 500 mV/DIV, CH2: 10 V/DIV
TIME: 200 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine racing

2. Heated oxygen sensor-2 heater signal
3. Engine racing

I5JB0A110079-01

I5JB0A110080-03

Engine General Information and Diagnosis:  1A-61

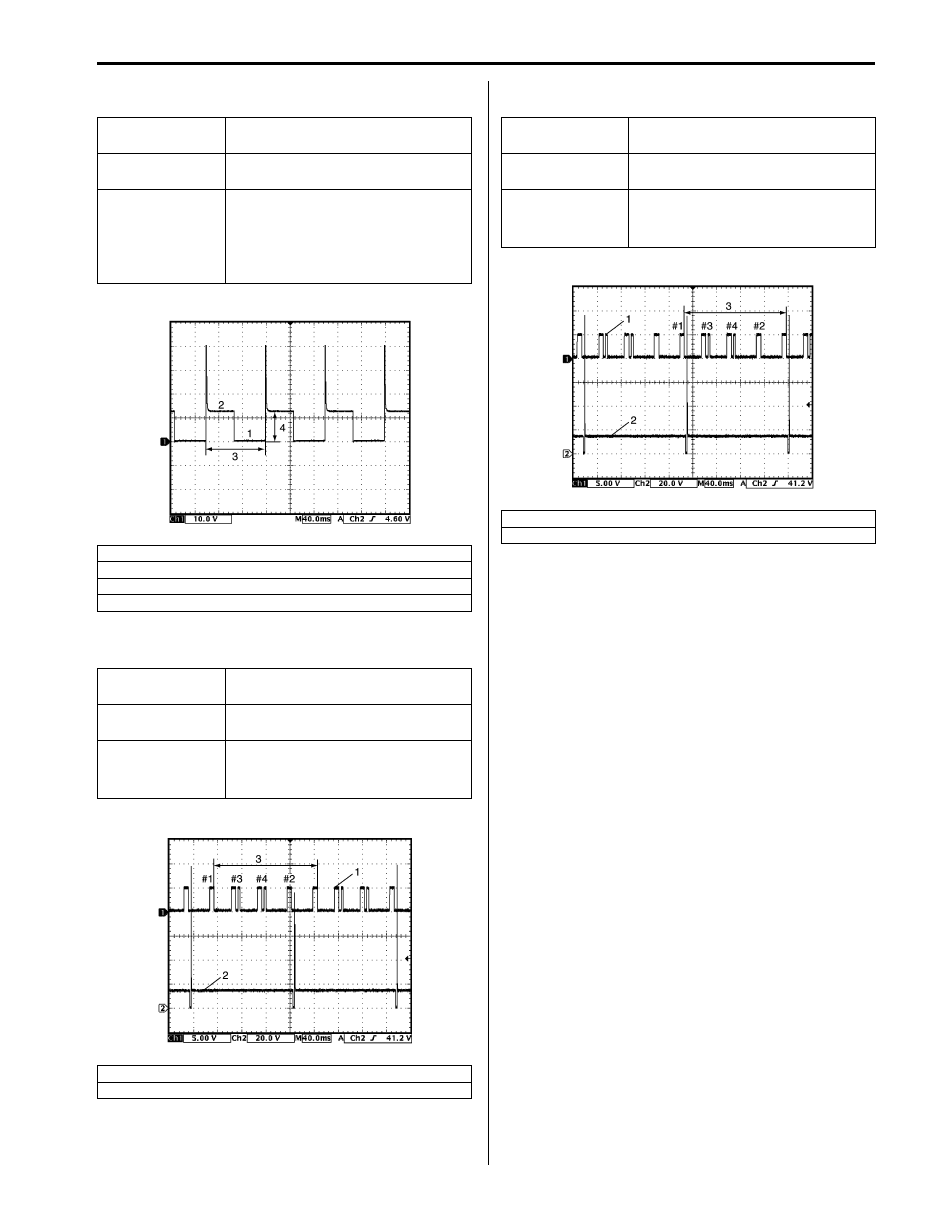

Reference waveform No.9
EVAP canister purge valve signal

Reference waveform No.10
No.3 fuel injector signal (2) with engine idling

Reference waveform No.11
No.4 fuel injector signal (2) with engine idling

Measurement
terminal

CH1: “C37-13” to “C37-58”

Oscilloscope
setting

CH1: 10 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Set EVAP canister purge valve at

52% by using “Misc Test” of scan
tool

1. ON signal
2. OFF signal
3. One duty cycle
4. 10 – 14 V

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-16” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

I4RS0B110067-01

I5JB0A110081-01

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-17” to “C37-58”

Oscilloscope
setting

CH1: 5 V/DIV, CH2: 20 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

I5JB0A110082-01

1A-62 Engine General Information and Diagnosis:

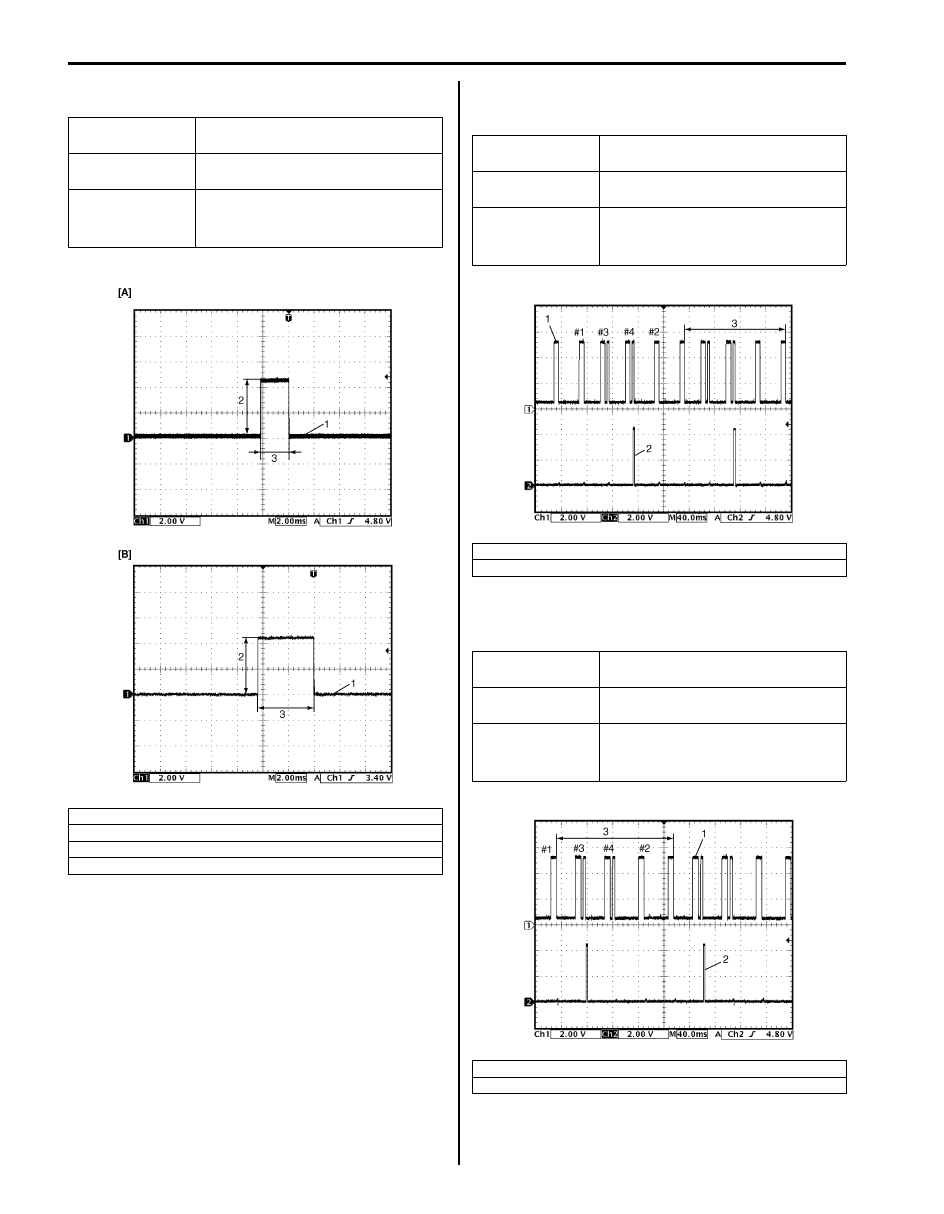

Reference waveform No.12
Ignition coil signal (1) with engine idling

Reference waveform No.13
Ignition coil No.4 signal (2) with engine idling (for J20
engine)

Reference waveform No.14
Ignition coil No.3 signal (2) with engine idling (for J20
engine)

Measurement
terminal

CH1: “C37-20” to “C37-58”

Oscilloscope
setting

CH1: 2 V/DIV
TIME: 2 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

[A]: For J20 engine
[B]: For M16 engine

1. 4 – 6 V
3. Ignition coil pulse width

I5JB0A110083-02

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-18” to “C37-58”

Oscilloscope
setting

CH1: 2 V/DIV, CH2: 2 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-19” to “C37-58”

Oscilloscope
setting

CH1: 2 V/DIV, CH2: 2 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

1. Cylinder reference signal (CMP reference signal)
3. 720

° crank angle

I5JB0A110084-01

I5JB0A110085-01

Engine General Information and Diagnosis:  1A-63

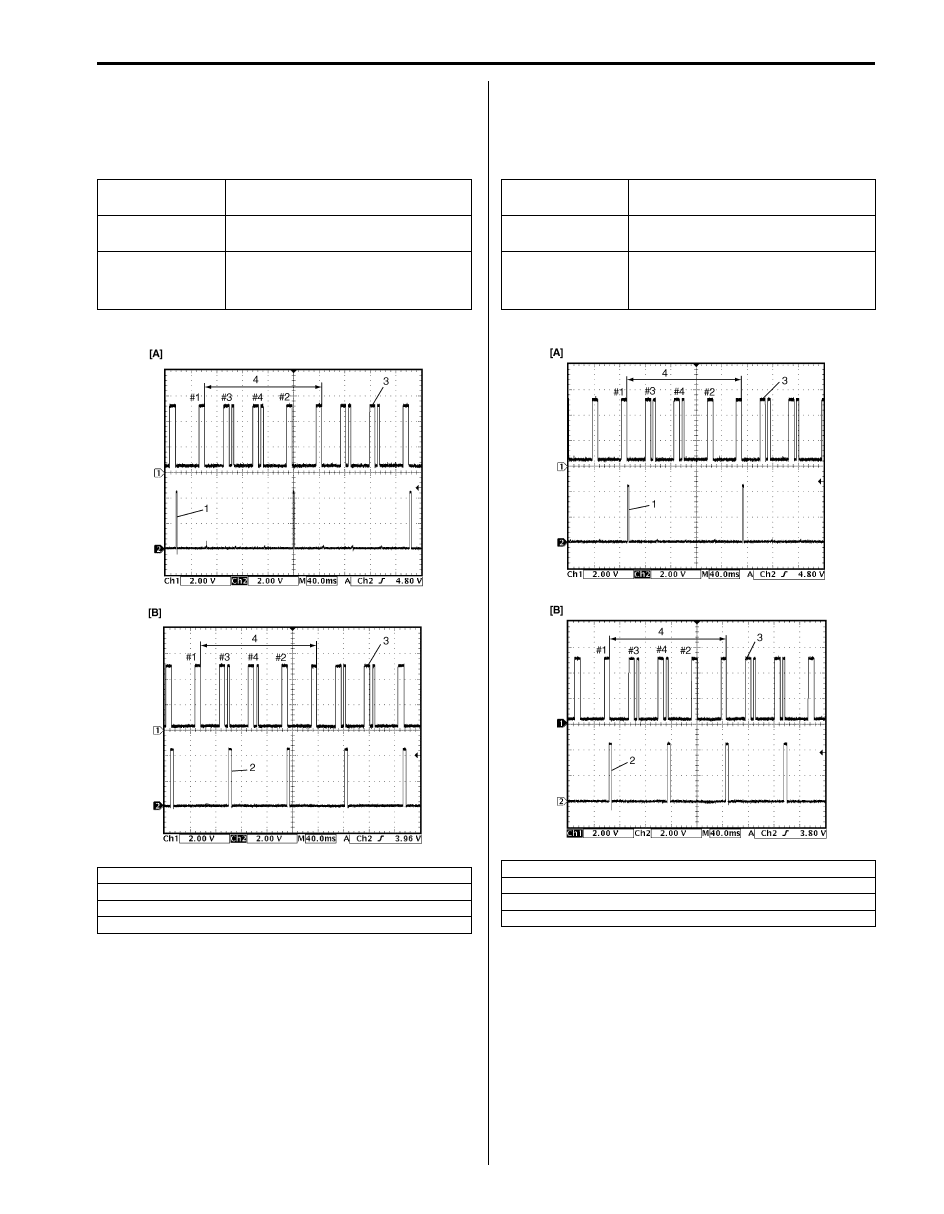

Reference waveform No.15
• Ignition coil No.2 signal (1) with engine idling (for J20

engine)

• Ignition coil No.2 and No.3 signal (2) with engine idling

(for M16 engine)

Reference waveform No.16
• Ignition coil No.1 signal (1) with engine idling (for J20

engine)

• Ignition coil No.1 and No.4 signal (2) with engine idling

(for M16 engine)

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-20” to “C37-58”

Oscilloscope
setting

CH1: 2 V/DIV, CH2: 2 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

[A]: For J20 engine
[B]: For M16 engine

3. Cylinder reference signal (CMP reference signal)
4. 720

° crank angle

I5JB0A110086-01

Measurement
terminal

CH1: “C37-52” to “C37-58”
CH2: “C37-21” to “C37-58”

Oscilloscope
setting

CH1: 2 V/DIV, CH2: 2 V/DIV
TIME: 40 ms/DIV

Measurement
condition

• After warmed up to normal

operating temperature

• Engine at specified idle speed

[A]: For J20 engine
[B]: For M16 engine

3. Cylinder reference signal (CMP reference signal)
4. 720

° crank angle

I5JB0A110087-02
