Suzuki Grand Vitara JB627. Service manual - part 383





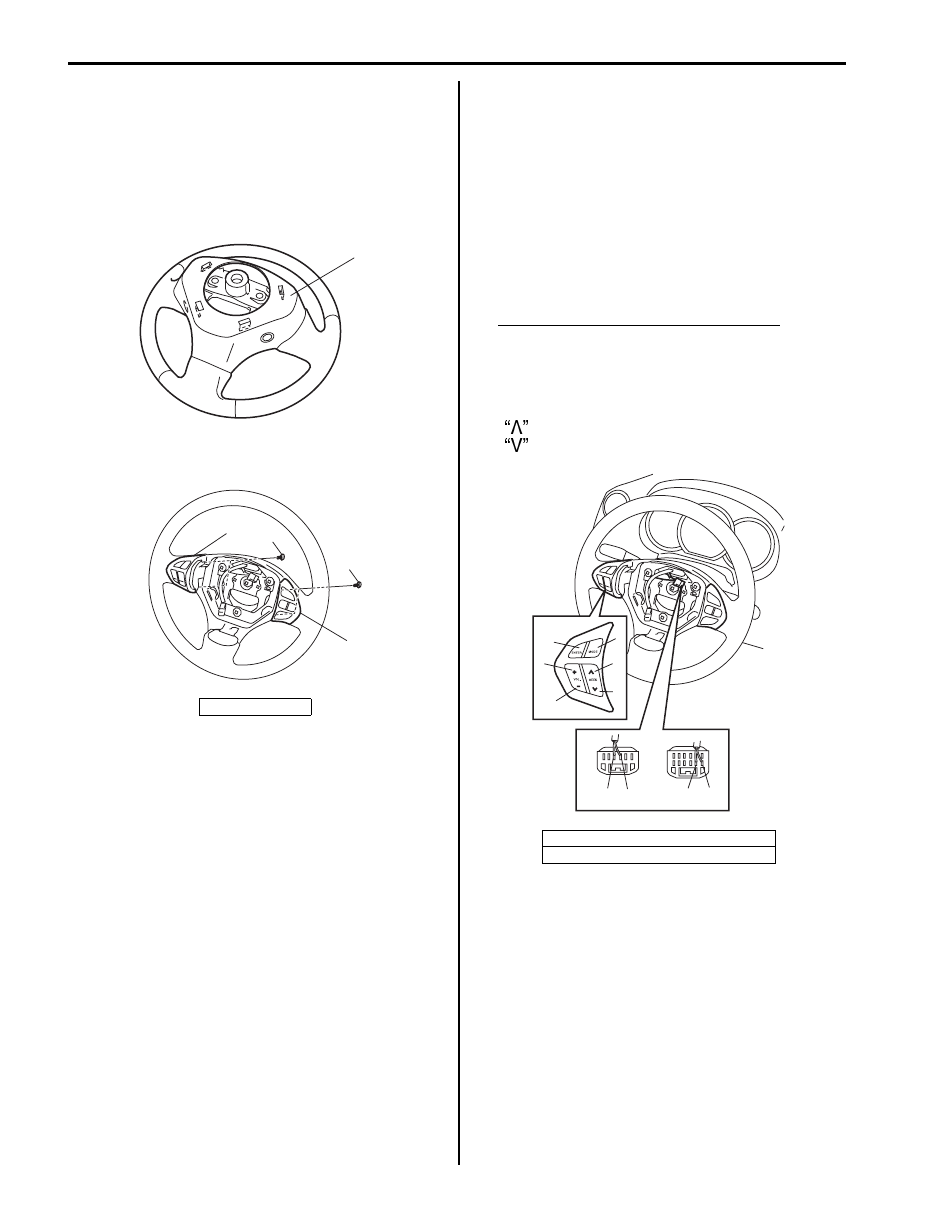

9C-25 Instrumentation / Driver Info. / Horn:

Remote Audio Control Switch Removal and
Installation (If Equipped)

S6JB0B9306025

Removal

1) Remove steering wheel referring to “Steering Wheel

Removal and Installation in Section 6B”.

2) Remove steering wheel cover (1) from steering

wheel.

3) Remove remote audio control switch (1) with cruise

control switch (3) (if equipped).

Installation
Reverse removal procedure for installation.

Remote Audio Control Switch Inspection (If
Equipped)

S6JB0B9306026

1) Remove driver air bag (inflator) module referring to

“Driver Air Bag (Inflator) Module Removal and
Installation in Section 8B”
.

2) Disconnect remote audio control switch connector

from contact coil.

3) Check switch for resistance between “a” and “b”

terminals under each condition below.
If check result is not satisfactory, replace remote
audio control switch.

Remote audio control switch resistance
All switches released (OFF): 5119 – 5223 k

“ENTER” switch (1) pushing on (ON): 55 – 57

“+” switch (2) pushing on (ON): 129 – 133

“–” switch (3) pushing on (ON): 238 – 244

“MODE” switch (4) pushing on (ON): 416 – 426



 witch (5) pushing on (ON): 743 – 759



 switch (6) pushing on (ON): 1555 – 1587

Vehicle Speed Signal Inspection (For Audio
Unit) (If Equipped)

S6JB0B9306027

Check vehicle speed pulse output signal of BCM
referring to “Reference waveform No.5” under
“Inspection of BCM and Its Circuits in Section 10B”.

2. screw

1

I5JB0A930026-04

1

2

2

3

I5JB0A930027-01

[A]: Without cruise control system
[B]: With cruise control system

5

6

4

1

2

3

[A]

[B]

“b”

“a”

“b”

“a”

I6JB01930012-02

Instrumentation / Driver Info. / Horn:  9C-26

Specifications

Tightening Torque Specifications

S6JB0B9307001

NOTE
The specified tightening torque is also described in the following.
“Audio System Component Location”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Fastening part

Tightening torque

Note

N

m

kgf-m

lb-ft

Instrument panel mounting bolt

23

2.3

17.0

)

Lower anchor bolt

35

3.5

25.5

)

Antenna base mounting nut

10

1.0

7.5

)

9D-1 Wipers / Washers:

Body, Cab and Accessories

Wipers / Washers

Diagnostic Information and Procedures

Front Wiper and Washer Symptom Diagnosis

S6JB0B9404001

Rear Wiper and Washer Symptom Diagnosis

S6JB0B9404002

Condition

Possible cause

Correction / Reference Item

Wiper malfunctions

Circuit fuse blown

Replace fuse and check for short circuit.

Wiper motor faulty

Check wiper motor referring to “Windshield
Wiper Motor Inspection”.

Combination switch (wiper switch) faulty Check wiper switch referring to “Windshield

Wiper and Washer Switch Inspection”.

Wiring or grounding faulty

Repair circuit.

Washer malfunctions

Washer hose or nozzle clogged

Clean or repair clogged hose or nozzle.

Circuit fuse blown

Replace fuse and check for short circuit.

Washer motor faulty

Check washer motor referring to “Washer
Pump Inspection”
.

Combination switch (washer switch)
faulty

Check washer switch referring to “Windshield
Wiper and Washer Switch Inspection”.

Wiring or grounding faulty

Repair circuit.

Condition

Possible cause

Correction / Reference Item

Wiper malfunctions

NOTE

• Use of SUZUKI scan

tool makes it easy to
check whether a faulty
condition is on the
input side or output
side of BCM. For
checking procedure,
refer to “Diagnosis
Using Output Test
Function of SUZUKI
Scan Tool” under
“Scan Tool Data in
Section 10B”.

• Check each part in the

order from the top of
the following list.



Circuit fuse blown

Replace fuse and check for short circuit.

Wiper motor faulty

Check wiper motor referring to “Rear Wiper
Motor Inspection”.

Combination switch (wiper switch) faulty Check wiper switch referring to “Rear Wiper

and Washer Switch Inspection”.

Rear wiper relay faulty

Check rear wiper relay referring to “Rear Wiper
Relay Inspection”.

Wiring or grounding faulty

Repair circuit.

BCM faulty

Replace after making sure that none of above
parts is faulty.

Washer malfunctions

Washer hose or nozzle clogged

Clean or repair clogged hose or nozzle.

Circuit fuse blown

Replace fuse and check for short circuit.

Washer motor faulty

Check washer motor referring to “Washer
Pump Inspection”
.

Combination switch (washer switch)
faulty

Check washer switch referring to “Rear Wiper
and Washer Switch Inspection”.

Wiring or grounding faulty

Repair circuit.

Wipers / Washers:  9D-2

Headlight Washer Symptom Diagnosis (If Equipped)

S6JB0B9404003

Headlight Washer Operation Inspection (If Equipped)

S6JB0B9404004

1) Turn ignition switch to ON position.
2) Turn lighting switch to “HEAD” position.
3) Make sure that washer fluid is spouted out from the headlight washer nozzle to the headlight surface when the

headlight washer switch or front washer switch is turned on.
If headlight washer does not operate, go to “Headlight Washer Symptom Diagnosis (If Equipped)”.

NOTE
The headlight washer works only when the headlight is turned on. The headlight washer spouts
washer fluid on the headlight surface when the headlight washer switch or front washer switch is
turned on. In addition, in case using the front washer switch, the headlight washer works only once
after the headlight on.



Condition

Possible cause

Correction / Reference Item

Headlight washer
malfunction

Washer hose or nozzle clogged

Clean or repair clogged hose or nozzle.

Circuit fuse blown

Replace fuse and check for short circuit.

Headlight washer switch faulty

Check headlight washer switch referring to
“Headlight Washer Switch Inspection (If
Equipped)”.

Combination switch (washer switch)
faulty

Check washer switch referring to “Windshield
Wiper and Washer Switch Inspection”.

Headlight washer pump faulty

Check headlight washer pump referring to
“Washer Pump Inspection”.

Wiring or ground faulty

Repair circuit.

Headlight washer control module faulty Check headlight washer control module

referring to “Inspection of Headlight Washer
Control Module and Its Circuit (If Equipped)”.
