5A-12 Automatic Transmission/Transaxle:

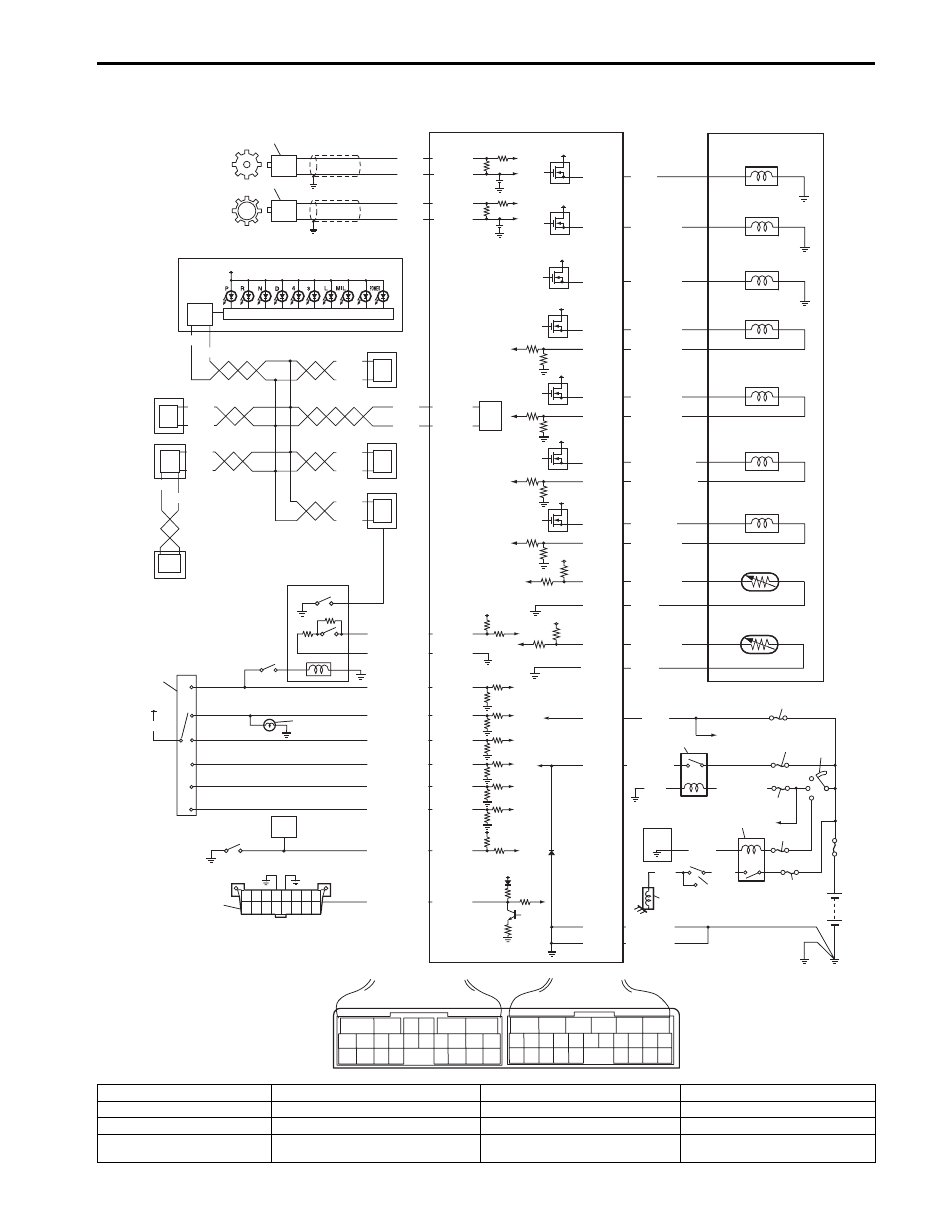

Schematic and Routing Diagram
Electronic Shift Control Input / Output Diagram
S6JB0B5102003
INPUT
OUTPUT
TCM
ECM
-Accelerator pedal
position
-Coolant temperature
-Throttle position
-Engine torque
-Engine speed
-A/C ON/OFF
-Stop lamp switch
-Vehicle speed
-Cruise control signal
Gear shift control
Shift timing control
5th gear inhibit control
Slope shift control
Cruise shift control
Lock up control
Slip control
Torque control
Line pressure control
Overrun control
Reverse control
Squat control
Input shaft speed
sensor
Output shaft speed
sensor
"4" position switch
ATF temp. sensor
Transfer 4L/N switch
Transmission range
sensor
- Range "P" signal
- Range "R" signal
- Range "N" signal
- Range "D" signal
- Range "3" signal
- Range "L" signal
Fail safe function
Self diagnosis
Warning function
ECM
-Transmission output speed
-Shift position signal
-Shift position signal
-Shift position signal
-Transmission fluid temperature
-Transmission actual gear
-Transmission actual gear
-Transmission emissions
reated malfunction
Combination meter
-Shift indicator
-POWER mode lamp
-MIL *1
-Transmission warning light *2
BCM
ESP control module
Shift solenoid valve-A
Shift solenoid valve-B
Shift solenoid valve-E
TCC pressure control
solenoid valve
Pressure control
solenoid valve-A
Pressure control
solenoid valve-B
Pressure control
solenoid valve-C
Signal on CAN
communincation line
BCM
-P/N mode signal
P/N mode switch
R
-Transmission actual gear
4WD control module
I6JB0B510003-02
*1: E-OBD model
*2: Non-E-OBD model
