Suzuki Grand Vitara JB627. Service manual - part 184

4E-17 ABS:

Troubleshooting

Serial Data Link Circuit Check

S6JB0B4504011

Step

Action

Yes

1) Make sure that:

• Parking brake is completely released.
• Brake fluid level is upper than the minimum level.

Are the check results OK?

Go to Step 2.

Release parking brake
completely and/or
replenish brake fluid.

1) Turn ignition switch to ON position.

Does “ABS” warning light come on steady?

Perform “ABS Warning
Light Comes ON
Steady” previously
outlined.

Go to Step 3.

1) CAN communication circuit between combination meter,

ABS (ESP

®) hydraulic unit / control module and BCM

referring to “DTC U1073: Control Module
Communication Bus Off”.

Is CAN communication circuit in good condition?

Substitute a known-
good combination meter
and recheck. If ABS
warning light remains
ON, substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module assembly and
recheck.

Repair or replace.

12V

E03-1

E03-14

E03-7

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

E03-13

E03-26

BLK

RED

WHT

RED

WHT

E03-12
E03-6

PPL/WHT

12V

+BB

E03-5

[A]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

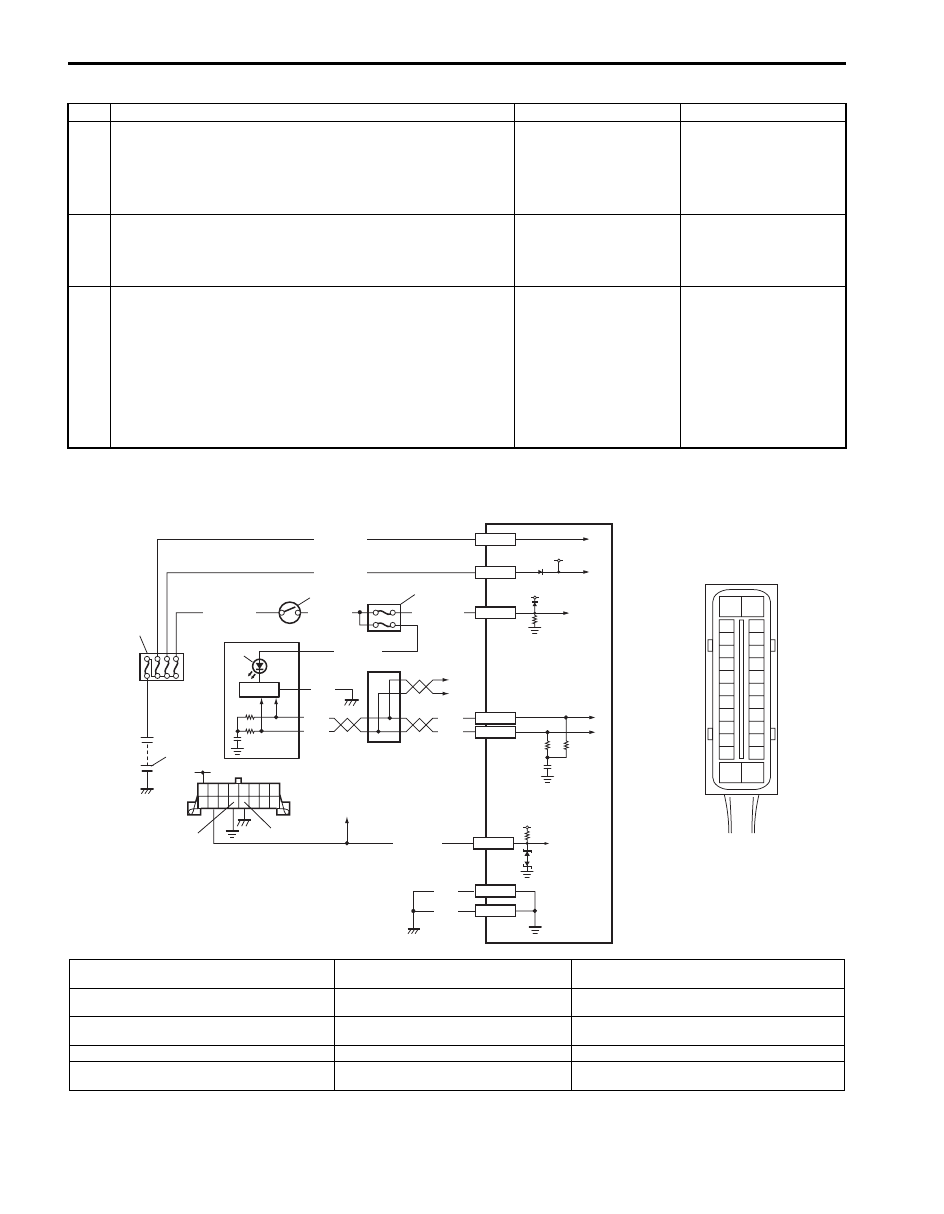

I5JB0A450012-02

[A]:

ABS (ESP

®) hydraulic unit / control module

connector (viewed from terminal side)

5. Combination meter

10. CAN junction

1. Battery

6. EBD warning light (Brake warning light)

11. To TCM, 4WD control module and keyless start

control module

2. Main fuse box

7. Light driver module

12. ABS (ESP

®) hydraulic unit / control module

assembly

3. Ignition switch

8. Data link connector (DLC)

4. Circuit fuse (in junction block assembly)

9. To ECM, TCM, BCM, SDM and 4WD

control module

ABS: 4E-18

Inspection

Step

Action

Yes

1) Turn ignition switch to ON position.

Does ABS warning light come ON?

Go to Step 2.

Go to Step 6.

1) Turn ignition switch to OFF position.

Are main fuses for ABS pump motor and ABS solenoid in
good condition?

Go to Step 3.

Replace fuse and check
for short.

1) Disconnect ABS (ESP

®) hydraulic unit / control module

connector.

2) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminal “E03-7”.

3) If OK then turn ignition switch to ON position and

measure voltage between terminal “E03-7” and vehicle
body ground.

Is it 10 – 14 V?

Go to Step 4.

“GRN/ORN” wire circuit
open.

1) Turn ignition switch to OFF position.
2) Check for proper connection to ABS (ESP

® hydraulic

unit / control module connector at terminals “E03-1” and
“E03-14”.

3) If OK then turn ignition switch to ON position and

measure voltage between each terminal of “E03-1”,
“E03-14” and vehicle body ground.

Are they 10 – 14 V?

Go to Step 5.

“WHT/RED” and/or
“WHT/BLU” wire circuit
open.

1) Turn ignition switch to OFF position.
2) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminals “E03-13”
and “E03-26”.

3) If OK, measure resistance between each terminal of

“E03-13”, “E03-26” and vehicle body ground.

Are resistance less than 2

Ω

Go to Step 6.

Ground circuit for ABS
(ESP

®) hydraulic unit /

control module open or
high resistance.

1) Check if communication is possible by trying

communication with other controller (ECM, TCM, BCM,
4WD control module or SDM).

Is it possible to communicate with other controller?

Go to Step 7.

Repair open in common
section of serial data
circuit (“PPL/WHT” wire
circuit) used by all
controllers or short to
ground or power circuit
which has occurred
somewhere in serial
data circuit (“PPL/WHT”
wire circuit).

1) Turn ignition switch to ON position.
2) Measure voltage between terminal B of data link

connector and vehicle body ground.

Is voltage 10 – 12 V?

Go to step 8.

Terminal B circuit open
or shorted to ground.

1) Turn ignition switch to OFF position.
2) Measure resistance between the following terminals;

• Terminal G of data link connector and vehicle body

ground.

• Terminal G1 of data link connector and vehicle body

ground.

Is each resistance 1

Ω

or less?

Go to step 9.

Terminal G and/or G1
circuit open or high
resistance.

4E-19 ABS:

DTC C1015: G Sensor Circuit Failure (Non-ESP

® Model)

S6JB0B4504012

For ESP

® model, go to “DTC C1015 / C1017 / C1023: Longitudinal G Sensor / Lateral G Sensor / Yaw Rate Sensor in

Yaw Rate / G Sensor Assembly Failure in Section 4F”.

Description
If the signal voltage of G sensor while at a stop does not vary of from that while running, this DTC is set.
Therefore, this DTC may be set when a vehicle is lifted up and its wheel(s) is turned. In such case, clear the DTC and
check again.

DTC Troubleshooting

1) Ignition switch OFF.
2) Check for proper connection from harness to control module.
3) If OK, substitute an ABS hydraulic unit/control module assembly with correct part number.
4) Recheck system.

1) Turn ignition switch to OFF position.

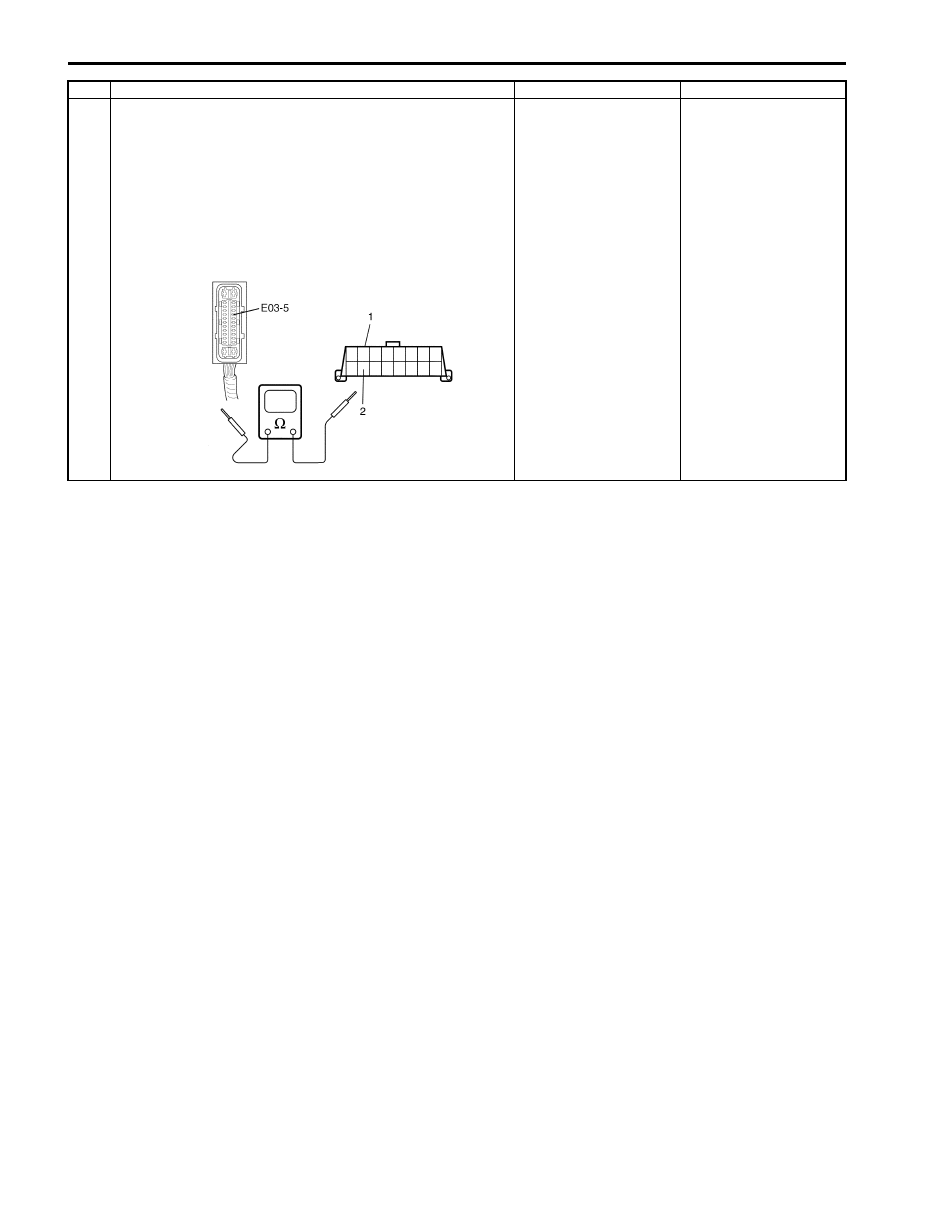

2) Check proper connection at “E03-5” (“PPL/WHT” wire)

terminal for serial data circuit.

3) If OK, then check resistance between “E03-5” (“PPL/

WHT” wire) terminal and “PPL/WHT” wire terminal (2) for
serial data circuit in DLC (1).

Is resistance 1

Ω

or less?

Substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module and recheck.

Repair high resistance
or open in “PPL/WHT”
wire circuit for anti lock
brake system.

Step

Action

Yes

I4RS0A450013-02

ABS: 4E-20

DTC C1021, C1022 / C1025, C1026 / C1031, C1032 / C1035, C1036: Right-Front / Left-Front / Right-
Rear / Left-Rear Wheel Speed Sensor Circuit or Encoder Failure

S6JB0B4504013

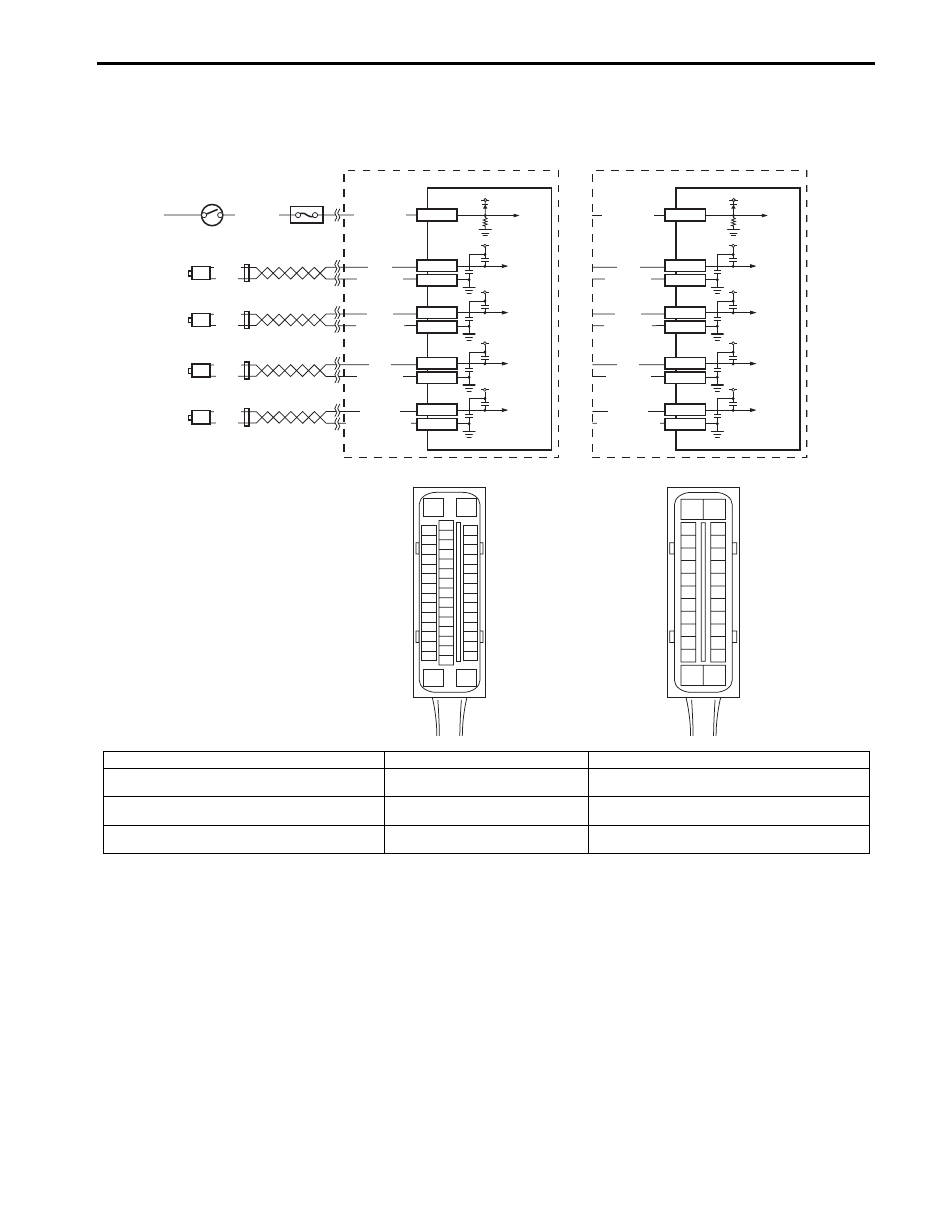

Wiring Diagram

12V

E53-35

GRN/ORN

BLK/YEL

[D]

E03

BLK

WHT

BLK

WHT

BLU/BLK

GRN/BLK

BLU

GRN

YEL/BLK

YEL

LT GRN

LT GRN/BLK

E53-15

E53-14

E53-2

E53-3

E53-6

E53-5

E53-11

E53-12

12V

BLK

WHT

BLK

WHT

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

12V

E03-7

GRN/ORN

BLU/BLK

GRN/BLK

BLU

GRN

YEL/BLK

YEL

LT GRN

LT GRN/BLK

E03-21

E03-22

E03-19

E03-18

E03-15

E03-16

E03-25

E03-24

12V

[A]

[B]

[C]

E53

I6JB01450007-02

[A]: ESP

® model

1. Ignition switch

5. Left-rear wheel speed sensor

[B]: Non-ESP

® model

2. Circuit fuse (in junction block

assembly)

6. Right-rear wheel speed sensor

[C]: ESP

® hydraulic unit / control module connector

(viewed from terminal side)

3. Left-front wheel speed sensor

7. ESP

® hydraulic unit / control module assembly

[D]: ABS hydraulic unit / control module connector

(viewed from terminal side)

4. Right-front wheel speed sensor

8. ABS hydraulic unit / control module assembly
