4E-1 ABS:

Brakes

ABS

Precautions

Precautions in Diagnosing Troubles

S6JB0B4500001

To ensure that the trouble diagnosis is done accurately
and smoothly, observe the following and follow “ABS
Check”.
• If the vehicles was operated in any of the following

ways, ABS warning light may light momentarily but
this does not indicate anything abnormal in ABS.
– The vehicle was driven with parking brake pulled.
– The vehicle was driven with brake dragging.
– The vehicle was stuck in mud, sand, etc.
– Wheel spin occurred while driving.
– Wheel(s) was rotated while the vehicle was jacked

up.

• Be sure to read “Precautions for Electrical Circuit

Service in Section 00” before inspection and observe
what is written there.

• Be sure to use the trouble diagnosis procedure as

described in “ABS Check”. Failure to follow it may
result in incorrect diagnosis. (Some other diagnosis
trouble code may be stored by mistake in the memory
of ABS (ESP

®) control module during inspection.)

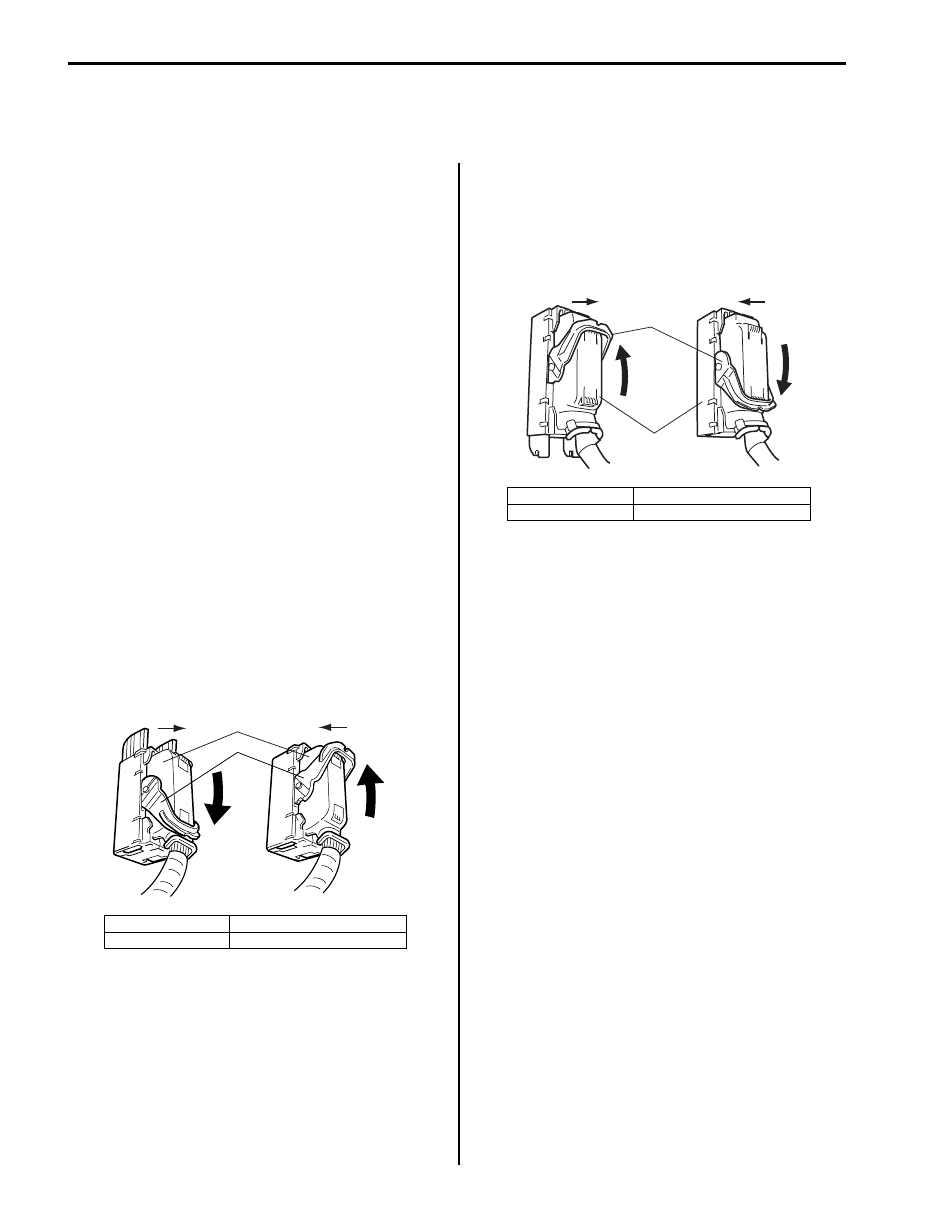

• When disconnecting ABS (ESP

®) hydraulic unit /

control module connector (1), pull down lock lever (2)
of connector.
When connecting, set the connector on ABS (ESP

®)

hydraulic unit / control module assembly and pull up
the lock lever (2) until it locks.

• When disconnecting ESP

® hydraulic unit / control

module connector (1), pull up lock lever (2) of
connector.
When connecting, set the connector on ESP

hydraulic unit / control module assembly and pull
down the lock lever (2) until it locks.

• Communication of ECM, TCM (A/T model), BCM,

ABS (ESP

®) control module, 4WD control module (if

equipped), keyless start control module (if equipped)
and combination meter is established by CAN
(Controller Area Network).
Therefore, be sure to read “Precaution for CAN
Communication System in Section 00” before
inspection and handle CAN communication line.

Precautions in On-Vehicle Service

S6JB0B4500002

When connector is connected to ABS (ESP

®) hydraulic

unit / control module assembly, do not disconnect
connectors of sensors with ignition switch ON.
Otherwise, DTC will be set in ABS (ESP

®) control

module.

Precautions in Hydraulic Unit Operation Check

S6JB0B4500003

ABS (ESP

®) hydraulic unit / control module assembly

function is checked by correct wheel release condition
when brake pressure is depressurized using SUZUKI
scan tool. The hydraulic unit operation check referring to
“Hydraulic Unit Operation Check” should be performed
to confirm the correct brake pipe connection in the
following cases.
• ABS (ESP

®) hydraulic unit / control module ABS

(ESP

®) hydraulic unit / control module assembly was

replaced.

• Brake pipe and/or hose were replaced.

[A]: Disconnect

C: Pull down to disconnect

[B]: Connect

D: Pull up to connect

[A]

[B]

I4RH01450001-01

[A]: Disconnect

C: Pull up to disconnect

[B]: Connect

D: Pull down to connect

[A]

[B]

I6JB01450001-02

ABS: 4E-2

General Description

ABS Description

S6JB0B4501001

The ABS (Antilock Brake System) controls the fluid
pressure applied to the wheel cylinder of each brake
from the master cylinder so that each wheel is not locked
even when hard braking is applied.
This ABS has also the following function.
While braking is applied, but before ABS control
becomes effective, braking force is distributed between
the front and rear so as to prevent the rear wheels from
being locked too early for better stability of the vehicle.
The main component parts of this ABS include the
following parts in addition to those of the conventional
brake system.
• Wheel speed sensor which senses revolution speed

of each wheel and outputs its signal.

• ABS warning light which lights to inform abnormality

when system fails to operate properly.

• ABS (ESP

®) hydraulic unit / control module assembly

is incorporated ABS (ESP

®) control module, ABS

hydraulic unit (actuator assembly), solenoid valve
power supply driver (transistor), solenoid valve driver
(transistor), pump motor driver (transistor).
– ABS (ESP

®) control module which sends operation

signal to ABS hydraulic unit to control fluid pressure
applied to each wheel cylinder based on signal
from each wheel speed sensor so as to prevent
wheel from locking.

– ABS hydraulic unit which operates according to

signal from ABS (ESP

®) control module to control

fluid pressure applied to wheel cylinder of each 4
wheels.

– Solenoid valve power supply driver (transistor)

which supplies power to solenoid valve in ABS
hydraulic unit.

– Solenoid valve driver (transistor) which controls

each solenoid valves in ABS hydraulic unit.

– Pump motor driver (transistor) which supplies

power to pump motor in ABS hydraulic unit.

This ABS is equipped with Electronic Brake force
Distribution (EBD) system that controls a fluid pressure
of rear wheels to best condition, which is the same
function as that of proportioning valve, by the signal from
wheel sensor independently of change of load due to
load capacity and so on. And if the EBD system fails to
operate properly, the brake warning light lights to inform
abnormality.

ABS (ESP

®) hydraulic unit / control module

Assembly Description

S6JB0B4501002

ABS (ESP

®) control module is a component of ABS

(ESP

®) hydraulic unit / control module assembly and

has the following functions.

Self-Diagnosis Function
ABS (ESP

®) control module diagnoses conditions of the

system component parts (whether or not there is any
abnormality) all the time and indicates the results
(warning of abnormality occurrence and DTC) through

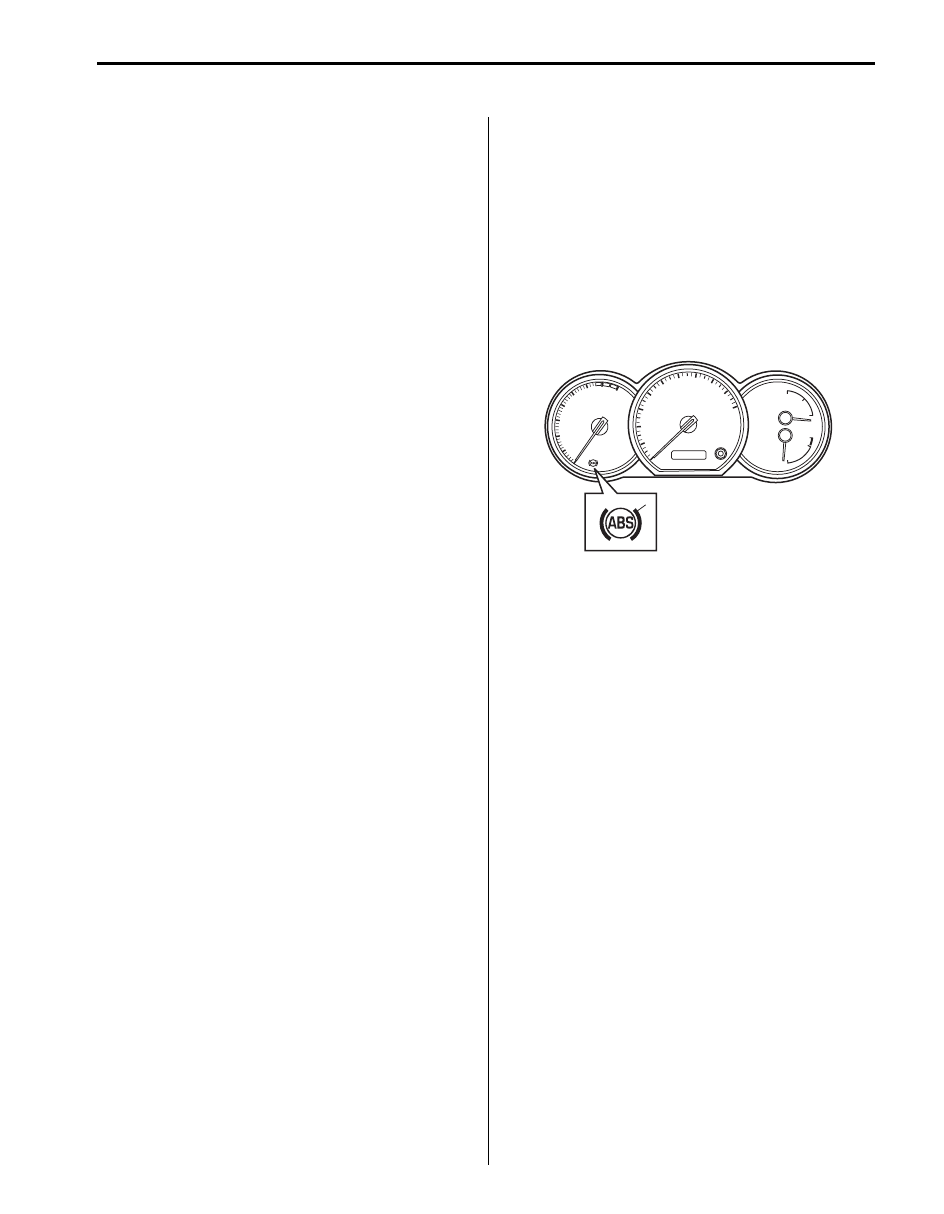

the ABS warning light (1) as described.

• When ignition switch is turned ON, ABS warning light

lights for 2 seconds to check its circuit.

• When no abnormality has been detected (the system

is in good condition), ABS warning light turns OFF
after 2 seconds.

• When an abnormality in the system is detected, ABS

warning light lights and the area where that
abnormality lies is stored in the memory of EEPROM
in ABS (ESP

®) control module.

I5JB0A450001-01

4E-3 ABS:

CAN Communication System Description

S6JB0B4501003

Refer to “CAN Communication System Description in Section 1A” for CAN communication system description.
ABS communicates control data with each control module as follows.

ABS Transmission Data

ABS Reception Data

Torque request signal

Wheel speed signal

ABS active

ABS indication on

EBD indication on

ABS diagnostic trouble codes

Combination Meter

Transmit

DATA

ABS hydraulic

unit / control module

assembly

ECM

4WD control module

(if equiped)

I5JB0A450002-03

Brake pedal switch active

Receive

DATA

ABS hydraulic unit / control module assembly

ECM

I5JB0A450003-03

ABS: 4E-4

Schematic and Routing Diagram

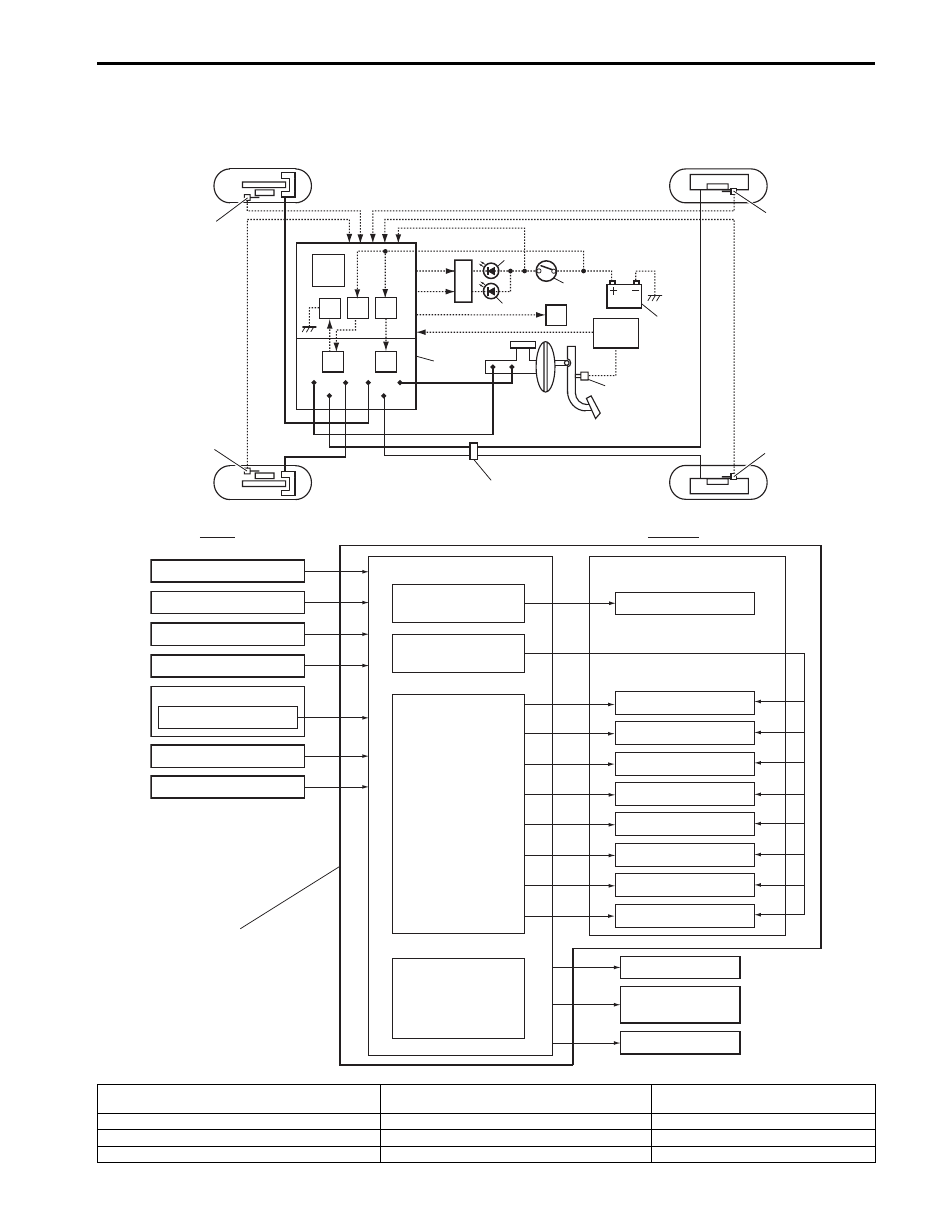

ABS Schematic

S6JB0B4502001

INPUT

OUTPUT

ABS control module

Wheel speed sensor (LF)

Wheel speed sensor (LR)

Wheel speed sensor (RF)

Battery Voltage

Ignition Voltage

Pump motor
driver (transistor)

Solenoid valve power
supply driver (transistor)

Solenoid valve
driver (transistor)

Hydraulic unit

Pump motor

LF inlet solenoid valve

LF outlet solenoid valve

LR inlet solenoid valve

LR outlet solenoid valve

RF inlet solenoid valve

RF outlet solenoid valve

RR inlet solenoid valve

RR outlet solenoid valve

ABS warning

EBD warning

(Brake warning)

Data link connector

ABS hydraulic unit/control
module assembly

Wheel speed sensor (RR)

Stop lamp switch

ECM

G sensor (4WD model)

I6JB0B450001-02

1. ABS (ESP

®) hydraulic unit / control module

assembly

9. Brake light switch

17. Wheel speed sensor (Left-rear)

2. ABS (ESP

®) control module

10. ABS warning light

18. Battery

3. ABS (ESP

®) hydraulic unit

11. EBD warning light (Brake warning light)

19. Ignition switch

4. Solenoid valve power supply driver (transistor)

12. Light driver module

20. G sensor (4WD model)
