Suzuki Grand Vitara JB627. Service manual - part 5

A:
ABDC: After Bottom Dead Center
ABS: Anti-lock Brake System
AC:  Alternating Current
A/C:  Air Conditioning
A-ELR:  Automatic-Emergency Locking Retractor
A/F:  Air Fuel Mixture Ratio
ALR:  Automatic Locking Retractor
API: American Petroleum Institute
ATDC:  After Top Dead Center
ATF:  Automatic Transmission Fluid
A/T:  Automatic Transmission
AWD:  All Wheel Drive
B:
BBDC: Before Bottom Dead Center
BCM:  Body Electrical Control Module
BTDC:  Before Top Dead Center
B+:  Battery Positive Voltage
C:
CAN: Controller Area Network
CKP Sensor: Crankshaft Position Sensor
CKT:  Circuit
CMP Sensor:  Camshaft Position Sensor
CO: Carbon Monoxide
CPP Switch: Clutch Pedal Position Switch (Clutch

Switch, Clutch Start Switch)

CPU:  Central Processing Unit
CRS: Child Restraint System
D:
DC:  Direct Current
DLC:  Data Link Connector (Assembly Line Diag. Link,

ALDL, Serial Data Link, SDL)

DOHC:  Double Over Head Camshaft
DOJ:  Double Offset Joint
DRL:  Daytime Running Light
DTC:  Diagnostic Trouble Code (Diagnostic Code)
E:
EBCM: Electronic Brake Control Module, ABS Control

Module

EBD: Electronic Brake Force Distribution
ECM: Engine Control Module
ECT Sensor: Engine Coolant Temperature Sensor

(Water Temp. Sensor, WTS)

EFE Heater: Early Fuel Evaporation Heater (Positive

Temperature Coefficient, PTC Heater)

EGR: Exhaust Gas Recirculation
EGRT Sensor: EGR Temperature Sensor (Recirculated

Exhaust Gas Temp. Sensor, REGTS)

ELR: Emergency Locking Retractor
EPS: Electronic Power Steering
ESP

: Electronic Stability Program

EVAP: Evaporative Emission
EVAP Canister: Evaporative Emission Canister

(Charcoal Canister)

F:
FWD: Front Wheel Drive
4WD:  4 Wheel Drive
G:
GEN:  Generator
GND:  Ground
H:
HC: Hydrocarbons
HO2S: Heated Oxygen Sensor
HVAC: Heating, Ventilating and Air Conditioning
I:
IAC Valve: Idle Air Control Valve (Idle Speed Control

Solenoid Valve, ISC Solenoid Valve)

IAT Sensor: Intake Air Temperature Sensor (Air

temperature Sensor, ATS)

ICM: Immobilizer Control Module
IG: Ignition
IMT: Intake Manifold Tuning
ISC Actuator:  Idle Speed Control Actuator (Motor)
L:
LH: Left Hand
LSPV: Load Sensing Proportioning Valve
M:
MAF Sensor:  Mass Air Flow Sensor (Air Flow Sensor,

AFS, Air Flow Meter, AFM)

MAP Sensor: Manifold Absolute Pressure Sensor

(Pressure Sensor, PS)

Max: Maximum
MFI: Multiport Fuel Injection (Multipoint Fuel Injection)
MIL: Malfunction Indicator Lamp (“SERVICE ENGINE

SOON” Light)

Min:  Minimum
M/T:  Manual Transmission
N:
NOx: Nitrogen Oxides
O:
OBD:  On-Board Diagnostic System (Self-Diagnosis

Function)

OCM: Occupant Classification module
O/D: Overdrive
OHC: Over Head Camshaft
O2S: Oxygen Sensor
P:
PCM: Powertrain Control Module
PCV: Positive Crankcase Ventilation
PNP: Park / Neutral Position
PSP Switch: Power Steering Pressure Switch (P/S

Pressure Switch)

P/S: Power Steering
R:
RH: Right Hand

General Information: 0A-2

S:
SAE:  Society of Automotive Engineers
SDM:  Sensing and Diagnostic Module (Air Bag

Controller, Air bag Control Module)

SFI:  Sequential Multiport Fuel Injection
SOHC:  Single Over Head Camshaft
T:
TBI:  Throttle Body Fuel Injection (Single-Point Fuel

Injection, SPI)

TCC: Torque Converter Clutch
TCM: Transmission Control Module (A/T Controller, A/T

Control Module)

TPMS: Tire Pressure Monitoring System
TP Sensor: Throttle Position Sensor
TVV: Thermal Vacuum Valve (Thermal Vacuum

Switching Valve, TVSV, Bimetal Vacuum Switching
Valve, BVSV)

TWC: Three Way Catalytic Converter (Three Way

Catalyst)

2WD:  2 Wheel Drive
V:
VIN:  Vehicle Identification Number
VSS: Vehicle Speed Sensor
VVT:  Variable Valve Timing (Camshaft Position Control)
W:
WU-OC:  Warm Up Oxidation Catalytic Converter
WU-TWC: Warm Up Three Way Catalytic Converter

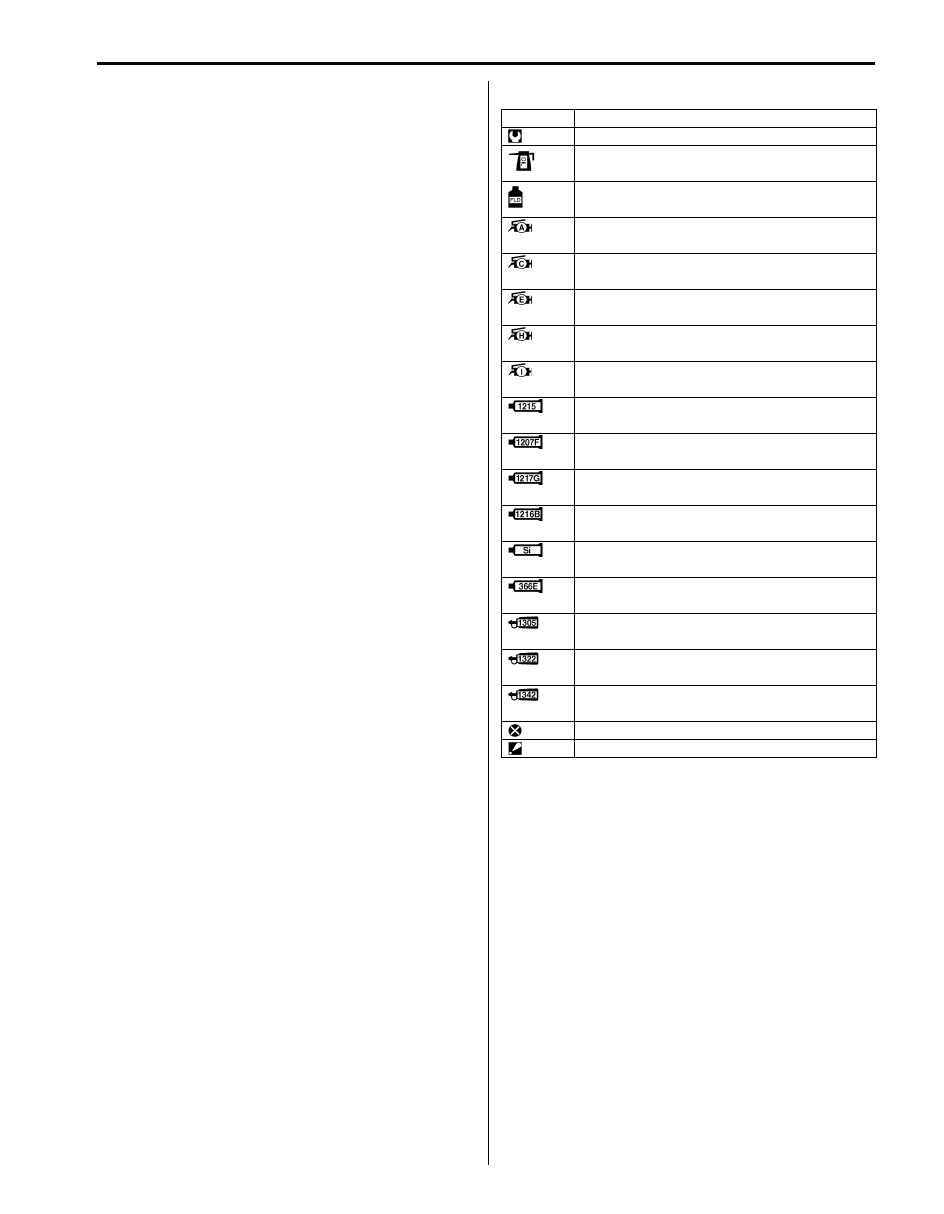

Symbols

S6JB0B0101002

Symbol

Definition

Tightening torque
Apply oil
(engine, transmission, transfer, differential)
Apply fluid
(brake, power steering, automatic fluid)
Apply SUZUKI SUPER GREASE A
99000-25010
Apply SUZUKI SUPER GREASE C
99000-25030
Apply SUZUKI SUPER GREASE E
99000-25050
Apply SUZUKI SUPER GREASE H
99000-25120
Apply SUZUKI SUPER GREASE I
99000-25210
Apply SUZUKI BOND NO. 1215
99000-31110
Apply SUZUKI BOND NO. 1207F
99000-31250
Apply SUZUKI BOND NO. 1217G
99000-31260
Apply SUZUKI BOND NO. 1216B
99000-31230
Apply SUZUKI SILICONE SEALANT
99000-31120
Apply SUZUKI SEALING COMPOUND 366E
99000-31090
Apply THREAD LOCK 1305
99000-32100
Apply THREAD LOCK 1322
99000-32110
Apply THREAD LOCK 1342
99000-32050
Do not reuse.
Note on reassembly.
