Subaru BRZ (2012 year). Service manual - part 6

NOTE

Page

Note ............................................................................................................2

NT-2

Note

NOTE

1. Note

A: BASIC REPAIR HINT

This section describes basic points that the service operator must understand before performing the service

operation.

1. APPEARANCE

• Always wear clean work clothing.

• Wear a cap and protective shoes.

2. PROTECTION OF VEHICLE UNDER MAINTENANCE AND PREPARATION OF TOOLS/

EQUIPMENT

• Before work, cover the vehicle body. (Ex. grille cover, fender cover, seat cover and floor mat cover)

• Before performing the service operation, prepare tools, equipment, container box, grease and cloth etc.

3. SAFETY

• Before work, set the wheel stoppers to secure

the vehicle.

• When performing work by multiple workers, call

to each other to make sure that service operation is

performed safely.

• Before starting engine, ventilate the room.

• When performing the service operation of high-

temperature parts like muffler, rotating parts like

fan and other movable parts, be careful not to get

burned or injured.

• For the jack-up and lift up, set the tool to the

proper location to support the vehicle correctly. And

use the safety device properly when lifting up.

4. SERVICE OPERATION

• By identifying the vehicle problems thoroughly

before work, service operation will be performed ef-

fectively.

• Before removing parts, confirm the installation

condition or the damage of the parts.

• To reinstall parts properly, leave a note of the

condition before work as necessary.

• For a part which needs positioning, take appro-

priate action such as putting alignment marks.

• For a removed part, clean it as necessary and

check for damage and defect before installation.

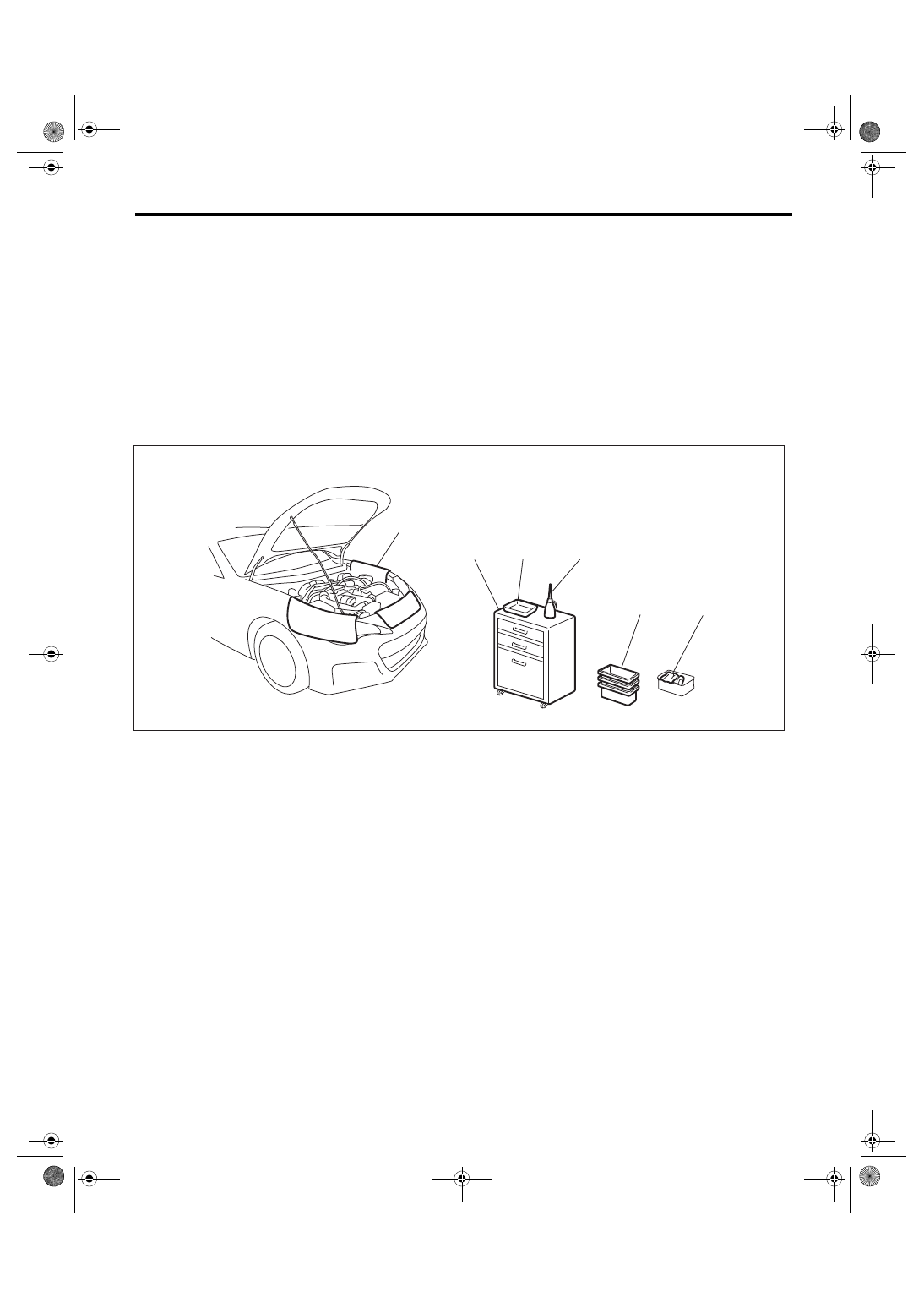

(1)

Fender cover

(3)

Tray

(5)

Container box

(2)

Tools/equipment case

(4)

Oil

(6)

Cloth

(4)

(3)

(2)

(5)

(6)

NT-00445

(1)

NT-3

Note

NOTE

5. REMOVED PART

• A removed part must be organized to avoid mixing up with similar parts. When same parts are used in mul-

tiple locations, such as pistons in engine, manage the parts by using labels with cylinder No. so that the parts

are not installed to the wrong location.

• Always replace nonreusable parts such as gasket and O-ring with new parts.

• After work, have a customer confirm the replaced part.

6. WHEN REMOVING BATTERY

• To prevent damaging the retainer & molding assembly, completely close the front door glass on driver's

and passenger's sides before removing the battery.

• When removing battery, power supply is cut off and the information stored in the computer memory is vol-

atilized. Therefore, setting information of some device is initialized to the factory default. The device and

functions initialized by removing battery are as follows.

7. ADJUSTMENT SERVICE PROCEDURES PERFORMED BEFORE DELIVERY TO CUSTOM-

Perform the following procedures before delivering the vehicle to the customer according to maintenance

performed and parts replaced.

No.

Item

Procedures for connecting the battery

Clock

Set to the clock to the current time.

Temperature setting of fully automatic air conditioner (Set-
ting made by customer)

Restore to the setting before removing battery.

Power window system

Perform initialization of automatic full open/close of driver's
window (power window system).

Steering lock system (Models with keyless access)

If the engine does not start, initialize the steering lock sys-
tem.

Electronic throttle system

Turn the ignition switch to ON, and wait 10 seconds before
starting the engine.

Engine control system

With no electronic loads applied, allow the engine to idle
until it is completely warmed up (until the radiator fan is acti-
vated two times or more).

Past trouble history (memory code)

—

No.

Item

Check points

Adjustment procedures

Adjustment procedures also per-

formed when replacing parts

Each device location
• Steering
• Room mirror
• Door mirror
• Seat
• Air conditioning vent grille

Are all devices in the
same positions as when
the vehicle was received
from the customer?

Adjust all devices to be in
the same positions as
when the vehicle was
received from the cus-
tomer.

During device removal/installation
procedures
• Motor, instrument panel, steer-
ing column and similar parts
• Room mirror, roof trim and sim-
ilar parts
• Door mirrors, door panels and
similar parts
• Seats, floor carpet, parking
brake lever and similar parts
• Vent grilles, instrument panel,
console box and similar parts

Position of all switches
• Wipers, lights (AUTO or
OFF)
• Illumination control
• Room light
• Seat heater and similar
parts

Are all switches in the
same positions as when
the vehicle was received
from the customer?

Return all switches to the
same positions as when
the vehicle was received
from the customer.

During switch removal/installa-
tion procedures

Antenna position

Is the antenna in the same
positions as when the
vehicle was received from
the customer?

Adjust antenna position.

During antenna removal/installa-
tion procedures and car wash

NT-4

Note

NOTE

B: NOTE

This is the information that can improve the effi-

ciency of maintenance and assure the sound work.

1. CAR WASH

• Perform procedures in a clean location and take

measures to protect from dust.

• Before disassembly, clean all parts except for

assembly parts with steam etc. When steam clean-

ing, use vinyl tape or similar material to plug up

parts such as the air breather, oil level gauge and

connectors so as to prevent steam from getting in-

side such parts.

• Use new white kerosene or similar liquid as the

cleaning solution.

• Never wash rubber parts, such as o-rings, gas-

kets and oil seals, using cleaning solution.

2. FASTENERS NOTICE

Tighten the bolts and nuts to the specified torque.

Do not apply paint, lubricant, rust retardant or other

substance to the surface around bolts, nuts, etc. It

may cause troubles with tightening to the specified

torque and result in looseness and other problems

of bolts and nuts.

3. STATIC ELECTRICITY DAMAGE

Do not touch the control modules, connectors, logic

boards and other such parts when there is a risk of

static electricity. Always use a static electricity pre-

vention cord or touch grounded metal for the elimi-

nation of static electricity before conducting work.

4. BATTERY

When removing the battery terminal, always be

sure to turn the ignition switch to OFF and discon-

nect the battery ground terminal first.

For models equipped with the keyless access with

push button start system, turn off all power supply

(indicator of the push button ignition switch goes

off) before disconnecting the battery ground termi-

nal.

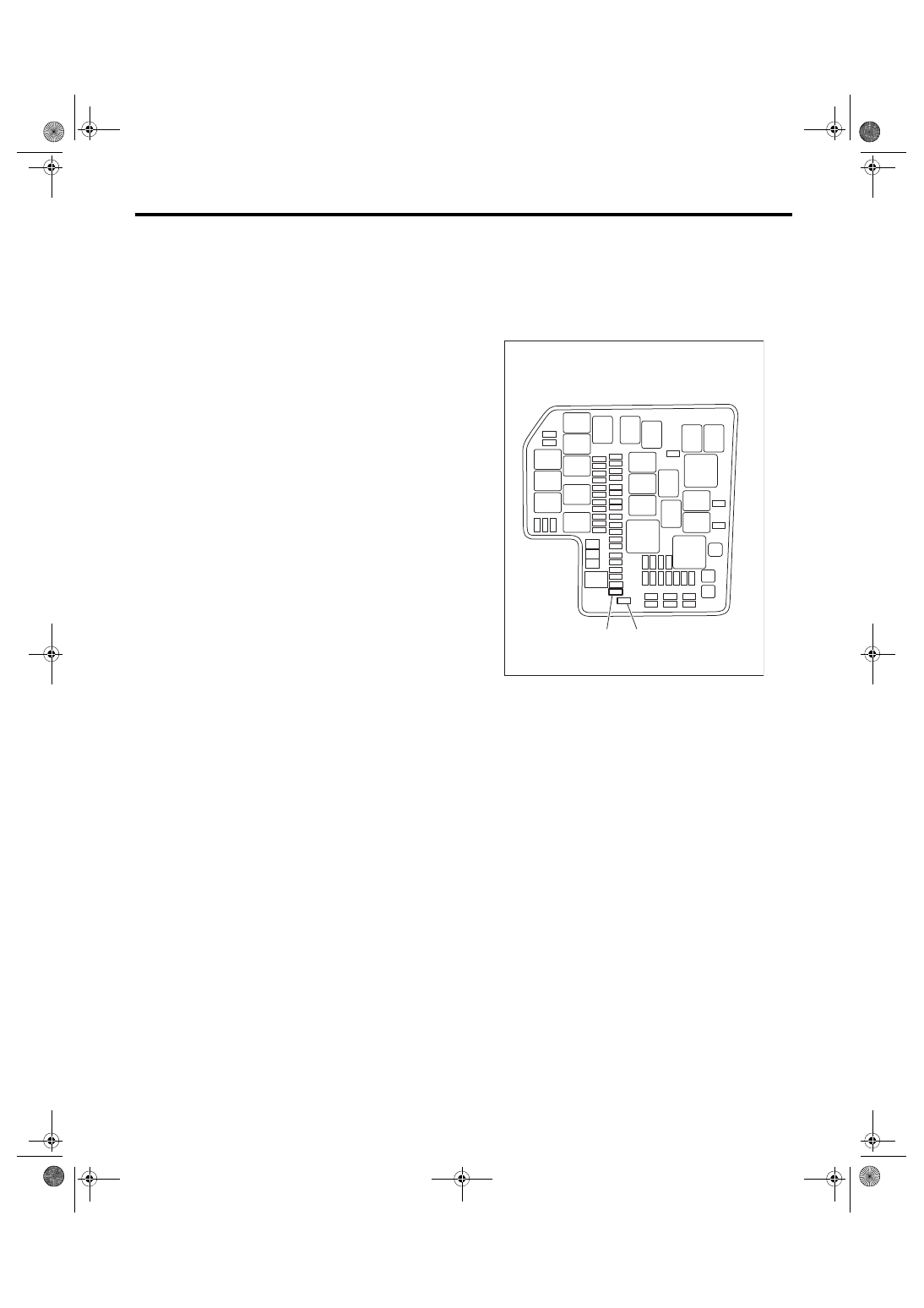

5. BACKUP/POWER SUPPLY FUSE

The 30A fuse is moved from position (A) to (B) as

shown in the figure below to prevent battery con-

sumption when vehicles are delivered. Remove the

fuse from (B) and install in (A) as shown in the fig-

ure below. Removing the fuse from (B) deactivates

control during shipping (delivery mode).

6. IMMOBILIZER RELATED PART

Do not replace parts which have an immobilizer ID

(all ignition keys, combination meter (except for

Canada), body integrated unit, ECM and SCM (for

Canada), access key, keyless access CM, steering

lock CM and ID code box (for Canada) with parts

from other vehicles.

7. SERVICE PARTS

Use genuine parts for maximum performance and

maintenance when conducting repairs. Subaru/FHI

will not be responsible for poor performance result-

ing from the use of parts except for genuine parts.

8. PROTECTING VEHICLE UNDER MAIN-

TENANCE

Make sure to attach the fender cover, seat covers,

etc. before work.

9. ENSURING SECURITY DURING WORK

When working in a group of two or more, perform

the work with calling each other to ensure mutual

safety.

(A)

(B)

NT-00457
