EN(H4DOSTC)-134

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

6

CHECK POOR CONTACT.
Check poor contact in ECM connector.
Is there poor contact in ECM connector?

There is poor contact.

Repair the poor
contact in ECM
connector.

Inspection using
“General Diagnos-
tic Table”. <Ref. to
EN(H4DOSTC)-
246, INSPEC-
TION, General
Diagnostic Table.>

Step

Value

Yes

No

EN(H4DOSTC)-135

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

MEMO:

EN(H4DOSTC)-136

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Z: DTC P0327 — KNOCK SENSOR 1 CIRCUIT LOW INPUT (BANK 1 OR SINGLE

SENSOR) —

• TROUBLE SYMPTOM:

• Poor driving performance
• Knocking occurs.

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4DOSTC)-35,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4DOSTC)-33, Inspection
Mode.> .

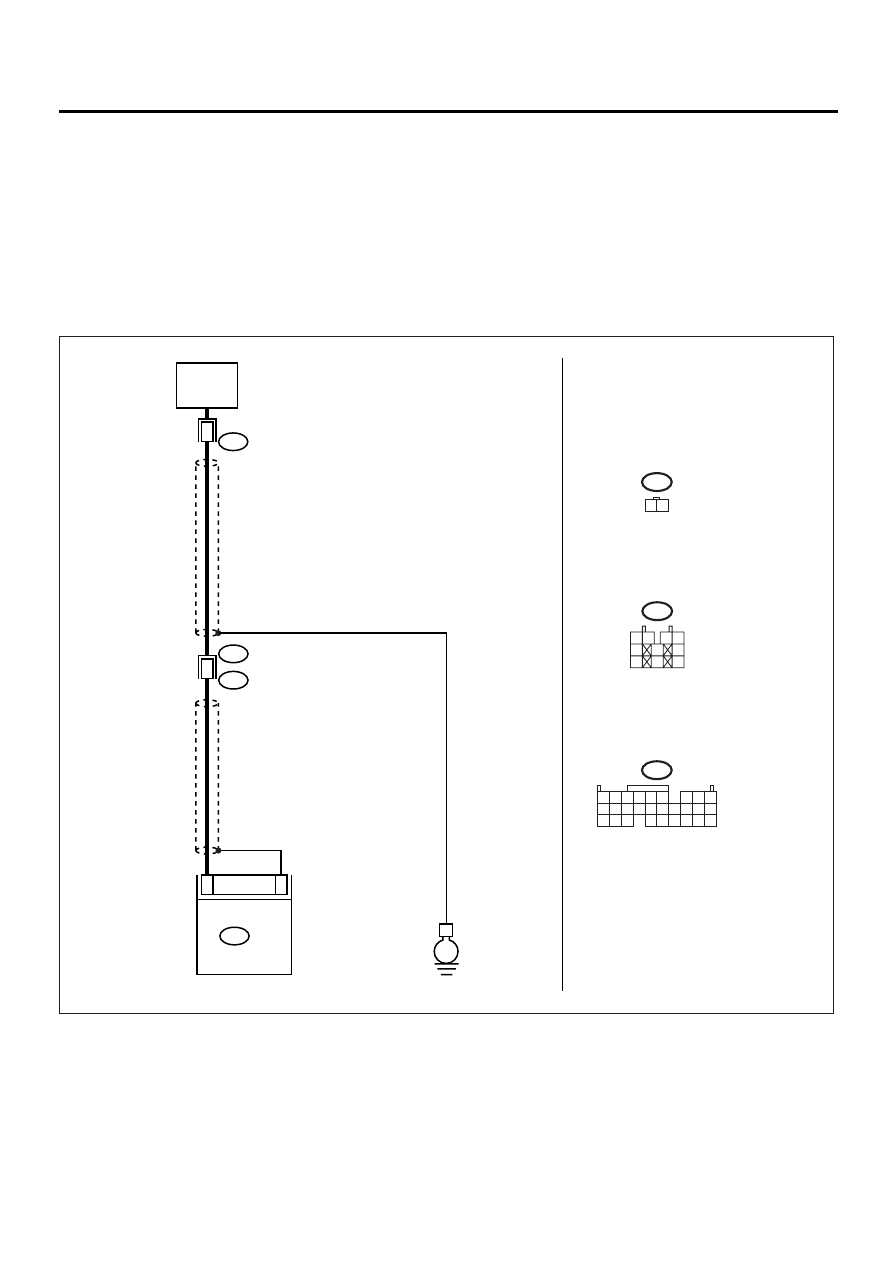

• WIRING DIAGRAM:

E1

E14

B20

 KNOCK
SENSOR

2

6

B135 ECM

22

4

E

E14

1 2

1 2

3 4

5

6

7

8

9

10

B20

B135

5 6

7 8

2

1

9

4

3

10

24

22

23

25

11 12 13 14 15

26 27 28

16 17 18 19

20 21

EN-00941

EN(H4DOSTC)-137

ENGINE (DIAGNOSTICS)

DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC)

Step

Value

Yes

No

1

CHECK HARNESS BETWEEN KNOCK SEN-
SOR AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance between ECM har-

ness connector and chassis ground.

Connector & terminal

(B135) No. 4 — Chassis ground:

Does the measured value exceed the spec-
ified value?

700 k

Ω

Go to step 2.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
knock sensor and
ECM connector
• Poor contact in
knock sensor con-
nector
• Poor contact in
coupling connector

2

CHECK KNOCK SENSOR.
1) Disconnect the connector from knock sen-

sor.

2) Measure the resistance between knock

sensor connector terminal and engine
ground.

Terminal

No. 2 — Engine ground:

Does the measured value exceed the spec-
ified value?

700 k

Ω

Go to step 3.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit in
harness between
knock sensor and
ECM connector
• Poor contact in
knock sensor con-
nector
• Poor contact in
coupling connector

3

CHECK CONDITION OF KNOCK SENSOR
INSTALLATION.
Is the knock sensor installation bolt tightened
securely?

Tightened securely.

Replace the knock
sensor.  <Ref. to
FU(H4DOSTC)-
31, Knock Sen-
sor.>

Tighten the knock
sensor installation
bolt securely.
