Subaru Legacy (2005 year). Service manual - part 998

EI-49

EXTERIOR/INTERIOR TRIM

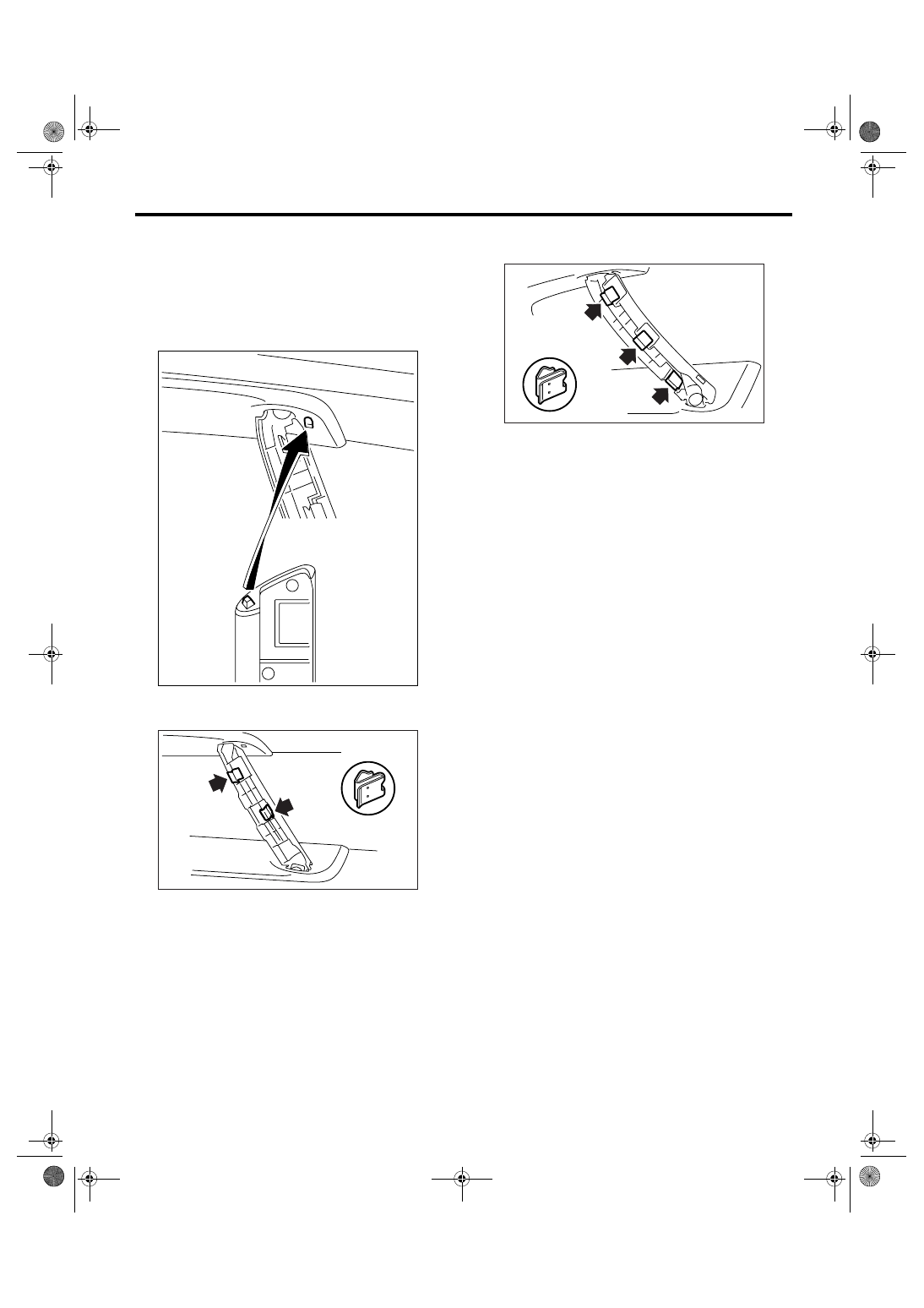

Door Trim

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Be careful not to install the hand grip cover and
plate clip of hand grip in the wrong direction.
• Hand grip cover (front and rear door)
Convex upward

• Bottom clip of the front door faces the opposite
direction.

• Lower side of the hand grip cover for front door
has pawl.

• The lowest clip of rear door faces the opposite di-
rection.

EI-00653

EI-00654

EI-00655

EI-50

EXTERIOR/INTERIOR TRIM

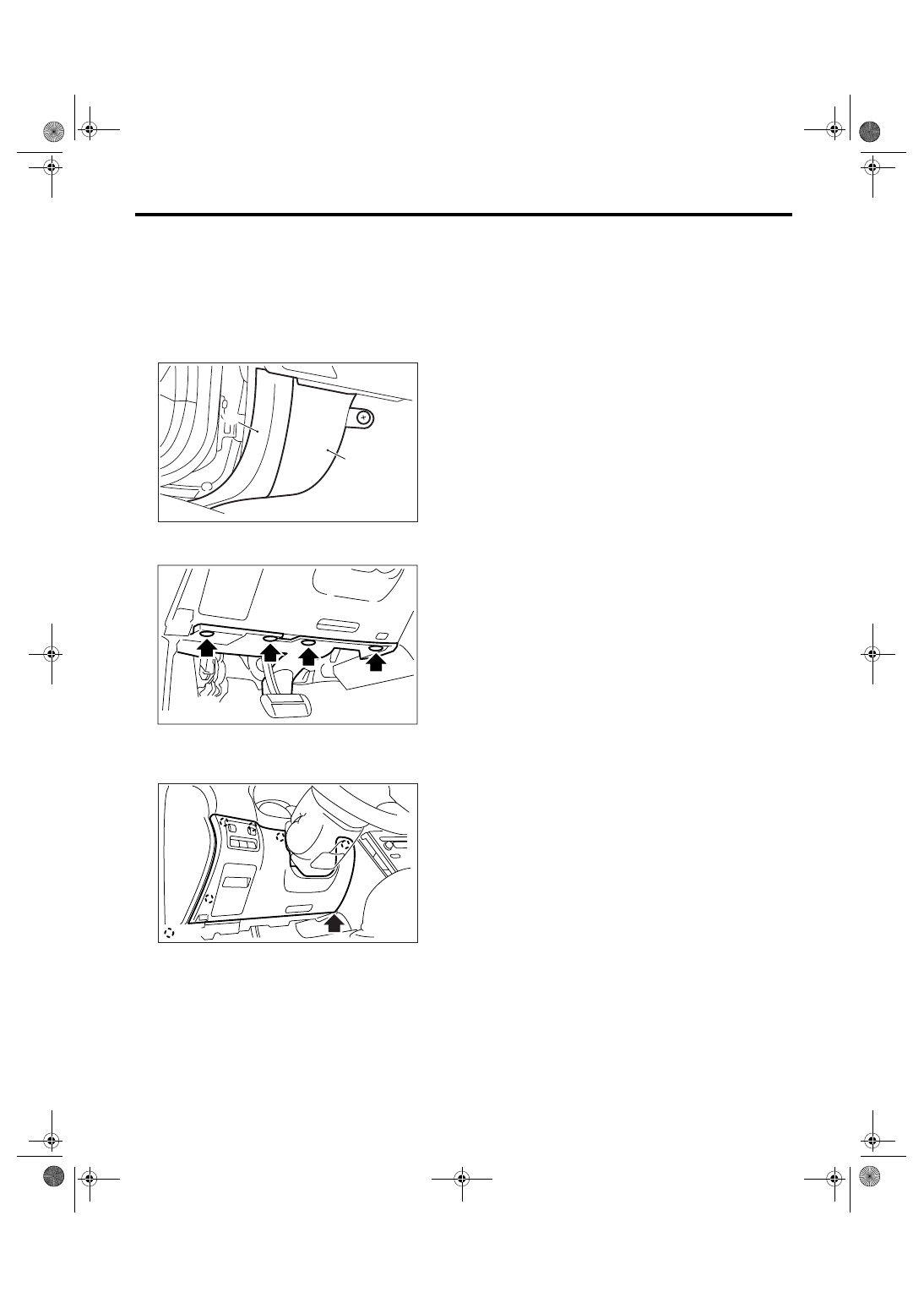

Instrument Panel Lower Cover

19.Instrument Panel Lower Cov-

er

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the front door inside scuff plate (A) and
front pillar lower trim (B) in the driver’s side. <Ref.
to EI-60, REMOVAL, Lower Inner Trim.>

3) Remove the clips, and remove the instrument
panel lower cover under.

4) Loosen the screw (A), disconnect the connec-
tors, and remove the instrument panel lower cover
upper.

B: INSTALLATION

Install in the reverse order of removal.

(B) Clip

EI-00758

(B)

(A)

EI-00759

EI-00760

(A)

:(B)

EI-51

EXTERIOR/INTERIOR TRIM

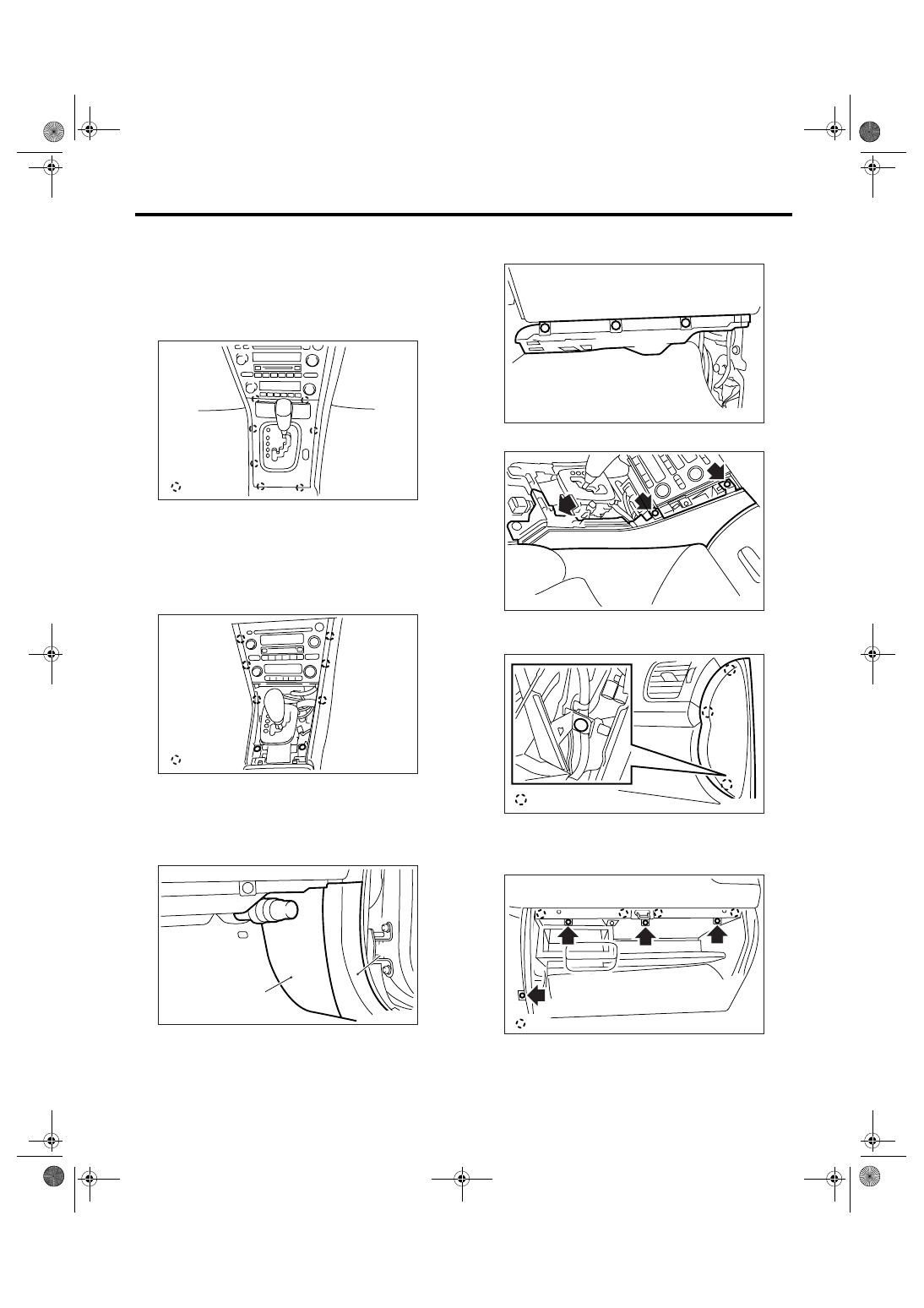

Glove Box

20.Glove Box

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the console box. <Ref. to EI-53, RE-
MOVAL, Console Box.>
3) Remove the console front panel.

NOTE:
For AT model, remove the ring indicator.
For MT model, remove the shift knob.
4) Remove the console side garnish.

5) Remove the front inside scuff plate (A) and front
pillar lower trim (B). <Ref. to EI-60, REMOVAL,
Lower Inner Trim.>

6) Remove the clip, and remove the glove box low-
er cover.

7) Remove the console side panel.

8) Remove the instrument panel side cover, and re-
move the clips.

9) Remove the screw, and remove the glove box.

(A) Hook

(A) Hook

EI-00761

: (A)

EI-00762

: (A)

EI-00763

(B)

(A)

(A) Clip

(A) Clip

EI-00764

EI-00765

 : (A)

EI-00766

EI-00767

 : (A)

EI-52

EXTERIOR/INTERIOR TRIM

Glove Box

B: INSTALLATION

Install in the reverse order of removal.
