IDI-21

INSTRUMENTATION/DRIVER INFO

Clock

9. Clock

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the center air vent grille. <Ref. to AC-
46, REMOVAL, Air Vent Grille.>

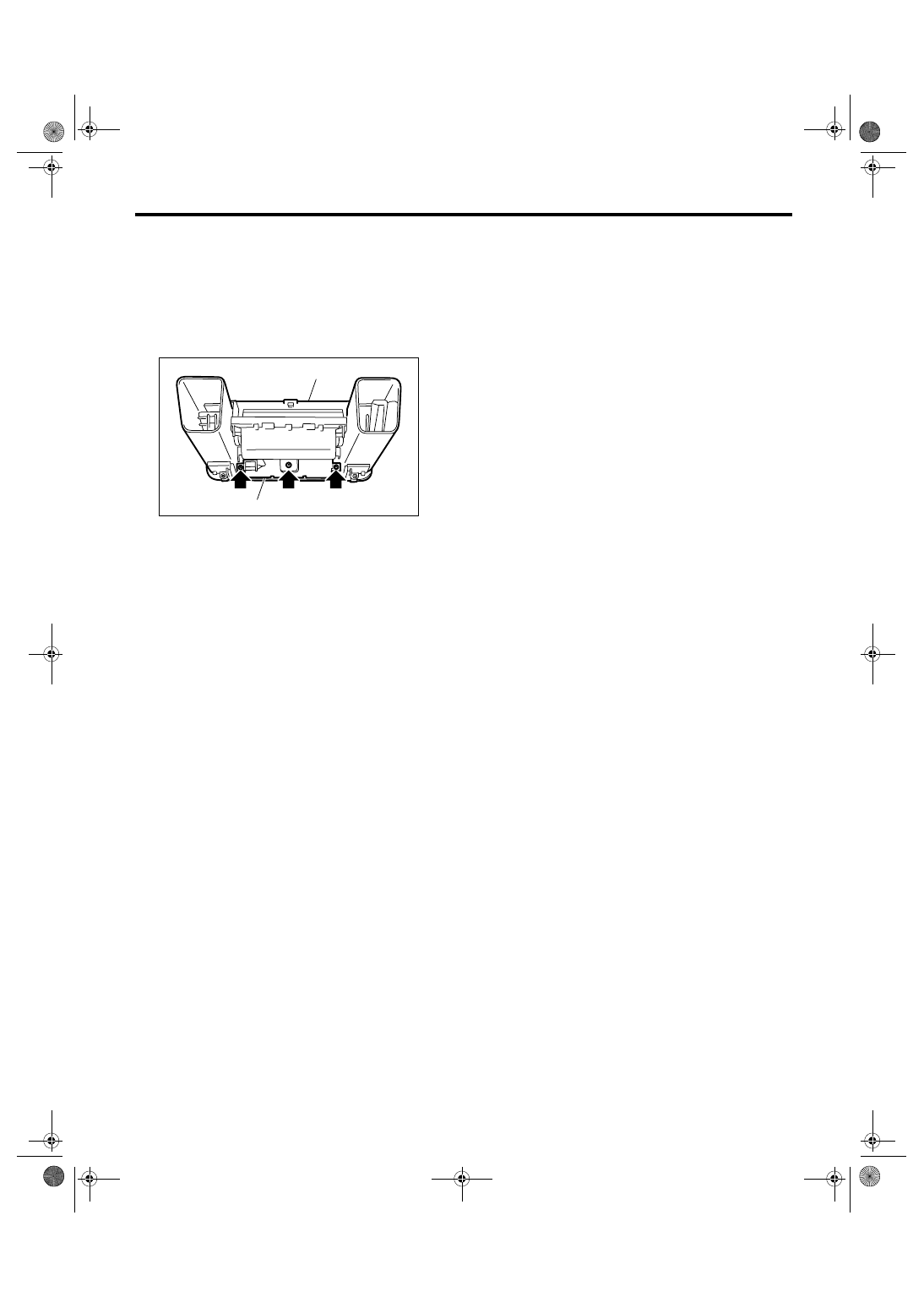

3) Loosen the screws, and then remove the clock
(B) from center air vent grille (A).

B: INSTALLATION

Install in the reverse order of removal.

IDI00103

(A)

(B)

IDI-22

Vehicle-id:
SIE-id:S907981a11:B:INSTALLATION
∼

INSTRUMENTATION/DRIVER INFO

Clock

SEATS

Page

General Description ....................................................................................2

Front Seat ...................................................................................................7

Rear Seat ..................................................................................................14

Seat Heater System ..................................................................................19

SE-2

SEATS

General Description

1. General Description

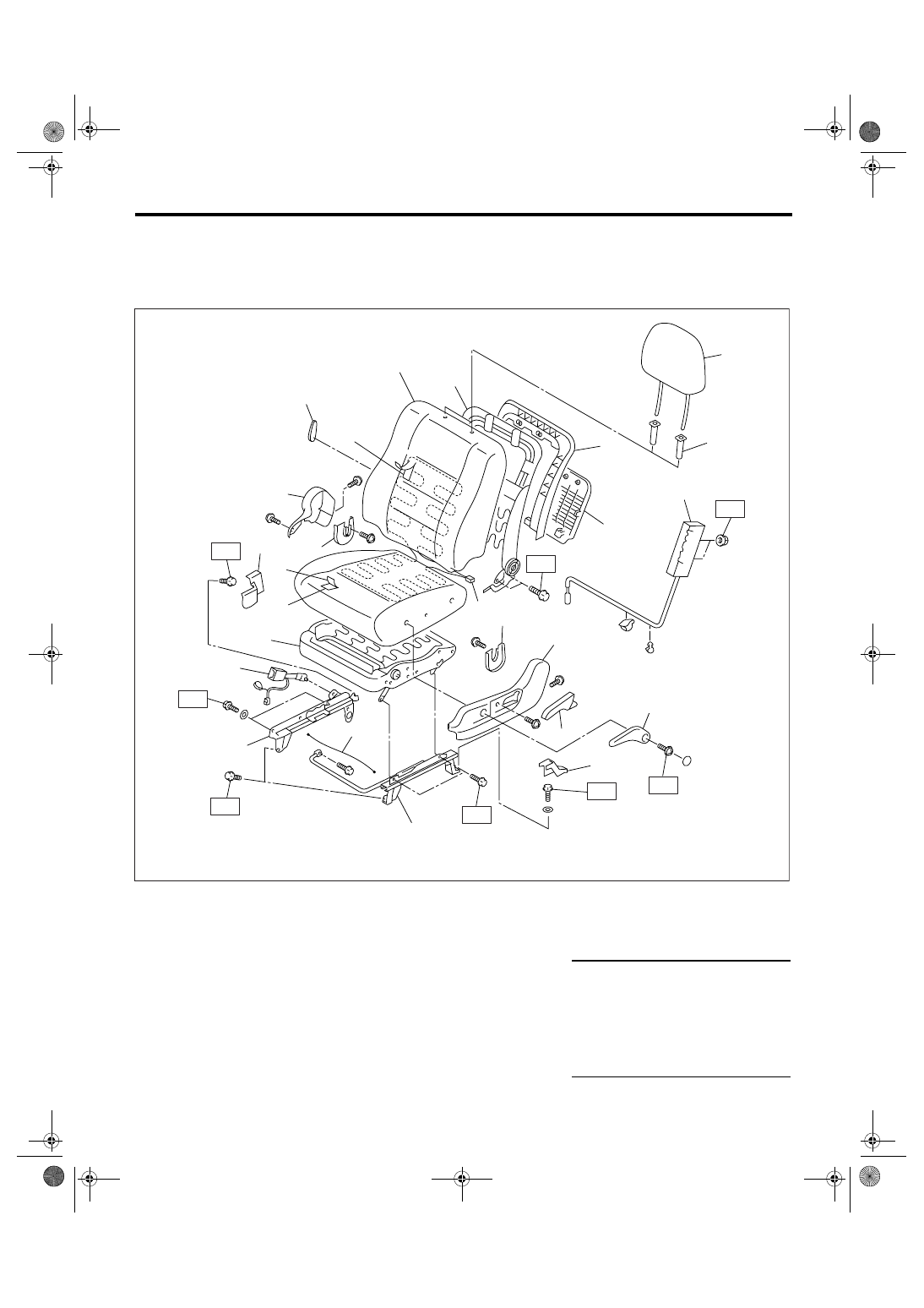

A: COMPONENT

1. FRONT SEAT (MANUAL SEAT)

(1)

Backrest cover

(12)

Seat cushion cover

(23)

Inner seat belt ASSY

(2)

Backrest pad

(13)

Seat cushion pad

(24)

Seat heater unit

(3)

Backrest frame ASSY

(14)

Seat cushion frame ASSY

(25)

Lumber support lever

(4)

Headrest ASSY

(15)

Rear bolt cover outside

(5)

Headrest lock bushing

(16)

Reclining lever

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(6)

Side airbag module

(17)

Seat side cover outside

T1: 6 (0.61, 4.43)

(7)

Cover frame

(18)

Lifter lever

T2: 10 (1.02, 7.38)

(8)

Backrest back cover

(19)

Hinge inner cover LH

T3: 22 (2.24, 16.2)

(9)

Seat side cover inside

(20)

Outer slide rail

T4: 30 (3.06, 22.1)

(10)

Hinge inner cover LH

(21)

Inner slide rail

T5: 52 (5.30, 38.4)

(11)

Rear bolt cover inside

(22)

Connecting wire

T6: 53 (5.40, 39.1)

SE-00510

(1)

(2)

(3)

(8)

(4)

(5)

(6)

(9)
