ABS(diag)-25

ABS (DIAGNOSTICS)

Inspection Mode

8. Inspection Mode

A: PROCEDURE

Reproduce the malfunction occurrence condition
as possible.
Drive the vehicle at a speed more than 40 km/h (25
MPH) for at least one minute.

ABS(diag)-26

ABS (DIAGNOSTICS)

Clear Memory Mode

9. Clear Memory Mode

A: OPERATION

For details concerning DTC clear operation, refer to
“Subaru Select Monitor”. <Ref. to ABS(diag)-15,
Subaru Select Monitor.>

ABS(diag)-27

ABS (DIAGNOSTICS)

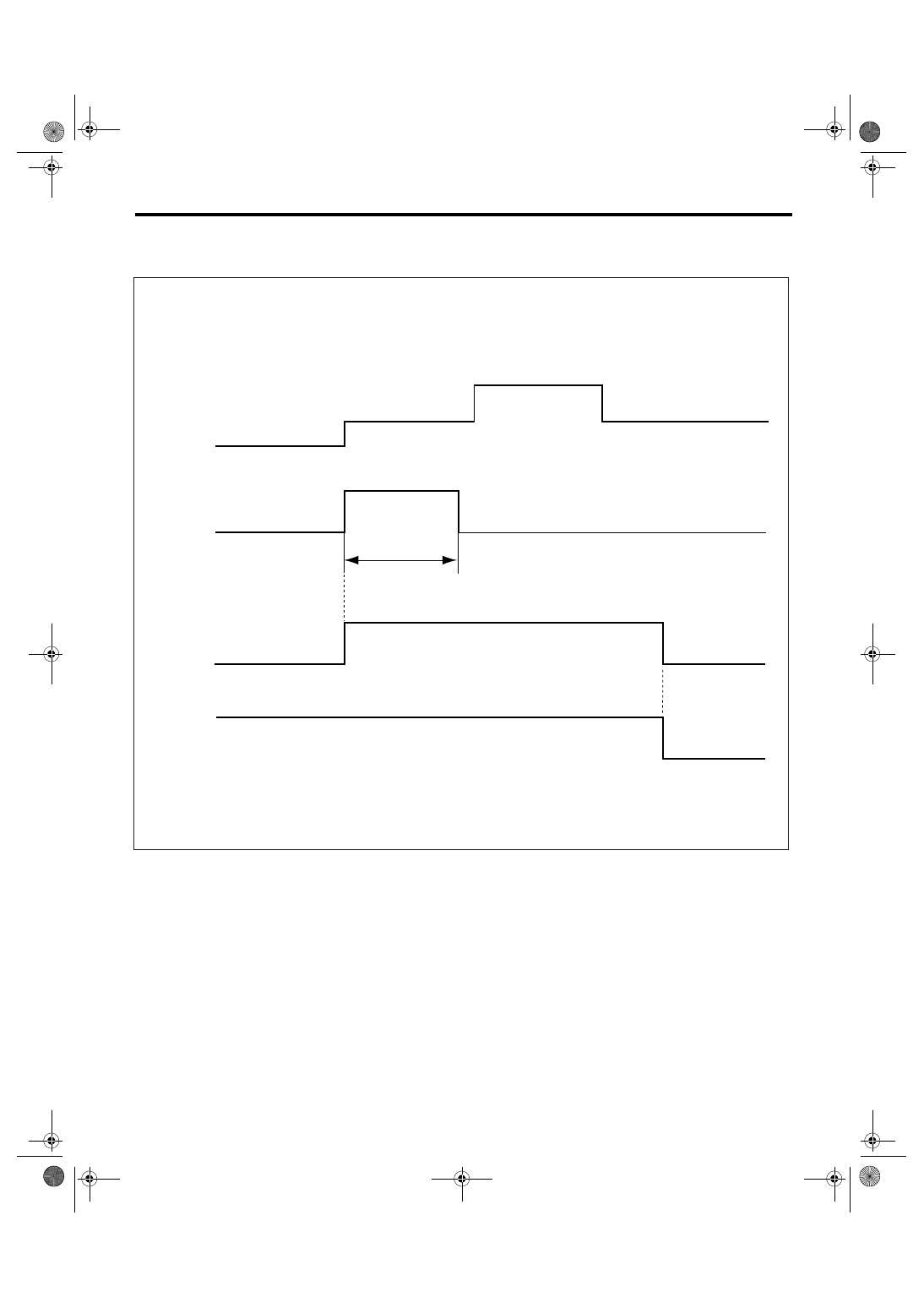

ABS Warning Light / Brake Warning Light Illumination Pattern

10.ABS Warning Light / Brake Warning Light Illumination Pattern

A: INSPECTION

(1)

Ignition switch

(5)

ABS warning light

(9)

Brake warning light (EBD warning
light)

(2)

OFF

(6)

Light OFF

(3)

ON

(7)

Light ON

(10)

Parking brake

(4)

Engine start

(8)

1.5 seconds

(11)

Released

ABS00442

(2)

(1)

(3)

(3)

(4)

(6)

(5)

(6)

(7)

(8)

(9)

(10)

(6)

(6)

(11)

(7)

ABS(diag)-28

ABS (DIAGNOSTICS)

ABS Warning Light / Brake Warning Light Illumination Pattern

1) When the ABS warning light and brake warning light do not illuminate in accordance with this illumination
pattern, there must be an electrical malfunction.
2) When ABS warning light remains constantly OFF, check the combination meter circuit. <Ref. to ABS(di-
ag)-29, ABS WARNING LIGHT DOES NOT COME ON, ABS Warning Light / Brake Warning Light Illumina-
tion Pattern.>
3) When ABS warning light does not go off, check the combination meter circuit. <Ref. to ABS(diag)-32, ABS
WARNING LIGHT DOES NOT GO OFF, ABS Warning Light / Brake Warning Light Illumination Pattern.>
4) When brake warning light does not go off, check the brake warning light circuit, combination meter circuit.
<Ref. to ABS(diag)-35, BRAKE WARNING LIGHT DOES NOT GO OFF, ABS Warning Light / Brake Warning
Light Illumination Pattern.>

NOTE:
Even though the ABS warning light does not go off after 1.5 seconds from ABS warning light illumination, the
ABS function operates normally when the warning light goes off while driving at approximately 12 km/h (7
MPH). However, the ABS function does not operate while the ABS warning light is illuminated.
