TC-13

TRANSFER CASE

Center Differential

12.Center Differential

A: NOTE

For removal, installation and inspection, refer to
“5MT” section. <Ref. to 5MT-51, Center Differen-
tial.>

TC-14

Vehicle-id:
SIE-id:S302159a15:A:NOTE
∼

TRANSFER CASE

Transfer Clutch Pressure Test

13.Transfer Clutch Pressure

Test

A: NOTE

For inspection, refer to “4AT” or “5AT” section.
4AT model:
<Ref. to 4AT-38, Transfer Clutch Pressure Test.>
5AT model:
<Ref. to 5AT-36, Transfer Clutch Pressure Test.>

DRIVE SHAFT SYSTEM

DS

Page

1.

General Description ....................................................................................2

2.

Propeller Shaft ..........................................................................................10

3.

Front Axle..................................................................................................13

4.

Front Hub Unit Bearing .............................................................................17

5.

Rear Hub Unit Bearing ..............................................................................19

6.

Front Drive Shaft .......................................................................................22

7.

Rear Drive Shaft........................................................................................26

8.

General Diagnostic Table..........................................................................30

DS-2

DRIVE SHAFT SYSTEM

General Description

1. General Description

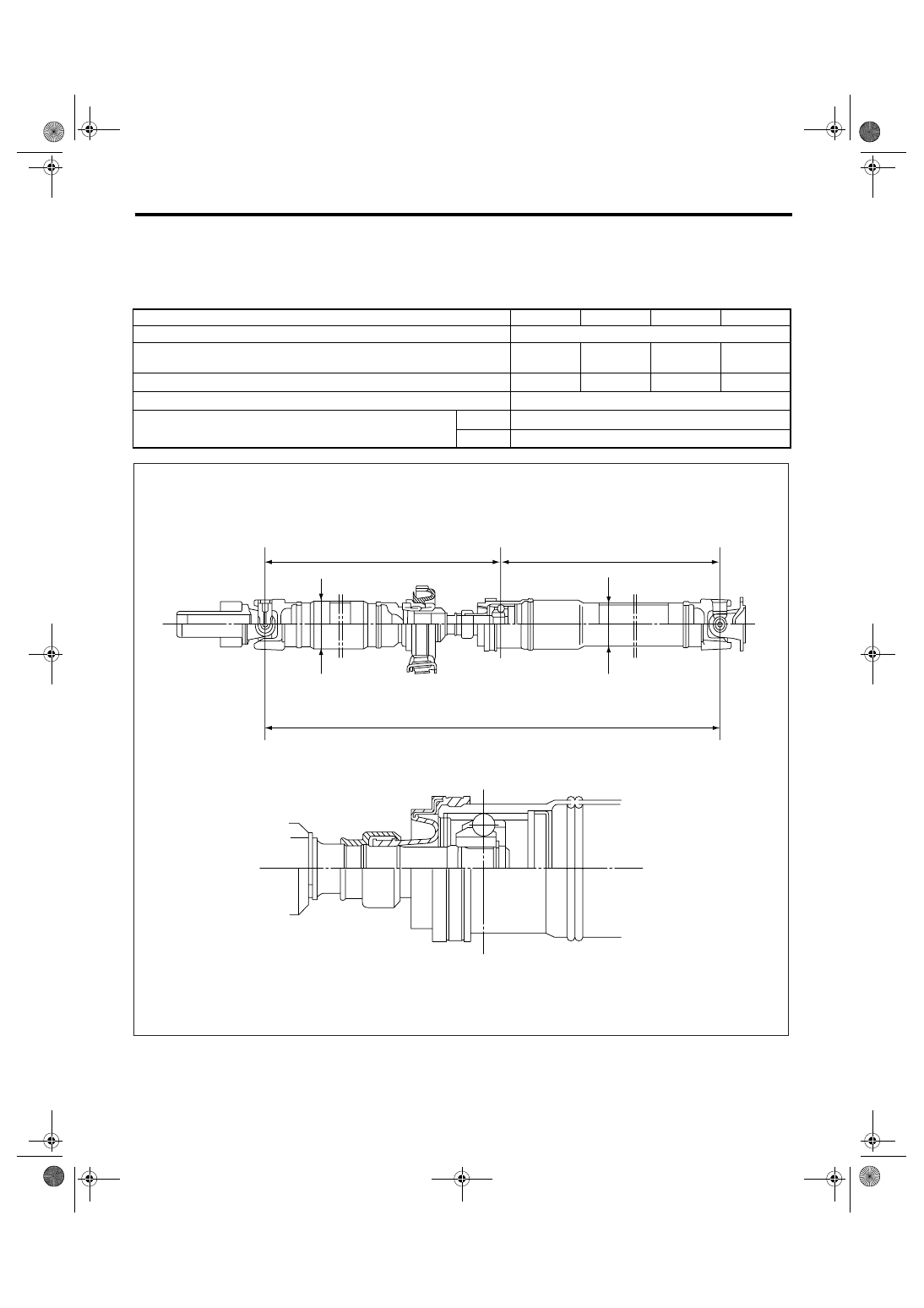

A: SPECIFICATION

1. PROPELLER SHAFT

Model

5MT

4AT

5AT

6MT

Propeller shaft type

EDJ

Propeller shaft length: L

mm (in)

1,490

(58.66)

1,430

(56.30)

1,317

(51.85)

1,430

(56.30)

Front propeller shaft Joint-to-joint length: L

1

mm (in)

735 (28.9)

675 (26.6)

562 (22.1)

675 (26.6)

Rear propeller shaft Joint-to-Joint length: L

2

mm (in)

755 (29.7)

Outer diameter of tube:

mm (in)

D

1

63.5 (2.50)

D

2

57.5 (2.26)

DS-00226

D1

D2

L

L1

L2
