NOTE:
• Front and rear toe-ins and front camber can be
adjusted. If the toe-in or camber tolerance exceeds
specifications, adjust them.
• Other items indicated in the specification table
cannot be adjusted. If other items exceed specifica-
tions, check the suspension parts and connections
for deformation, and replace with new ones as re-
quired.

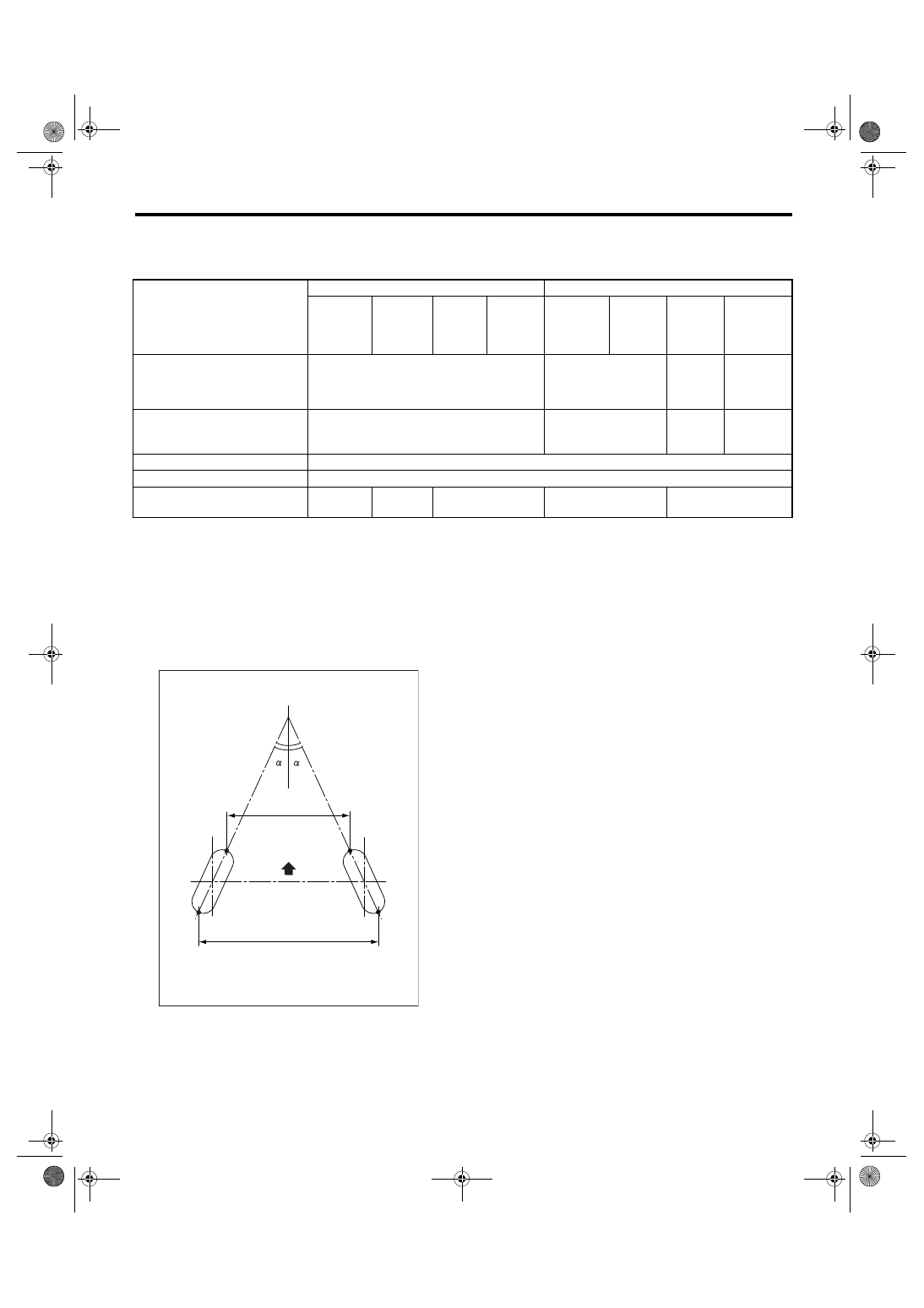

Model

Sedan

Wagon

2.0 i, 2.5 i

2.0 GT

3.0 R

spec. B

2.0 i, 2.5 i

2.0 GT,

3.0 R

spec. B

OUTBACK

2.5 i,

OUTBACK

3.0 R

Wheel arch height

[Tolerance:

+12 mm

−24

(

+0.47 in

−0.94 in

)]

mm (in)

360 (14.2)

375 (14.8)

365

(14.4)

430 (16.9)

Camber (Tolerance:

±0°45′Dif-

ferences between RH and LH:
45

′ or less)

−0°45′

−0°30′

−0°40′

°00′

Toe-in

mm (in)

±3 (0±0.12) Toe angle (sum of both wheels): 0°±0°15′

Thrust angle (Tolerance:

±0°30′)

Diameter of stabilizer

mm (in)

17.3

(0.68)

19.1

(0.75)

17.3 (0.68)

19.1 (0.75)

17.3 (0.68)

(1) Front

− B = Positive: Toe-in, Negative: Toe-out

α = Each toe angle

FS-00001

(1)

RS-3

REAR SUSPENSION

General Description

B: COMPONENT

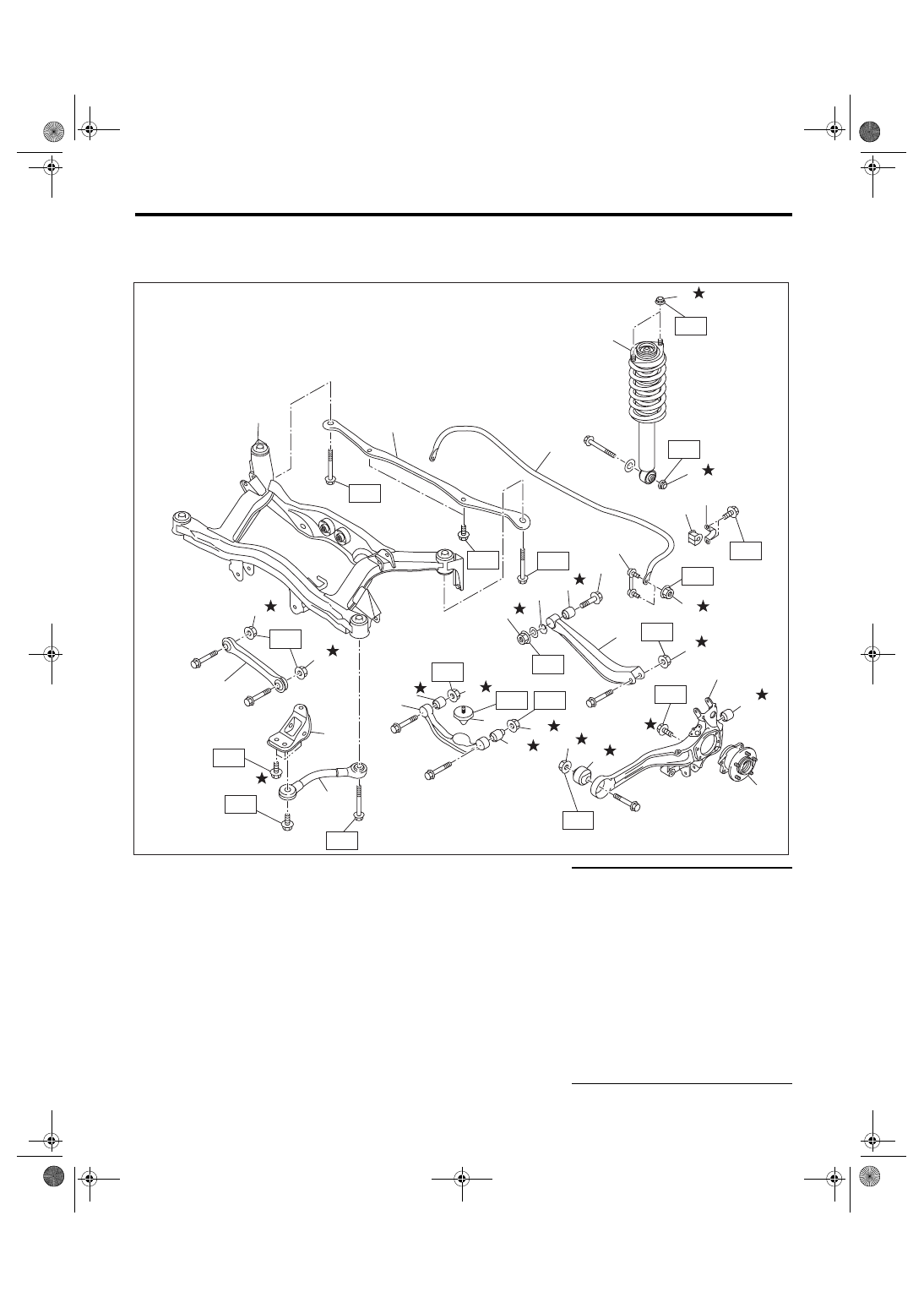

1. REAR SUSPENSION

(1)

Shock absorber

(14)

Rear arm bracket

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Self-locking nut

(15)

Hub bearing unit

T1: 30 (3.1, 22.4)

(3)

Stabilizer

(16)

Helper

T2: 32 (3.3, 24)

(4)

Stabilizer bushing

(17)

Upper link

T3: 40 (4.1, 30)

(5)

Bracket

(18)

Upper link bushing (inner side)

T4: 44 (4.5, 32.5)

(6)

Stabilizer link

(19)

Upper link bushing (outer side)

T5: 57 (5.8, 42)

(7)

Rear link

(20)

Front link

T6: 62 (6.3, 46)

(8)

Adjusting bolt

(21)

Rear sub frame

T7: 65 (6.6, 48)

(9)

Rear link bushing

(22)

Sub frame support arm

T8: 80 (8.2, 59)

(10)

Adjusting washer

(23)

Sub frame support plate

T9: 120 (12.2, 89)

(11)

Rear arm

T10: 125 (12.7, 92)

(12)

Rear arm rear bushing

T11: 150 (15.3, 111)

(13)

Rear arm front bushing

T12: 175 (17.8, 129)

RS-00137

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(21)

(23)

(22)

T10

T12

T11

T12

RS-4

REAR SUSPENSION

General Description

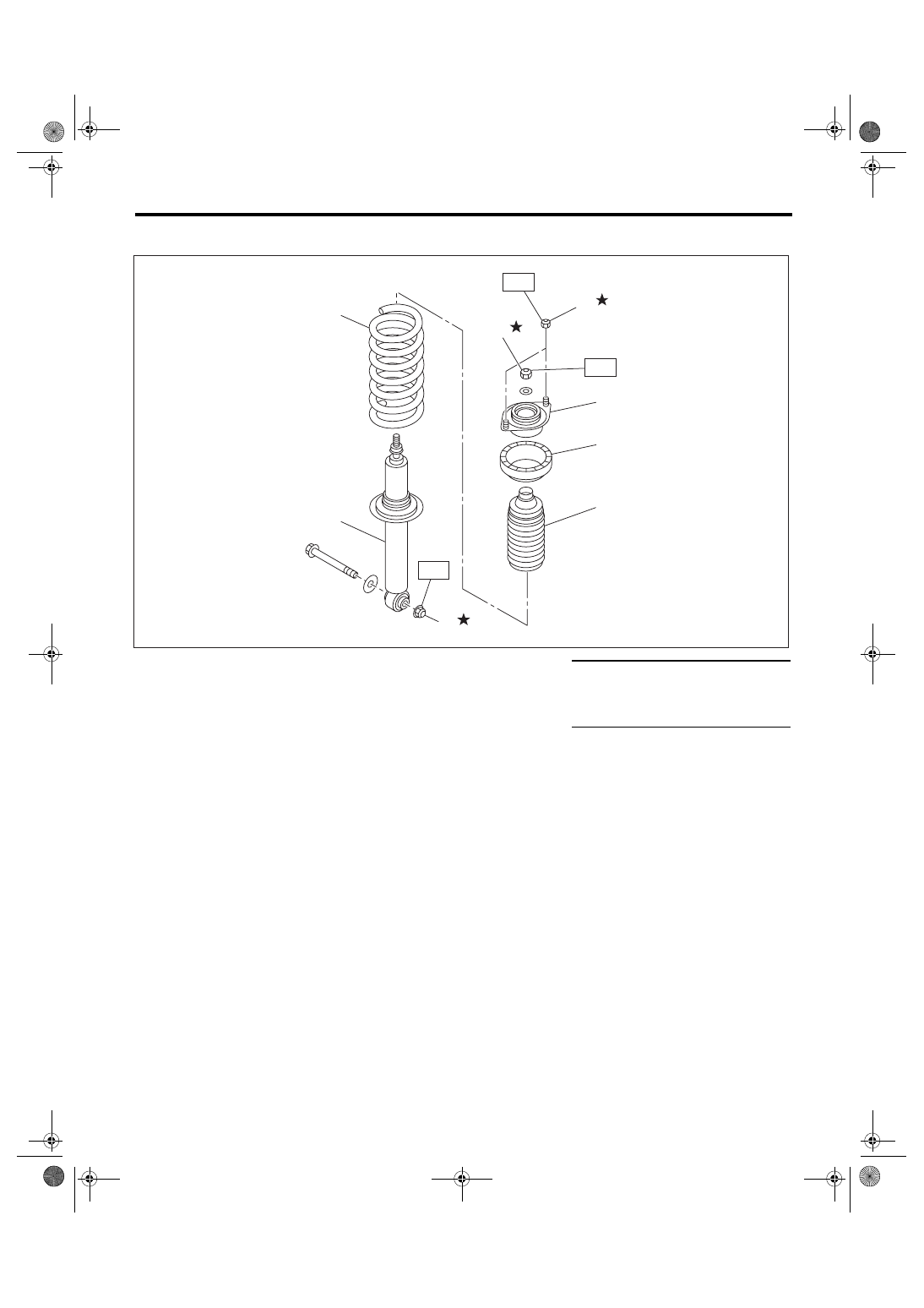

2. SHOCK ABSORBER

C: CAUTION

• Wear work clothing, including a cap, protective
goggles and protective shoes during operation.
• Before discarding shock absorbers, be sure to
bleed gas completely. Also, do not throw away in
fire.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Use SUBARU genuine grease etc. or equivalent.
Do not mix grease etc. with that of another grade or
from other manufacturers.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or cloth between the part and the vise.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.

(1)

Mount

(4)

Coil spring

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Upper rubber sheet

(5)

Shock absorber

T1: 30 (3.1, 22.4)

(3)

Dust cover

(6)

Self-locking nut

T2: 35 (3.6, 26)

T3: 62 (6.3, 46)

RS-00037

(4)

(5)

(6)

(3)

(2)

(1)
