4AT-9

AUTOMATIC TRANSMISSION

General Description

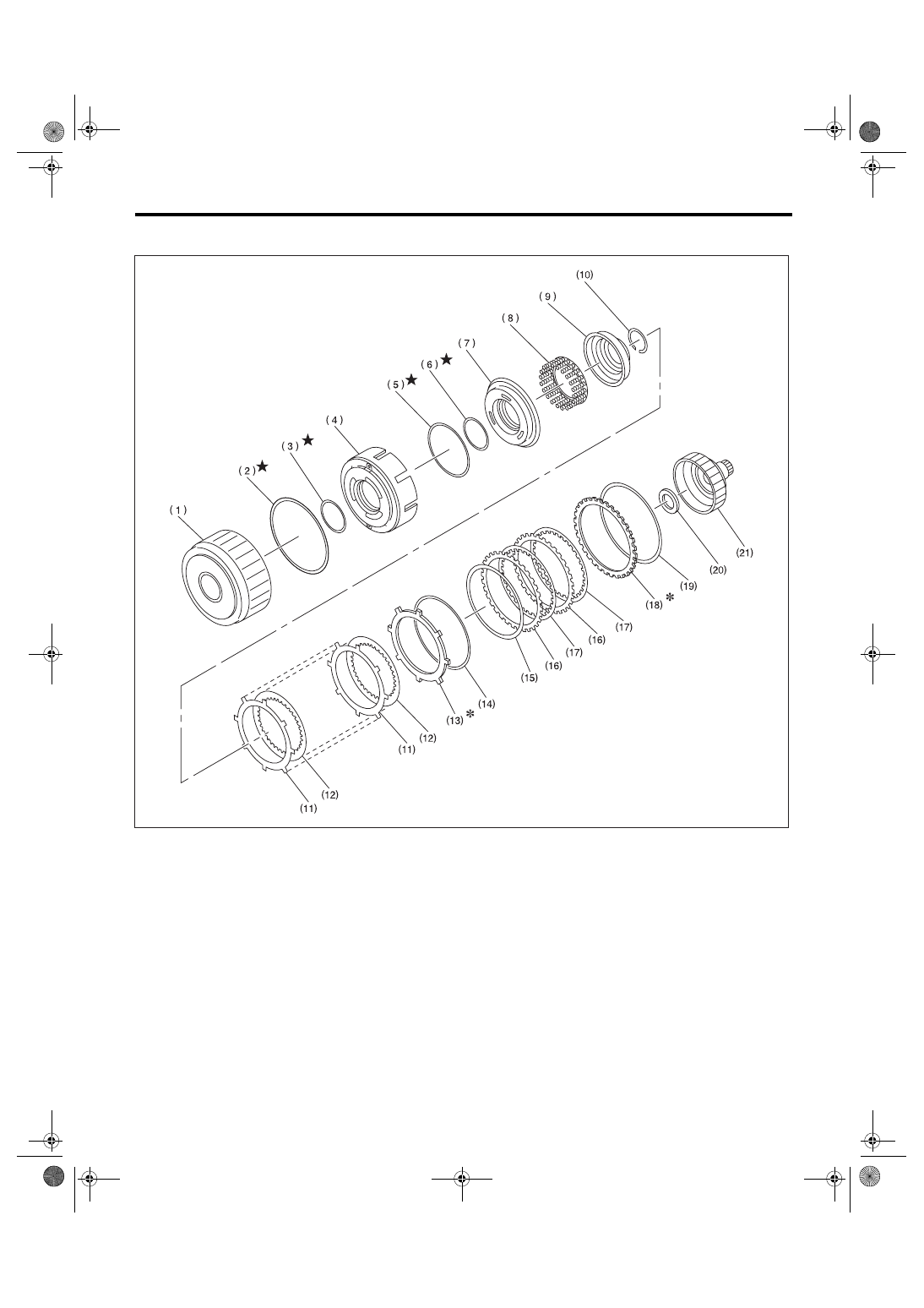

5. HIGH CLUTCH AND REVERSE CLUTCH

(1)

High clutch drum

(8)

Spring retainer

(15)

Dish plate

(2)

Lip seal

(9)

Cover

(16)

Driven plate (Reverse clutch)

(3)

D-ring

(10)

Snap ring

(17)

Drive plate (Reverse clutch)

(4)

Reverse clutch piston

(11)

Driven plate (High clutch)

(18)

Retaining plate (Reverse clutch)

(5)

D-ring

(12)

Drive plate (High clutch)

(19)

Snap ring

(6)

D-ring

(13)

Retaining plate (High clutch)

(20)

Thrust needle bearing

(7)

High clutch piston

(14)

Snap ring

(21)

High clutch hub

AT-00006

4AT-10

AUTOMATIC TRANSMISSION

General Description

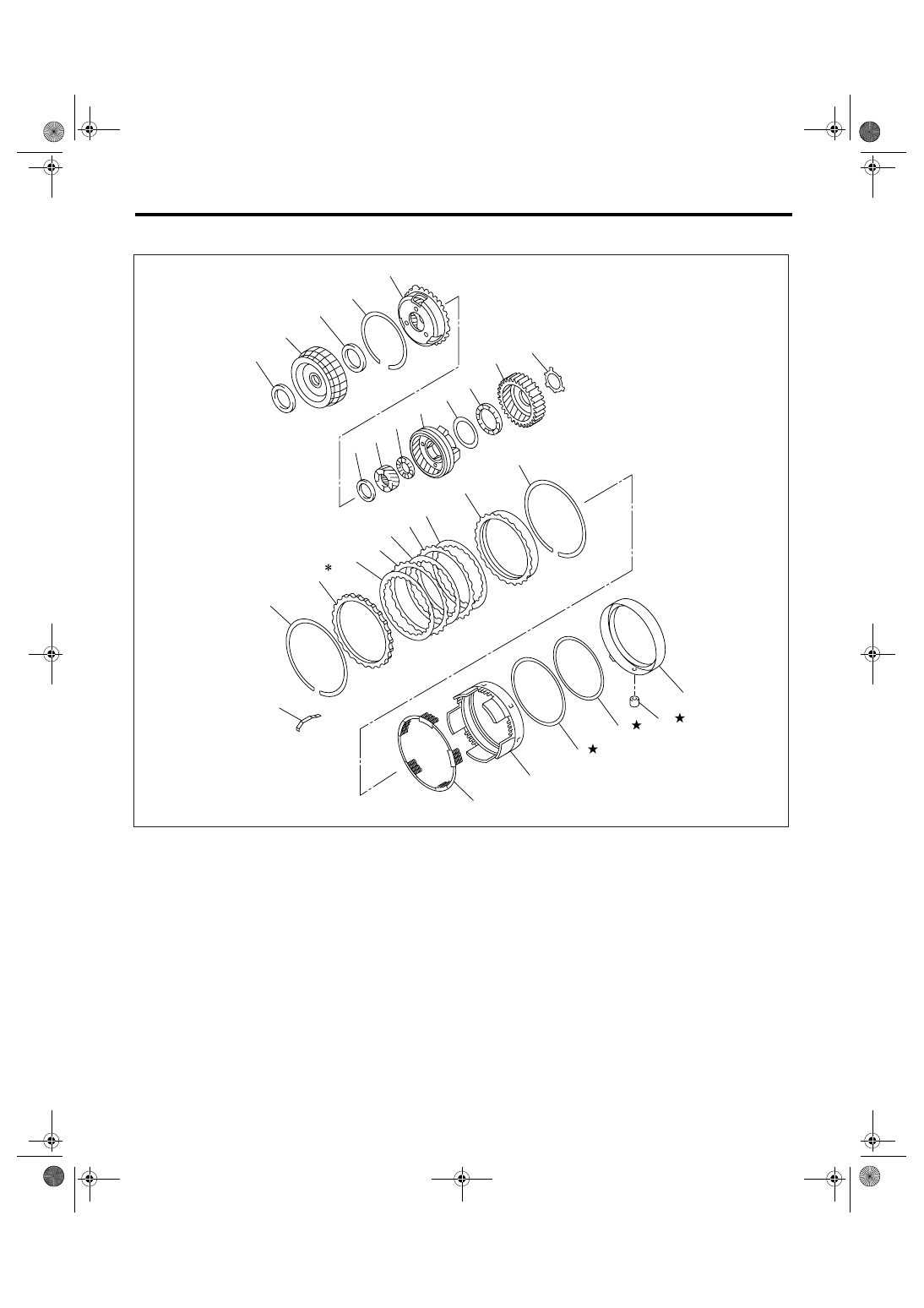

6. PLANETARY GEAR AND 2-4 BRAKE

(1)

Thrust needle bearing

(10)

Washer

(19)

Snap ring

(2)

Front sun gear

(11)

Thrust needle bearing

(20)

Spring retainer

(3)

Thrust needle bearing

(12)

Rear internal gear

(21)

2-4 brake piston

(4)

Snap ring

(13)

Washer

(22)

D-ring

(5)

Front planetary carrier

(14)

Snap ring

(23)

D-ring

(6)

Thrust needle bearing

(15)

Retaining plate

(24)

2-4 brake piston retainer

(7)

Rear sun gear

(16)

Drive plate

(25)

2-4 brake seal

(8)

Thrust needle bearing

(17)

Driven plate

(26)

Leaf spring

(9)

Rear planetary carrier

(18)

Pressure rear plate

AT-00007

(1)

(2)

(3)

(4)

(5)

(6)

(14)

(15)

(16)

(16)

(16)

(18)

(17)

(20)

(26)

(17)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(19)

(21)

(22)

(23)

(25)

(24)

4AT-11

AUTOMATIC TRANSMISSION

General Description

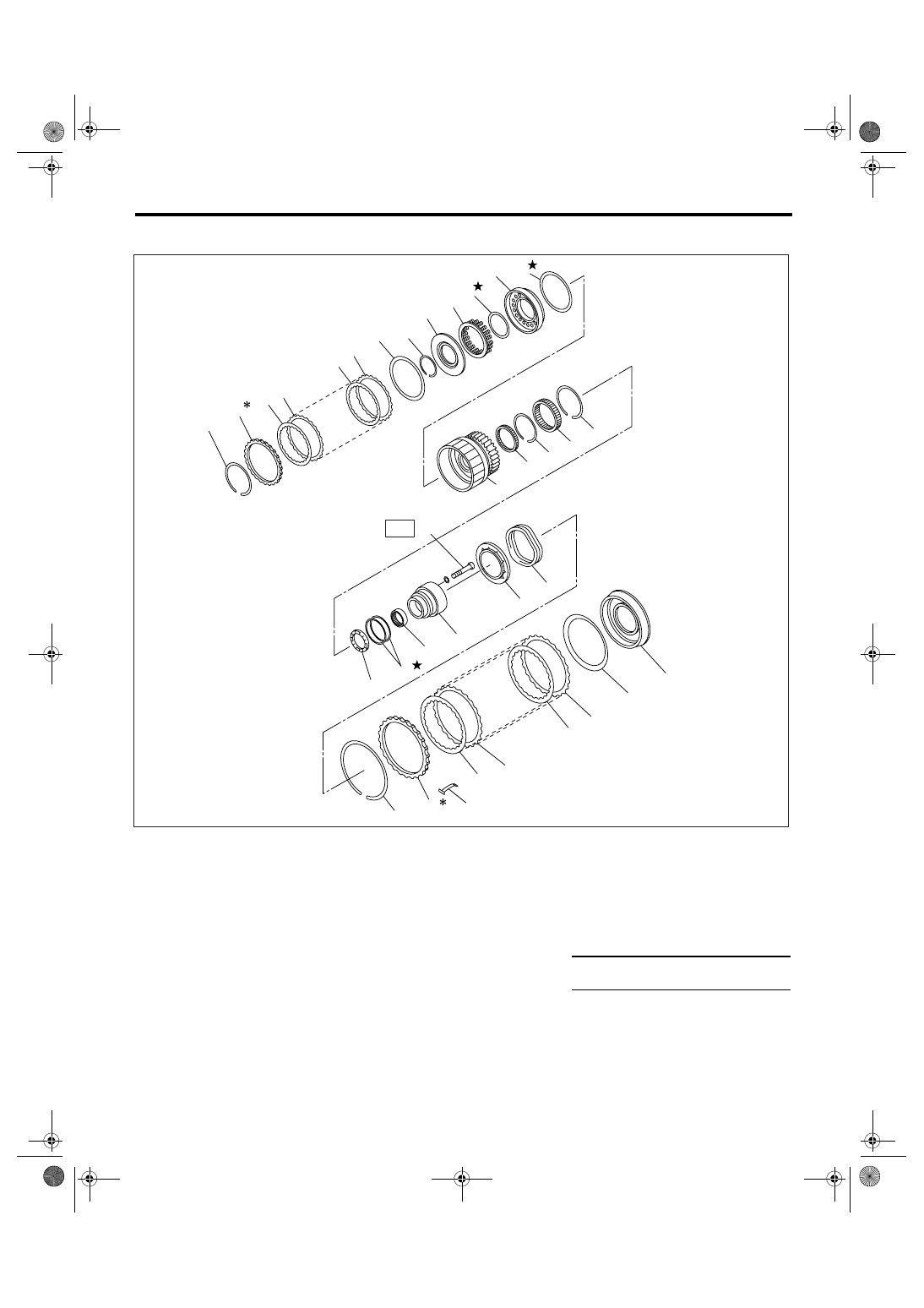

7. LOW CLUTCH, LOW & REVERSE BRAKE

(1)

Snap ring

(13)

Needle bearing

(25)

Retaining plate

(2)

Retaining plate

(14)

Snap ring

(26)

Leaf spring

(3)

Drive plate

(15)

One-way clutch

(27)

Drive plate

(4)

Driven plate

(16)

Snap ring

(28)

Driven plate

(5)

Dish plate

(17)

Thrust needle bearing

(29)

Dish plate

(6)

Snap ring

(18)

Seal ring

(30)

Low & reverse brake piston

(7)

Cover

(19)

Needle bearing

(8)

Spring retainer

(20)

One-way clutch inner race

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(9)

D-ring

(21)

Socket bolt

T: 25 (2.5, 18.4)

(10)

Low clutch piston

(22)

Spring retainer

(11)

D-ring

(23)

Return spring

(12)

Low clutch dram

(24)

Snap ring

AT-01278

(2)

(3)

(4)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10) (11)

(12)

(17)

(24)

(26)

(25)

(27)

(28)

(27)

(28)

(29)

(30)

(18)

(19)

(20)

(23)

(21)

(22)

(13)

(14)

(15)

(16)

T

(1)

4AT-12

AUTOMATIC TRANSMISSION

General Description

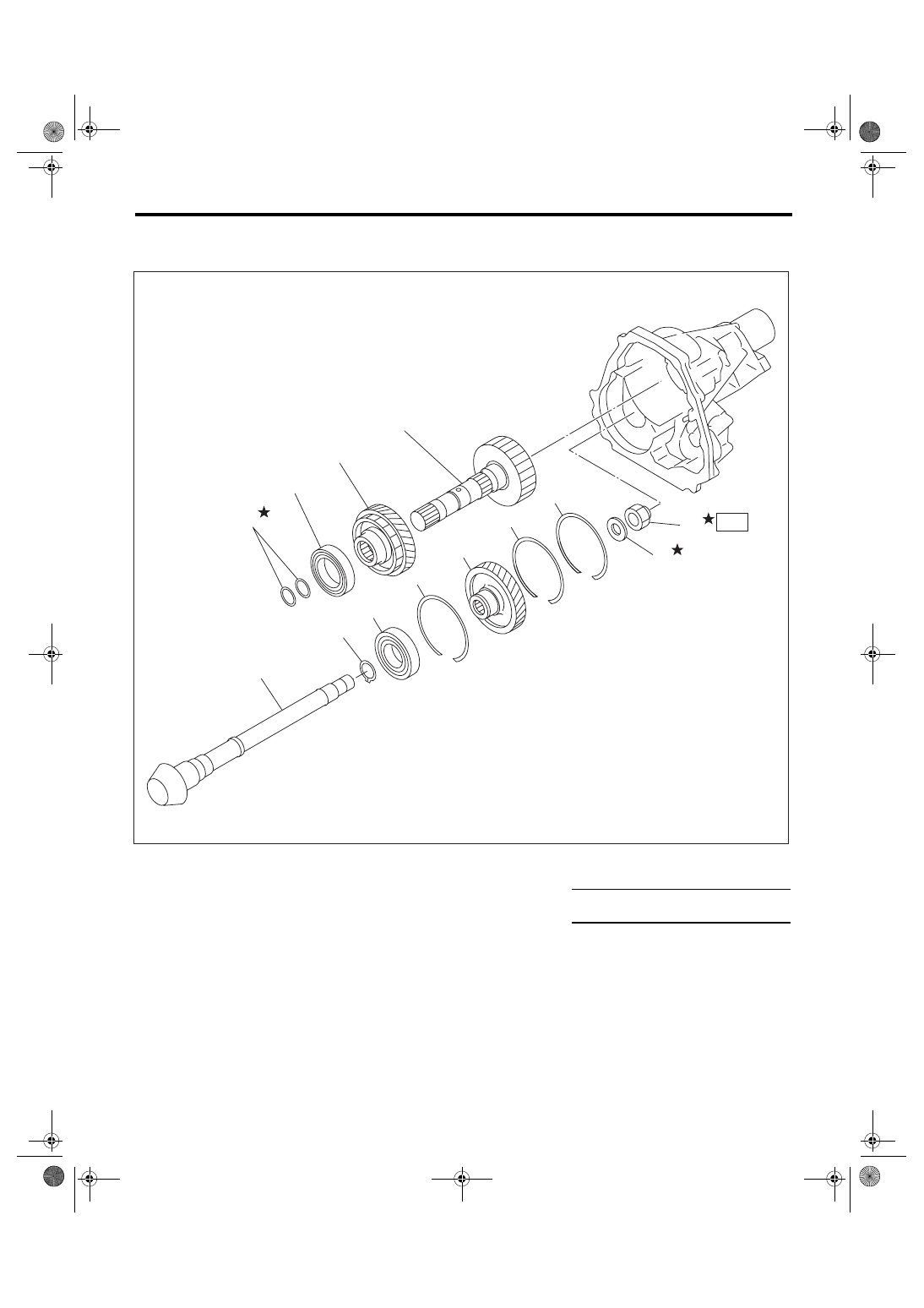

8. REDUCTION GEAR

• MP-T model

(1)

Seal ring

(6)

Snap ring

(11)

Lock nut

(2)

Ball bearing

(7)

Ball bearing

(3)

Reduction drive gear

(8)

Snap ring

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Reduction drive shaft

(9)

Reduction driven gear

T: 100 (10.2, 73.8)

(5)

Drive pinion shaft

(10)

Washer

AT-02161

(10)

(1)

(2)

(3)

(4)

(11)

T

(5)

(6)

(7)

(8)

(8)

(8)

(9)
