Subaru Legacy (2005 year). Service manual - part 268





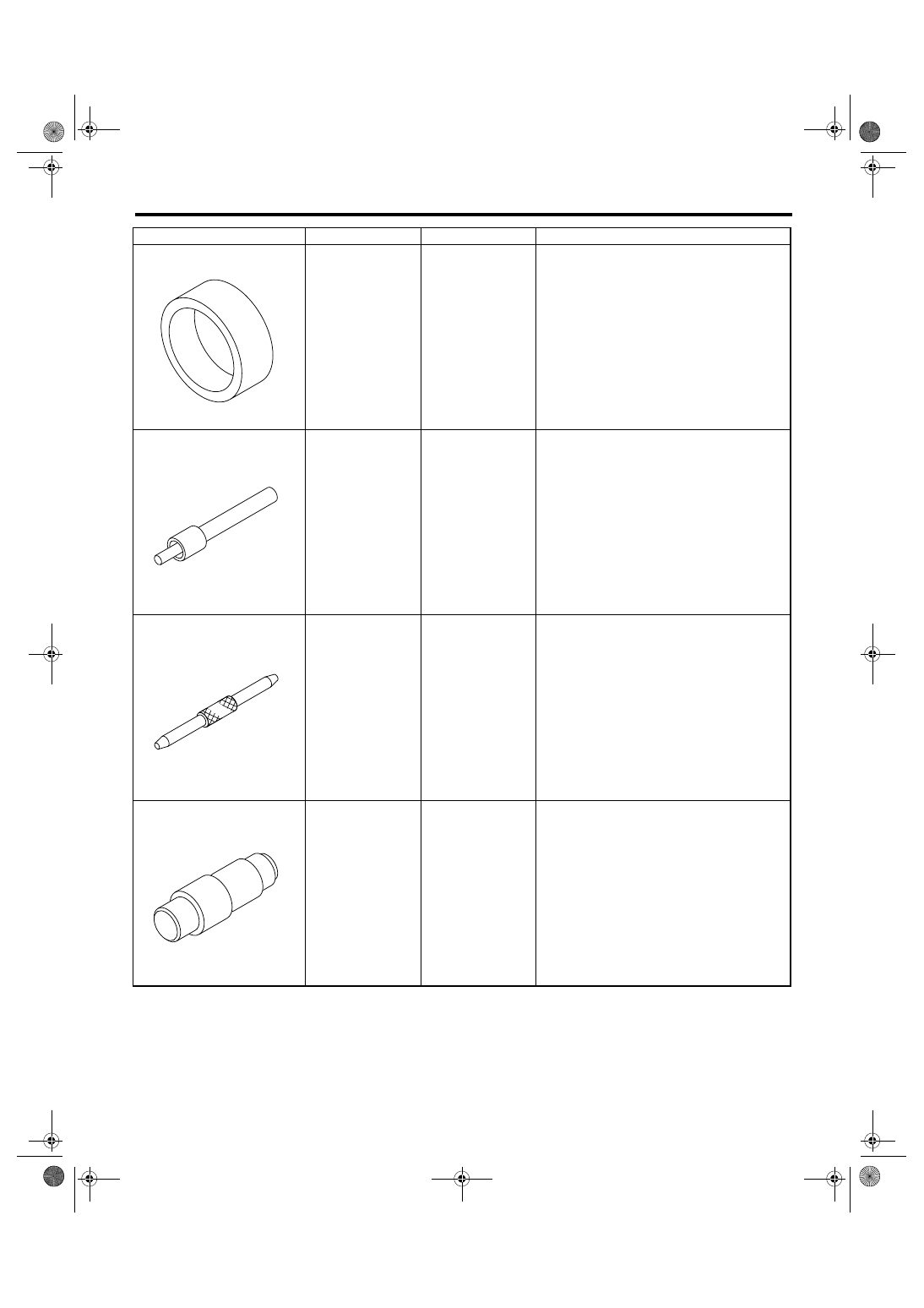

ME(H4DOTC)-15

MECHANICAL

General Description

398744300

PISTON GUIDE

Used for installing piston to cylinder.

498857100

VALVE OIL SEAL
GUIDE

Used for press-fitting of intake and exhaust valve
guide oil seals.

499017100

PISTON PIN GUIDE

Used for installing piston pin, piston and con-
necting rod.

499037100

CONNECTING ROD
BUSHING
REMOVER AND
INSTALLER

Used for removing and installing connecting rod
bushing.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398744300

ST-498857100

ST-499017100

ST-499037100

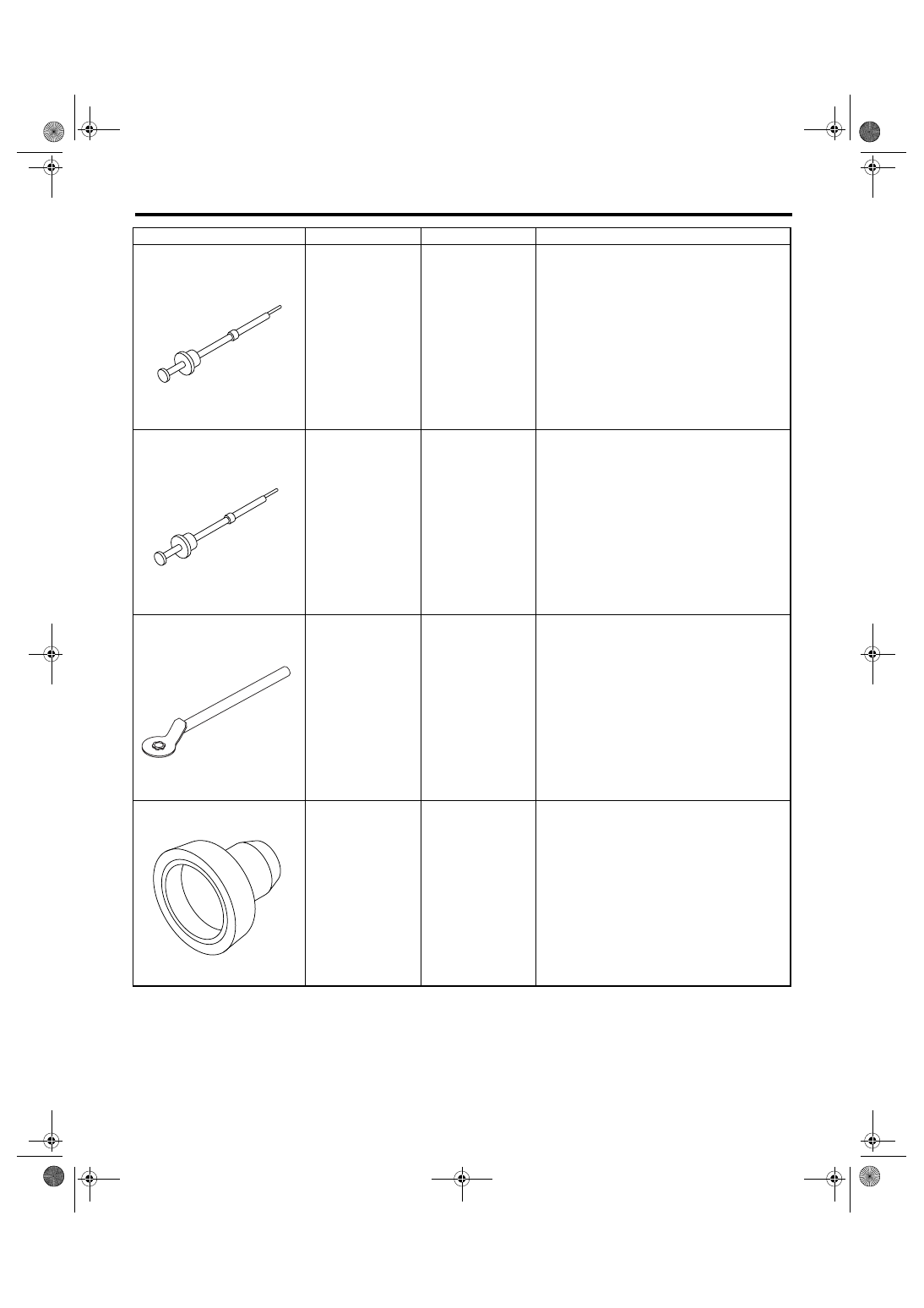

ME(H4DOTC)-16

MECHANICAL

General Description

499097600

PISTON PIN
REMOVER ASSY

Used for removing piston pin. (MT model)

499097700

PISTON PIN
REMOVER ASSY

Used for removing piston pin. (Except for MT
model)

499977500

CAM SPROCKET
WRENCH

Used for removing and installing intake cam
sprocket and exhaust cam sprocket.

499587200

CRANKSHAFT OIL
SEAL INSTALLER

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL GUIDE
(499597100).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499097600

ST-499097700

ST-499977500

ST-499587200

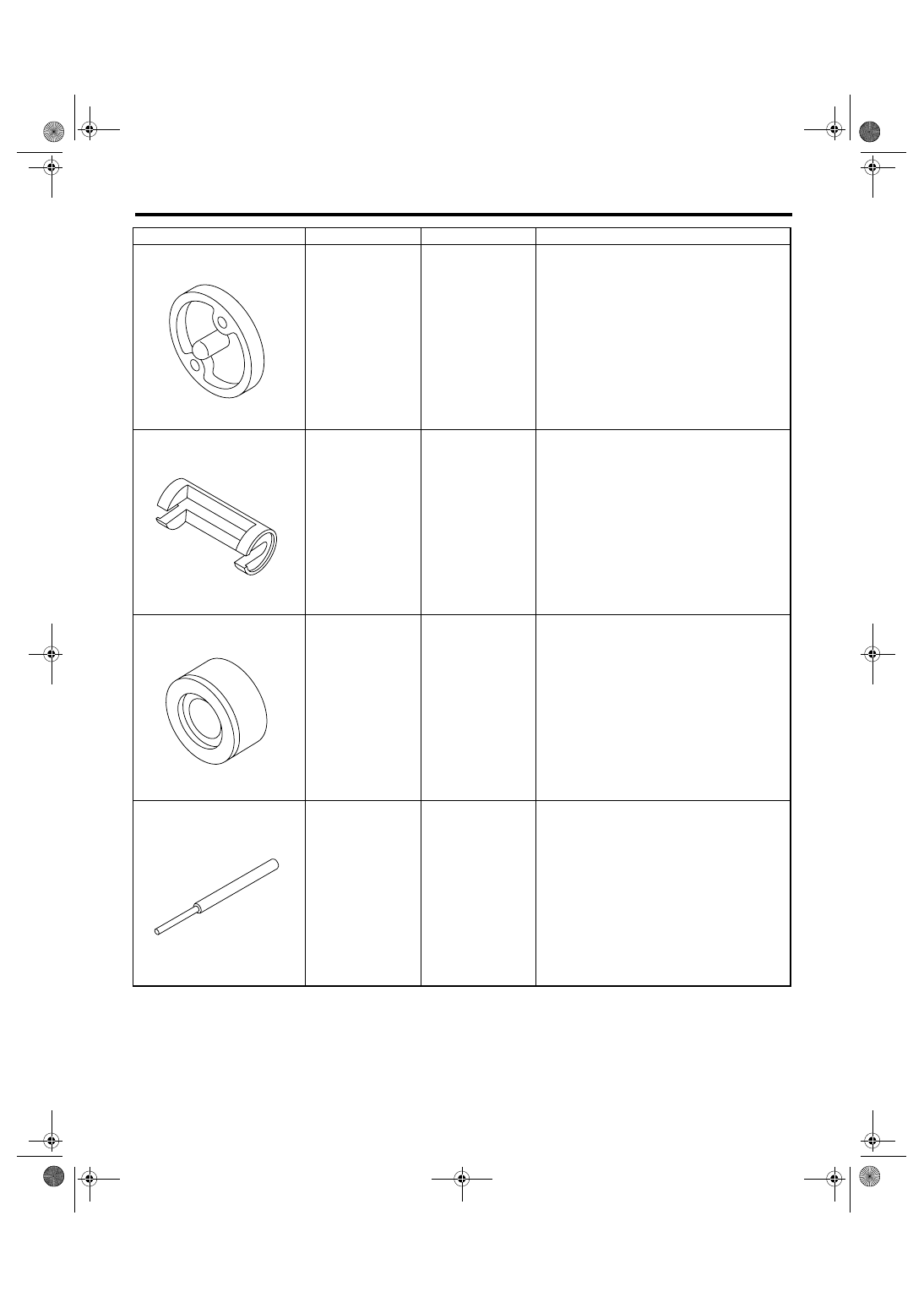

ME(H4DOTC)-17

MECHANICAL

General Description

499597100

CRANKSHAFT OIL
SEAL GUIDE

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL
INSTALLER (499587200).

499718000

VALVE SPRING
REMOVER

Used for removing and installing valve spring.

18251AA020

VALVE GUIDE
ADJUSTER

Used for installing intake and exhaust valve
guides.

499767200

VALVE GUIDE
REMOVER

Used for removing valve guides.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499597100

ST-499718000

ST18251AA020

ST-499767200

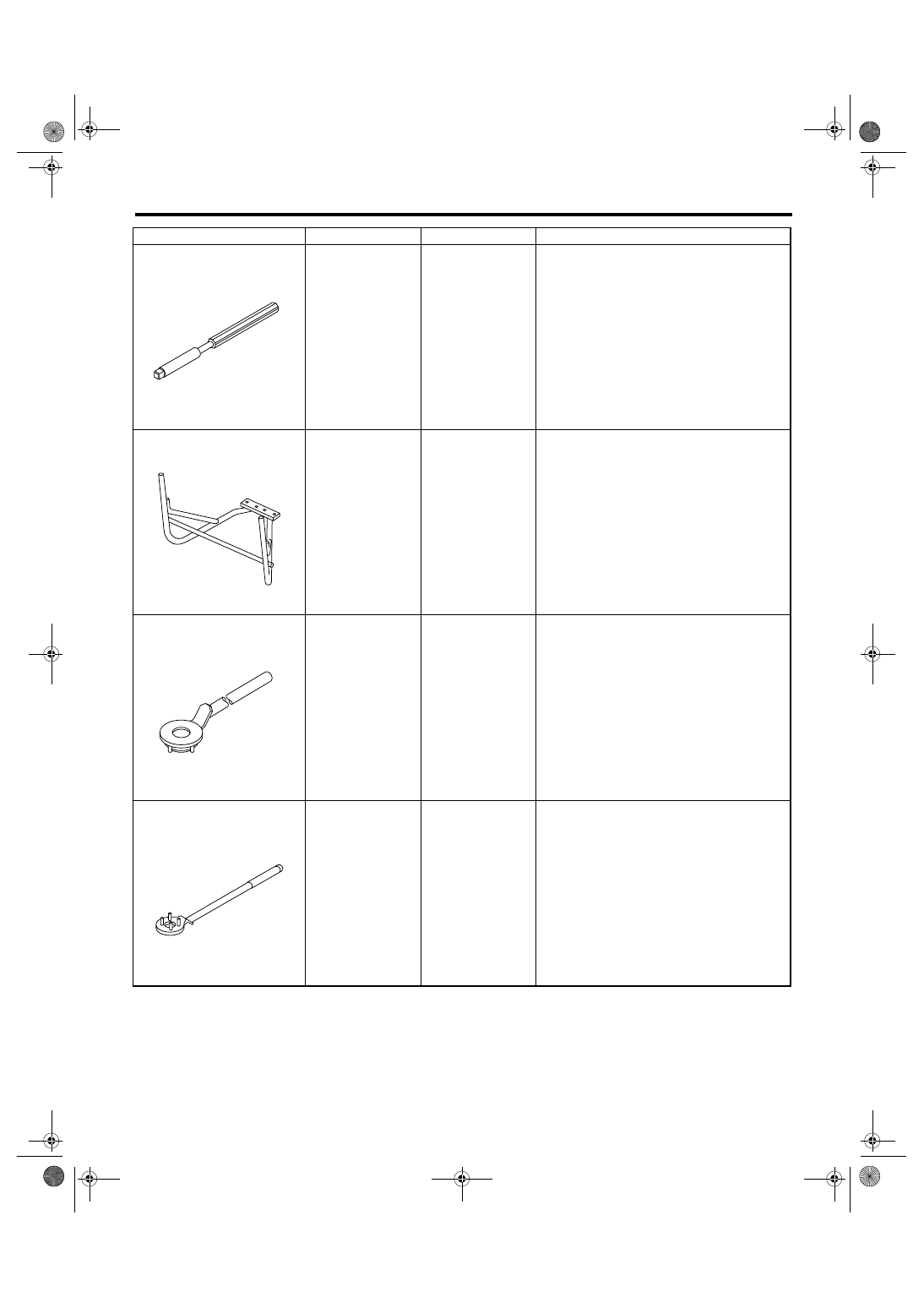

ME(H4DOTC)-18

MECHANICAL

General Description

499767400

VALVE GUIDE
REAMER

Used for reaming valve guides.

499817000

ENGINE STAND

• Used for disassembling and assembling
engine.
• Used with ENGINE STAND ADAPTER RH
(498457000) & LH (498457100).

499977400

CRANK PULLEY
WRENCH

Used for stopping rotation of crank pulley when
loosening/tightening crank pulley bolt. (AT
model)

499977100

CRANK PULLEY
WRENCH

Used for stopping rotation of crank pulley when
loosening/tightening crank pulley bolt. (MT
model)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499767400

ST-499817000

ST-499977400

ST-499977100
