Subaru Legacy (2005 year). Service manual - part 210

EN(H4SO 2.5)(diag)-125

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK OPTION CODE.

Is the option code EC, EK, EH,
ER or K4?

Go to step 2.

Refer to EN(H4SO
2.0) section. <Ref.
to EN(H4SO
2.0)(diag)-64, List
of Diagnostic Trou-
ble Code (DTC).>

NOTE:
Fuel injection sys-
tem for KA and KS
model is the same
as 2.0 L model.

2

CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
front oxygen (A/F) sensor connector.
3) Measure the resistance of harness
between ECM and front oxygen (A/F) sensor
connector.

Connector & terminal

(B134) No. 26 — (E24) No. 1:
(B134) No. 33 — (E24) No. 3:

Is the resistance less than 1
Ω?

Go to step 3.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit of
harness between
ECM and front
oxygen (A/F) sen-
sor connector
• Poor contact in
front oxygen (A/F)
sensor connector
• Poor contact in
ECM connector

3

CHECK POOR CONTACT.
Check poor contact in front oxygen (A/F) sen-
sor connector.

Is there poor contact in front
oxygen (A/F) sensor connec-
tor?

Repair the poor
contact in front
oxygen (A/F) sen-
sor connector.

Replace the front
oxygen (A/F) sen-
sor. <Ref. to
FU(H4SO 2.5)-35,
Front Oxygen (A/
F) Sensor.>

EN(H4SO 2.5)(diag)-126

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

U: DTC P0137 O2 SENSOR CIRCUIT LOW VOLTAGE (BANK 1 SENSOR 2)

DTC DETECTING CONDITION:
Detects when malfunction occurs in 2 continuous driving cycles.

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4SO 2.5)(diag)-
40, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.5)(diag)-33, Inspection Mode.>.

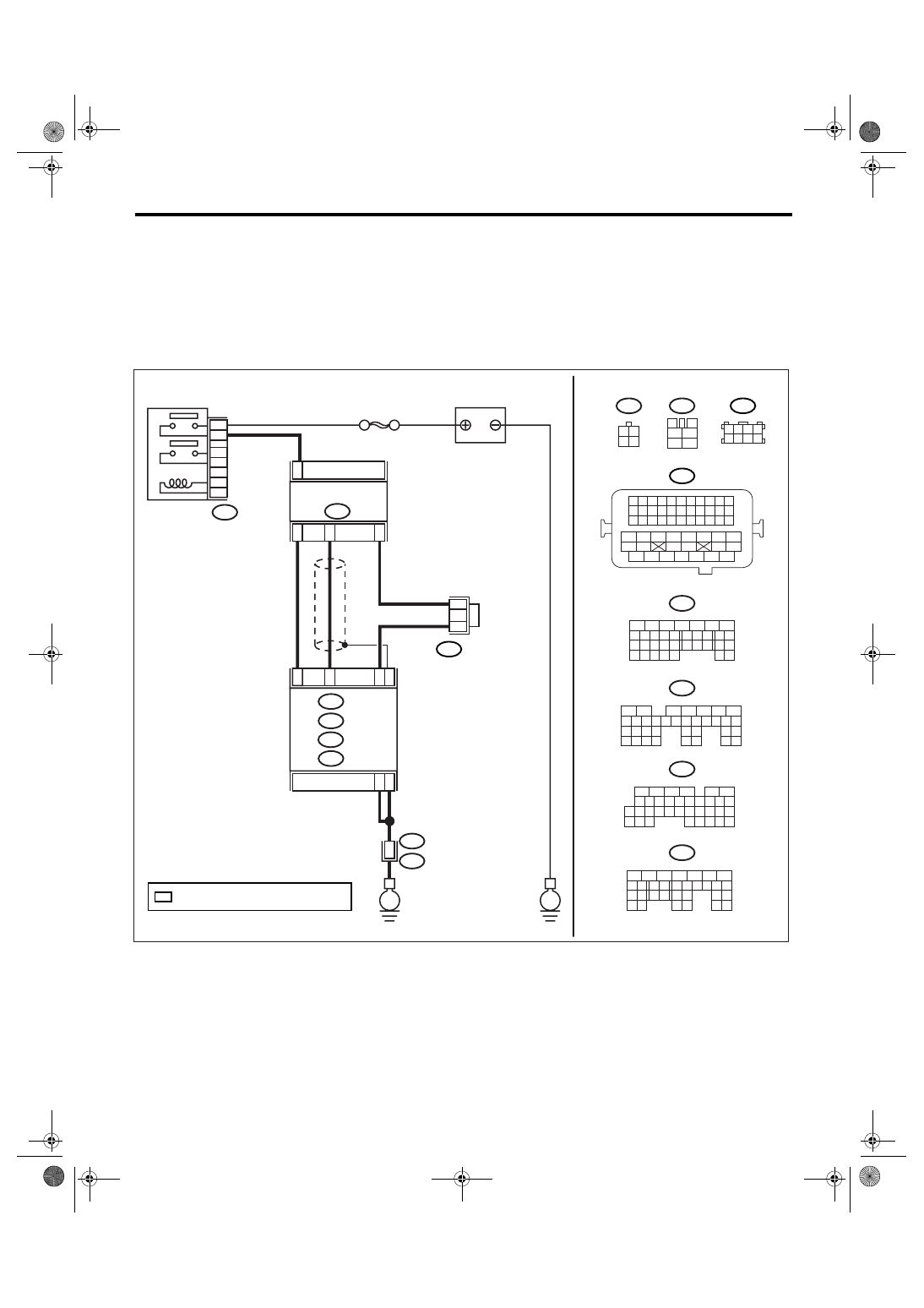

WIRING DIAGRAM:
• EC, EK, EH, ER and K4 model

• KA and KS model

NOTE:
Fuel injection system for KA and KS model is the same as 2.0 L model. Refer to EN(H4SO 2.0) section.

EN-03458

B327

B19

3

4

5

6

1

2

1 2
3 4

BATTERY

B327

1

2

4

6

3

5

B2

D24

C35

D31

A6

A7

REAR

OXYGEN SENSOR

ECM

1

3

4

2

52

B21

B19

E2

B135

B:

D: B137

SBF-5

C: B136

E

E

A: B134

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

A:

B:

C:

D:

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

1 2 3 4
5 6 7 8

B83

*

: TERMINAL No. RANDOM ARRANGEMENT

*

*

OXYGEN (A/F)
SENSOR RELAY

B83

EN(H4SO 2.5)(diag)-127

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK OPTION CODE.

Is the option code EC, EK, EH,
ER or K4?

Go to step 2.

Refer to EN(H4SO
2.0) section. <Ref.
to EN(H4SO
2.0)(diag)-64, List
of Diagnostic Trou-
ble Code (DTC).>

NOTE:
Fuel injection sys-
tem for KA and KS
model is the same
as 2.0 L model.

2

CHECK ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

Check DTC using
“List of Diagnostic
Trouble Code
(DTC)”. <Ref. to
EN(H4SO
2.5)(diag)-69, List
of Diagnostic Trou-
ble Code (DTC).>

NOTE:
In this case, it is
not necessary to
inspect DTC
P0137.

Go to step 3.

3

CHECK REAR OXYGEN SENSOR DATA.
1) Warm-up the engine until engine coolant
temperature is above 70

°C (158°F), and keep

the engine speed at 5,000 rpm.
2) Read the data of rear oxygen sensor signal
using Subaru Select Monitor or general scan
tool.

NOTE:

• Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4SO 2.5)(diag)-25, Subaru Select
Monitor.>
• General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.

Is the voltage more than 490
mV?

Go to step 6.

Go to step 4.

4

CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
rear oxygen sensor.
3) Measure the resistance of harness
between ECM and rear oxygen sensor con-
nector.

Connector & terminal

(B137) No. 24 — (B19) No. 3:
(B136) No. 35 — (B19) No. 4:

Is the resistance more than 3
Ω?

Repair the open
circuit of harness
between ECM and
rear oxygen sen-
sor connector.

Go to step 5.

EN(H4SO 2.5)(diag)-128

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

5

CHECK HARNESS BETWEEN REAR OXY-
GEN SENSOR AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from rear oxygen
sensor.
3) Turn the ignition switch to ON.
4) Measure the voltage between rear oxygen
sensor harness connector and chassis ground.

Connector & terminal

(B19) No. 3 (+) — Chassis ground (

−

):

Is the voltage 0.2 — 0.5 V?

Replace the rear
oxygen sensor.
<Ref. to FU(H4SO
2.5)-36, Rear Oxy-
gen Sensor.>

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit of
harness between
rear oxygen sen-
sor and ECM con-
nector
• Poor contact in
rear oxygen sen-
sor connector
• Poor contact in
ECM connector

6

CHECK EXHAUST SYSTEM.
Check exhaust system parts.

NOTE:

Check the following items.
• Loose part and incomplete installation of
exhaust system
• Damage (crack, hole etc.) of parts
• Looseness and ill fitting of parts between
front oxygen (A/F) sensor and rear oxygen
sensor

Is there any fault in exhaust
system?

Repair or replace
faulty parts.

Replace the rear
oxygen sensor.
<Ref. to FU(H4SO
2.5)-36, Rear Oxy-
gen Sensor.>

Step

Check

Yes

No
