SsangYong: Engine Euro 4. Service manual - part 34

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

9

1222

LUBRICATION SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

Connector

IOP axle

Drain plug

1. Remove the drain plug from the oil pan and drain the engine oil. Install the drain plug again.

Oil pan

Connector

Drive shaft

Automatic transmission

Drive shaft

IOP axle

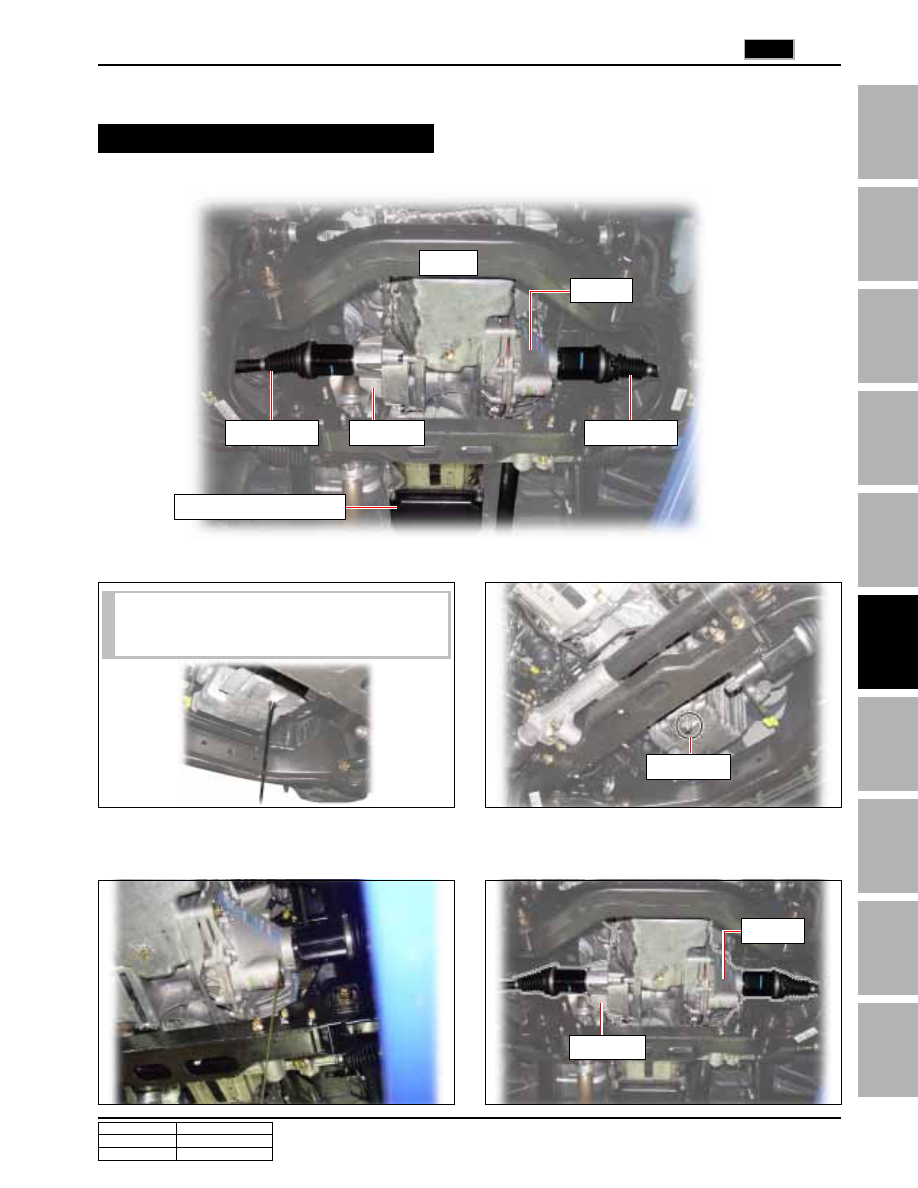

2. Drain the oil from the IOP axle and remove the IOP axle, connector and intermediate shaft. (For details, refer to the

“Chassis” section.)

• Store the drained engine oil in the specified

container. Be careful not to spill the engine oil.

NOTE

2. REMOVAL AND INSTALLATION OF IOP

Ú

Ú

Ú

Ú

Ú Preceding Works: 1. With SCAN-100, perform EAS ECU LOCK in EAS air release mode.

2. Remove the drive shaft, IOP axle and connector. (For details, refer to “IOP axle” section.)

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

10

1222

LUBRICATION SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

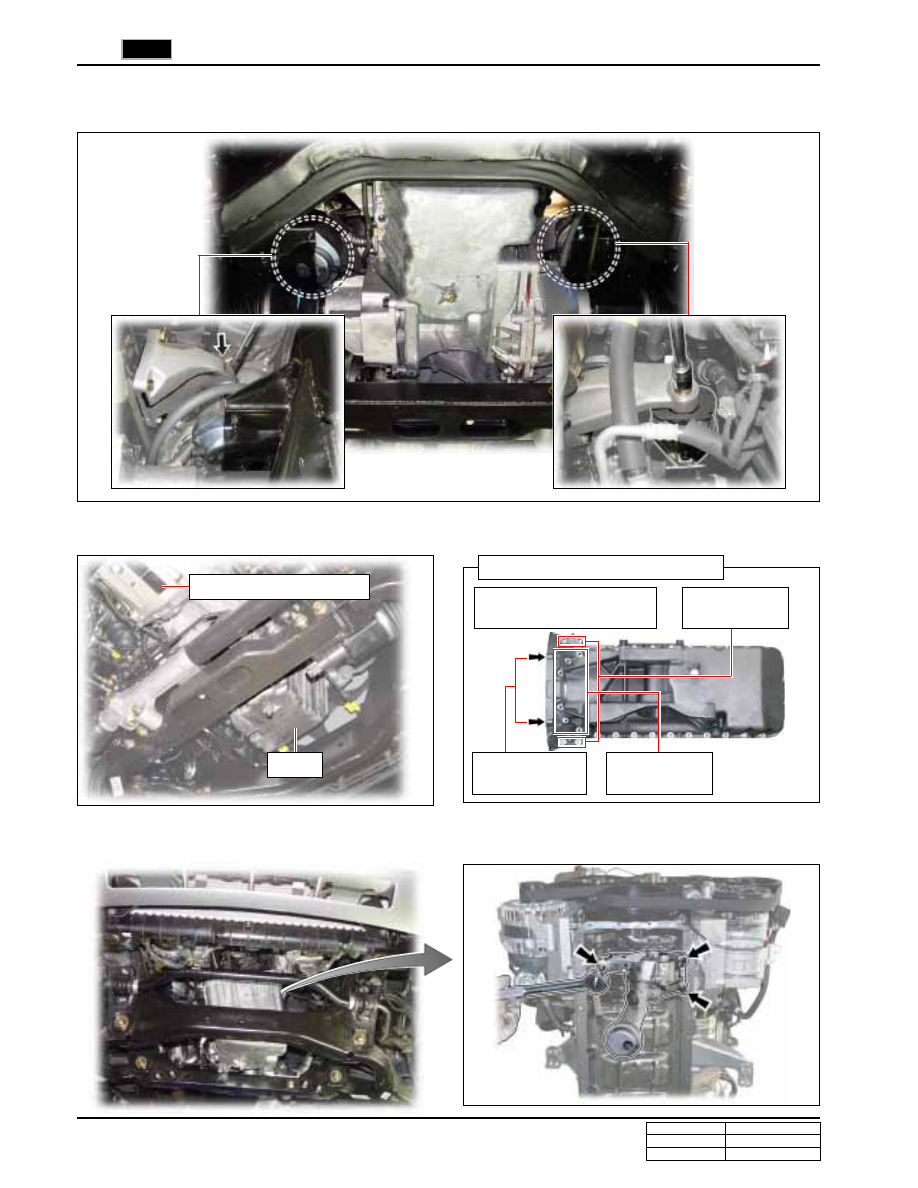

5. Lower the oil pan and unscrew three mounting bolts to remove the oil pump assembly.

3. Remove the mounting bolts on the engine mounting insulator and engine bracket. Lift the engine assembly a little

and secure the engine.

4. Remove the mounting bolts from the oil pan.

Mounting Bolts and Their Location

Automatic transmission

Oil pan

TM side (17 mm)

55 ± 10 Nm

M8 x 40: 4 EA

25 ± 2.5 Nm

M6 x 85: 6 EA

10 ± 1.0 Nm

Other bolts (M6 x 20: 24 EA)

10 ± 1.0 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

11

1222

LUBRICATION SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

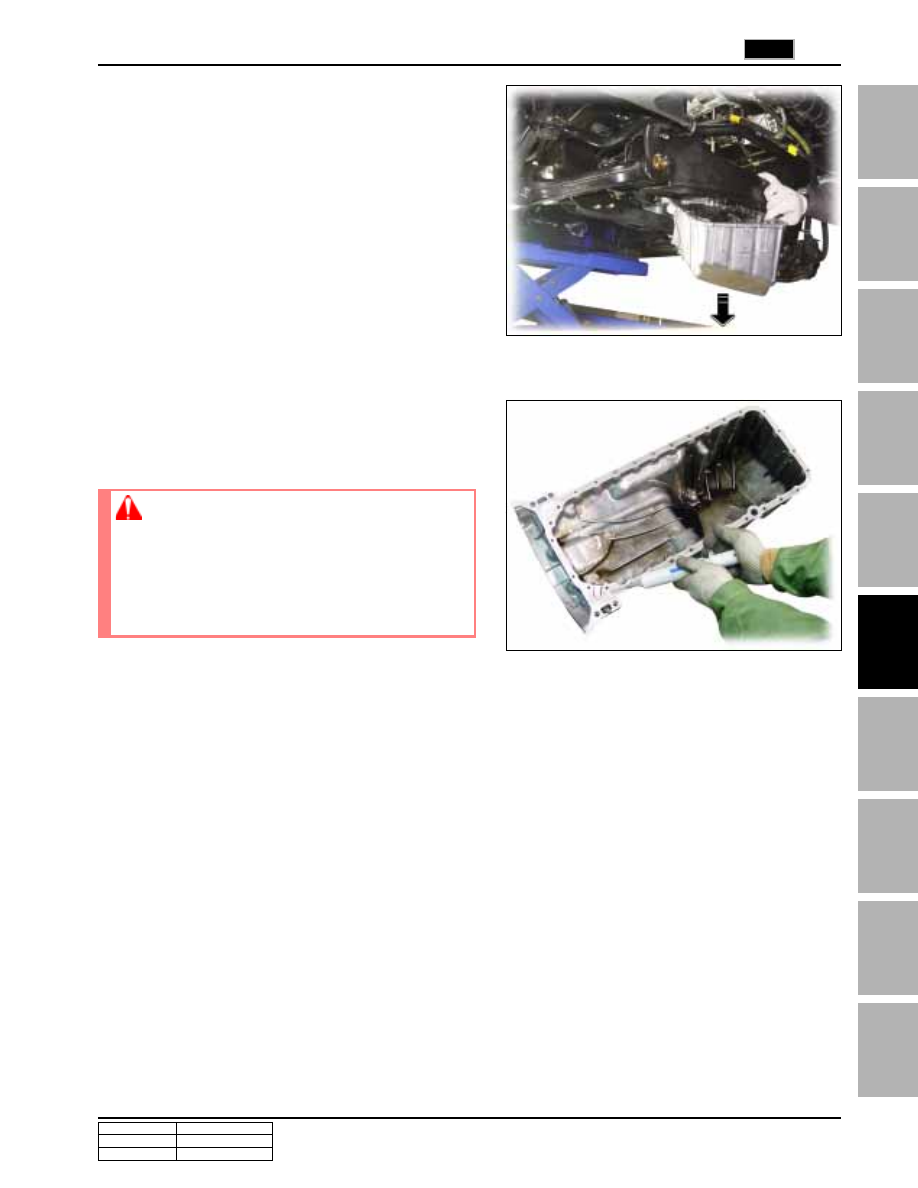

6. Remove the oil pan by lowering it through the front sub

frames as shown in the figure.

7. When installing, apply silicon on the mating surface of

oil pan and put the oil pan on the installing position. Then,
install the oil pump and the oil pan in the reverse order of
removal.

• Remove any foreign material or oil on the cylinder

block.

• Remove the residues from the oil pan and clean the

mating surface.

• Do not shake the oil pan when installing it to the cyl-

inder block.

NOTICE
