SsangYong: Engine Euro 4. Service manual - part 8

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1114

D27DT POWER UP ENGINE

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

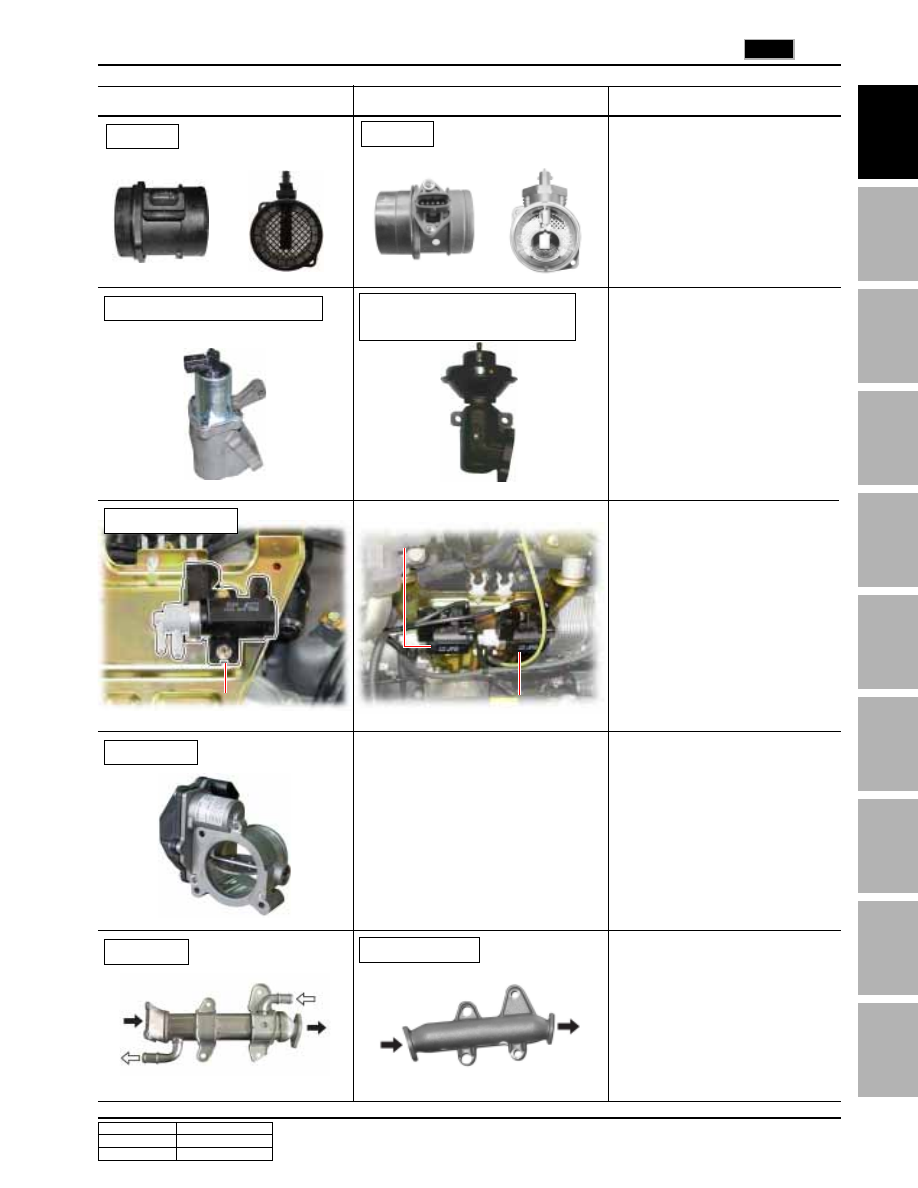

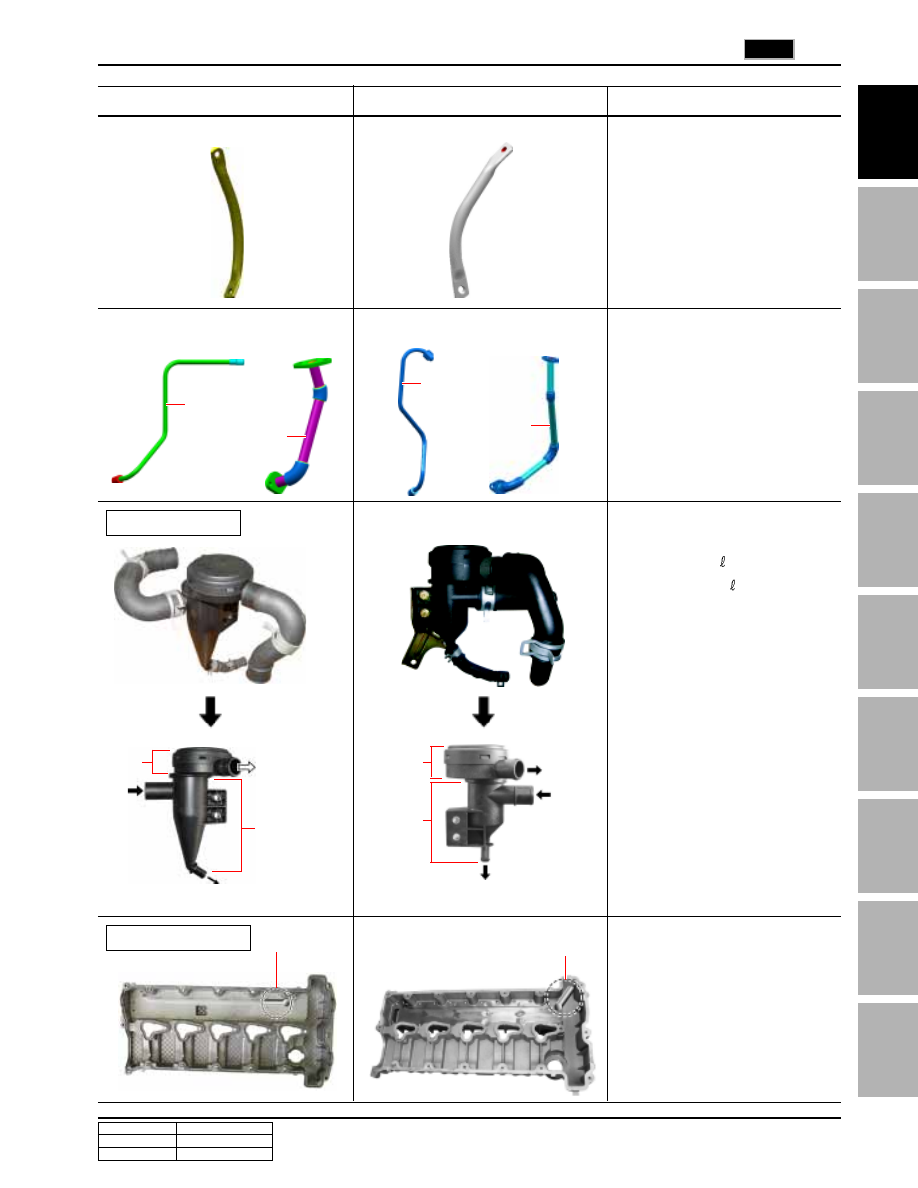

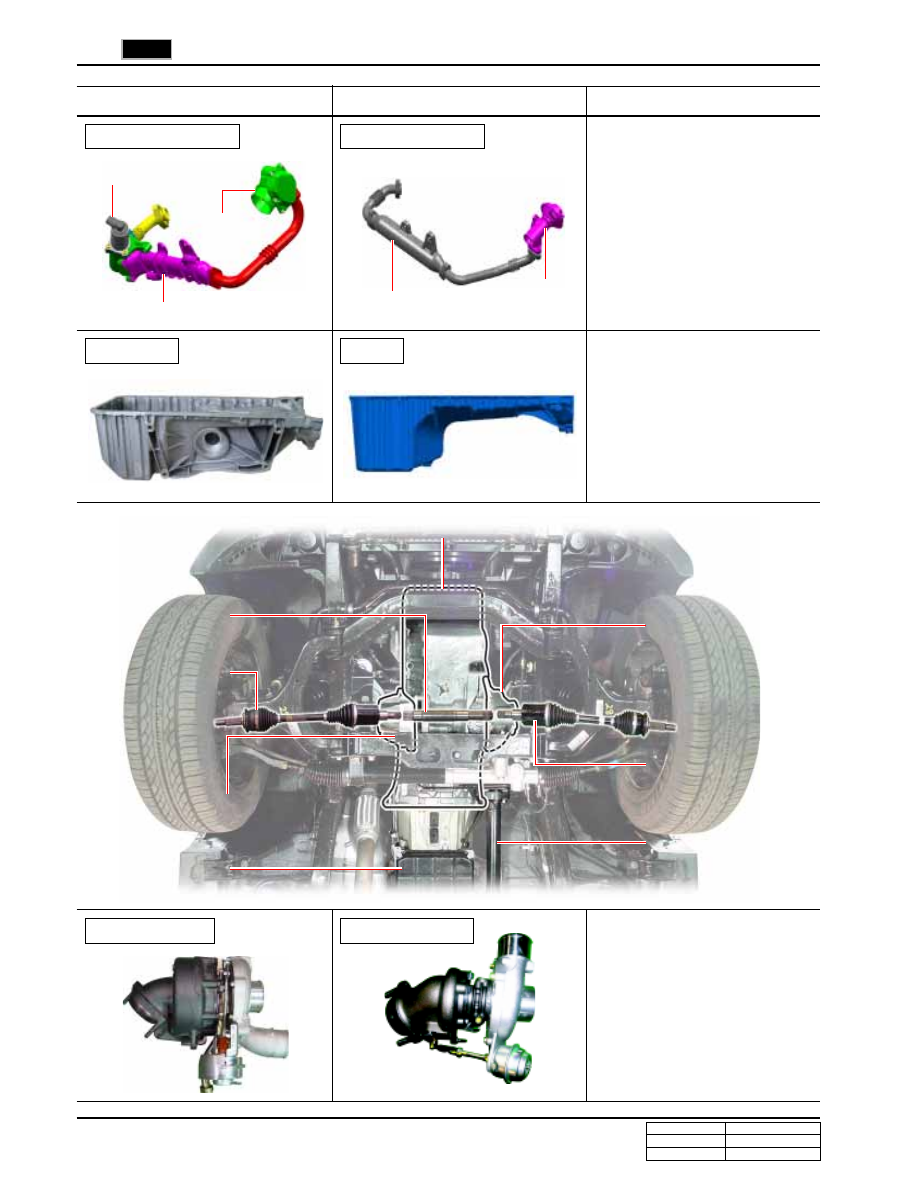

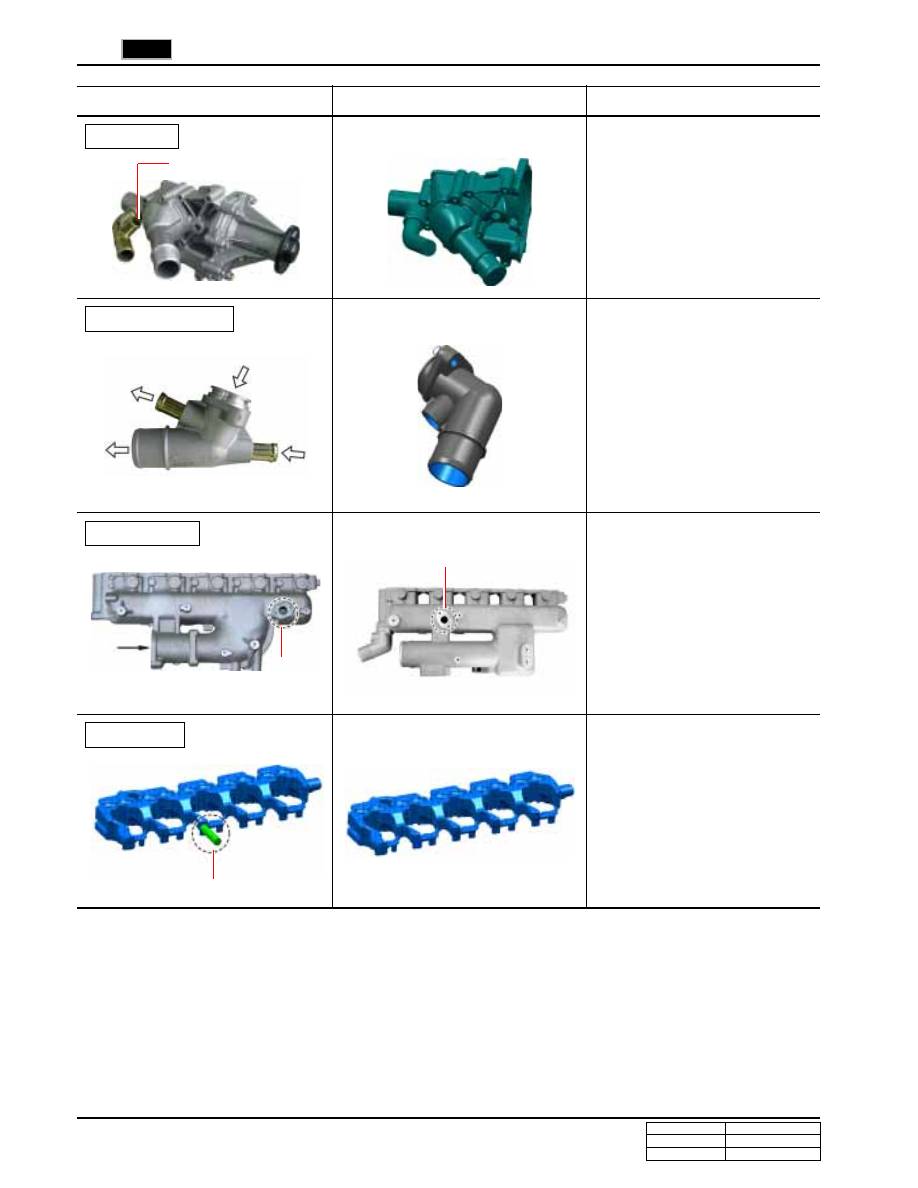

D27DTP (POWER UP) Engine

Remarks

D27DT Engine

* Version up

- D27DT: HFM5-CI

(Analog signal)

- D27DTP: HFM6-ID

(Digital signal added)

HFM 6.0

Electric controlled E-EGR valve

* E-EGR valve:

ECU controls the EGR valve
directly without any media. It
provide more precise EGR
control by transmitting the
electric signal of EGR valve
operating position.

HFM 5.0

Vacuum modulator controlled

EGR valve

Vacuum modulator

* D27DTP (POWER UP) engine

uses electric ally controlled E-
EGR valve. Thus, the vacuum
modulator for controlling EGR
valve has been deleted.

Throttle body

EGR cooler

* To enhance EGR function,

coolant EGR cooler is adopted
to reduce the temperature of
exhaust gas into the intake
manifold.

VGT turbo charger control

EGR valve for vacuum
modulator

Vacuum modulator for controlling
turbo charger actuator

* Throttle body is for future

regulation requiring emission
reductions. Currently, it is
used to prevent the engine
from turning off with fluttering
noise at the moment the air to
intake manifold is blocked by
closed flap when the engine is
switched off.

EGR center pipe

N/A

EGR Gas

Coolant

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1114

D27DT POWER UP ENGINE

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

D27DTP (POWER UP) Engine

Remarks

D27DT Engine

IOP oil pan

VGT turbocharger

E-EGR system layout

* Reason of changes

- To satisfy the emission

regulation, E-EGR valve and
EGR cooler are adopted.
And the layout also has a
great difference from D27DT.

EGR system layout

Oil pan

* The vehicle with D27DTP

(POWER UP) engine is
equipped with IOP axle. Refer
to the figure below.

IOP front axle

FL drive shaft

Intermediate shaft

IOP drive shaft connector

FR drive shaft

Front propeller shaft

Automatic

transmission

Oil pan

* D27DTP (POWER UP) engine

is equipped with the enhanced
VGT turbocharger.

WGT turbocharger

E-EGR valve

EGR cooler

Throttle
body

EGR valve

EGR center pipe

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1114

D27DT POWER UP ENGINE

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

D27DTP (POWER UP) Engine

Remarks

D27DT Engine

1.Support bar of Turbocharger

2.Oil supply pipe and return tube

of Turbocharger

* Support bar is changed due to

VGT turbocharger mounting.

Oil supply
pipe

Return

tube

Oil supply
pipe

Return

tube

* The shape of oil supply pipe

and return tube is changed due
to VGT turbocharger mounting.

PCV oil separator

* Increase of Oil separator

capacity (approx. 10%)

- D27DT: 120 /min

- D27DTP: 160 /min

Cylinder head cover

Blow-by gas
(To air duct
hose)

Cylinder

head cover

(oil + gas)

Oil (To oil gage
pipe)

PCV

valve

Oil separator

Blow-by gas
(To air duct hose)

Cylinder
head cover
(oil + gas)

Oil (To oil gage pipe)

PCV

valve

Oil

separator

* The direction of blow-by outlet

port is changed due to the
introduction of larger oil
separator.

Port

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1114

D27DT POWER UP ENGINE

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

D27DTP (POWER UP) Engine

Remarks

D27DT Engine

* For D27DTP engine:

Additional connecting port for
EGR cooler hose

Water pump

* For D27DTP (POWER UP)

engine: Additional port for
coolant of EGR cooler

Radiator upper
hose

EGR cooler

Cylinder head

Coolant outlet port

EGR cooler coolant
port

Intake manifold

Cylinder head

Throttle
body

Booster
pressure
sensor

Booster pressure sensor

* The appearance of intake

manifold is changed to the
round type due to the throttle
body. Also, the mounting
location of booster pressure
sensor is changed.

Coolant port

* The cooling port is added to

improve cooling performance
for D27DTP (POWER UP)
engine.
