GENERAL INFORMATION

D27DTP/D27DT (EU4)  SM - 2006.08

3

00

D27DTP/D27DT (EU4)

GENERAL

Unit: mm

DIMENSIONS

Top View

Side View

Front View

Rear View

1,870

1,540

2,820

4,720

1,760

(1,830)

1,570

1,550

1,540

2,820

4,720

1,760
(1,830)

1,870

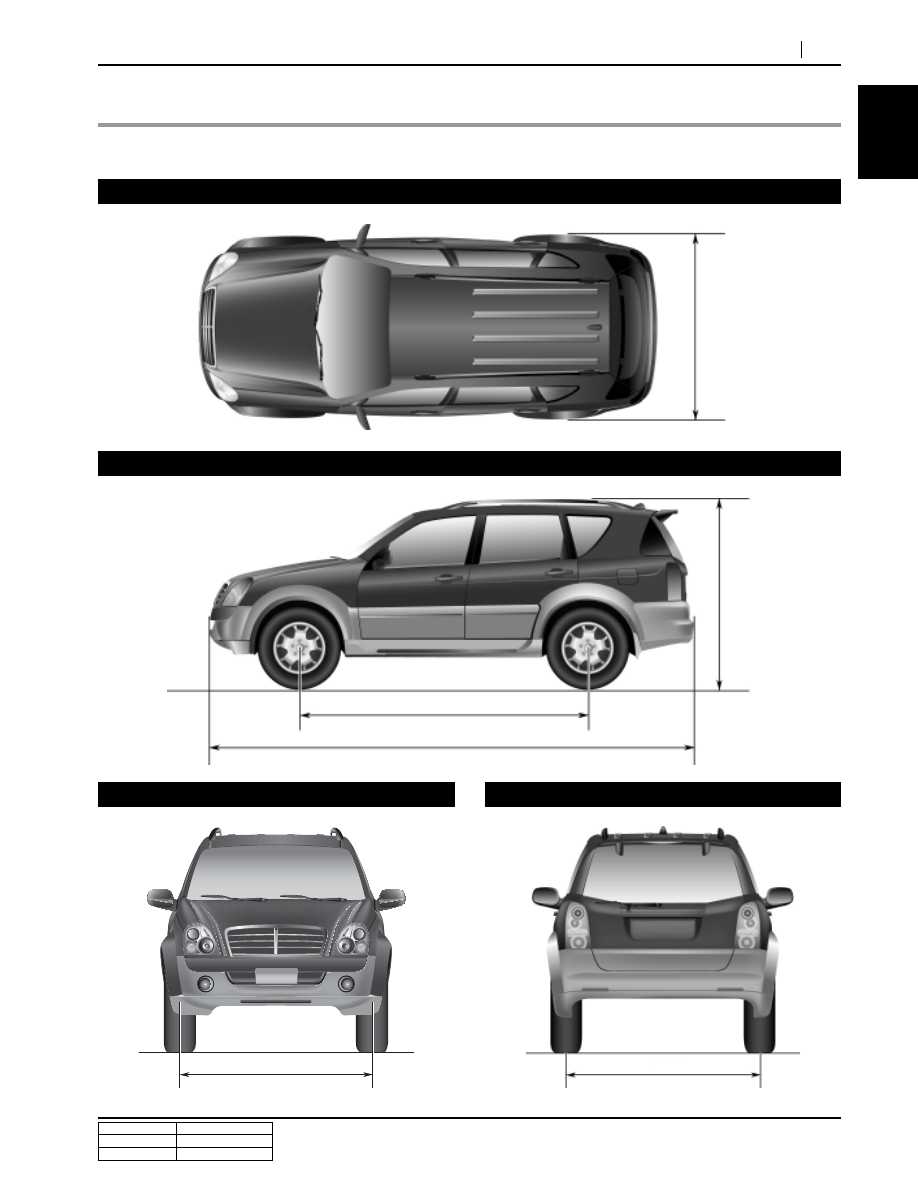

1. REXTON II

* (   ) : Optional

GENERAL INFORMATION

D27DTP/D27DT (EU4)  SM - 2006.08

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

4

00

D27DTP/D27DT (EU4)

Unit: mm

Top View

Side View

Front View

Rear View

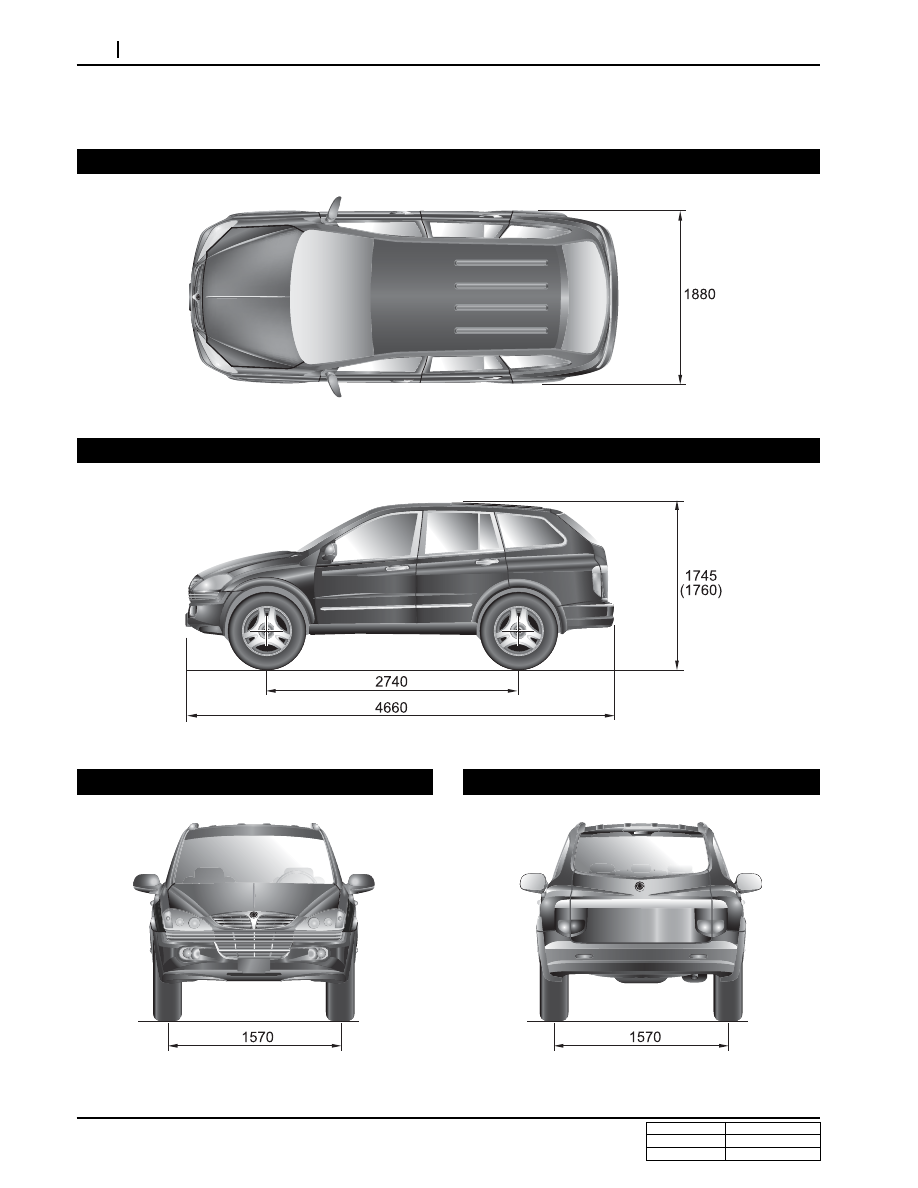

2. KYRON

* (   ) : Optional

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

D27DTP/D27DT (EU4)  SM - 2006.08

5

00

D27DTP/D27DT (EU4)

GENERAL

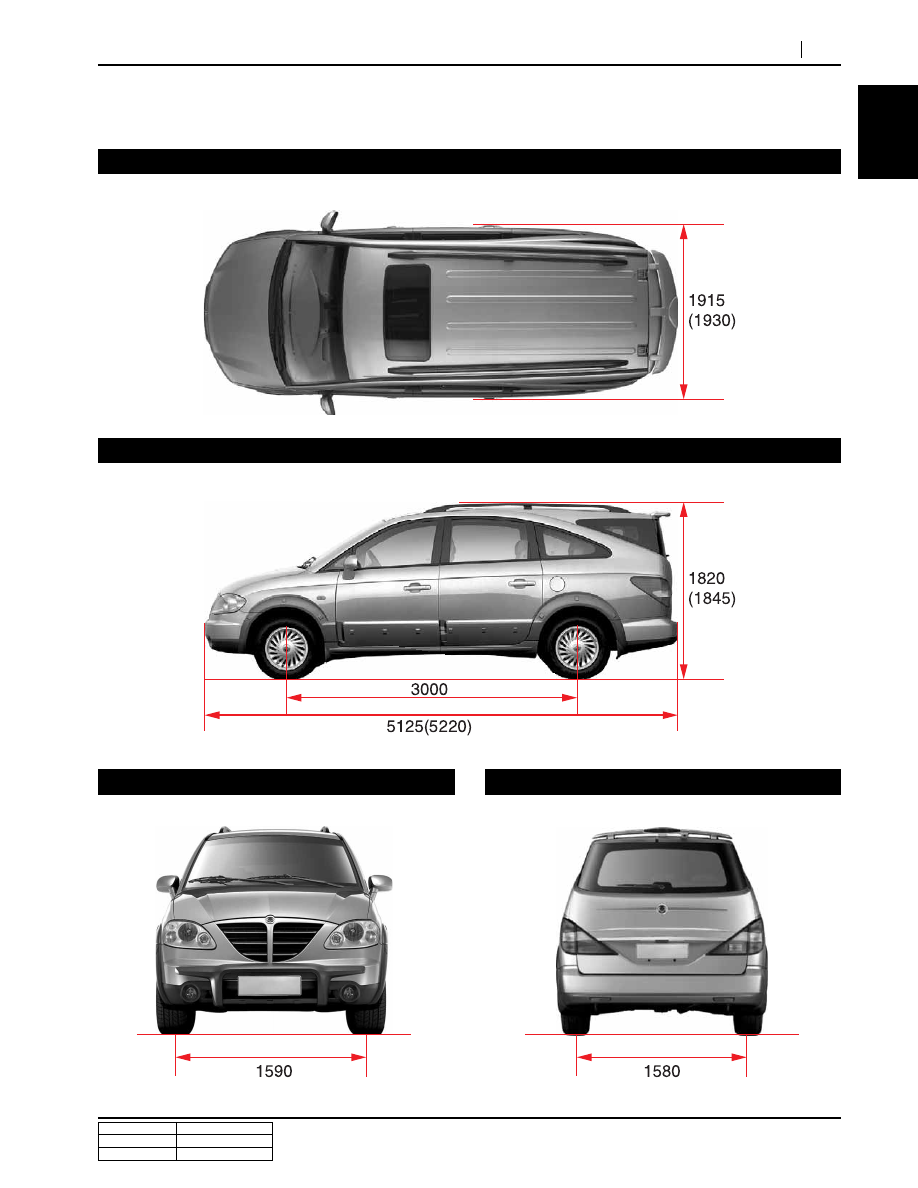

3. RODIUS / STAVIC

Unit: mm

Top View

Side View

Front View

Rear View

* (   ) : Optional

GENERAL INFORMATION

D27DTP/D27DT (EU4)  SM - 2006.08

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

6

00

D27DTP/D27DT (EU4)

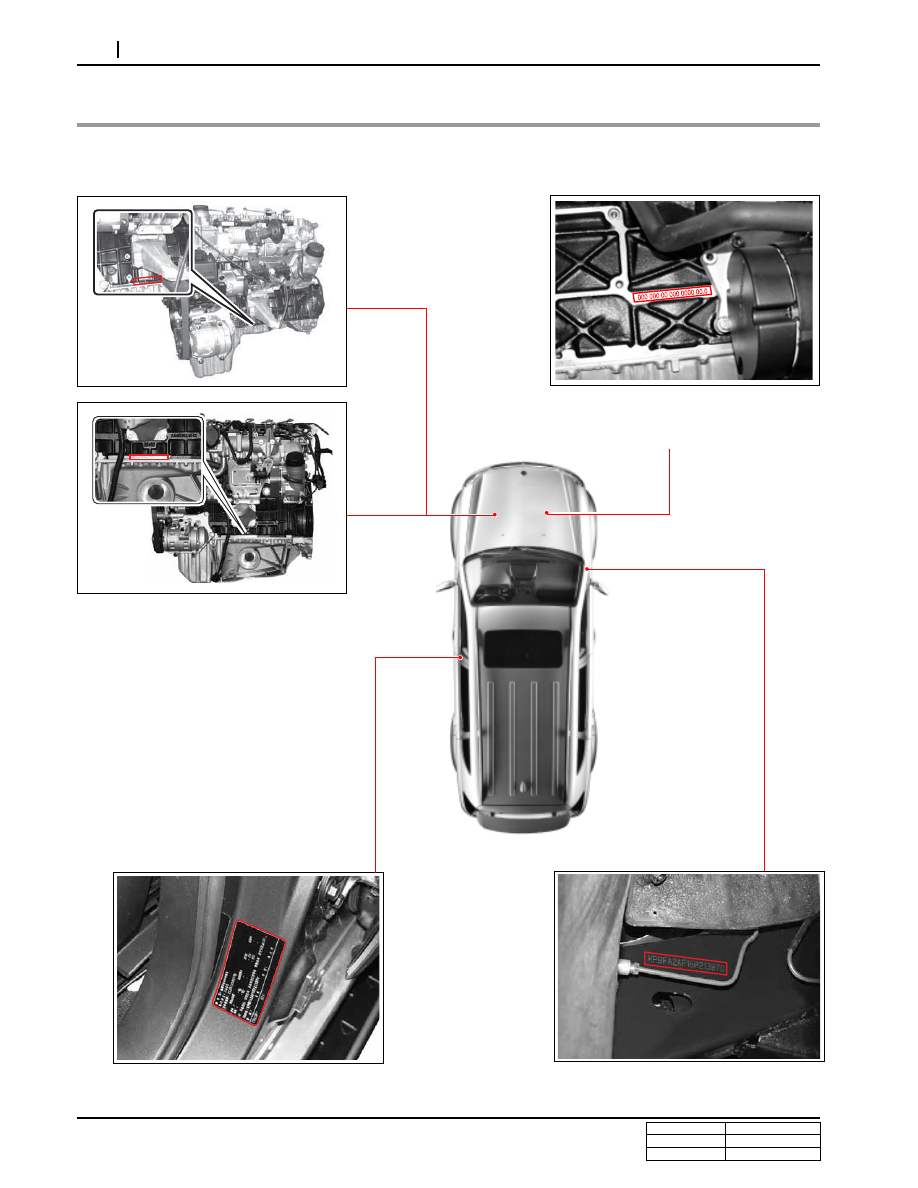

VEHICLE IDENTIFICATION

2. Chassis Number

The chassis number is stamped on the
frame behind the front right tire.

3. Certification Label

The certification label is located on the
driver’s door sill.

1. Engine Number

Gasoline Engine: The engine number is
stamped on the lower area of cylinder block
in exhaust manifold side.

Diesel Engine (D27DTP, D27DT):
The engine number is stamped on the
lower area of cylinder block behind the
Intake manifold.

D27DTP

D27DT
