Wiring Diagram for Power Supplies  4-3

Electrical Wiring Diagram

(LHD)

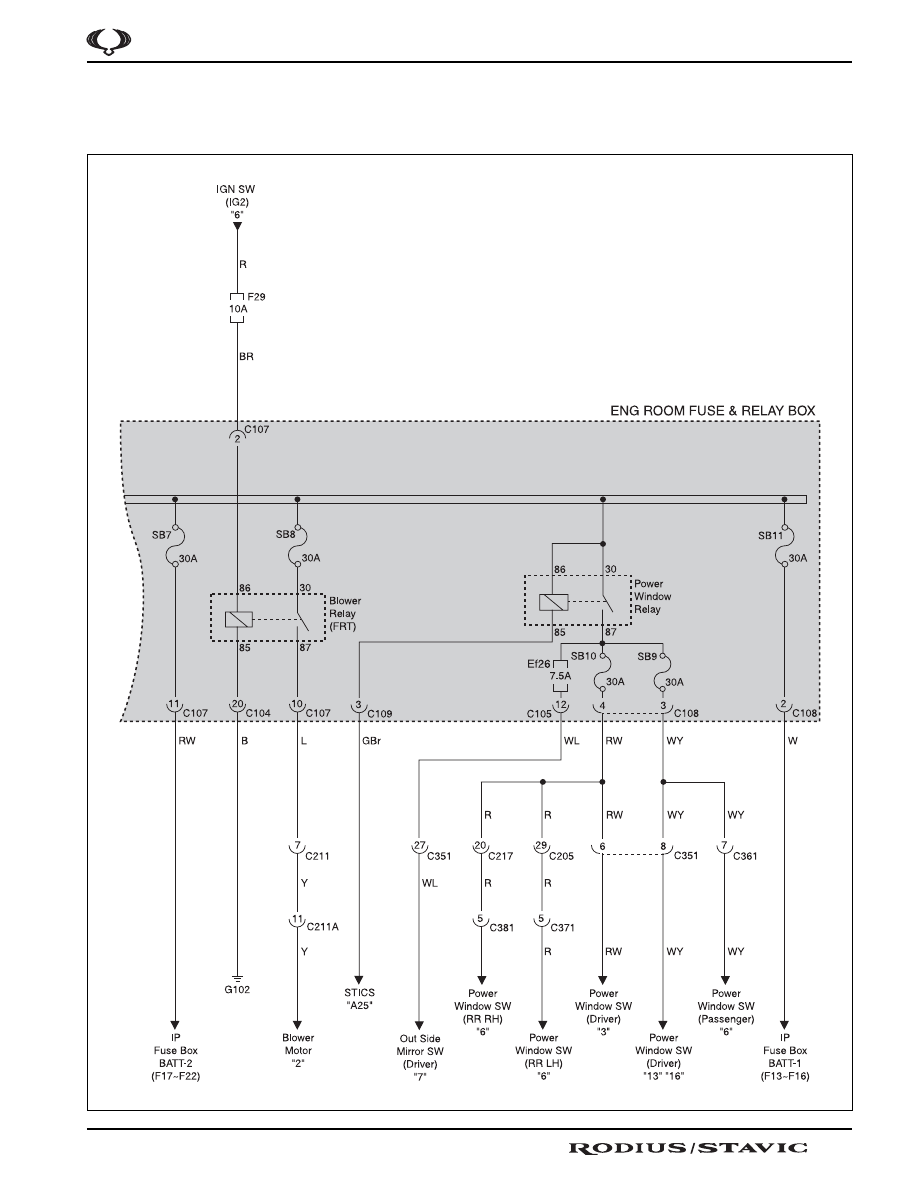

2) SB6 ~ SB11

4-4  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

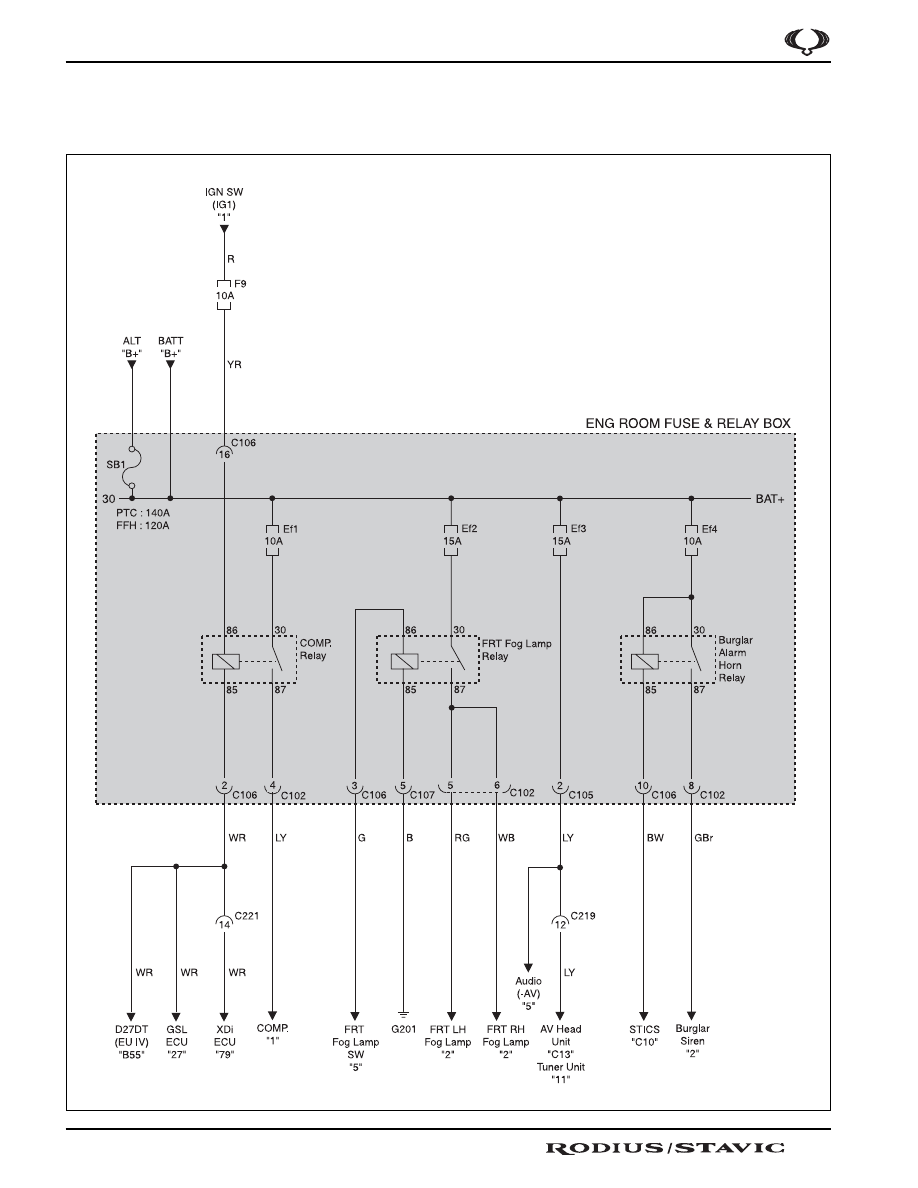

3) Ef1 ~ Ef4

Wiring Diagram for Power Supplies  4-5

Electrical Wiring Diagram

(LHD)

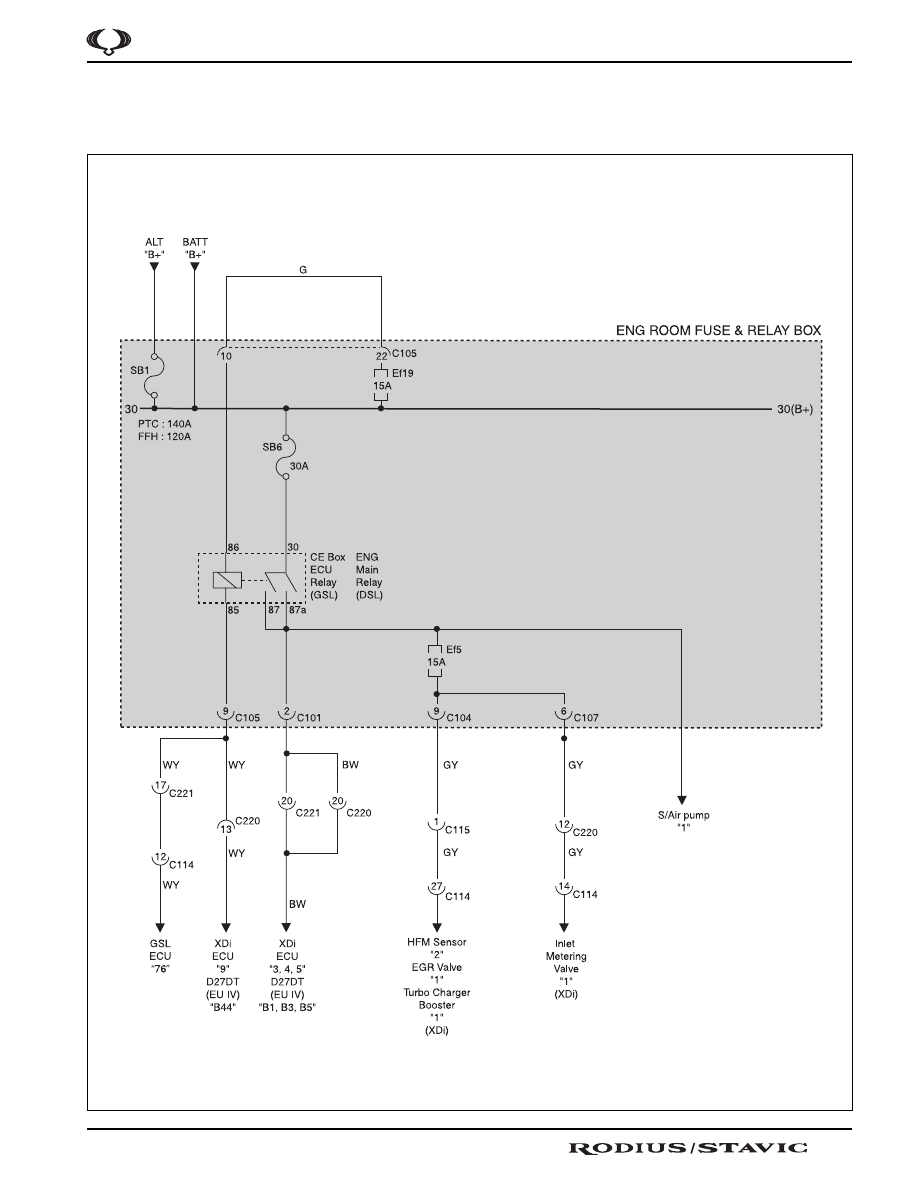

4) Ef5

4-6  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

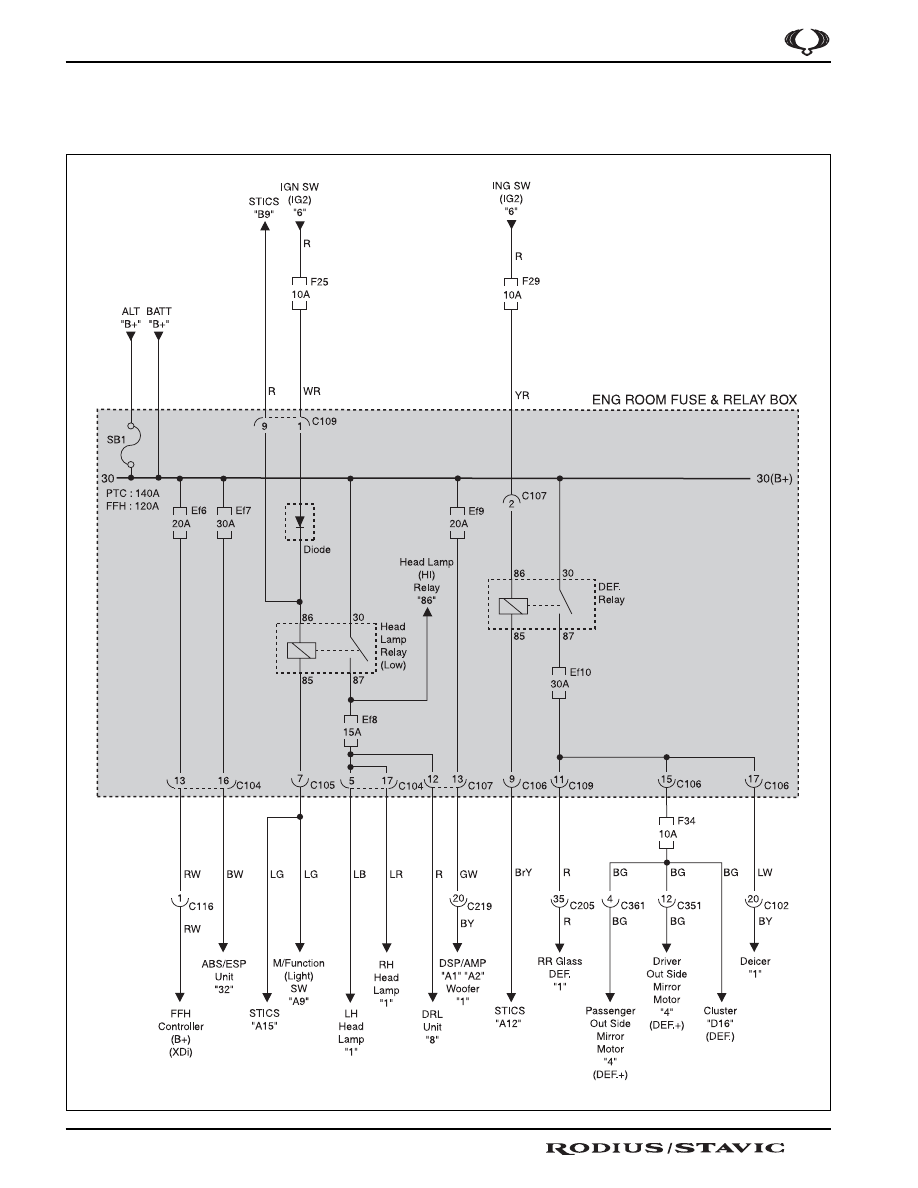

5) Ef6 ~ Ef10
