SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 456

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

58

5B

SUN ROOF

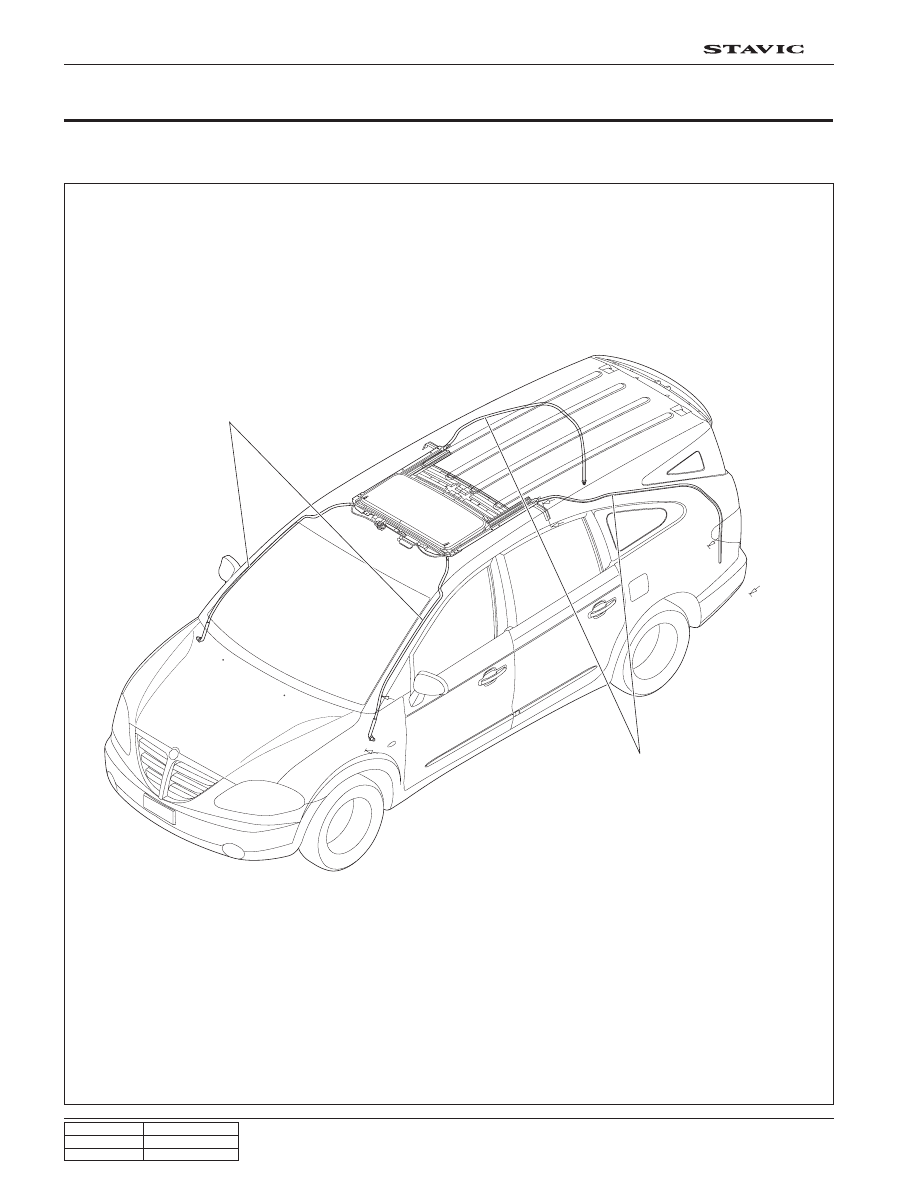

1. LAYOUT - SUN ROOF

Drain hose (Front)

Drain hose (Rear)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

59

5B

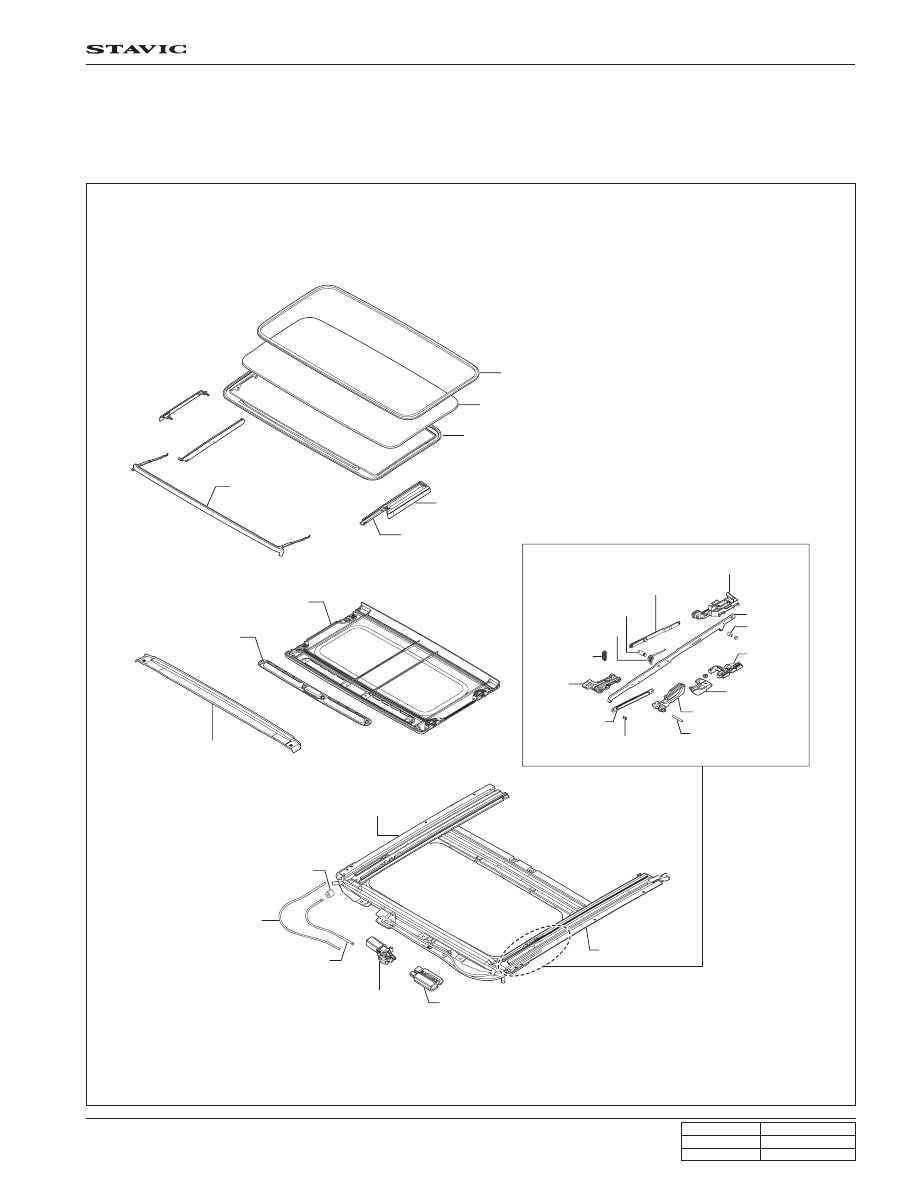

Wind deflector

Side cover - inner

Side cover - outter

Glass panel

Glass

Seal - glass panel

Sunshade assembly

Ventilation roof

Prain channel

Frame assembly

Seal - drive tube

Tube cable guide

Drive tube

Sunroof motor

Sunroof control unit

Frame assembly

Drain channel

support bar RH

Drain channel

support

Drain channel

support bar pin

Return spring

Front lever

spring

Front

lever LH

Retraction

bar

Pin

Main lever LH

Drain lever LH

Drain lever
Slider LH

Breed nail

Riret roll

Panel
curve on

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

60

5B

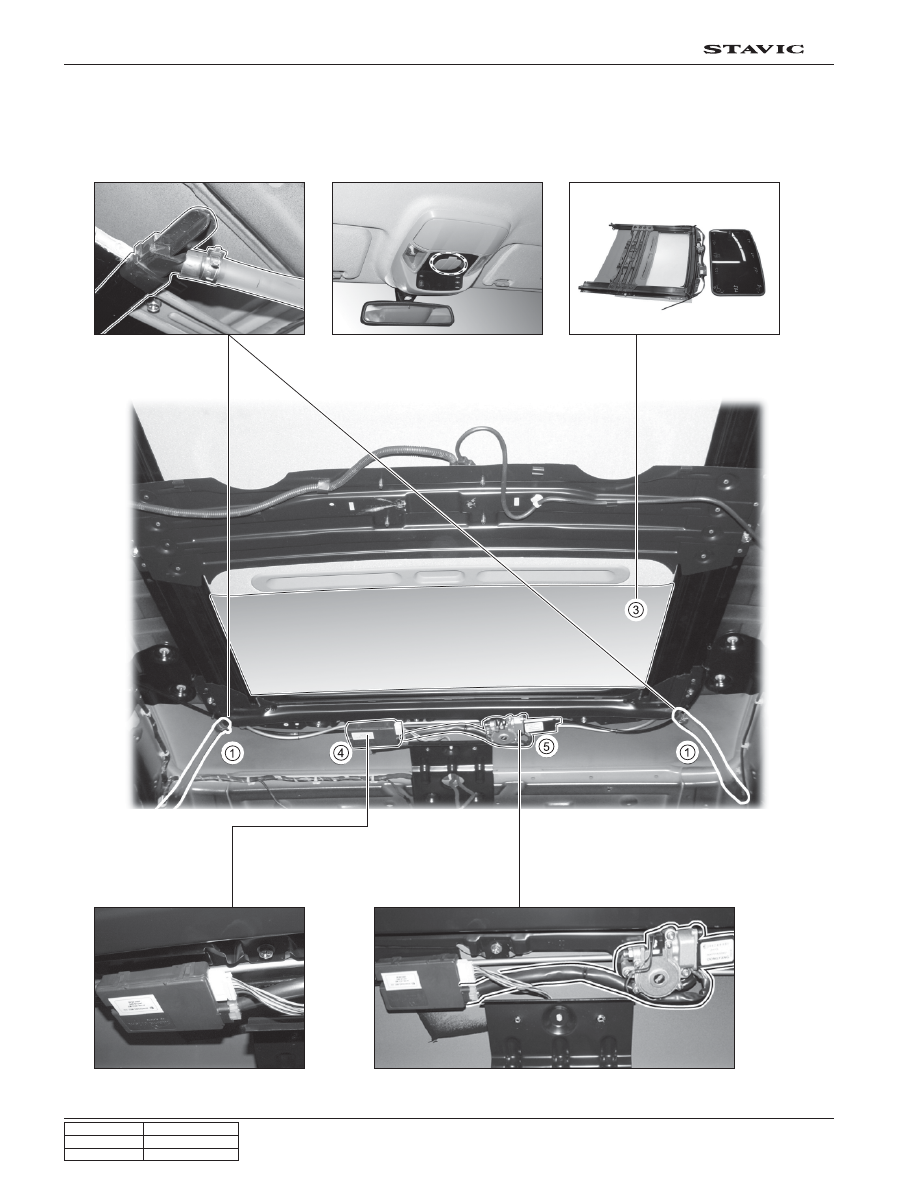

2. COMPONENTS AND LOCATIONS

1. Drain hose

3. Sun shade & glass

4. Control unit

5. Sun roof motor

2. Control switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

61

5B

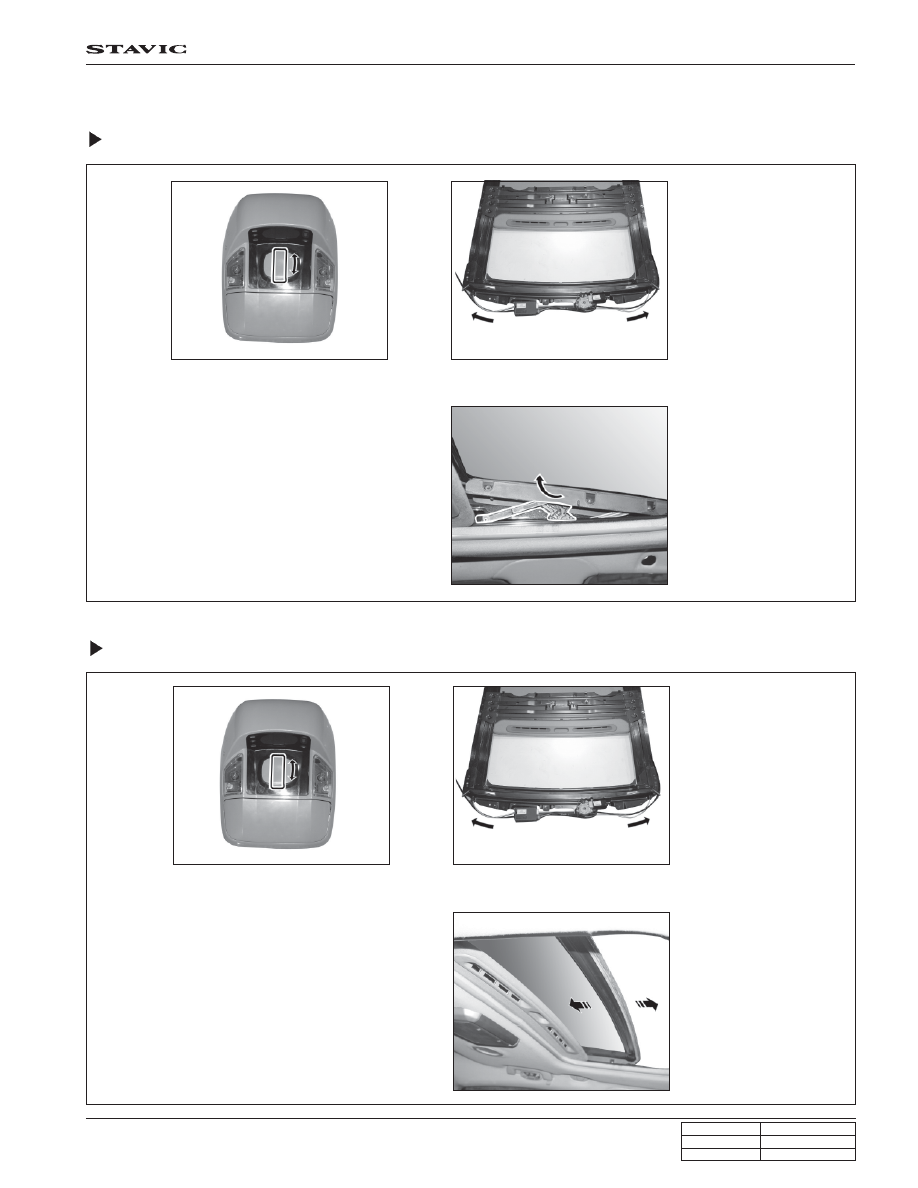

3. OPERATION

 Tilting

 Sliding

→

→

→

→

→

↓↓↓↓↓

→

→

→

→

→

↓↓↓↓↓

Push the front side of the button when the
glass is closed then, mtor actuate the op-
erating cable to lift up the glass. Push the
rear side of the button to put down the glass.

Motor actuates the
operating cable

Mechanical equip-
ment lifts up & down
the glass

Motor actuates the
operating cable

Mechanical equip-
ment slides the
glass back and forth

push the rear side of the button
to slide the door back.
