SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 427

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

22

5A

Upper anchor

Retractor

Buckle

Lower anchor

Upper anchor

Retractor

Buckle

Lower anchor

Height adjuster

Buckle

Lower anchor

Pretensioner

Upper anchor

Retractor

Buckle

Lower anchor

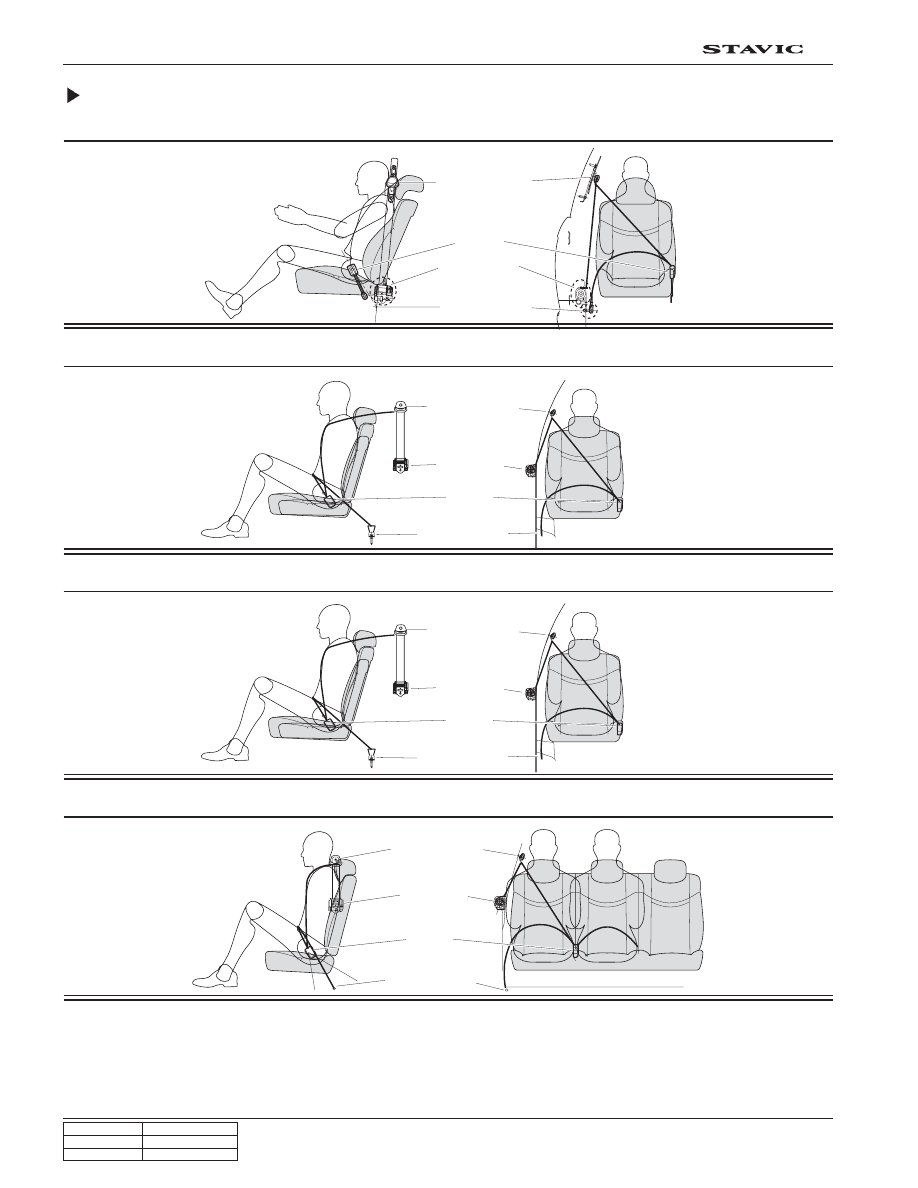

Rear 1st row (3 point)

Rear 3rd row (3 point + 2 point)

Rear 2nd row (3 point)

Front Seat Belt (3 point)

9 Passengers

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

23

5A

Upper anchor

Retractor

Buckle

Lower anchor

Height adjuster

Buckle

Lower anchor

Pretensioner

Upper anchor

Retractor

Buckle

Lower anchor

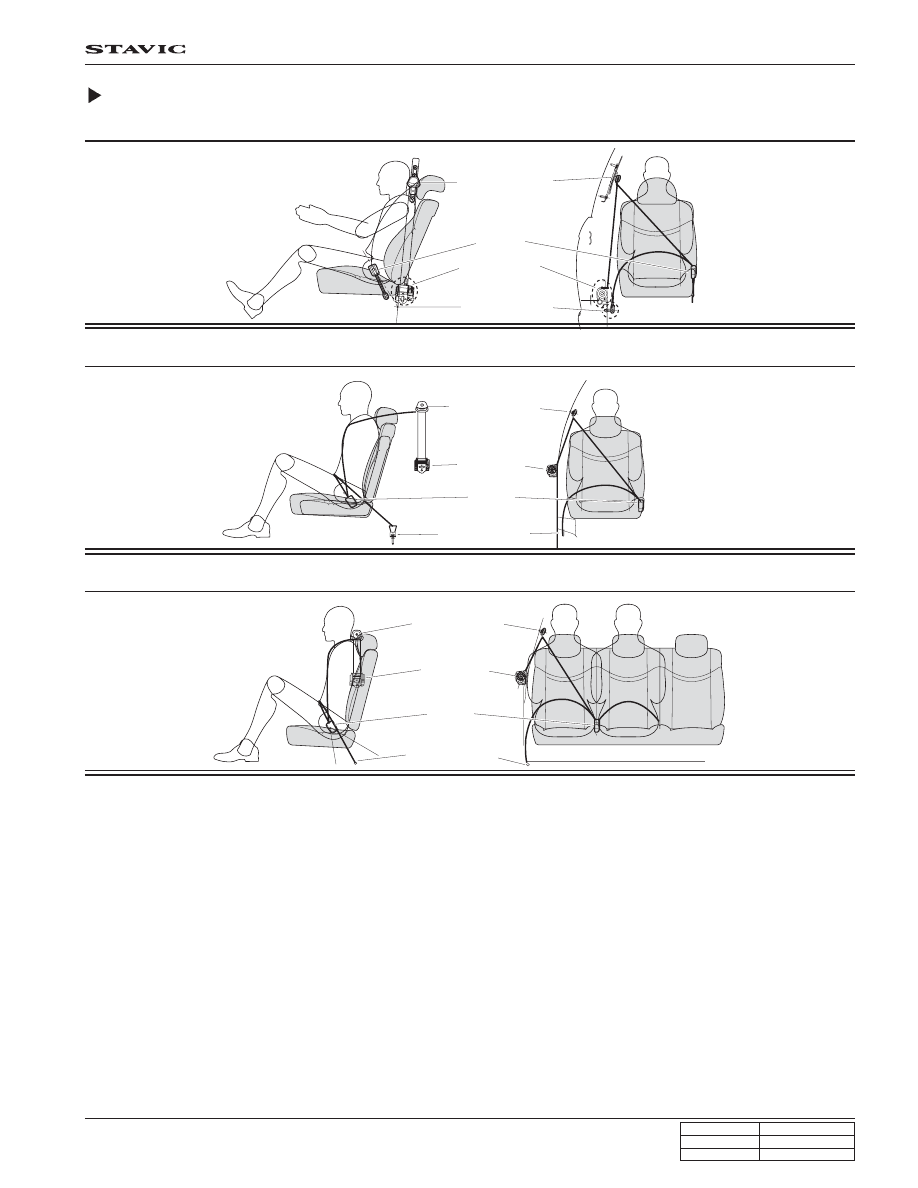

Rear 1st row (3 point)

Rear 2nd row (3 point + 2 point)

Front Seat Belt (3 point)

7 Passengers

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

24

5A

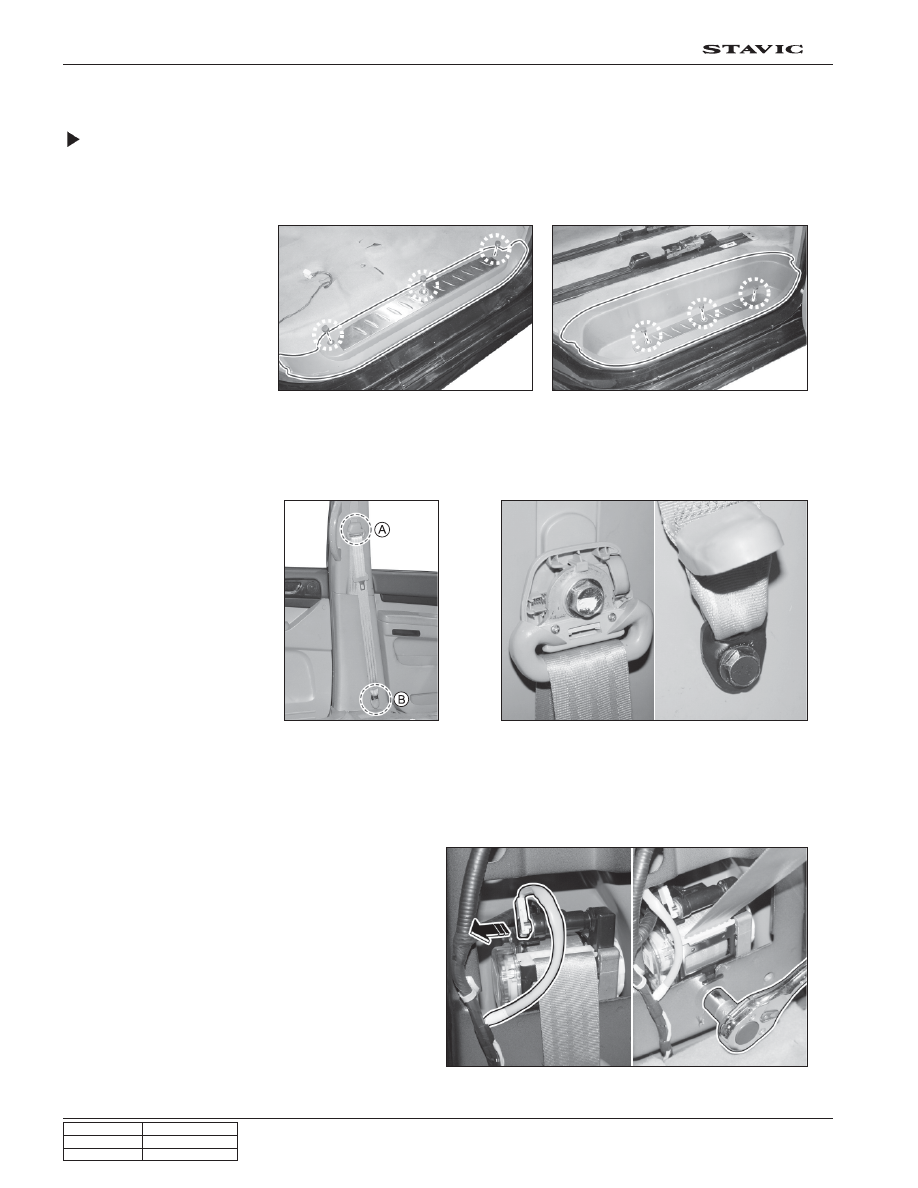

2. REMOVAL AND INSTALLATION - SEAT BELT

Seat Belt (3 point)

1) Front seat belt

1. Remove front & rear scarf trim. (screw - 6 EA)

Scarf trim

2. Unscrew seat belt upper / lower anchor bolts (17 mm - 2 EA) and remove the seat belt.

3. Disconnect the pretensioner connector and unscrew the mounting bolt

Pretensioner

Seat belt anchor

bolts

(B) Lower anchor

bolt

Front

Rear

(A) Upper anchor

bolt

○○○○○○○○○○○○○○○

○○○○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

25

5A

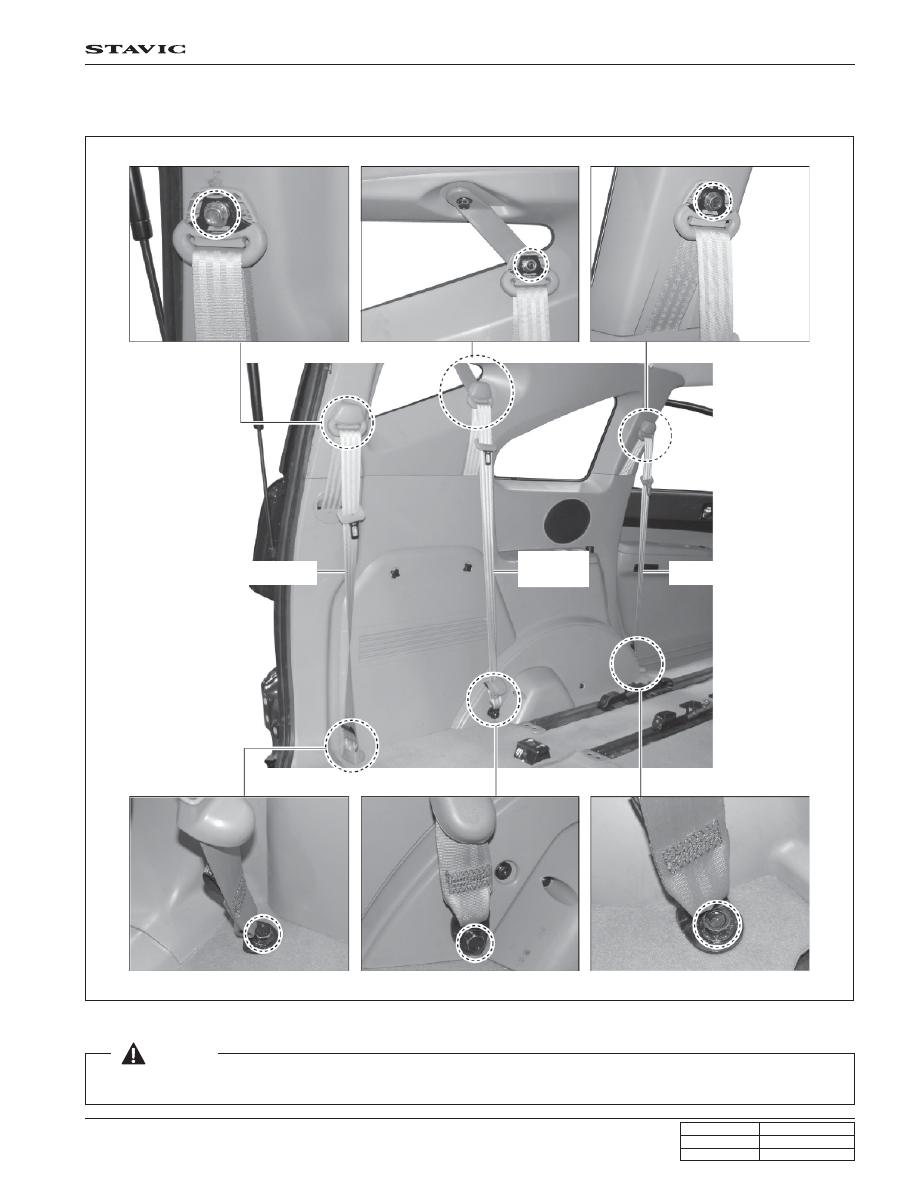

2) Rear 1st / 2nd / 3rd seat belt

1. Unscrew seat belt upper / lower mounting bolts.

Rear 3rd seat belt

Rear 2nd

seat belt

Rear 1st seat belt

 [Notice]

To remove rear 3rd row seat belt, remove the seat from vehicle first.
