SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 404

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

35

BRAKE - GENERAL

STAVIC - 2004.09

4J

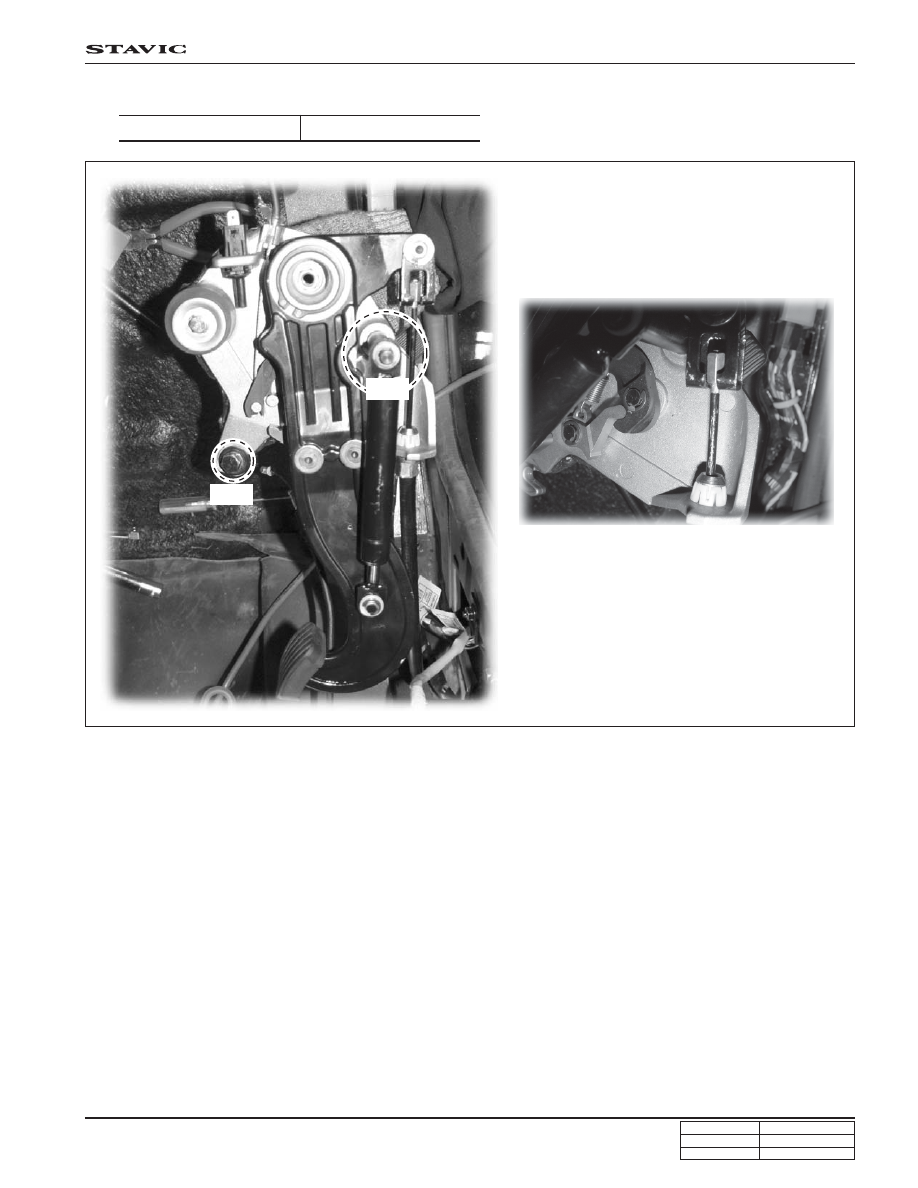

4. Remove pedal assembly mounting bolts (12 mm) & nuts (12 mm).

Tightening torque

10 ~ 14 Nm

Bolt

Nut

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

36

BRAKE - GENERAL

STAVIC - 2004.09

4J

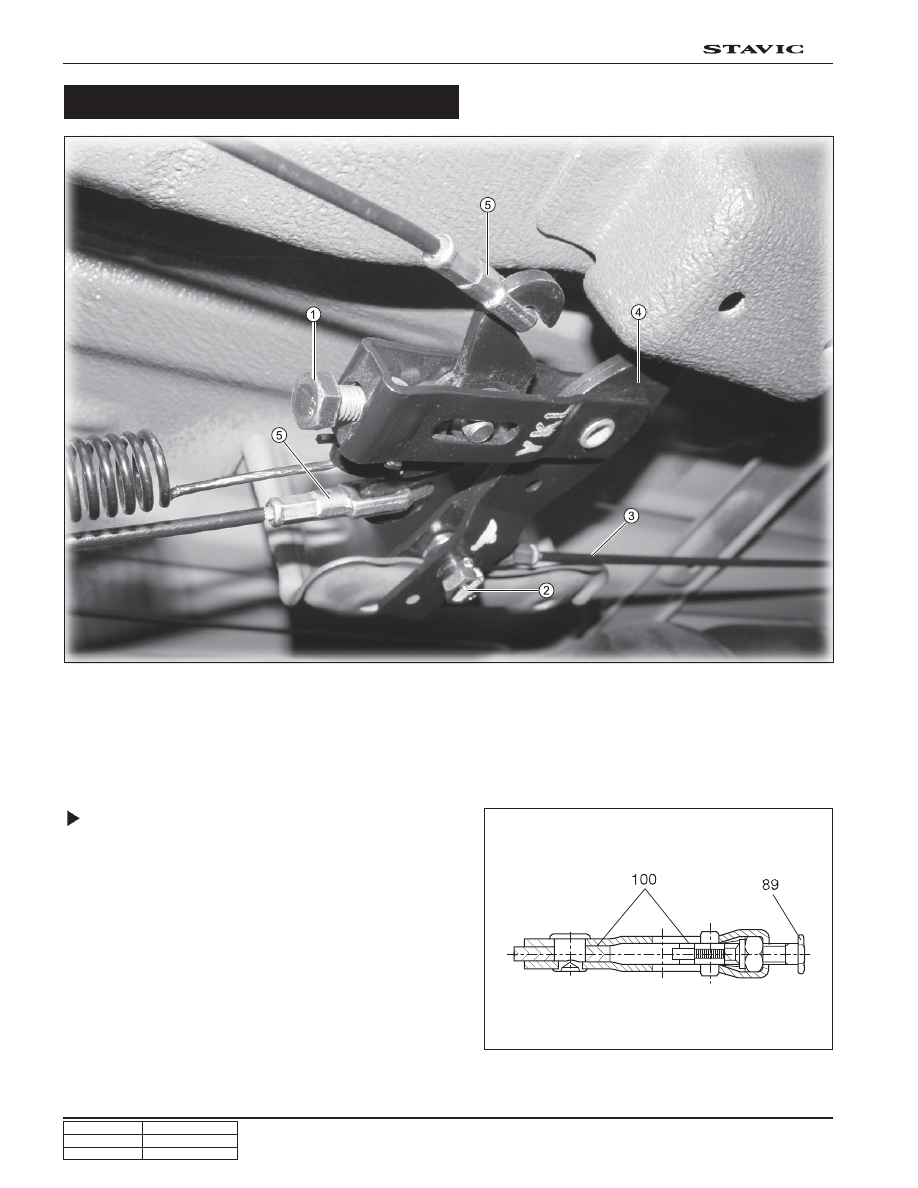

1. Remove the equalizer adjustment bolt (1).

2. Unscrew the mounting bolt (2) in equalizer lever and disconnect front brake cable (3).

3. Disassemble equalizer lever (4) from frame floor mounting.

4. Disconnect rear brake cable (5) and disassemble the equalizer.

Adjustment

1. Park the vehicle on the car lift and set blocks under front

tires.

2. Place the shift lever to “N” (A/T) or “Neutral” (M/T).

3. Release the parking brake.

4. Lift the rear wheels with supplementary lift.

5. Check the brake force as rotating the wheels - specified

hand brake notch : 5

6. If the brake force is not made enough, adjust the parking

brake adjust nut in the brake drum.

Equalizer Assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

37

BRAKE - GENERAL

STAVIC - 2004.09

4J

Components

Removal and Installation

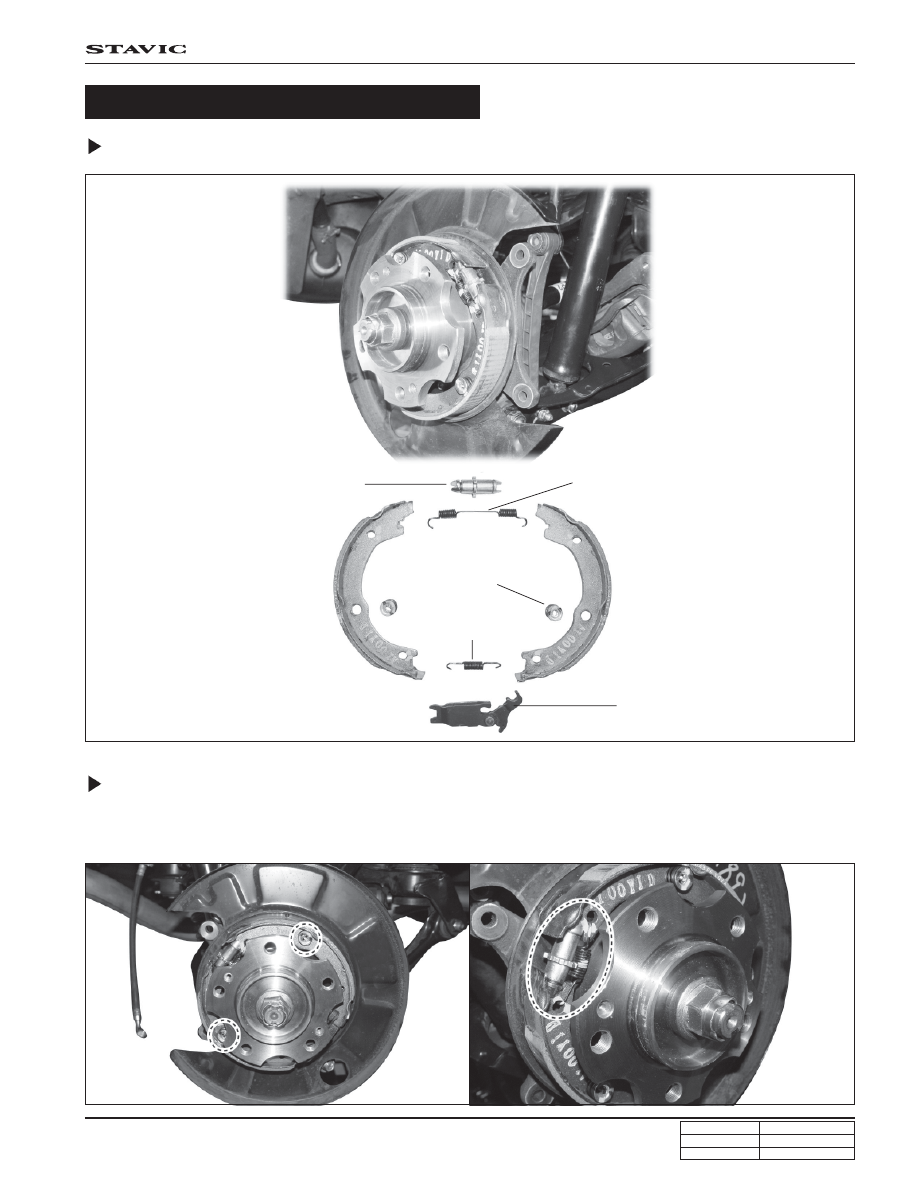

1. Remove shoe holding spring (2 EA) with plier.

2. Remove upper return spring & adjust bolt.

Adjusting bolt

Operating lever

Return spring - lower

Shoe holding spring

Return spring - upper

Parking Brake Shoe

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

38

BRAKE - GENERAL

STAVIC - 2004.09

4J

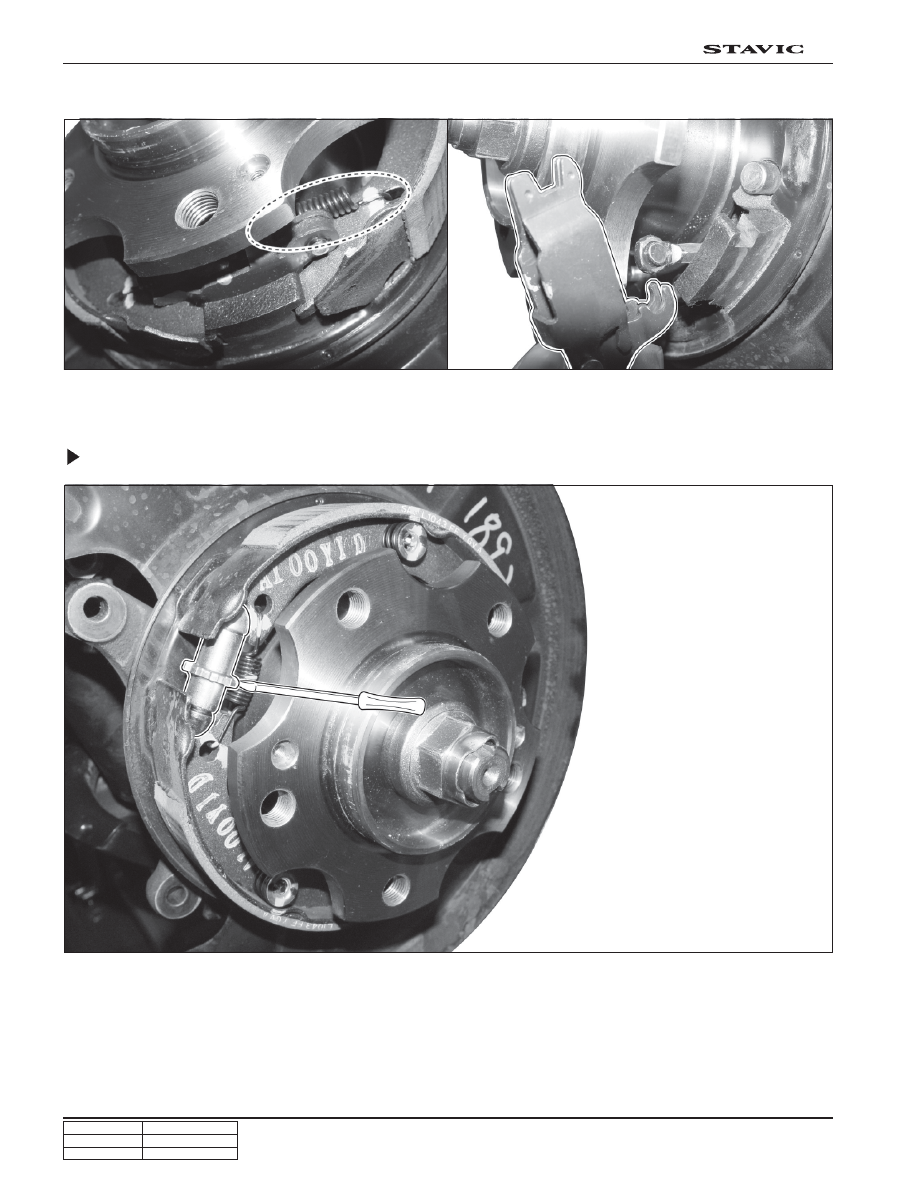

1. Have the brake shoe contact the inner face of brake disk by winding the brake adjust bolt using a tool (screw

driver), and then, unscrew the bolt by 4 ~ 5 notch. (Clearance between brake disk and brake shoe : 0.2 mm)

2. Check if the wheel become locked when brake force is applied.

Adjustment

3. Remove lower return spring and disassemble sperating lever from brake cable.

4. Install in the reverse order of removal.
